Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

13 part groups · 2 illustrations

Illustrations

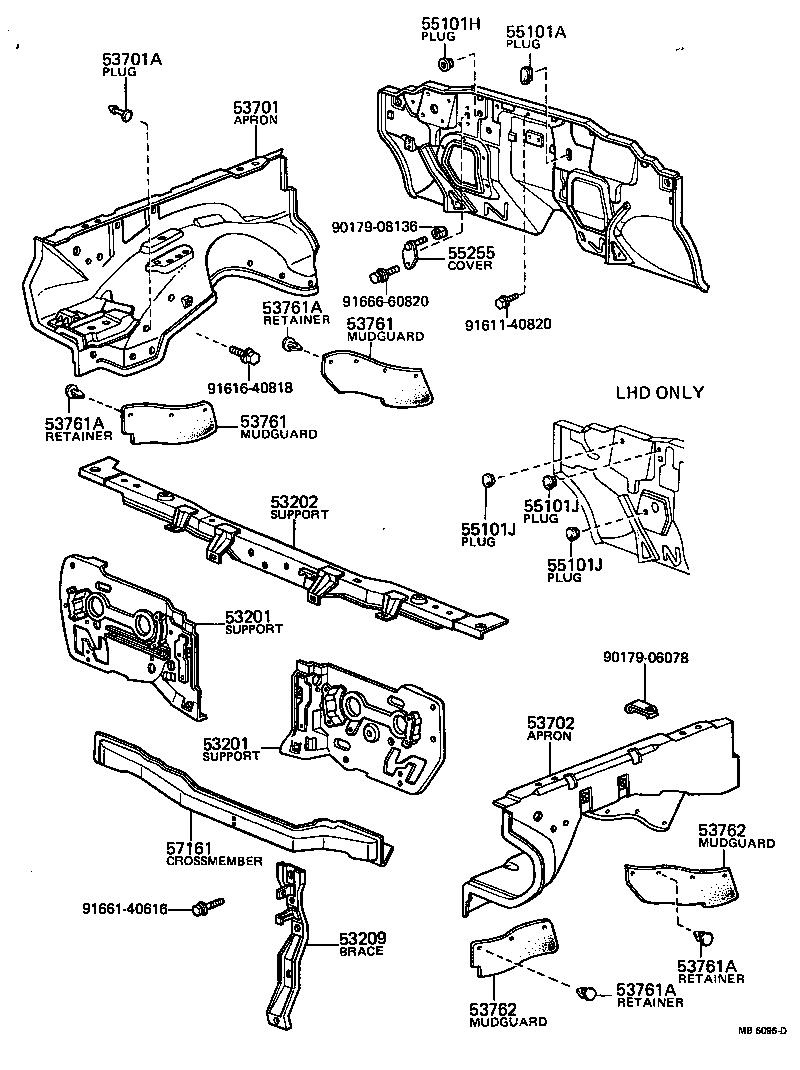

Figure MB6095A MB6095A 1972-05 → 1974-08 Figure MB6096D MB6096D 1974-08 → 1978-07

Part groups

PNCDescription
53201 Support Sub-assy, Radiator
53202 Support Sub-assy, Radiator, RH
53209 Brace Sub-assy, Hood Lock
53701 Apron Sub-assy, Front Fender, RH
53701A Plug, Hole(FOR FRONT FENDER APRON)
53702 Apron Sub-assy, Front Fender, LH
53761 Mudguard, RH
53761A Retainer(FOR MUDGUARD)
53762 Mudguard, LH
55101A Plug, Hole, NO.1(FOR DASH PANEL)
55101H Plug, Hole, NO.2(FOR DASH PANEL)
55101J Plug, Hole, NO.3(FOR DASH PANEL)
55255 Cover, Clutch Master Cylinder Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
