Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

22 part groups · 2 illustrations

Illustrations

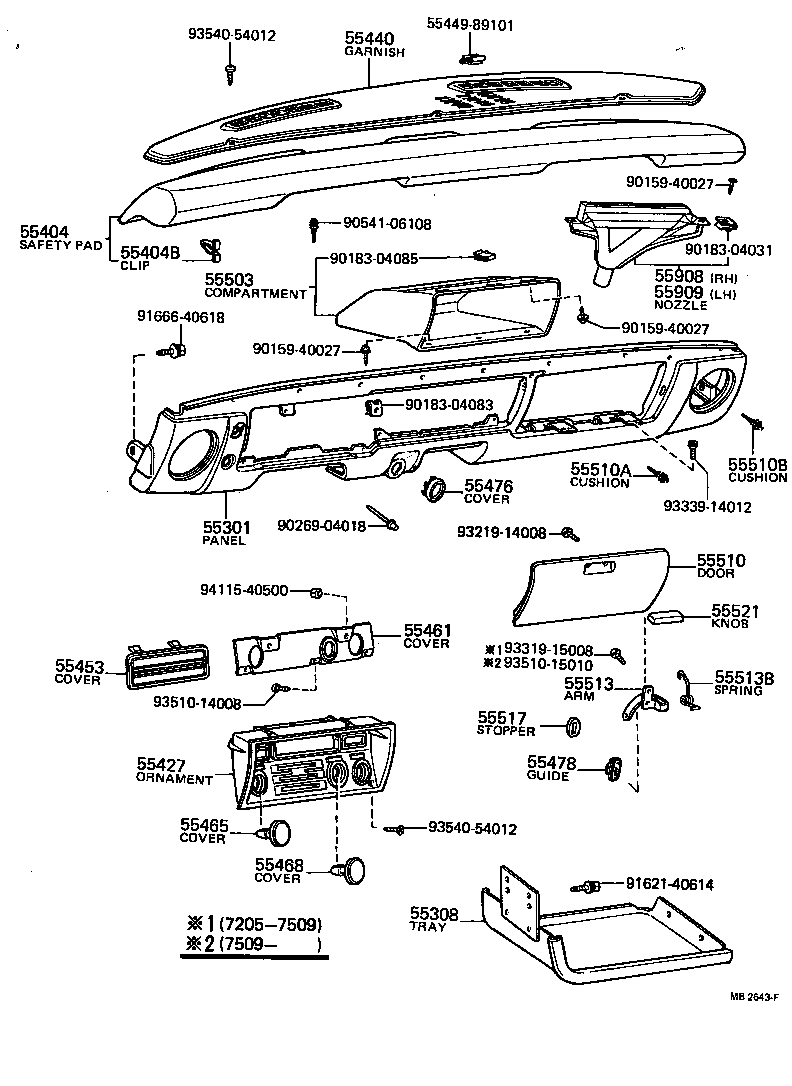

Figure MB2612F MB2612F 1972-05 → 1978-07 Figure MB2643F MB2643F 1972-05 → 1978-07

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55308 Tray Sub-assy, Instrument Panel Under
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55404B Clip, Safety Pad Set
55427 Ornament, Instrument Panel, Center
55440 Garnish, Instrument Panel, Center
55453 Cover, Radio Tuner Opening
55461 Cover, Heater Control Hole
55465 Cover, Instrument Hole
55468 Cover, Heater Switch Hole
55476 Cover, Cigarette Lighter Hole
55478 Guide, Glove Compartment Door Check Arm Hole
55503 Compartment Sub-assy, Glove
55510 Door Assy, Glove Compartment
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55510B Cushion(FOR GLOVE COMPARTMENT DOOR)
55513 Arm, Glove Compartment Door Check
55513B Spring, Torsion(FOR GLOVE COMPARTMENT DOOR CHECK ARM)
55517 Stopper, Glove Compartment Door Arm
55521 Knob, Glove Compartment Door
55908 Nozzle Sub-assy, Defroster, RH
55909 Nozzle Sub-assy, Defroster, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
