Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

21 part groups · 6 illustrations

Illustrations

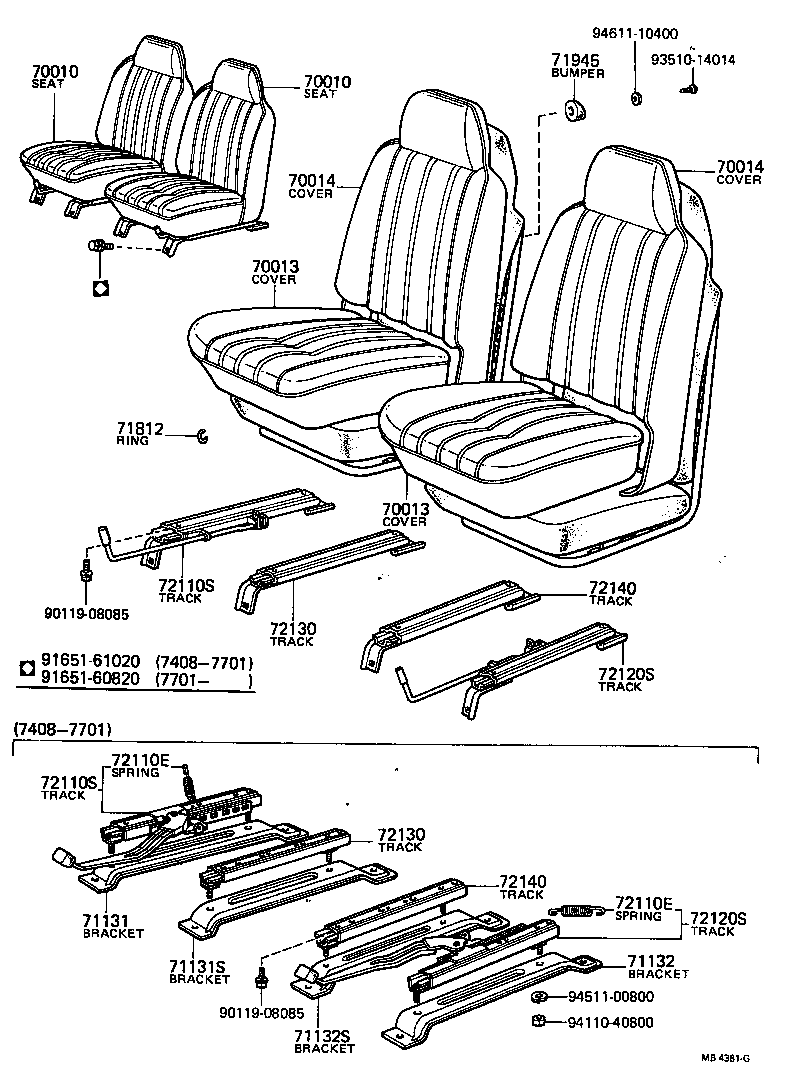

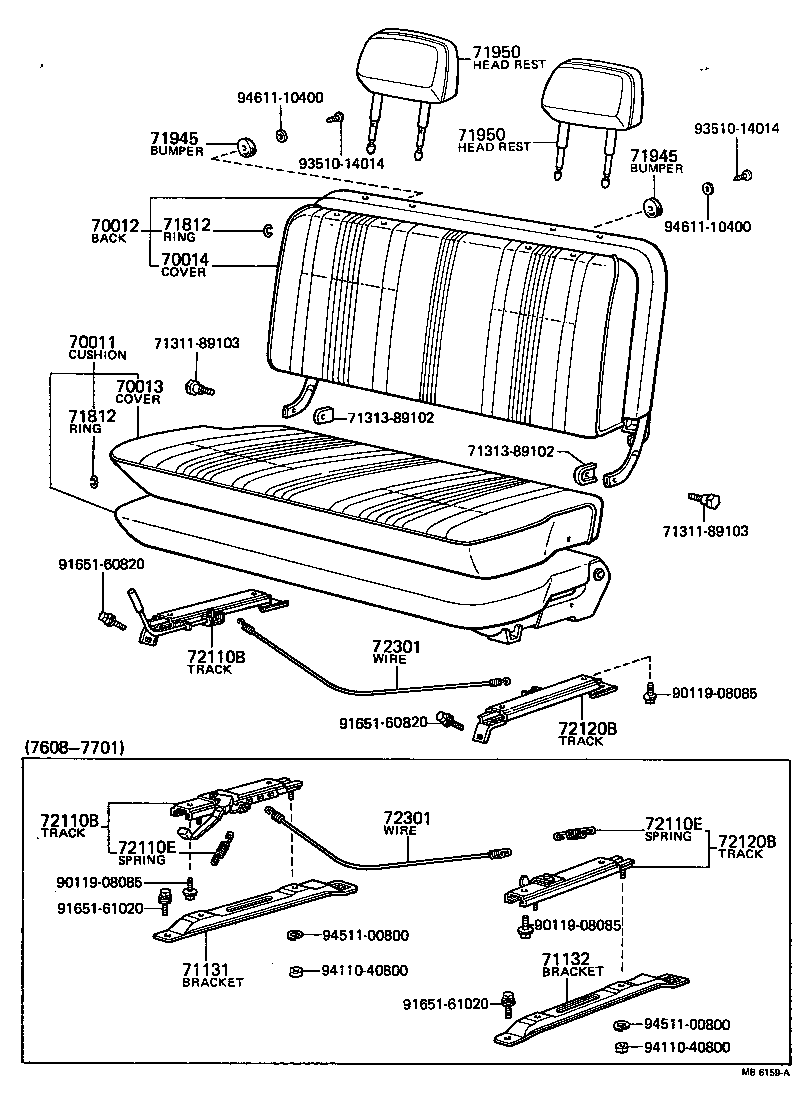

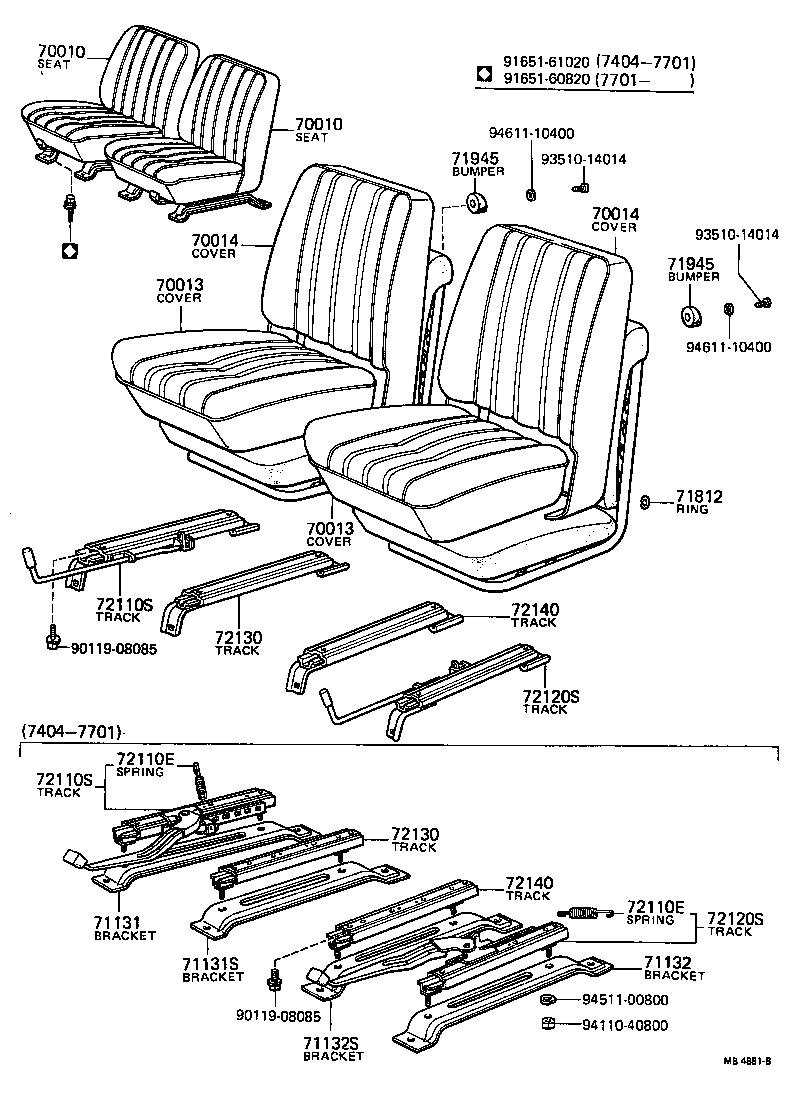

Figure MB4787C MB4787C 1972-05 → 1976-08 Figure MB6159A MB6159A 1976-08 → 1978-07 Figure MB6159A MB6159A 1976-08 → 1978-08 Figure MB4381G MB4381G 1976-05 → 1978-07 Figure MB4381G MB4381G 1977-02 → 1978-07 Figure MB4881B MB4881B 1974-04 → 1978-07

Part groups

PNCDescription
70010 Seat Assy, NO.1
70011 Cushion Assy, NO.1 Seat
70012 Back Assy, NO.1 Seat
70012D Stopper(FOR SEATBACK)
70013 Cover Assy, NO.1 Seat Cushion
70014 Cover Assy, NO.1 Seatback
71131 Bracket, Front Seat Set, Outer RH
71131S Bracket, Front Seat Set, Inner RH
71132 Bracket, Front Seat Set, Outer LH
71132S Bracket, Front Seat Set, Inner LH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71945 Bumper, Seatback
71950 Headrest Assy, Front Seat
72110B Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110E Spring, Tension, NO.1 (FOR SEAT TRACK)
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120B Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130 Track Assy, RH Seat, Inner
72140 Track Assy, LH Seat, Inner
72301 Wire Sub-assy, Seat Track Equalizing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
