Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

7 part groups · 2 illustrations

Illustrations

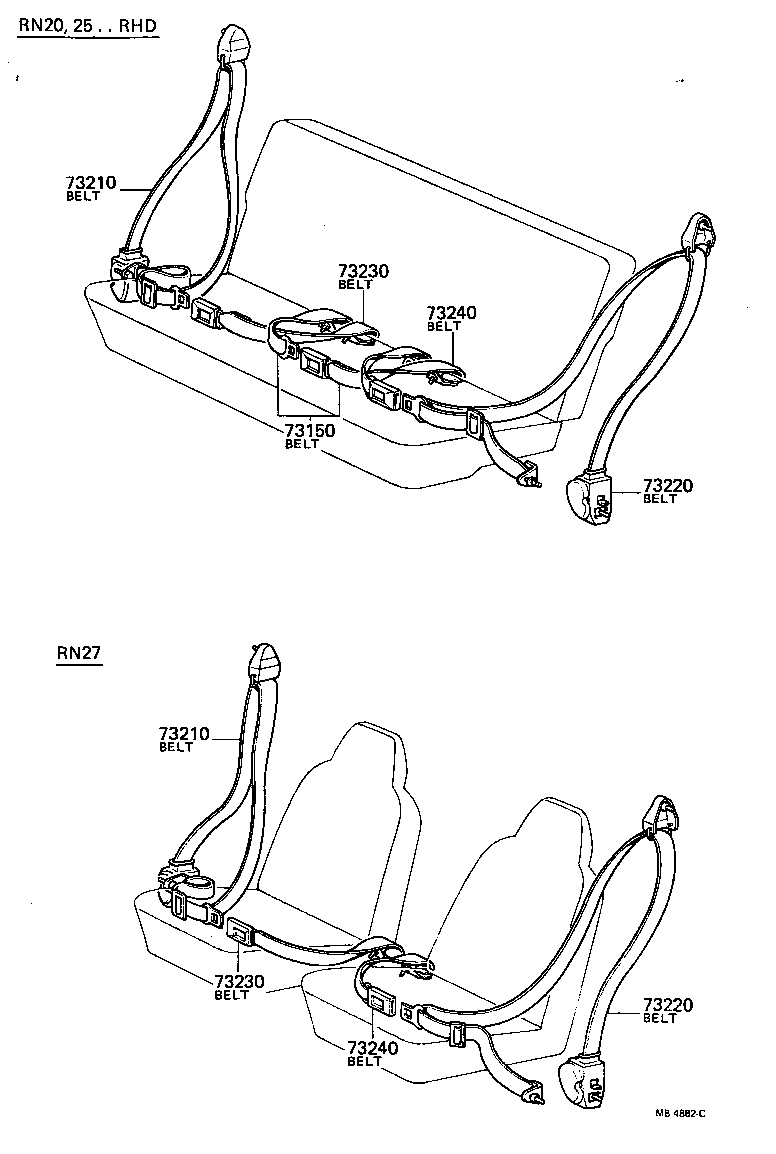

Figure MB2650C MB2650C 1972-05 → 1978-07 Figure MB4882C MB4882C 1975-04 → 1978-07

Part groups

PNCDescription
73110 Belt Assy, Front Seat 3 Point Type, RH
73120 Belt Assy, Front Seat 3 Point Type, LH
73150 Belt Assy, Front Seat Lap Type, Center
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
