Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

30 part groups · 7 illustrations

Illustrations

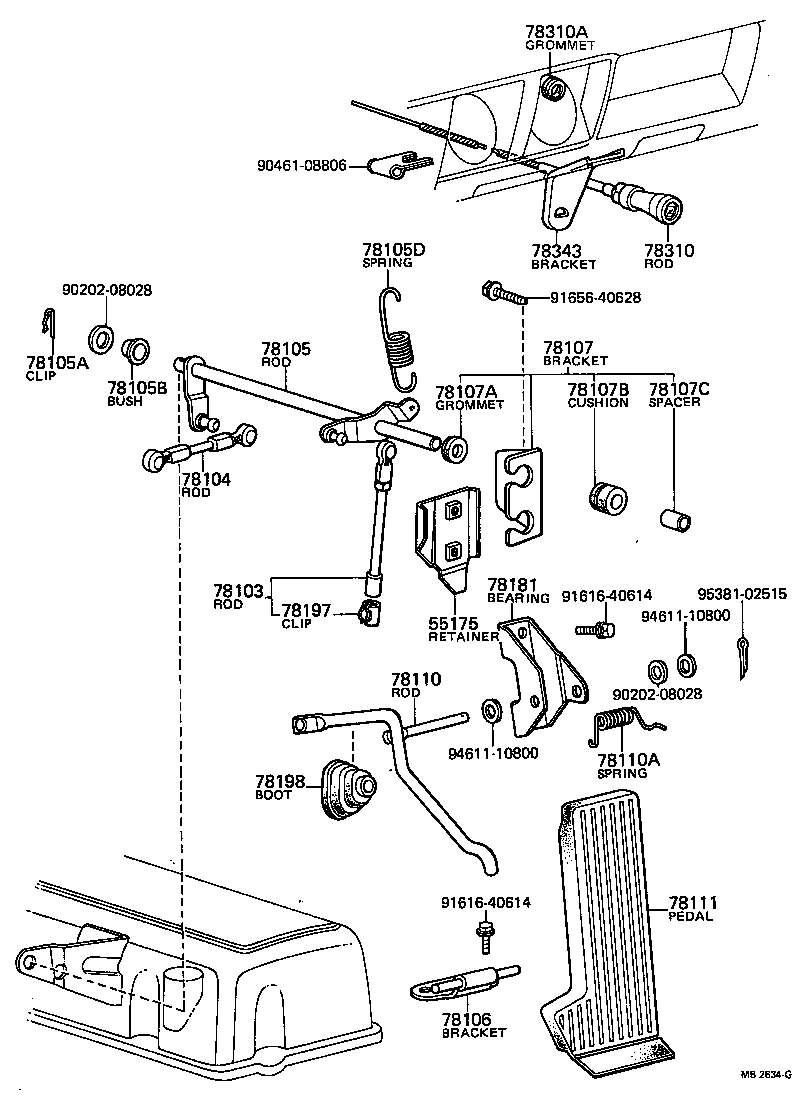

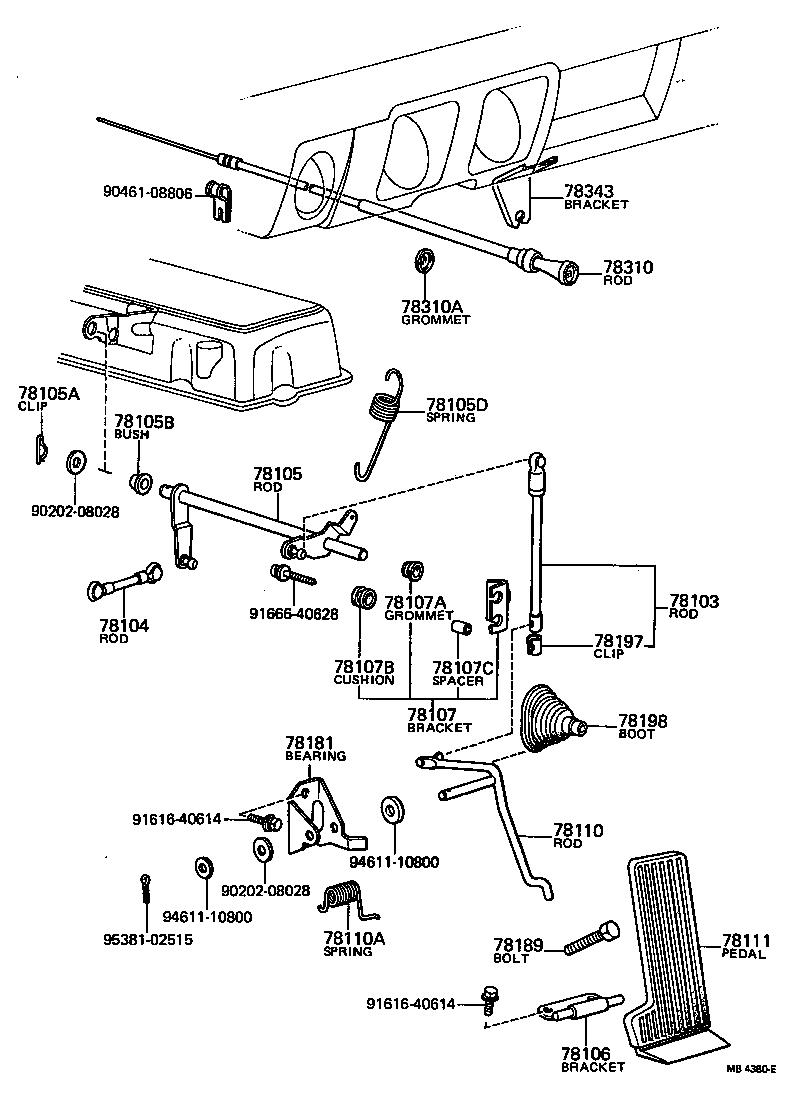

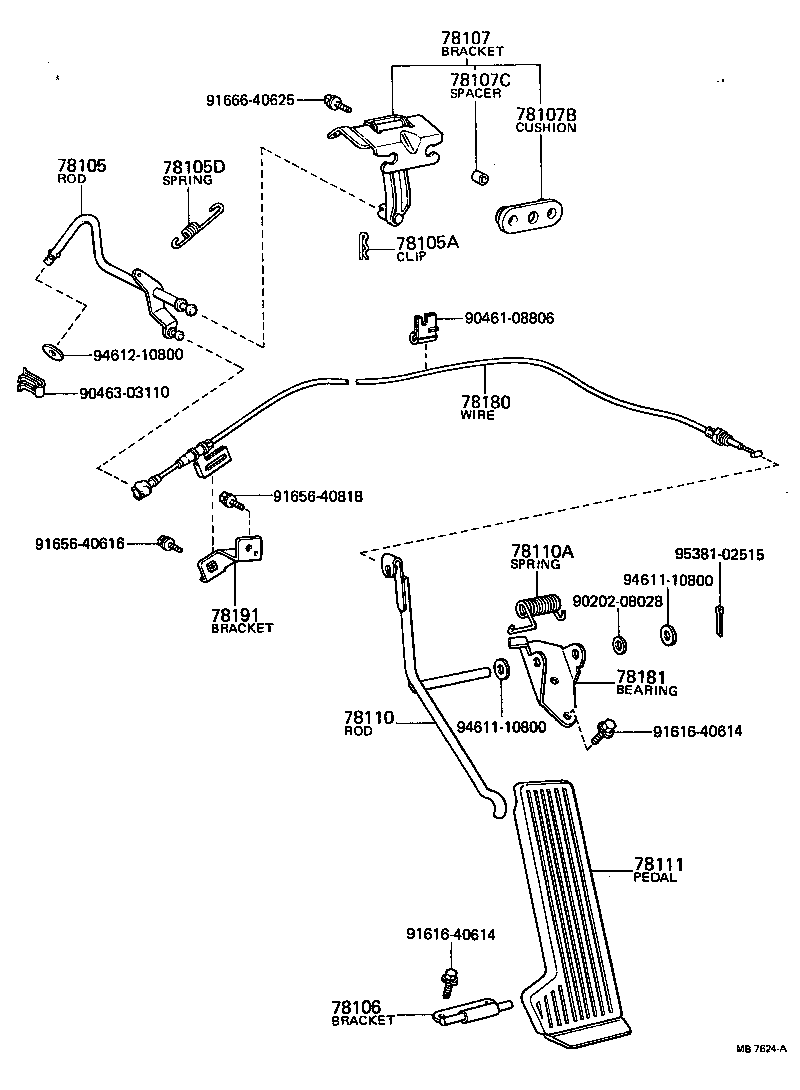

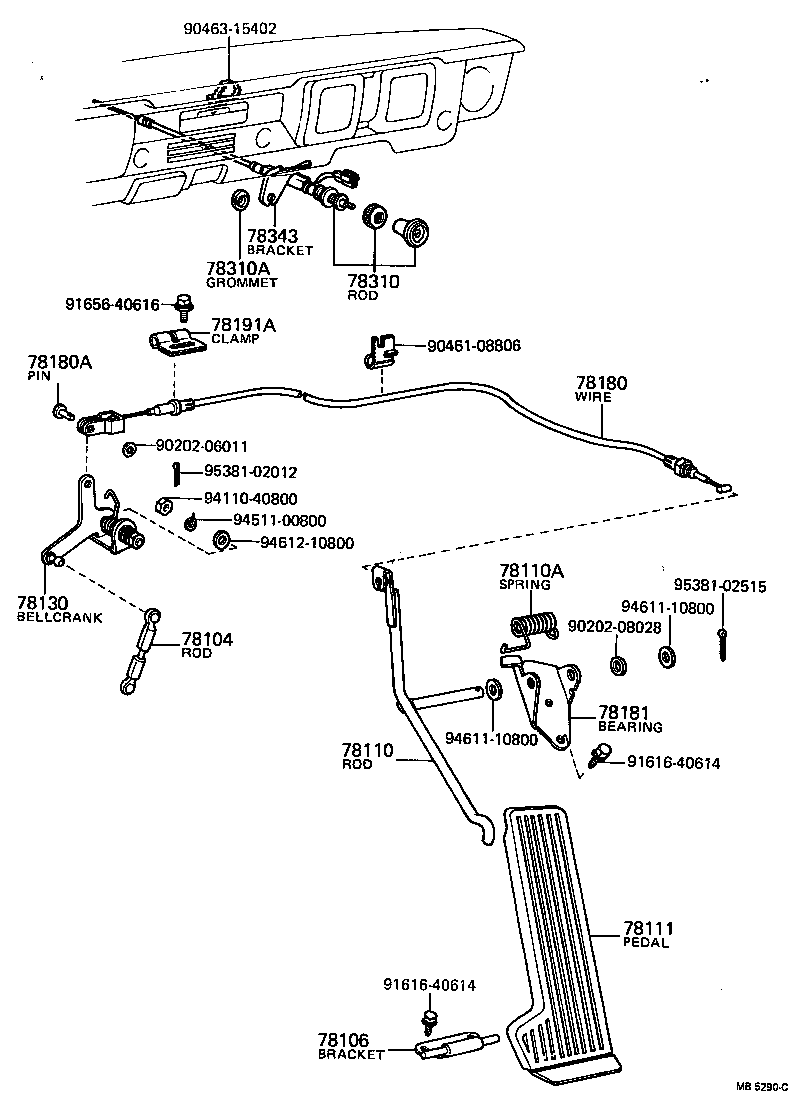

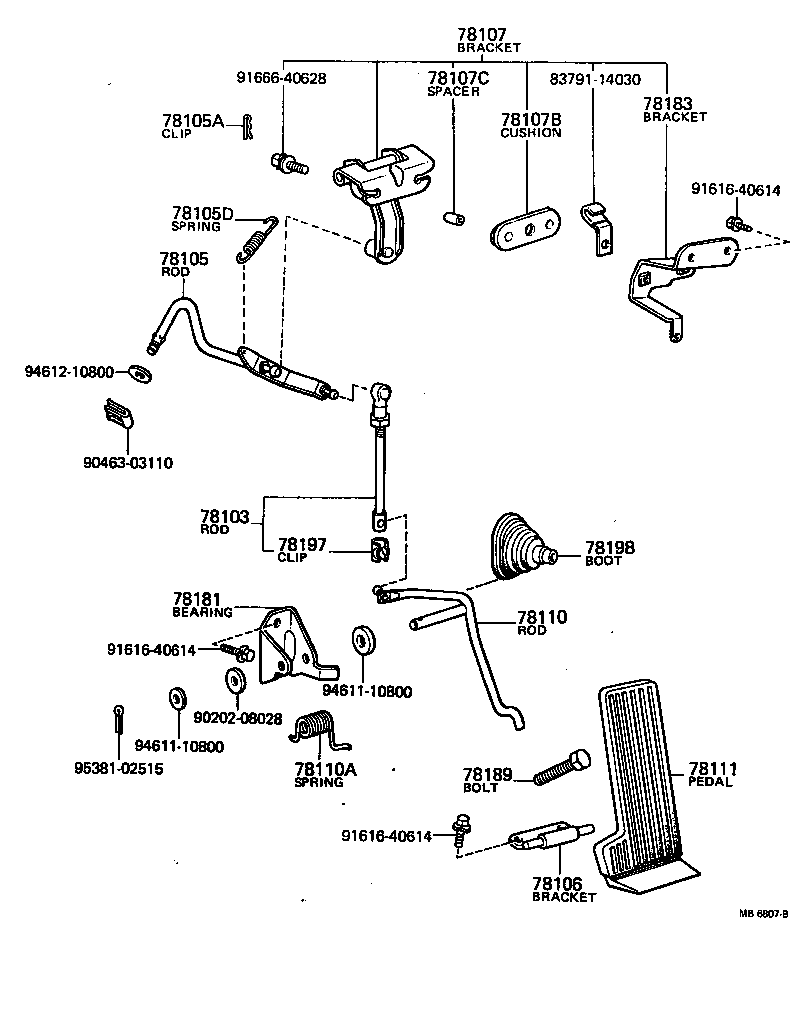

Figure MB2633F MB2633F 1972-05 → 1975-11 Figure MB5290C MB5290C 1975-11 → 1978-07 Figure MB2634G MB2634G 1972-05 → 1974-08 Figure MB4380E MB4380E 1974-08 → 1978-07 Figure MB5291B MB5291B 1974-04 → 1977-08 Figure MB7624A MB7624A 1977-08 → 1978-07 Figure MB6807B MB6807B 1977-02 → 1978-07

Part groups

PNCDescription
55175 Retainer, Accelerator Torque Rod Support
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78105A Clip (FOR ACCELERATOR TORQUE ROD)
78105B Bush (FOR ACCELERATOR TORQUE ROD)
78105D Spring (FOR ACCELERATOR TORQUE ROD)
78106 Bracket Sub-assy, Accelerator Pedal Support
78107 Bracket Sub-assy, Accelerator Torque Rod
78107A Grommet (FOR ACCELERATOR TORQUE ROD BRACKET)
78107B Cushion (FOR ACCELERATOR TORQUE ROD BRACKET)
78107C Spacer (FOR ACCELERATOR TORQUE ROD BRACKET)
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78130 Bellcrank Assy, Accelerator
78130A Spring (FOR ACCELERATOR ROD RETURN)
78130B Bush, Accelerator Bellcrank
78180 Wire Assy, Accelerator
78180A Pin, Accelerator Wire Set
78181 Bearing, Accelerator Pedal Rod Support
78183 Bracket, Accelerator Link Rod
78189 Bolt, Accelerator Pedal Stopper
78191 Bracket, Accelerator Wire Support
78191A Clamp (FOR ACCELERATOR WIRE SET)
78197 Clip, Accelerator Joint Ball
78198 Boot, Accelerator Connecting Rod
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
78343 Bracket, Choke Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
