Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

14 part groups · 3 illustrations

Illustrations

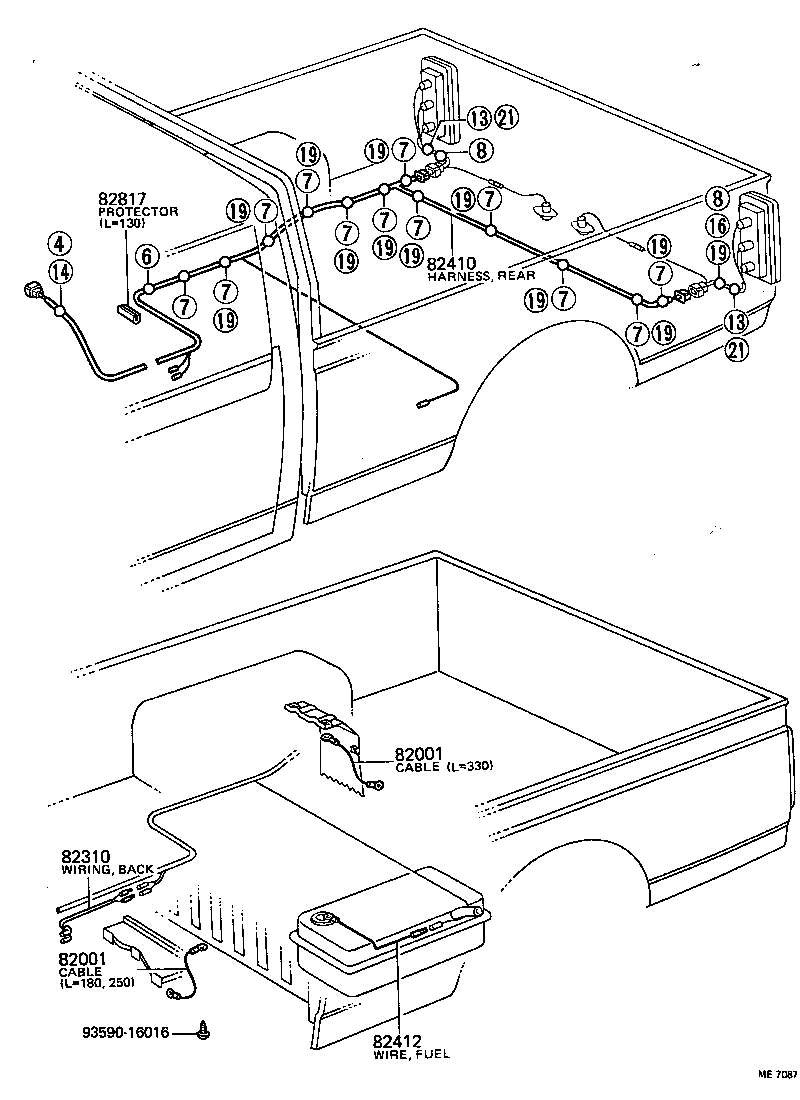

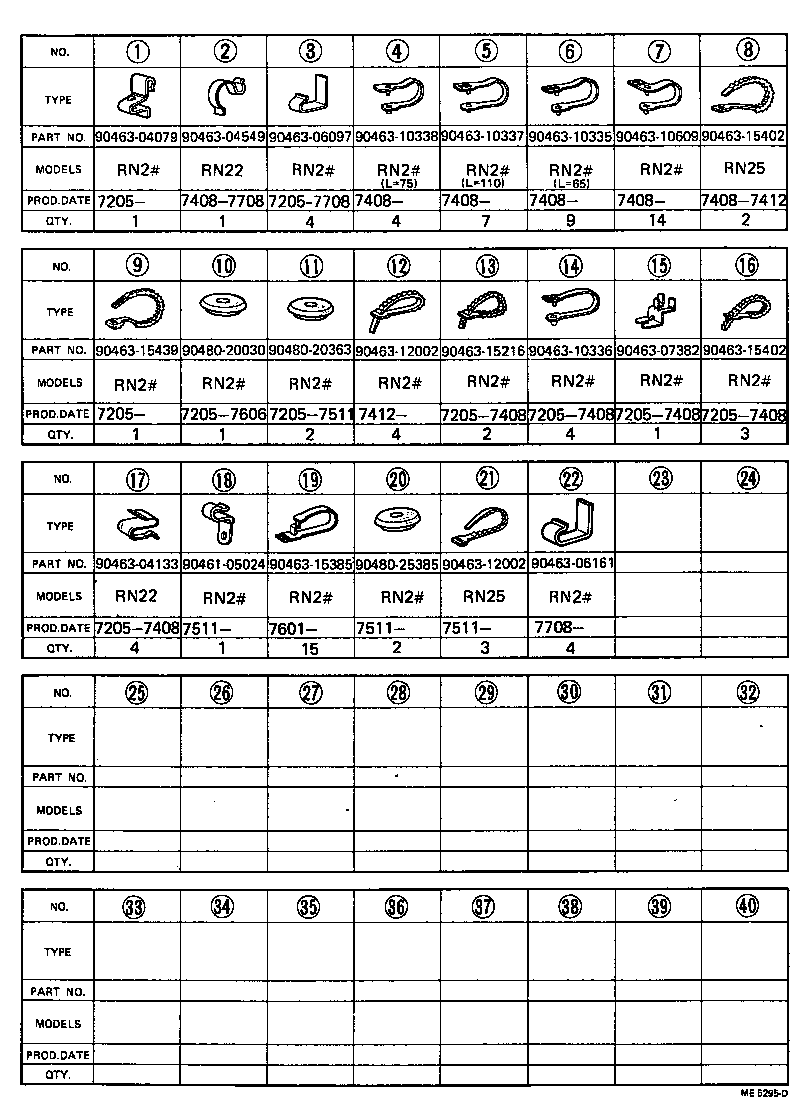

Figure ME7086 ME7086 1972-05 → 1978-07 Figure ME7087 ME7087 1972-05 → 1978-07 Figure ME5295D ME5295D 1972-05 → 1978-07

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82219 Wire, Thermo Sensor
82259 Wire, Distributor
82301 Wire Sub-assy, Side Turn Signal Relay
82310 Wiring Assy, TO Back UP Lamp Switch
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82510 Wiring Assy, Roof
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
88647 Wire Sub-assy, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
