Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

14 part groups · 3 illustrations

Illustrations

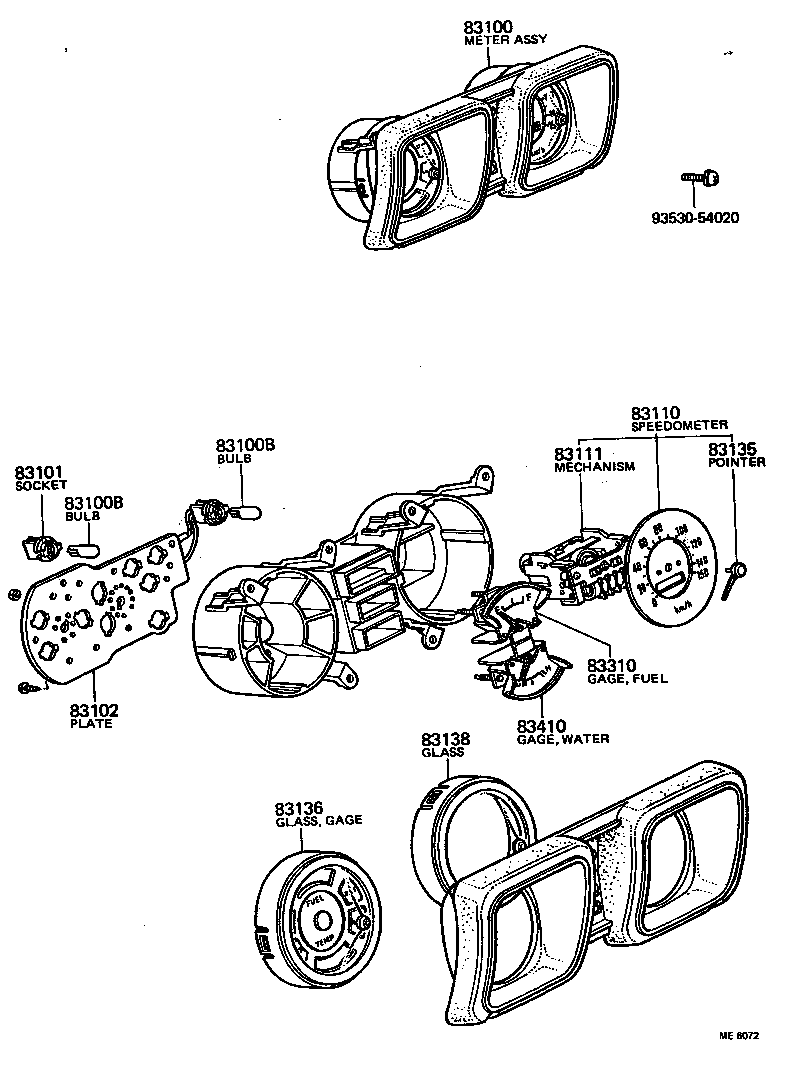

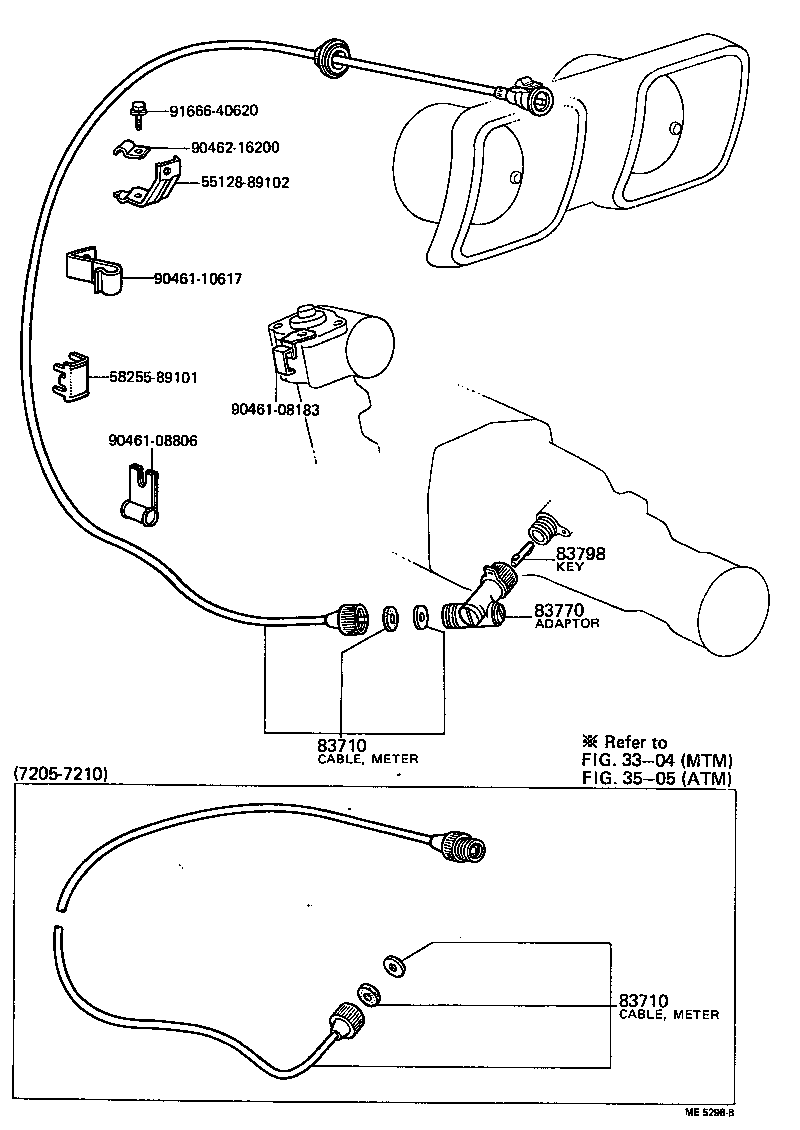

Figure ME6071 ME6071 1972-05 → 1975-11 Figure ME6072 ME6072 1975-11 → 1978-07 Figure ME5298B ME5298B 1972-05 → 1978-07

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83111 Mechanism, Speedometer
83135 Pointer, Speedometer
83136 Glass, Gage Meter
83138 Glass, Speedometer
83310 Gage Assy, Fuel Receiver
83410 Gage Assy, Water Temperature Receiver
83710 Cable Assy, Speedometer Drive, NO.1
83770 Adapter Assy, Speedometer Cable
83798 Key, Speedometer Cable Adapter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
