Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

9 part groups · 4 illustrations

Illustrations

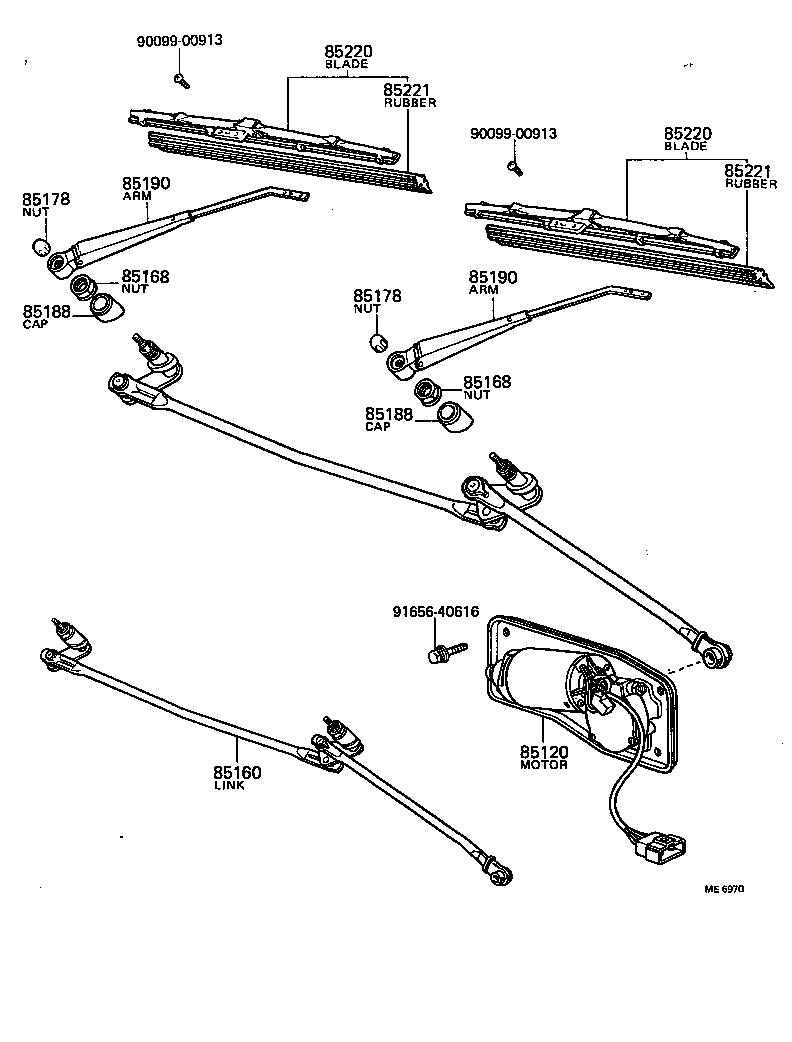

Figure ME5302 ME5302 1972-05 → 1977-08 Figure ME5302 ME5302 1977-08 → 1977-10 Figure ME6970 ME6970 1977-08 → 1977-10 Figure ME6970 ME6970 1977-10 → 1978-07

Part groups

PNCDescription
85120 Motor And Bracket Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85163 Packing, Windshield Wiper Pivot
85168 Nut, Windshield Wiper Link Pivot
85178 Nut (FOR FRONT WIPER ARM SETTING)
85188 Cap, Windshield Wiper Pivot, NO.1
85190 Arm Assy, Windshield Wiper
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
