Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 2 illustrations

Illustrations

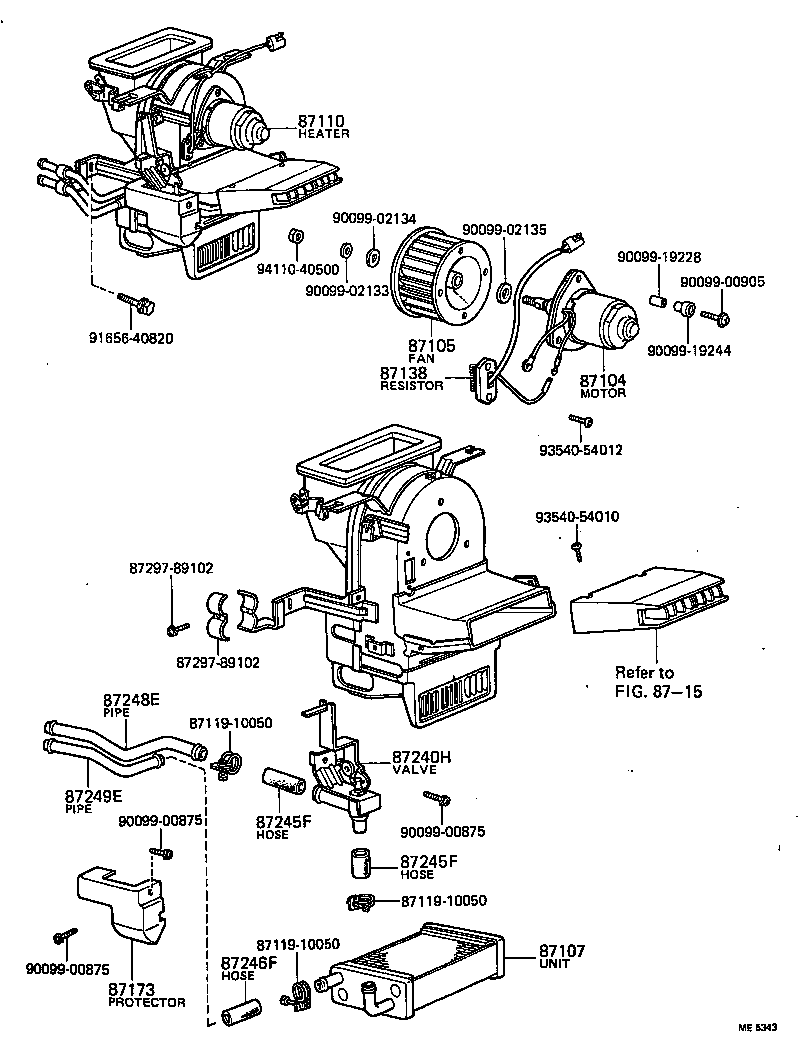

Figure ME5890 ME5890 1972-05 → 1974-08 Figure ME5343 ME5343 1974-08 → 1978-07

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87138 Resistor, Heater Blower
87173 Protector, Water Valve, Heater
87240H Valve Assy, Water Unit
87245F Hose, Heater Water, Inlet F
87246F Hose, Heater Water, Outlet F
87248E Pipe, Heater Water Inlet, E
87249E Pipe, Heater Water Outlet, E (FOR HEATER UNIT)
87337 Adapter, Heater Blower Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
