Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

23 part groups · 3 illustrations

Illustrations

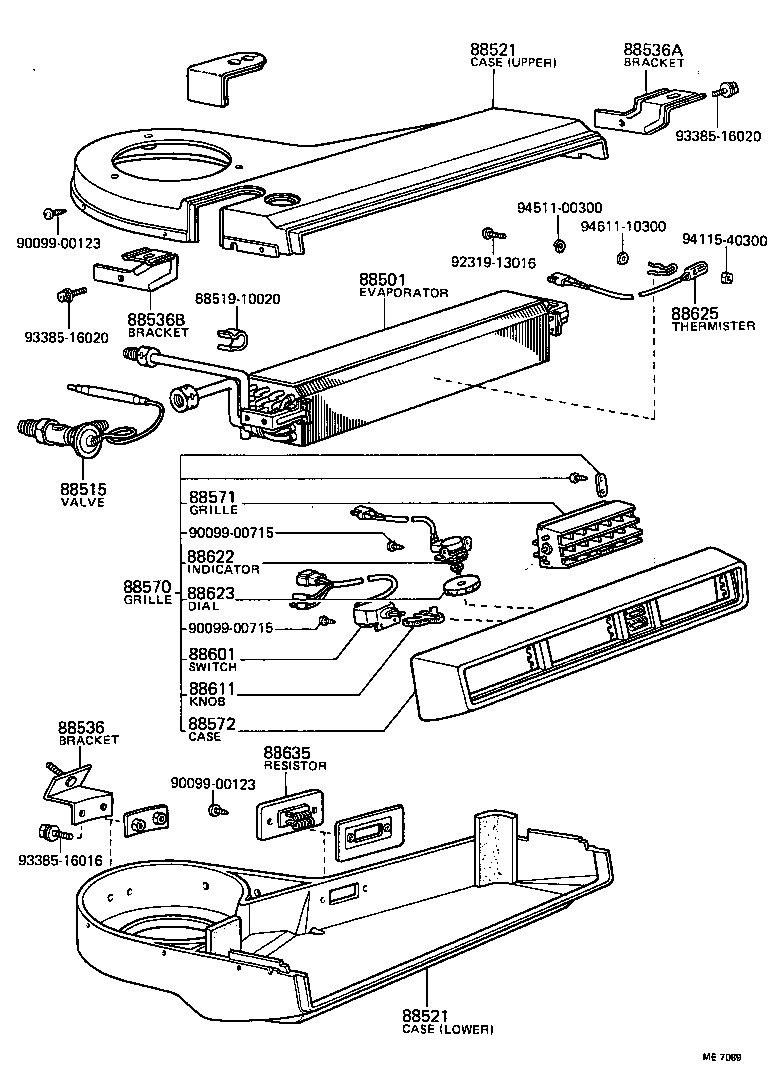

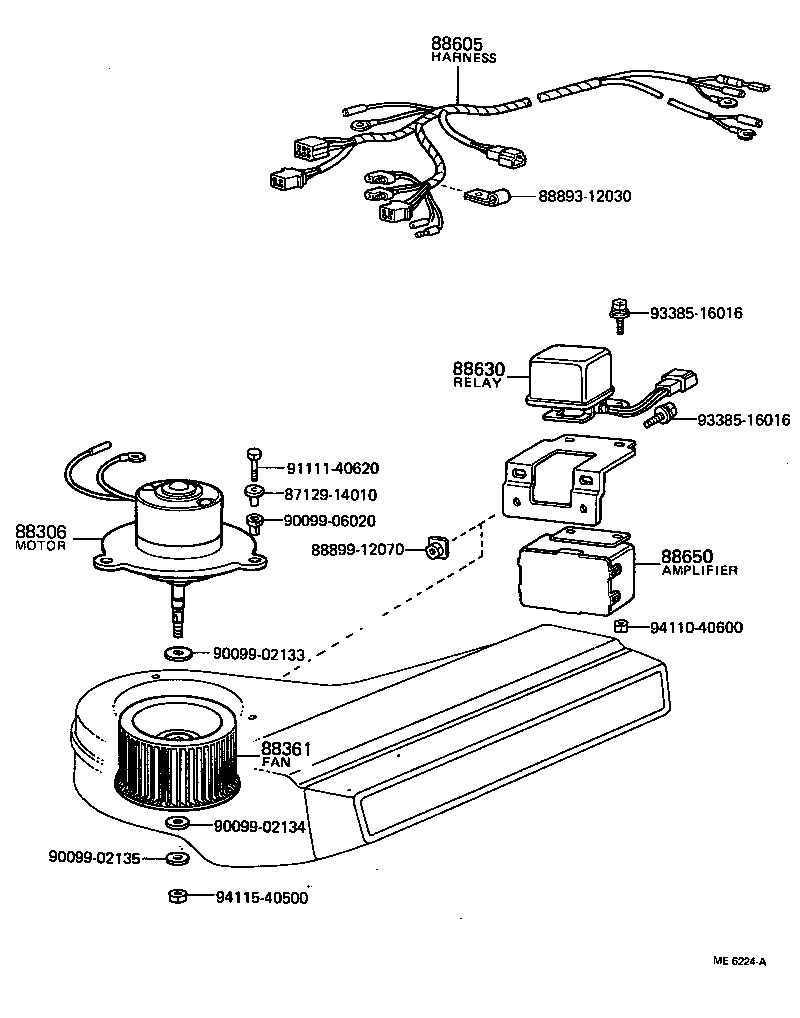

Figure ME7088 ME7088 1975-11 → 1978-07 Figure ME7089 ME7089 1975-11 → 1978-07 Figure ME6224A ME6224A 1975-11 → 1978-07

Part groups

PNCDescription
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88521 Case, Cooler Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88539 Hose, Cooler Unit Drain, NO.1
88539A Wire, Drain Hose(FOR COOLER)
88570 Grille Sub-assy, Cooler Air Outlet
88571 Grille, Air Outlet
88572 Case, Cooler Air Outlet
88601 Switch Sub-assy, Cooler Control
88605 Harness Sub-assy, Cooler Wiring, NO.1
88611 Knob, Cooler Control Switch
88622 Indicator, Cooler Control Resistance
88623 Dial, Cooler Thermostat
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88635 Resistor, Cooler Unit Blower
88650 Amplifier Assy, Cooler Stabilizer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
