Toyota Hilux
1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe
Discontinued model
Data version 1978-08

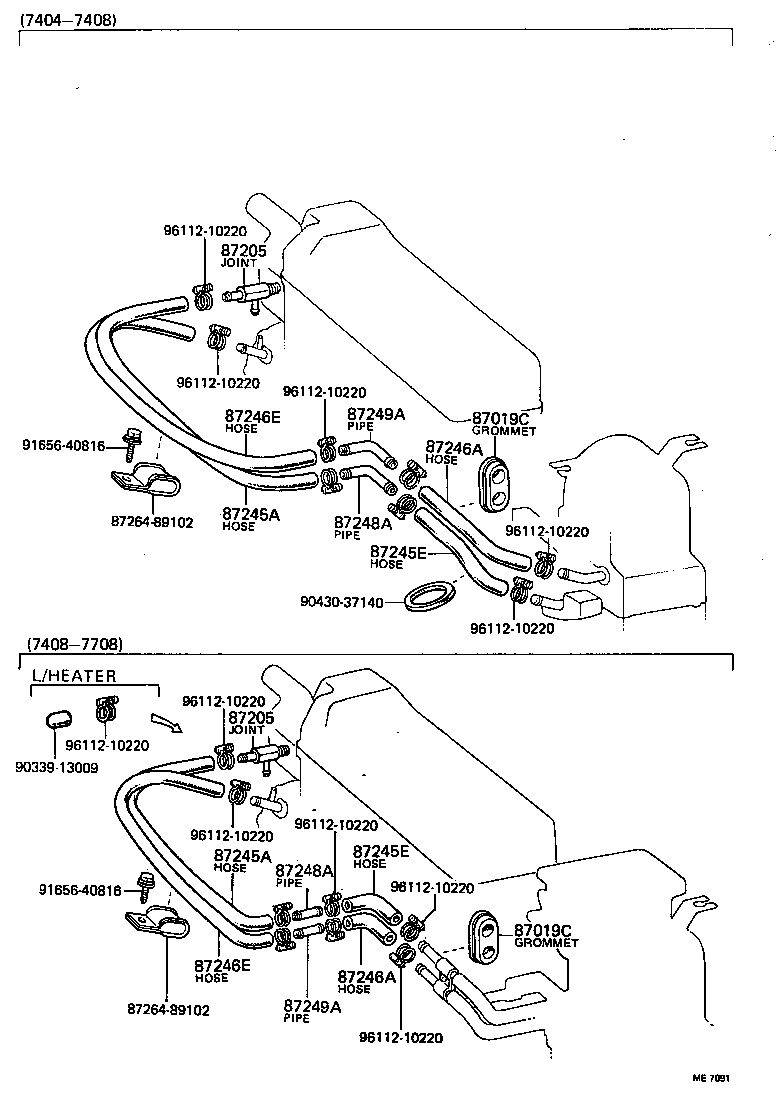

Heating & Air Conditioning - Water Piping
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87019C | Grommet, Heater Hose |
| 87205 | Joint OR Union, Front Heater Hose Through OR Inlet Valve |
| 87245A | Hose, Heater Water, Inlet A |
| 87245E | Hose, Heater Water, Inlet E |
| 87246A | Hose, Heater Water, Outlet A |
| 87246E | Hose, Heater Water, Outlet E |
| 87248A | Pipe, Heater Water Inlet, A |
| 87249A | Pipe, Heater Water Outlet, A |
| 87251 | Joint OR Union, Water Hose Through |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
