Toyota Hilux
1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe
Discontinued model
Data version 1984-05

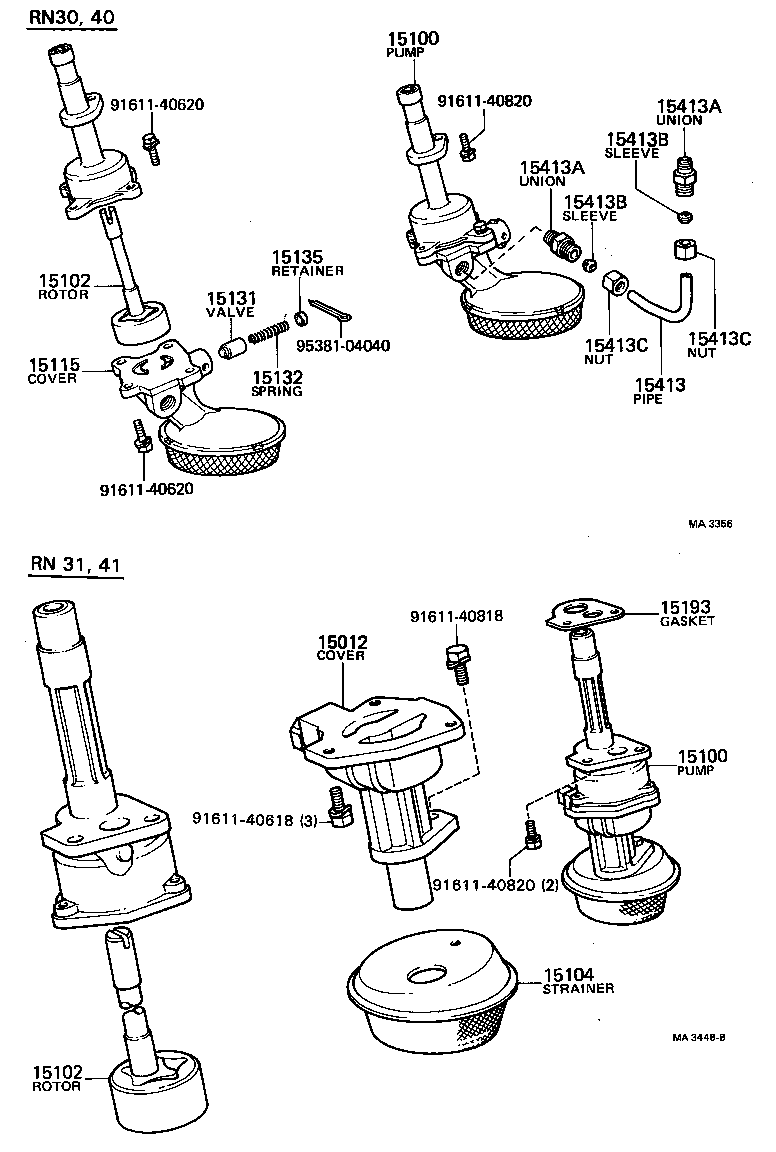

Engine Oil Pump
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 15012 | Cover Sub-assy, Oil Pump |
| 15100 | Pump Assy, Oil |
| 15102 | Rotor Set, Oil Pump |
| 15104 | Strainer Sub-assy, Oil |
| 15104C | Gasket(FOR OIL STRAINER) |
| 15104E | Bolt, Stud(FOR OIL STRAINER) |
| 15115 | Cover, Oil Pump |
| 15121 | Gear, Oil Pump Drive |
| 15122 | Gear, Oil Pump Driven |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15135 | Retainer, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
| 15193 | Gasket, Oil Pump |
| 15413 | Pipe, Oil Pump Outlet |
| 15413A | Union(FOR OIL PUMP OUTLET PIPE) |
| 15413B | Sleeve, Ball(FOR OIL PUMP OUTLET PIPE) |
| 15413C | Nut, Union(FOR OIL PUMP OUTLET PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
