Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

25 part groups · 11 illustrations

Illustrations

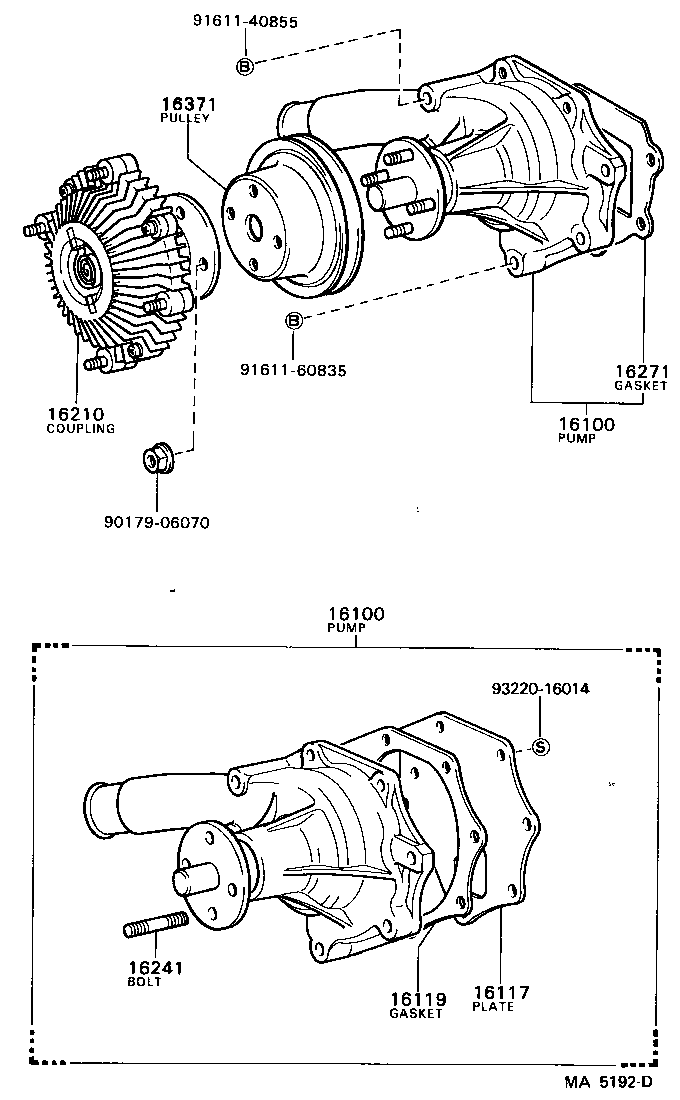

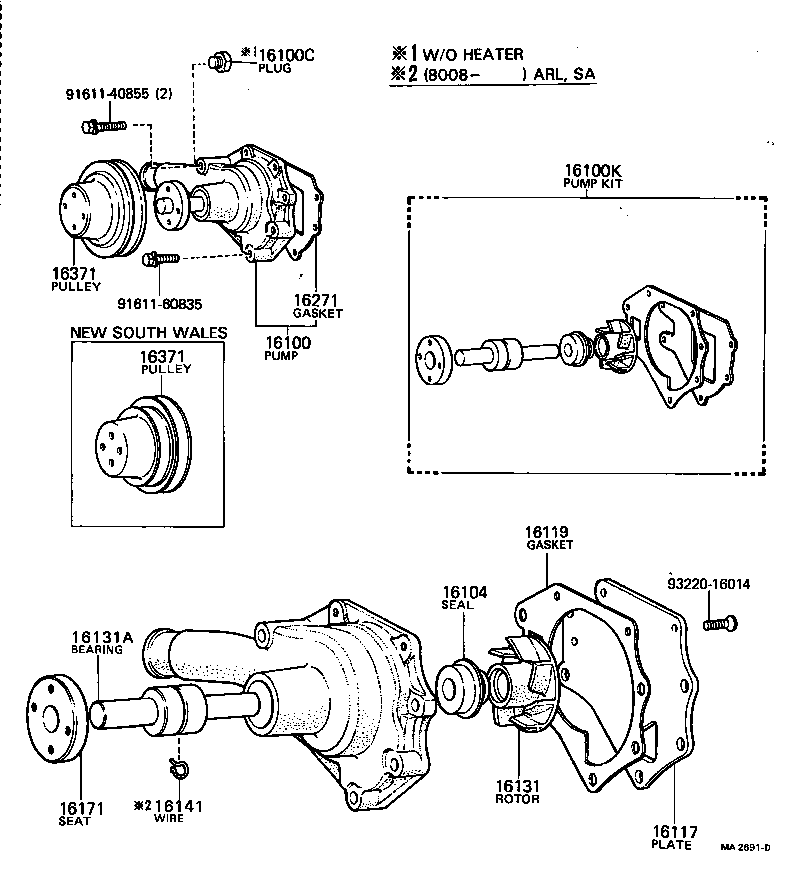

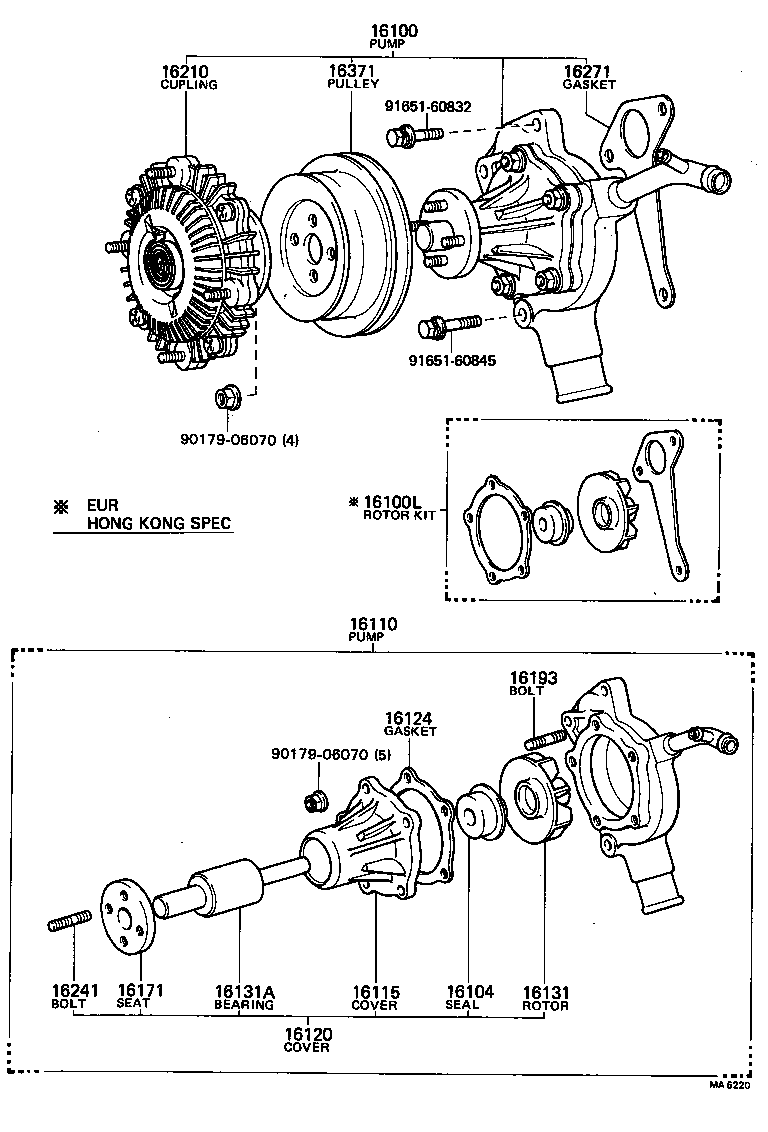

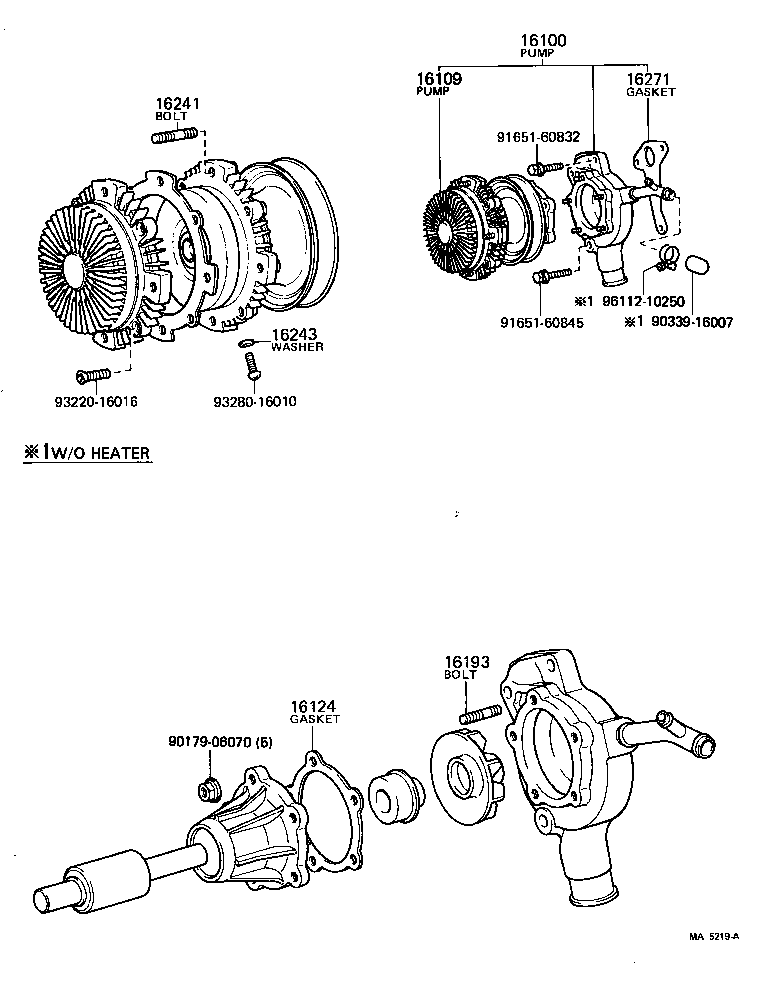

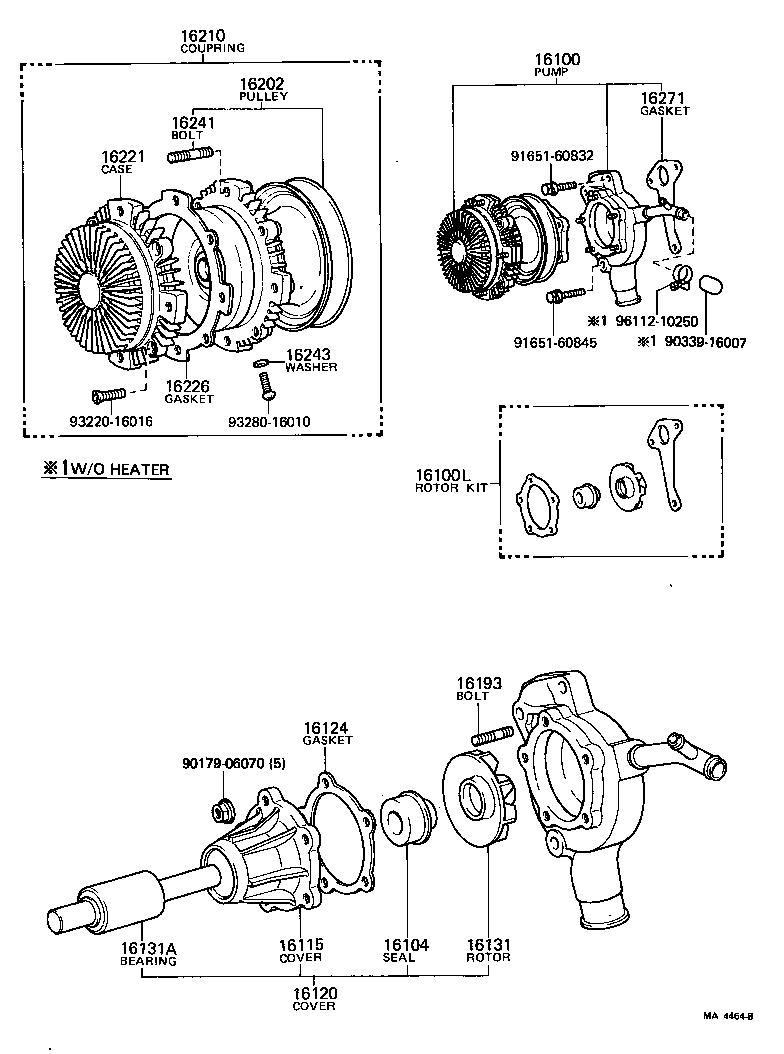

Figure MA6960 MA6960 1979-09 → — Figure MA2691D MA2691D 1978-08 → — Figure MA5192D MA5192D 1982-04 → 1983-07 Figure MA4464B MA4464B 1978-08 → 1983-12 Figure MA4464B MA4464B 1979-01 → 1979-09 Figure MA4464B MA4464B 1979-01 → 1980-10 Figure MA4464B MA4464B 1979-01 → 1983-07 Figure MA5219A MA5219A 1978-08 → 1979-09 Figure MA5219A MA5219A 1979-01 → 1983-07 Figure MA5220 MA5220 1979-09 → 1983-07 Figure MA5220 MA5220 1980-10 → 1983-07

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100C Plug, W/Head Taper Screw
16100K Pump Kit, Water
16100L Rotor Kit, Water Pump
16104 Seal Set, Water Pump
16109 Pump Sub-assy, Water
16110 Pump Assy, Water, W/O Coupling
16115 Cover, Water Pump
16117 Plate, Water Pump
16119 Gasket, Water Pump Body
16120 Cover Assy, Water Pump
16124 Gasket, Water Pump Cover
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16141 Wire, Water Pump Bearing Retaining
16171 Seat, Water Pump Pulley
16193 Bolt, Stud(FOR WATER PUMP COVER)
16202 Pulley & Bearing Case Sub-assy, Fluid Coupling
16210 Coupling Assy, Fluid
16221 Case, Fluid Coupling
16226 Gasket, Fluid Coupling Case
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16243 Washer, Plate(FOR WATER PUMP)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
