Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

27 part groups · 12 illustrations

Illustrations

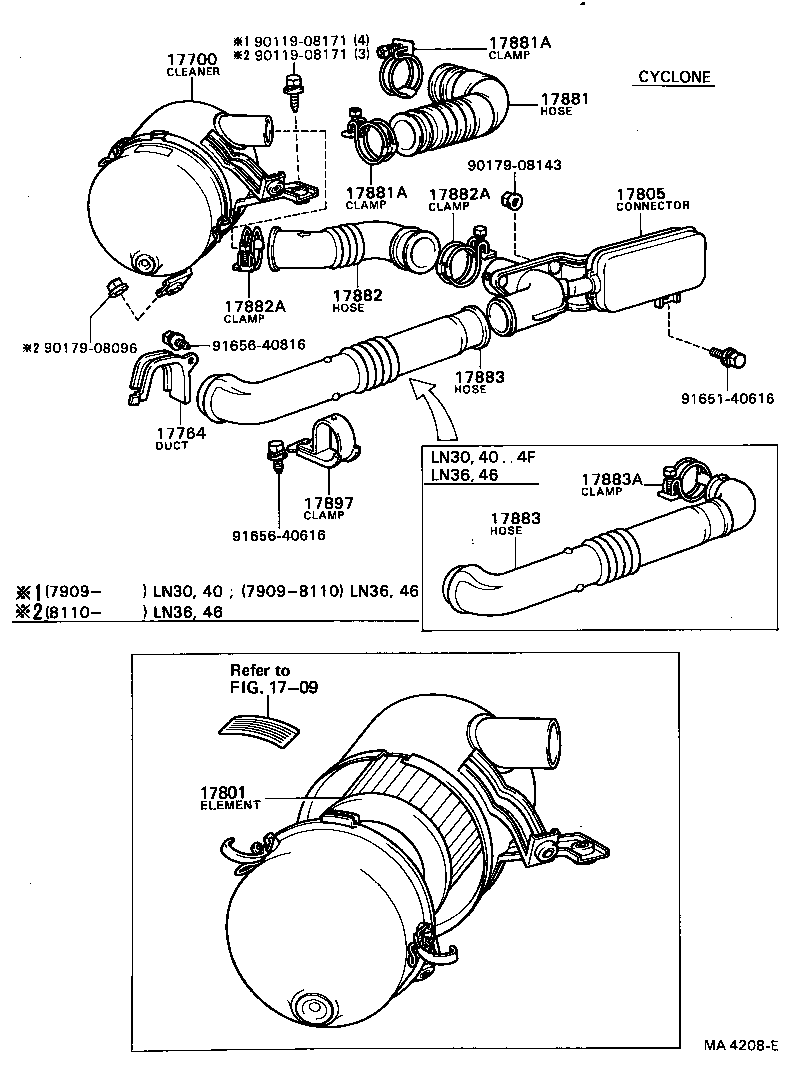

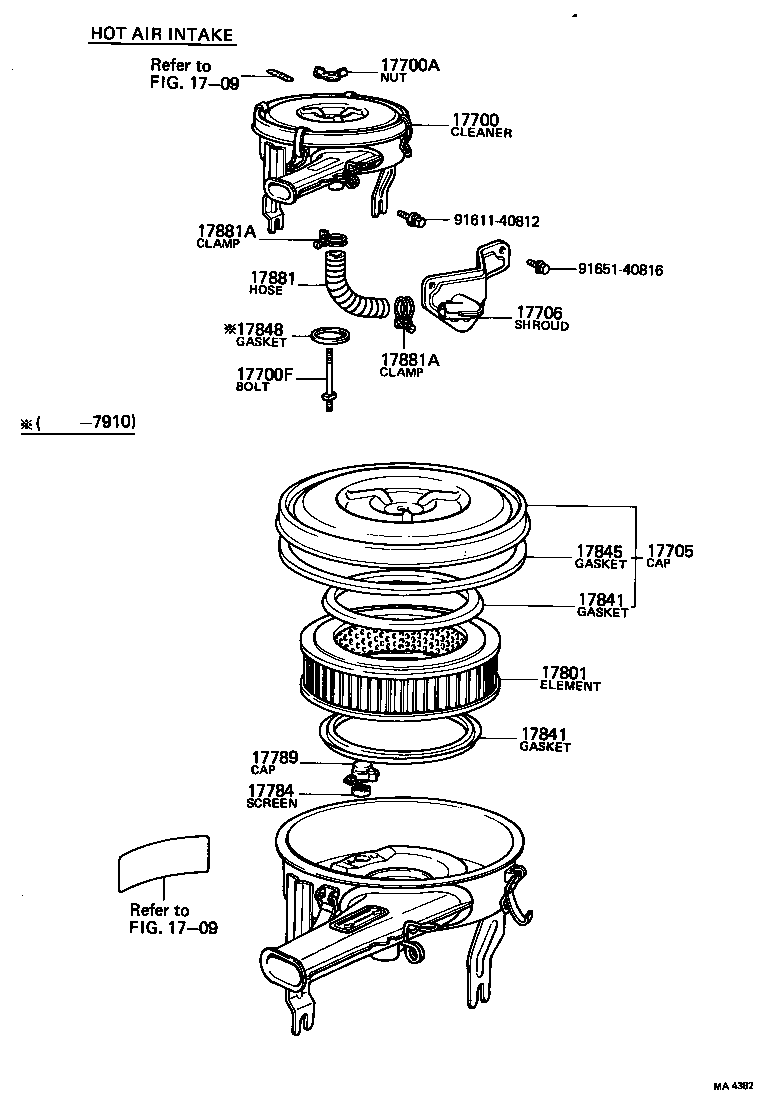

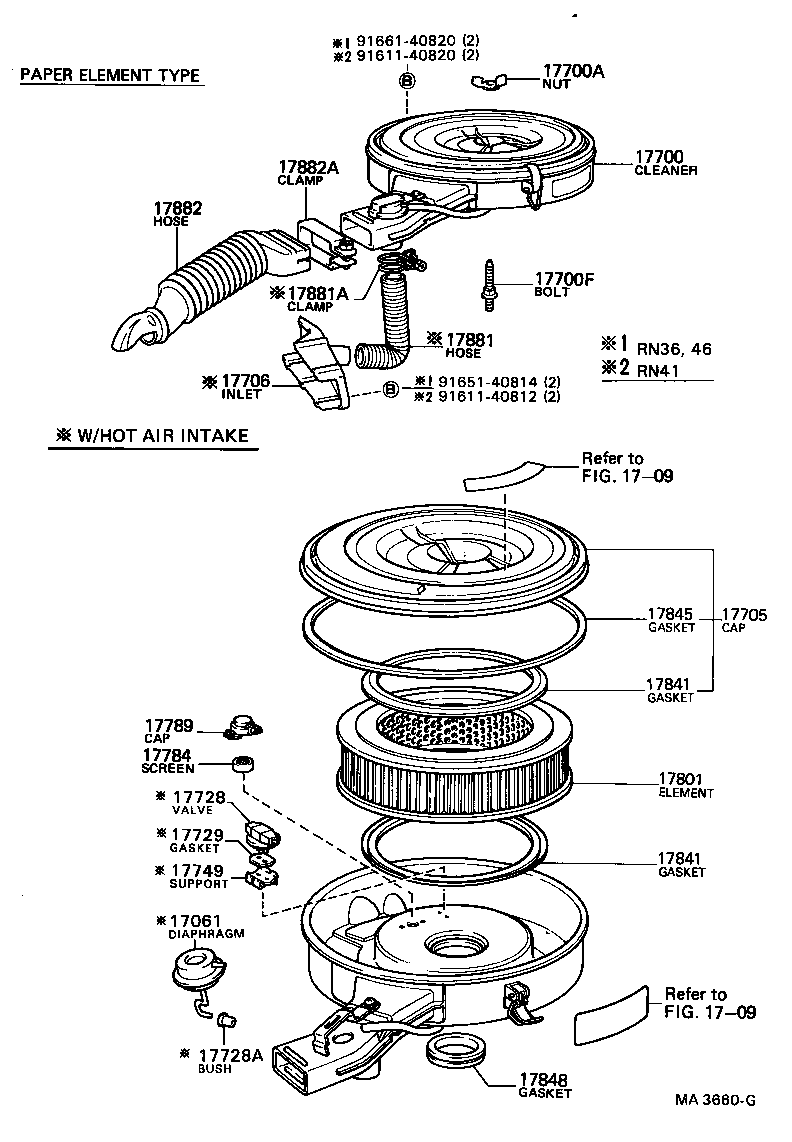

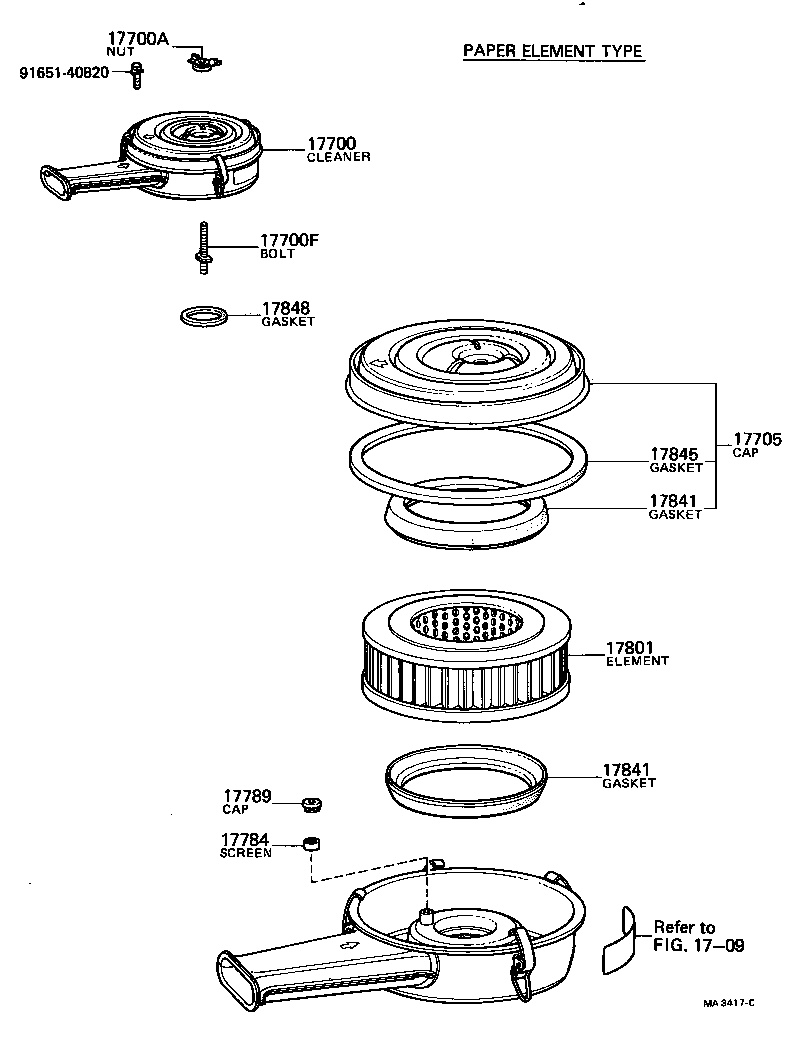

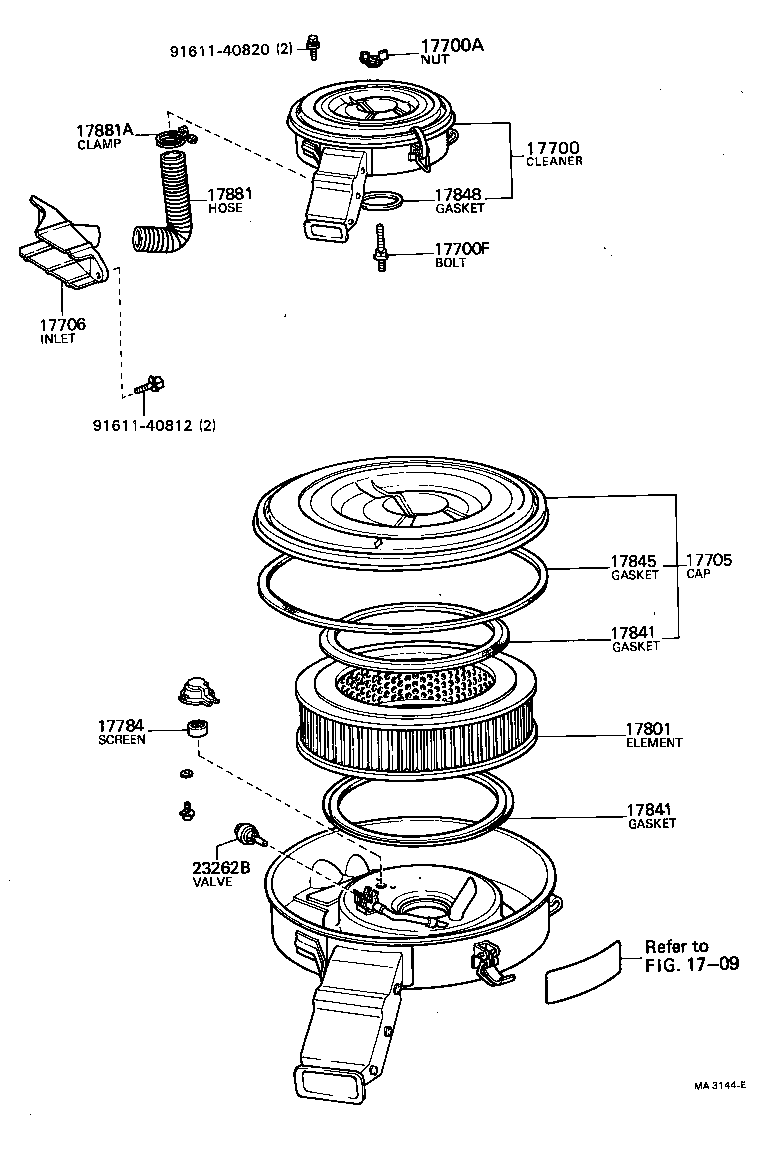

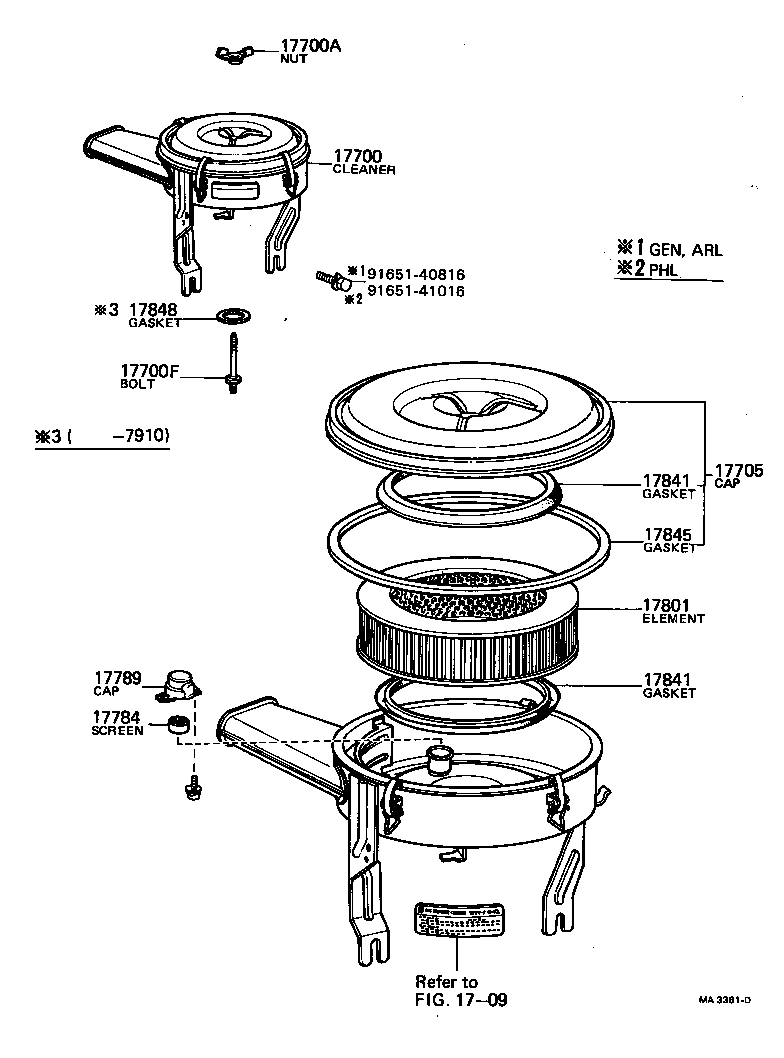

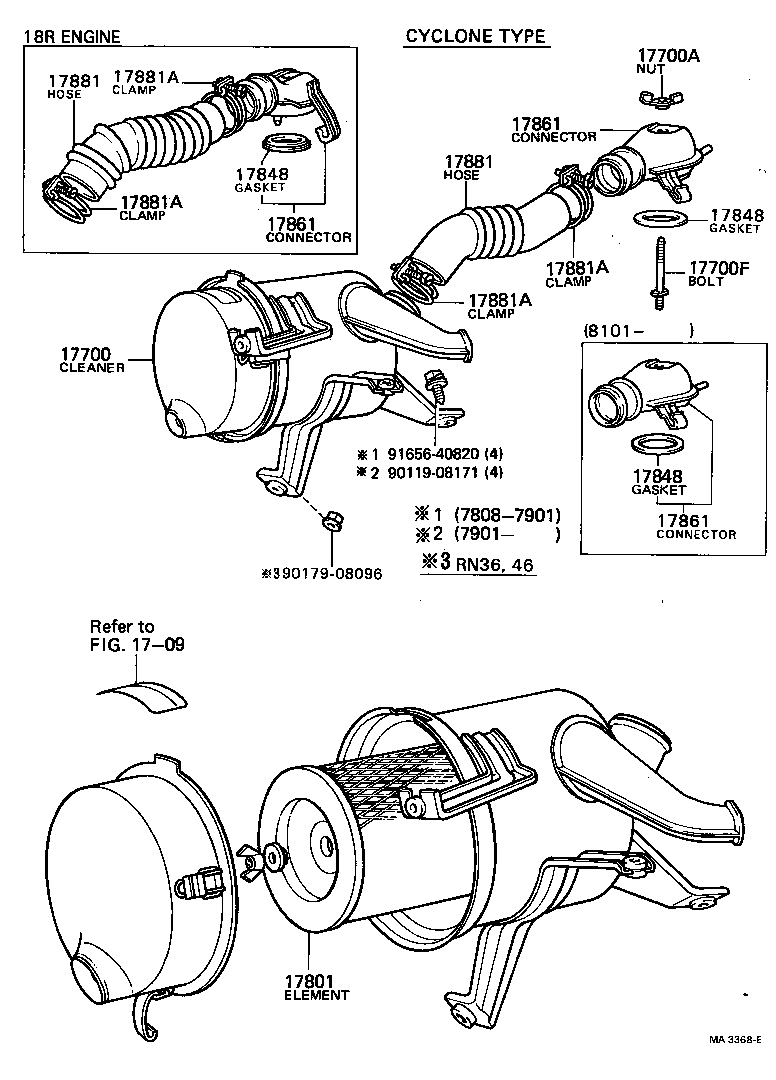

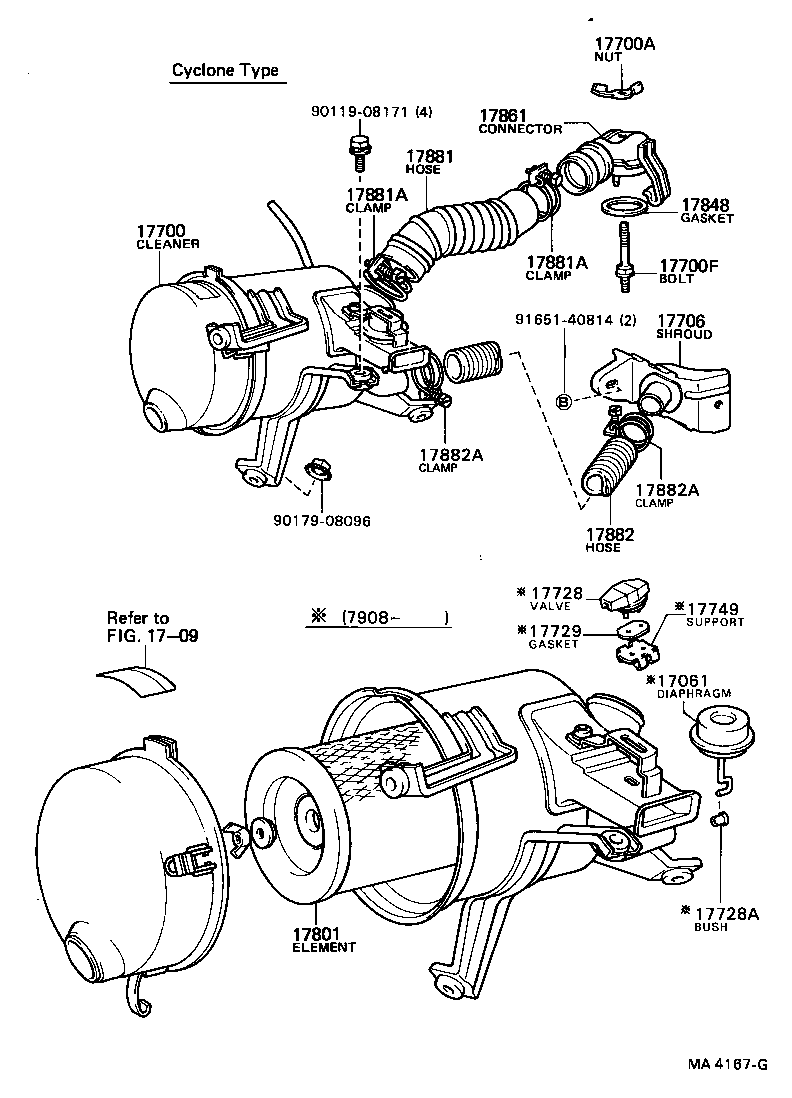

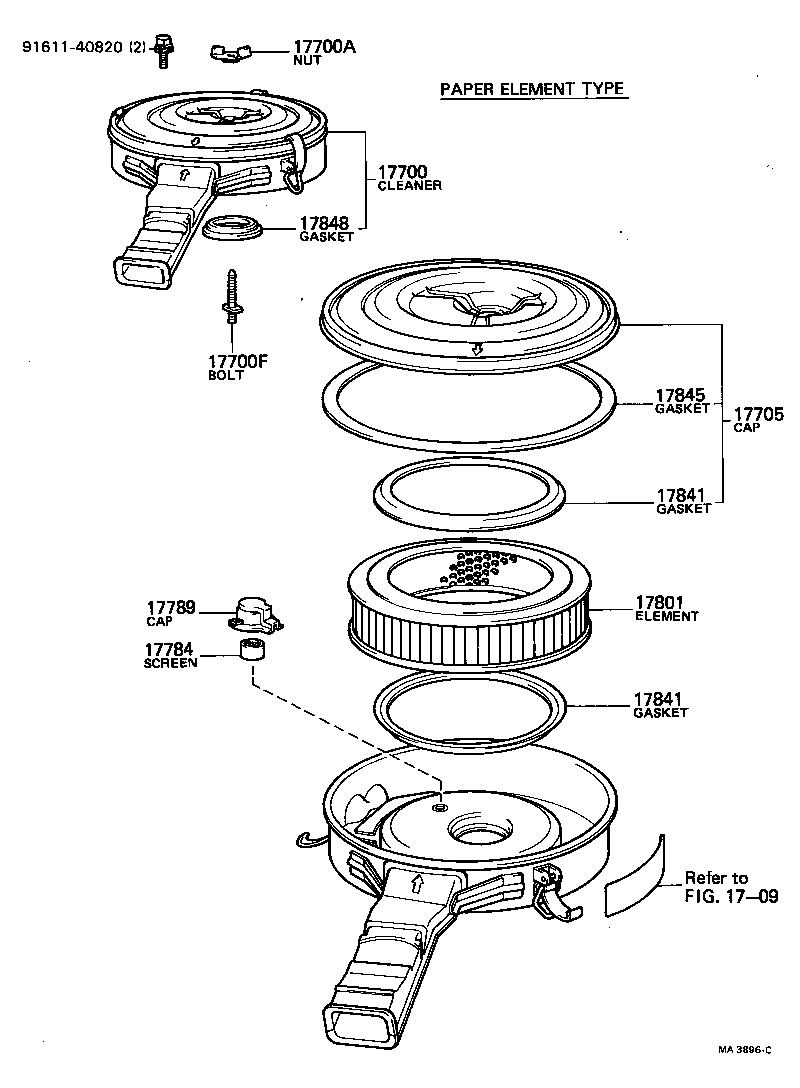

Figure MA4618B MA4618B 1979-09 → 1983-07 Figure MA4208E MA4208E 1979-09 → — Figure MA3361D MA3361D 1978-08 → — Figure MA4382 MA4382 1978-08 → — Figure MA3368E MA3368E 1978-08 → 1983-12 Figure MA3368E MA3368E 1978-08 → — Figure MA3417C MA3417C 1978-08 → 1979-01 Figure MA3896C MA3896C 1979-01 → 1983-07 Figure MA3660G MA3660G 1979-01 → 1983-07 Figure MA3660G MA3660G 1982-08 → 1983-07 Figure MA3144E MA3144E 1978-08 → 1983-07 Figure MA4167G MA4167G 1979-01 → 1983-07

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17728 Valve, Thermostatic
17728A Bush
17729 Gasket, Thermostat Valve
17749 Support, Thermostat Valve
17764 Duct, Air Cleaner
17784 Screen, Air Cleaner
17789 Cap, Air Cleaner Screen
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17897 Clamp, Hose(FOR AIR CLEANER)
23262B Valve, Bimetal Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
