Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

13 part groups · 2 illustrations

Illustrations

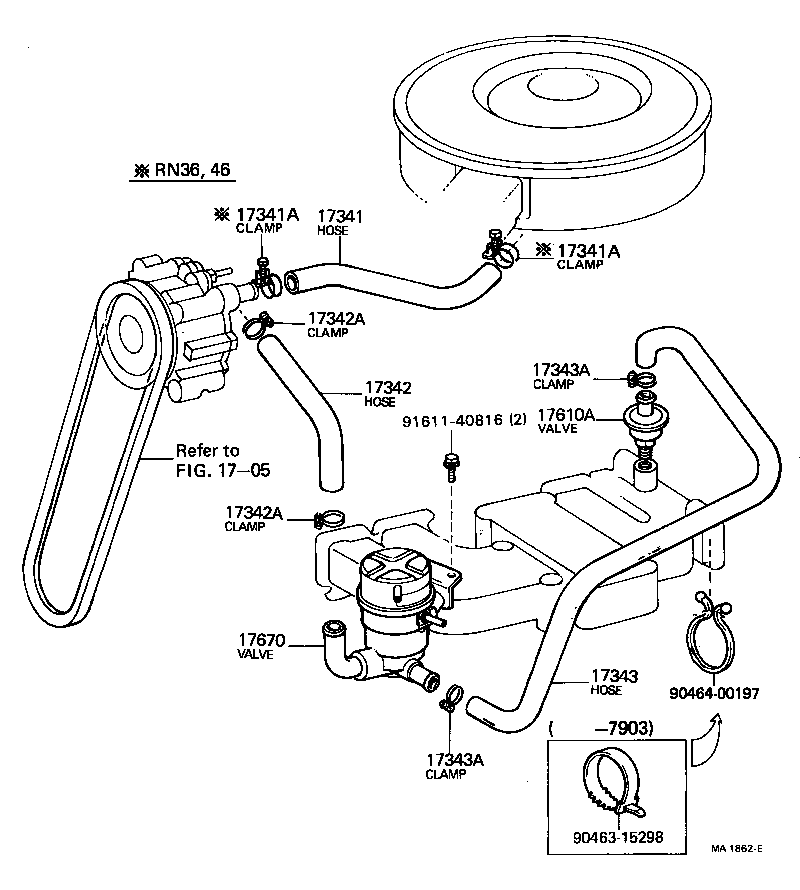

Figure MA2693A MA2693A 1978-08 → 1983-07 Figure MA1862E MA1862E 1978-08 → 1983-07

Part groups

PNCDescription
17313 Bracket, Air By-pass Valve
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17344 Hose, NO.4(FOR AIR INJECTION SYSTEM)
17351 Manifold, Air Injection
17351C Clamp(FOR AIR INJECTION MANIFOLD)
17353 Support, Air Injection Manifold
17610A Valve, Check(FOR AIR INJECTION SYSTEM)
17670 Valve Assy, Air By-pass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
