Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 10 illustrations

Illustrations

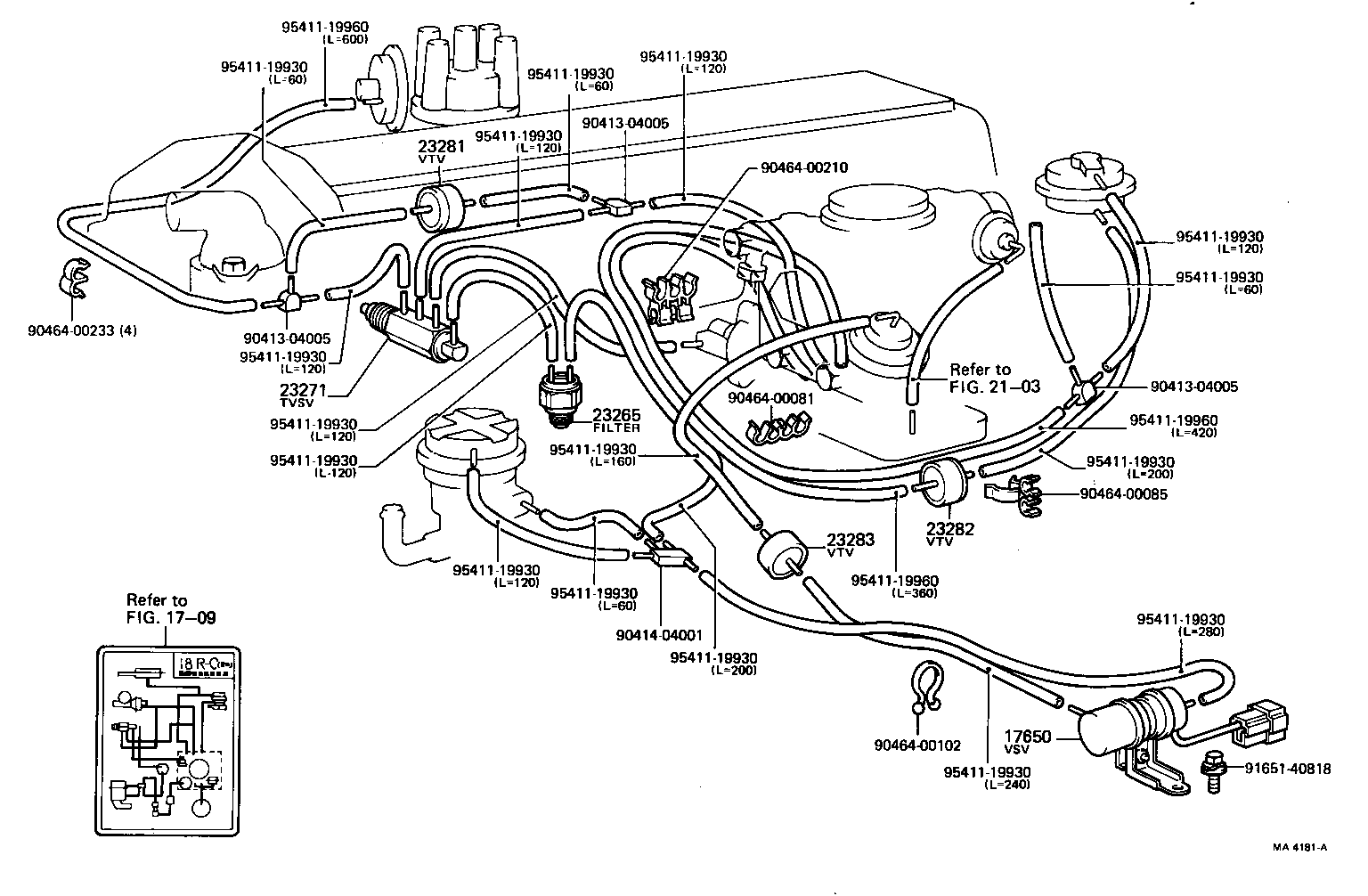

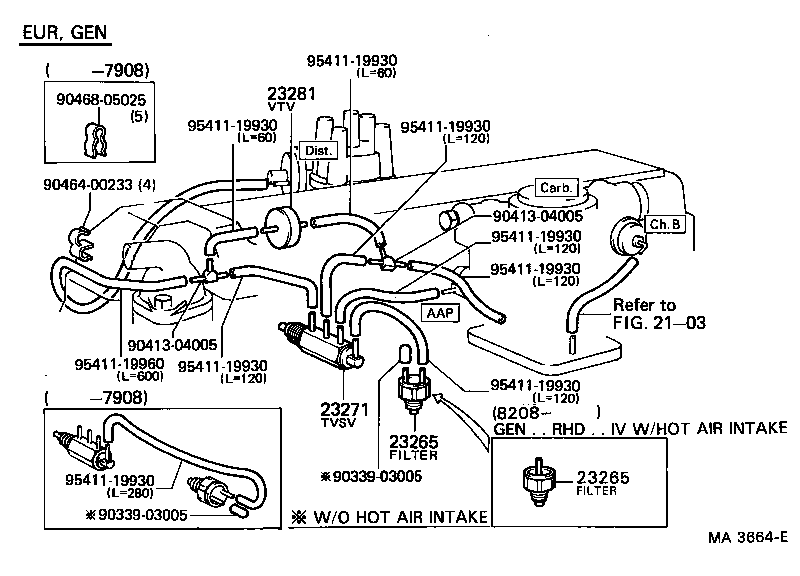

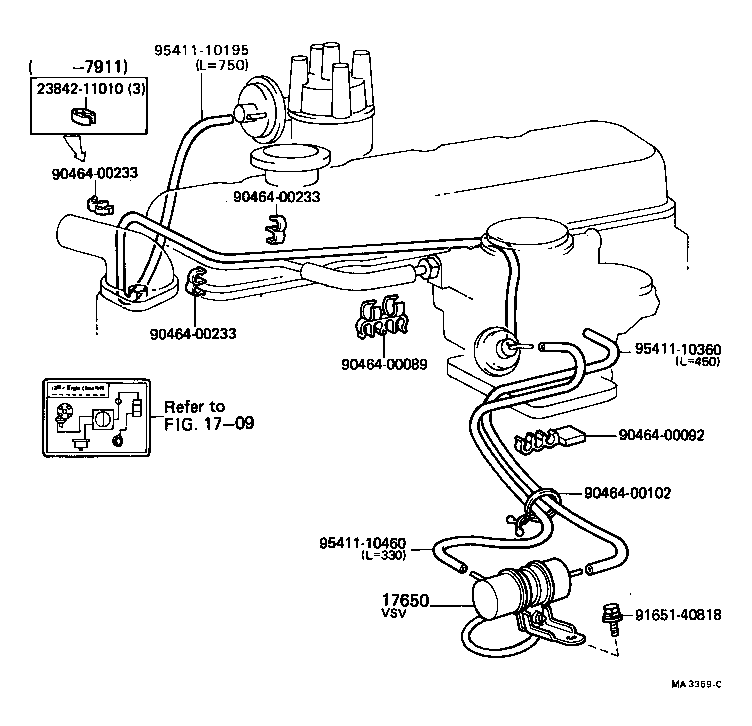

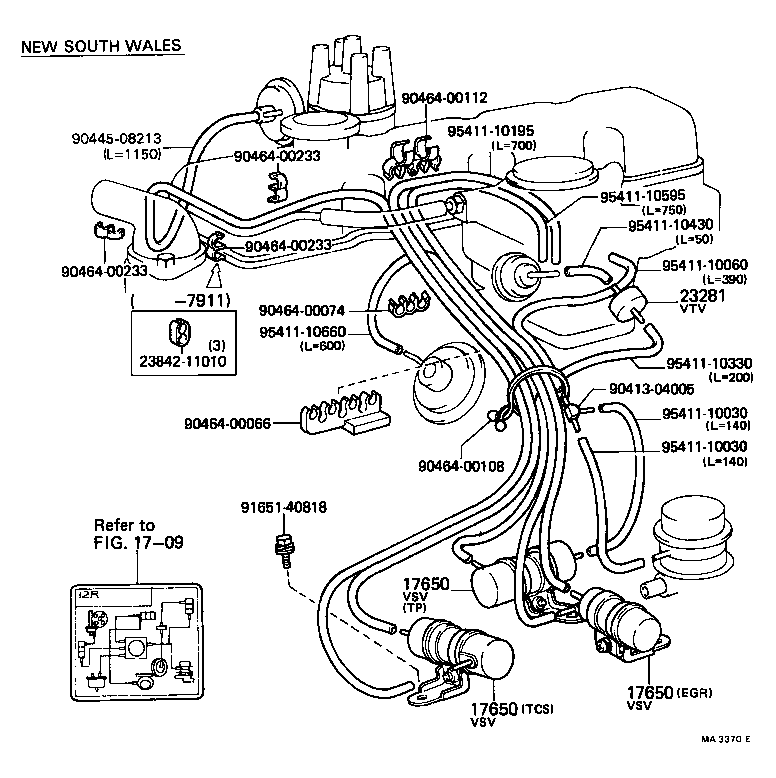

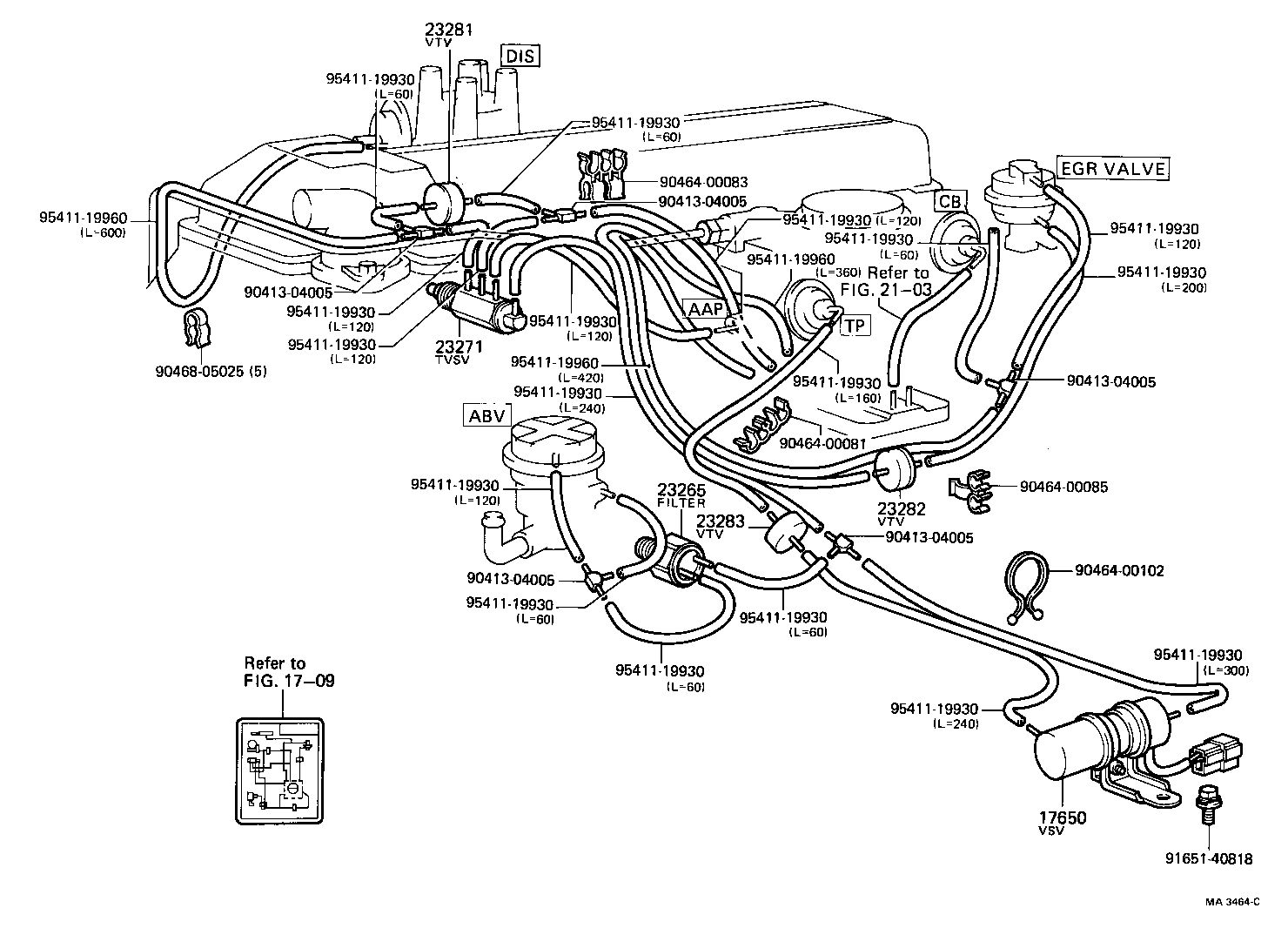

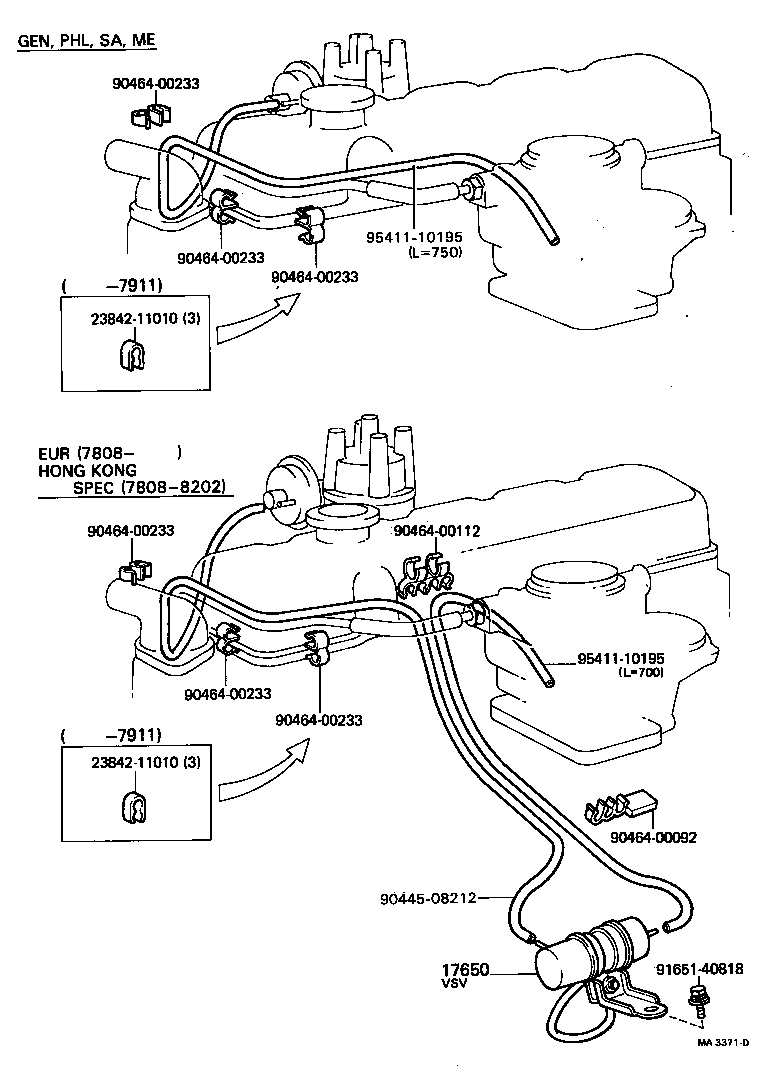

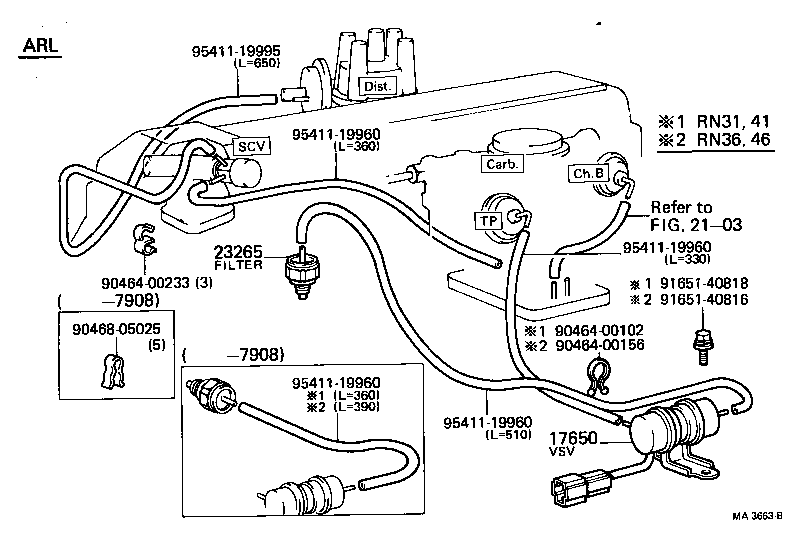

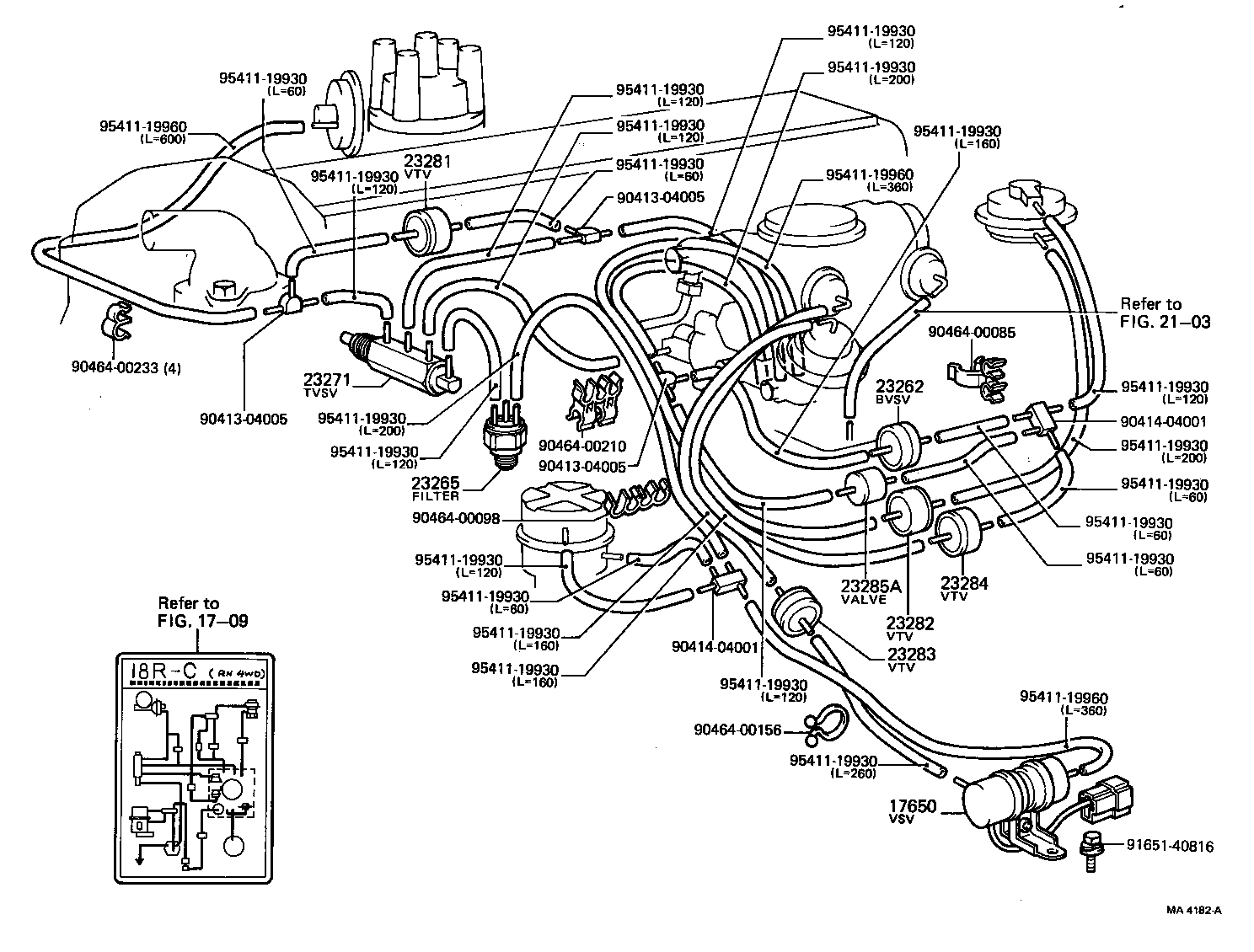

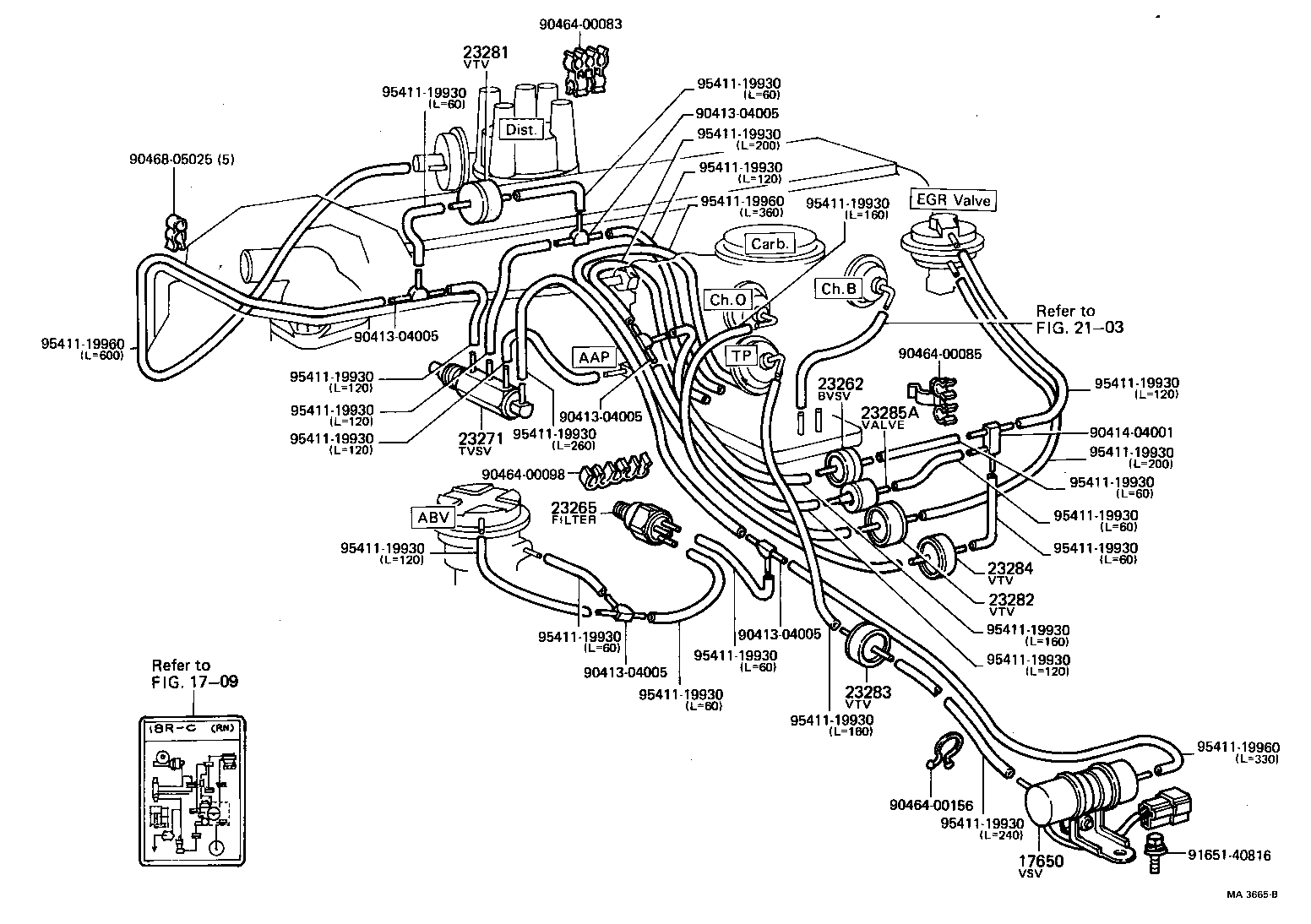

Figure MA9501 MA9501 1978-08 → — Figure MA3369C MA3369C 1978-08 → 1983-07 Figure MA3370E MA3370E 1978-08 → 1983-07 Figure MA3371D MA3371D 1978-07 → — Figure MA3663B MA3663B 1979-01 → 1983-07 Figure MA3664E MA3664E 1979-01 → 1983-07 Figure MA3464C MA3464C 1978-08 → 1979-08 Figure MA3665B MA3665B 1979-01 → 1979-08 Figure MA4181A MA4181A 1979-08 → 1983-07 Figure MA4182A MA4182A 1979-08 → 1983-07

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23284 Valve, Vacuum Transmitting, NO.4
23285A Valve, Check, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
