Fuel Pump & Pipe

5 part groups · 3 illustrations

Illustrations

Figure MF2026C

MF2026C 1978-08 → —

Figure MF2065

MF2065 1978-08 → 1979-08

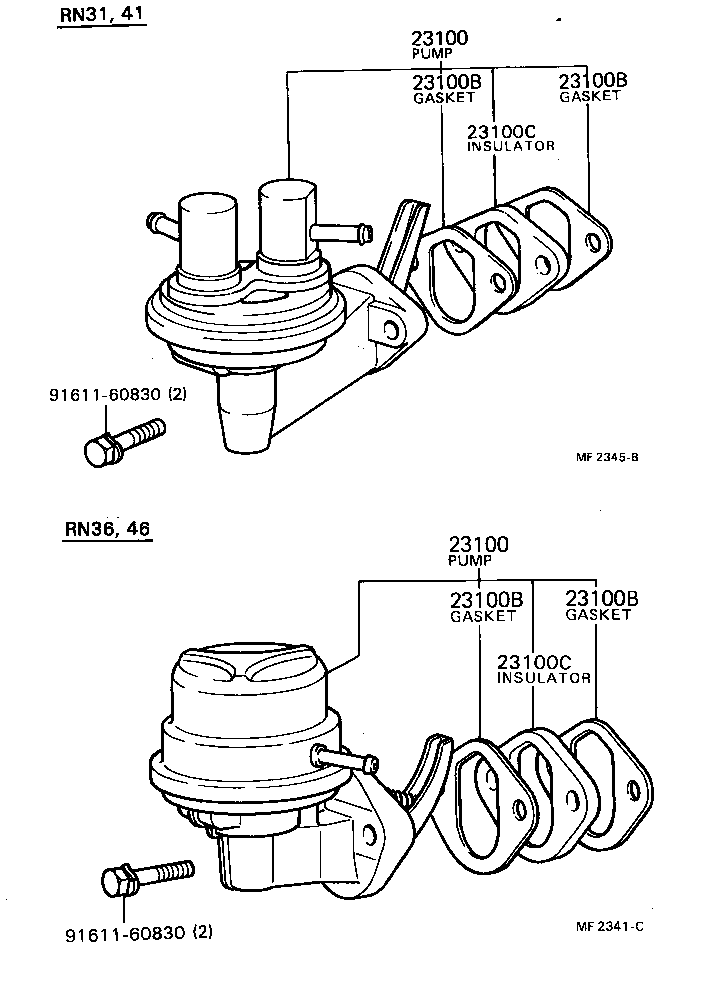

Figure AS0209A

AS0209A 1979-08 → 1983-12

Part groups

PNC	Description
23100	Pump Assy, Fuel
23100B	Gasket, Fuel Pump
23100C	Insulator, Fuel Pump
23100D	Union, Nipple(FOR FUEL OUTLET)
23100E	Union, Nipple(FOR FUEL INLET)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
