Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Release Cylinder

9 part groups · 4 illustrations

Illustrations

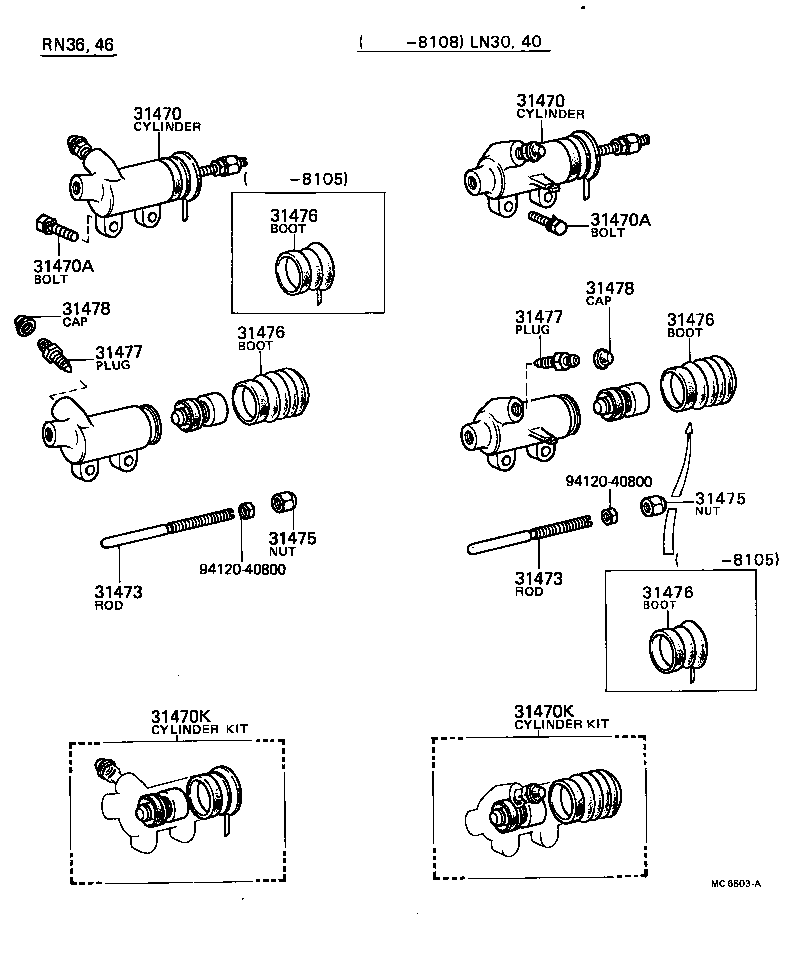

Figure MC5683F MC5683F 1978-08 → 1981-08 Figure MC5683F MC5683F 1981-08 → — Figure MC6603A MC6603A 1979-01 → 1981-08 Figure MC6603A MC6603A 1981-08 → 1983-07

Part groups

PNCDescription
31470 Cylinder Assy, Clutch Release
31470A Bolt(FOR CLUTCH RELEASE CYLINDER SETTING)
31470K Cylinder Kit, Clutch Release
31473 Rod, Clutch Release Cylinder Push, NO.1
31474 Rod, Clutch Release Cylinder Push, NO.2
31475 Nut, Clutch Release Cylinder Push Rod
31476 Boot, Clutch Release Cylinder
31477 Plug, Bleeder(FOR RELEASE CYLINDER)
31478 Cap, Bleeder Plug(FOR RELEASE CYLINDER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
