Toyota Hilux
1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe
Discontinued model
Data version 1984-05

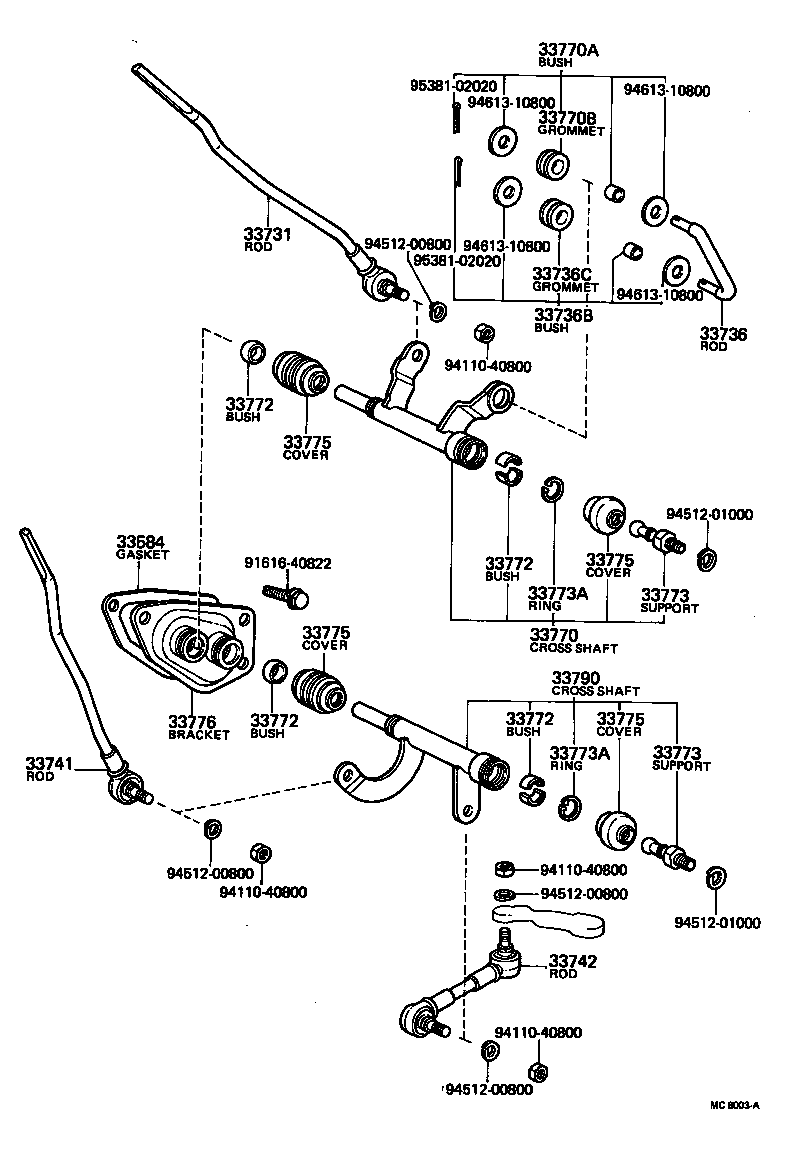

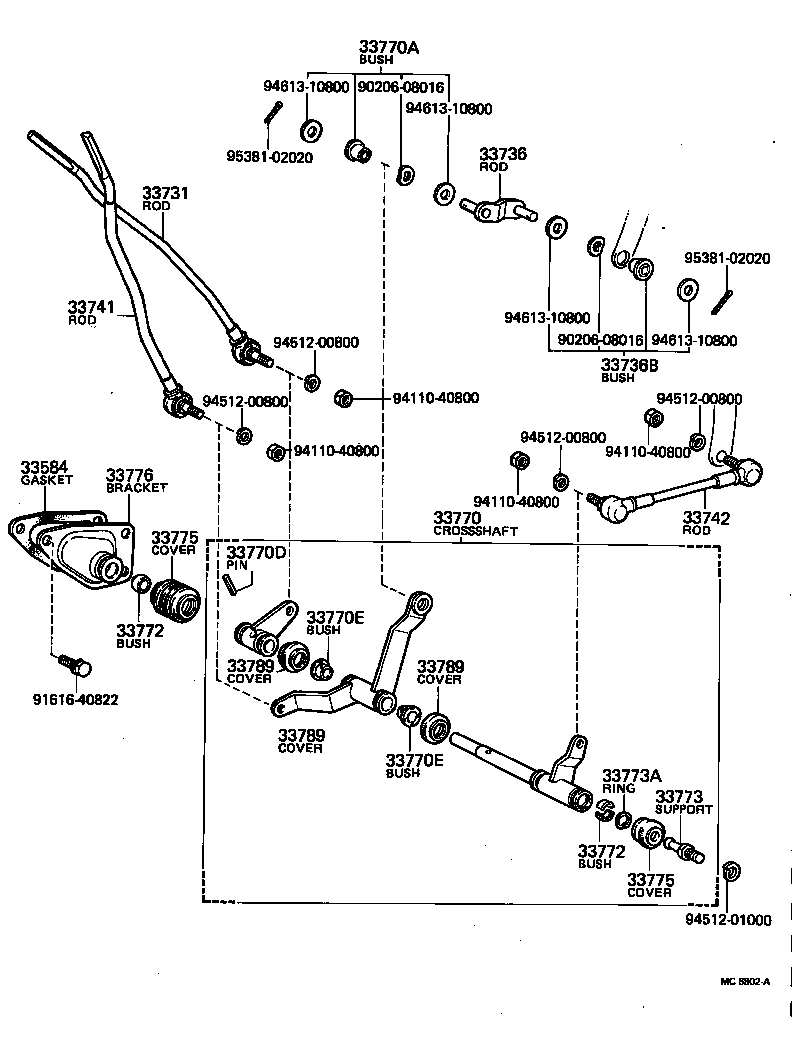

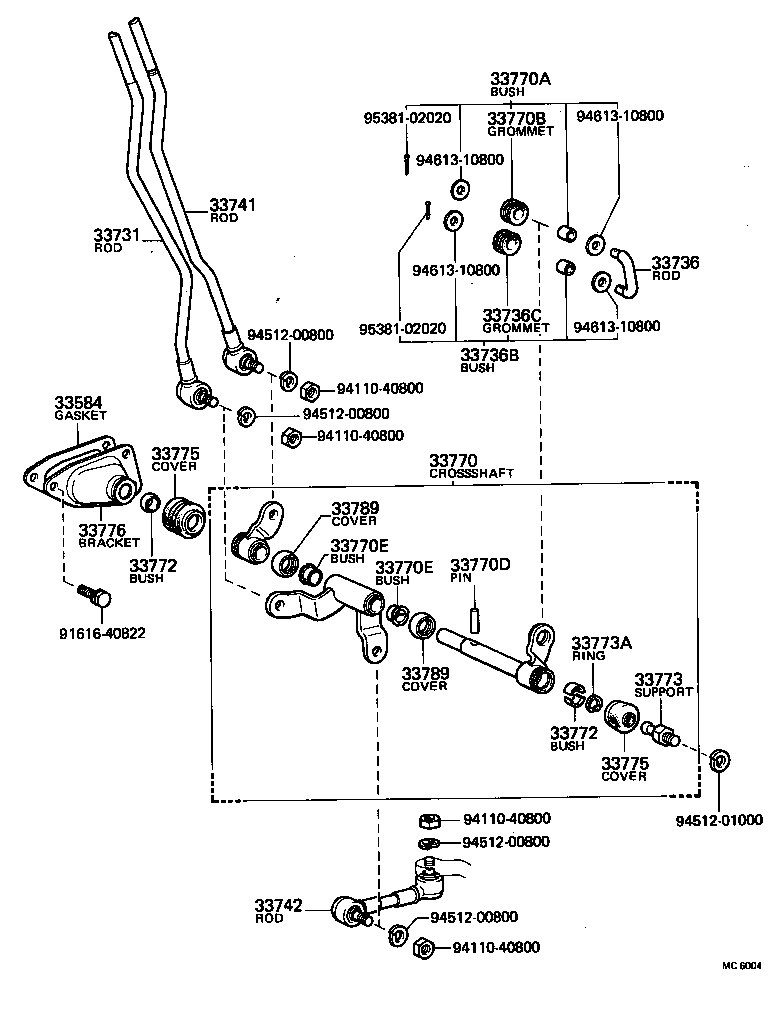

Control Shaft & Crossshaft
49 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33501 | Shaft Sub-assy, Control (FOR COLUMN SHIFT) |
| 33504 | Knob Sub-assy, Shift Lever (FOR COLUMN SHIFT) |
| 33505 | Seal Sub-assy, Control Shaft Dust (FOR COLUMN SHIFT) |
| 33513 | Shaft, Control Shaft Bracket, Upper |
| 33513A | Spring, Compression (FOR BRACKET UPPER SHAFT) |
| 33518 | Bush, Upper Control Shaft Piece |
| 33518A | Washer, Plate (FOR UPPER CONTROL SHAFT PIECE BUSH) |
| 33518B | Ring, E (FOR UPPER CONTROL SHAFT PIECE BUSH) |
| 33522 | Seat, Shift Lever Plate (FOR COLUMN SHIFT) |
| 33523 | Pin, Shift Lever (FOR COLUMN SHIFT) |
| 33523A | Spring, Compression |
| 33530 | Lever Assy, Shift (FOR COLUMN SHIFT) |
| 33535 | Lever, Control Select (FOR COLUMN SHIFT) |
| 33535A | Bush (FOR CONTROL SELECT LEVER) |
| 33536 | Shaft, Control Select Lever (FOR COLUMN SHIFT) |
| 33571 | Bracket, Control Shaft, Lower (FOR COLUMN SHIFT) |
| 33572 | Bush, Control Shaft Lower (FOR COLUMN SHIFT) |
| 33573 | Cover, Control Shaft Dust, Lower |
| 33584 | Gasket, Control Shift Lever Retainer (FOR COLUMN SHIFT) |
| 33599A | Cover, Upper Bracket |
| 33695 | Cover, Selecting Spring (FOR COLUMN SHIFT) |
| 33696 | Seat, Select Spring |
| 33696A | Spring, Compression |
| 33696B | Plate, Select Return |
| 33711 | Lever, Control Shaft (FOR COLUMN SHIFT) |
| 33711G | Bolt, Control Shaft Lever Lock |
| 33723 | Swivel, Connecting Rod (FOR COLUMN SHIFT) |
| 33723A | Bush (FOR COLUMN SHIFT CONTROL SHAFT) |
| 33723B | Grommet (FOR COLUMN SHIFT CONTROL SHAFT) |
| 33723C | Nut, Hexagon (FOR CONTROL ROD SETTING) |
| 33723D | Washer, Toothed (FOR CONTROL ROD SETTING) |
| 33731 | Rod, Gear Selecting, NO.1 (FOR COLUMN SHIFT) |
| 33736 | Rod, Gear Selecting, NO.2(FOR COLUMN SHIFT) |
| 33736B | Bush(FOR GEAR SELECTING ROD, NO.2) |
| 33736C | Grommet(FOR GEAR SELECTING ROD, NO.2) |
| 33741 | Rod, Gear Shifting, NO.1 (FOR COLUMN SHIFT) |
| 33742 | Rod, Gear Shifting, NO.2(FOR COLUMN SHIFT) |
| 33770 | Shaft Assy, Cross (FOR COLUMN SHIFT) |
| 33770A | Bush (FOR CROSS SHAFT) |
| 33770B | Gromet (FOR COLUMN SHIFT CROSS SHAFT) |
| 33770D | Pin (FOR CROSS SHAFT) |
| 33770E | Bush (FOR CROSS SHAFT) |
| 33772 | Bush, NO.1, Cross Shaft Support (FOR COLUMN SHIFT) |
| 33773 | Support, Cross Shaft, NO.1 (FOR COLUM SHIFT) |
| 33773A | Ring, Hole Snap (FOR CROSS SHAFT SUPPORT SNAP) |
| 33775 | Cover, Cross Shaft Dust (FOR COLUMN SHIFT) |
| 33776 | Bracket, Cross Shaft, NO.1 (FOR COLUMN SHIFT) |
| 33789 | Cover, Cross Shaft Dust(FOR COLUMN SHIFT) |
| 33790 | Cross Shaft Assy, NO.2(FOR COLUMN SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
