Toyota Hilux
1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe
Discontinued model
Data version 1984-05

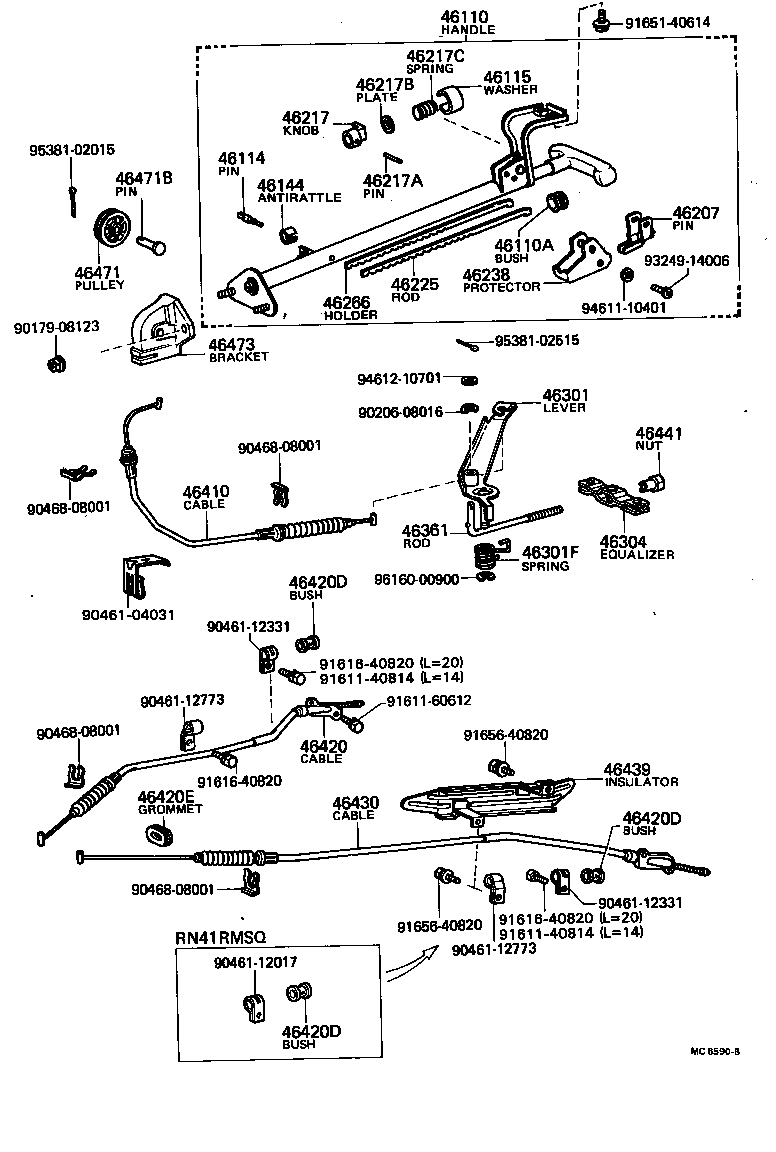

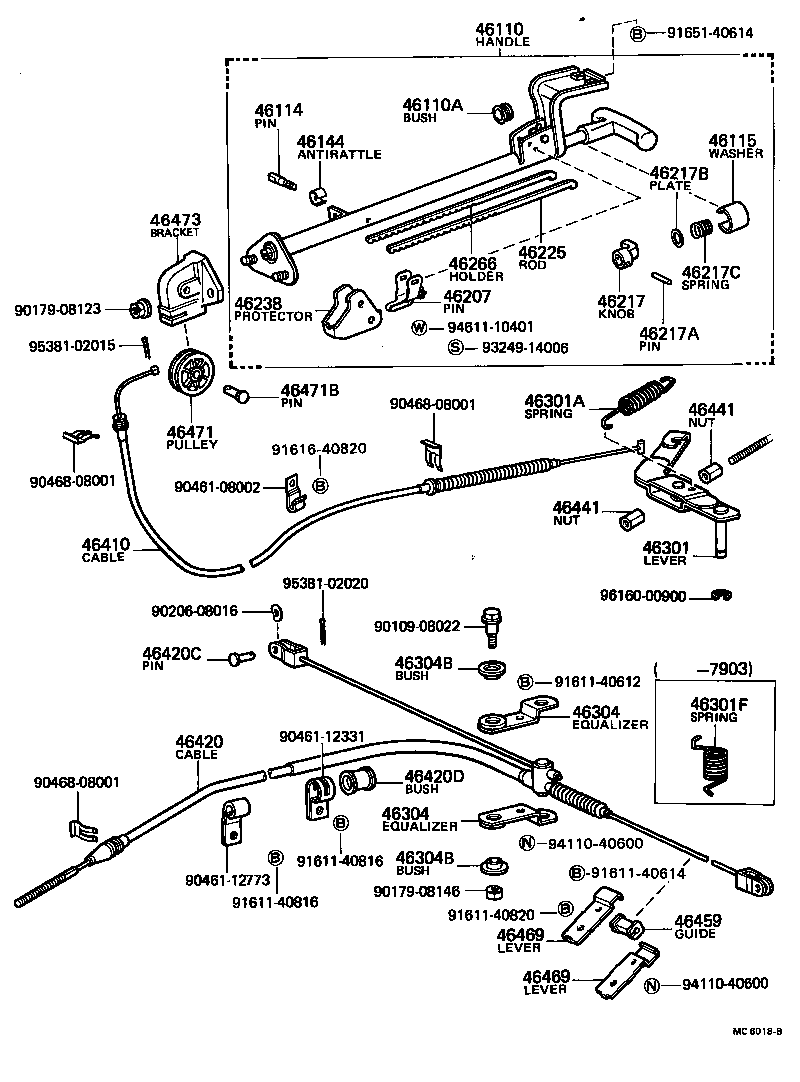

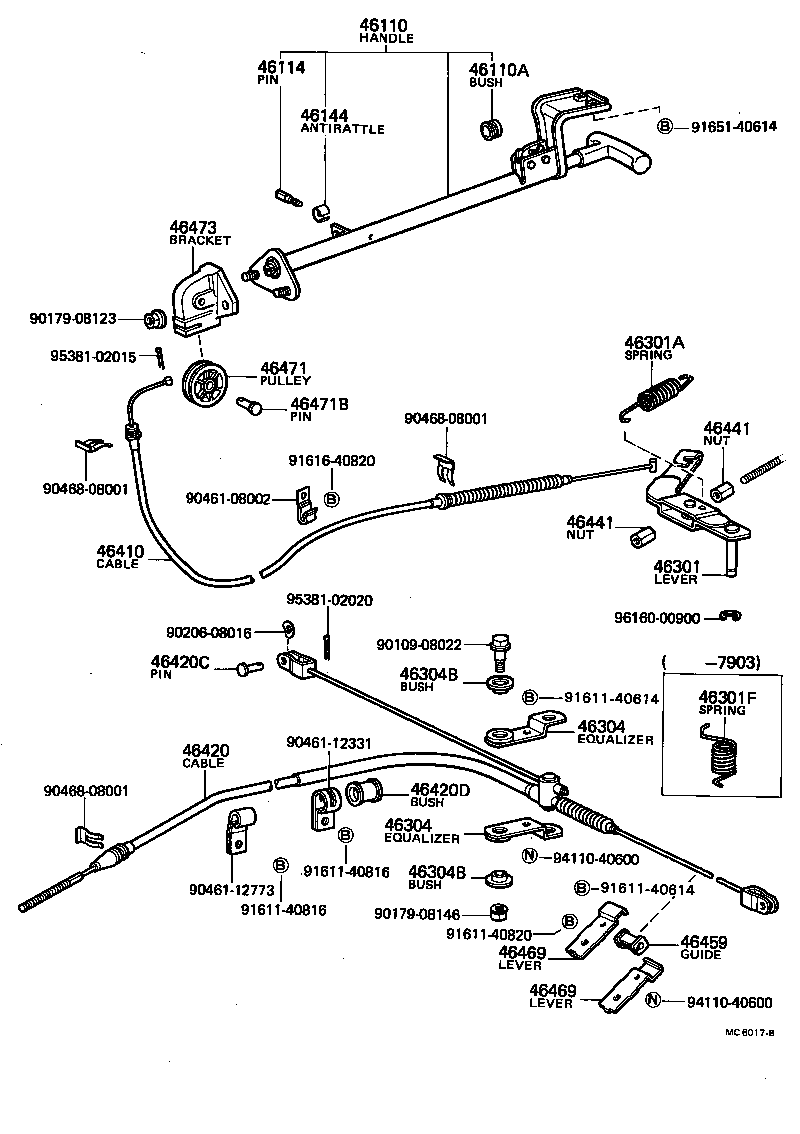

Parking Brake & Cable
32 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 46110 | Handle Assy, Parking Brake Control |
| 46110A | Bush OR Ring, O (FOR PARKING BRAKE PLUNGER) |
| 46114 | Pin, Parking Brake Plunger |
| 46115 | Washer, Parking Brake Plunger |
| 46144 | Anti-rattle, Parking Brake Plunger |
| 46207 | Pin Sub-assy, Plunger Lock |
| 46217 | Knob, Parking Brake Release Rod |
| 46217A | Pin, Slotted Spring(FOR PARKING BRAKE RELEASE ROD KNOB) |
| 46217B | Washer, Plate(FOR PARKING BRAKE RELEASE ROD KNOB) |
| 46217C | Spring, Compression(FOR PARKING BRAKE RELEASE ROD KNOB) |
| 46225 | Rod, Parking Brake Pawl Release |
| 46238 | Protector, Plunger Lock Pin |
| 46266 | Holder, Plunger Lock Pin |
| 46301 | Lever Sub-assy, Parking Brake Intermediate |
| 46301A | Spring, Tension(FOR INTERMEDIATE LEVER) |
| 46301F | Spring, Torsion(FOR PARKING BRAKE INTERMEDIATE LEVER) |
| 46304 | Equalizer Sub-assy, Parking Brake |
| 46304B | Bush(FOR PARKING BRAKE EQUALIZER) |
| 46361 | Rod, Parking Brake Pull |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46420C | Pin, W/Hole(FOR PARKING BRAKE CABLE) |
| 46420D | Grommet OR Bush(FOR PARKING BRAKE CABLE CLAMP) |
| 46420E | Grommet(FOR PARKING BRAKE CABLE CLAMP) |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46439 | Insulator, Parking Brake Cable Heat |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46459 | Guide, Cable |
| 46469 | Lever, Cable Guide Support |
| 46471 | Pulley, Wire |
| 46471B | Pin, W/Hole(FOR WIRE PULLEY SET) |
| 46473 | Bracket, Pulley |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
