Toyota Hilux
1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe
Discontinued model
Data version 1984-05

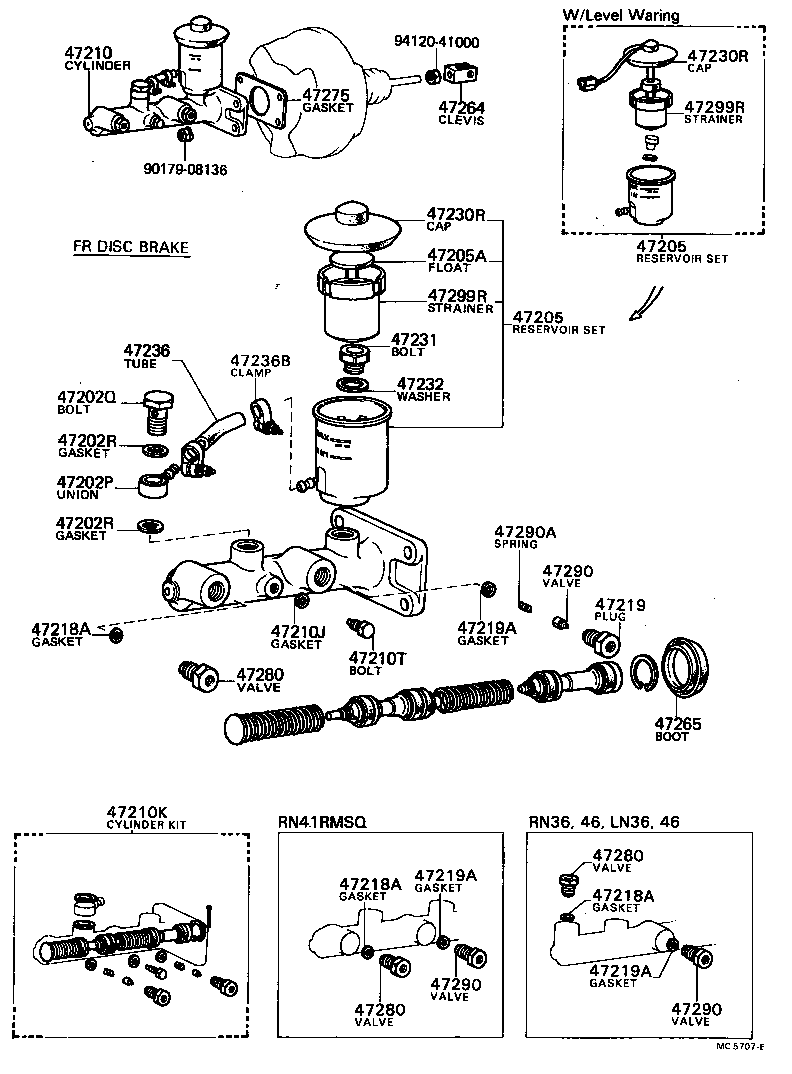

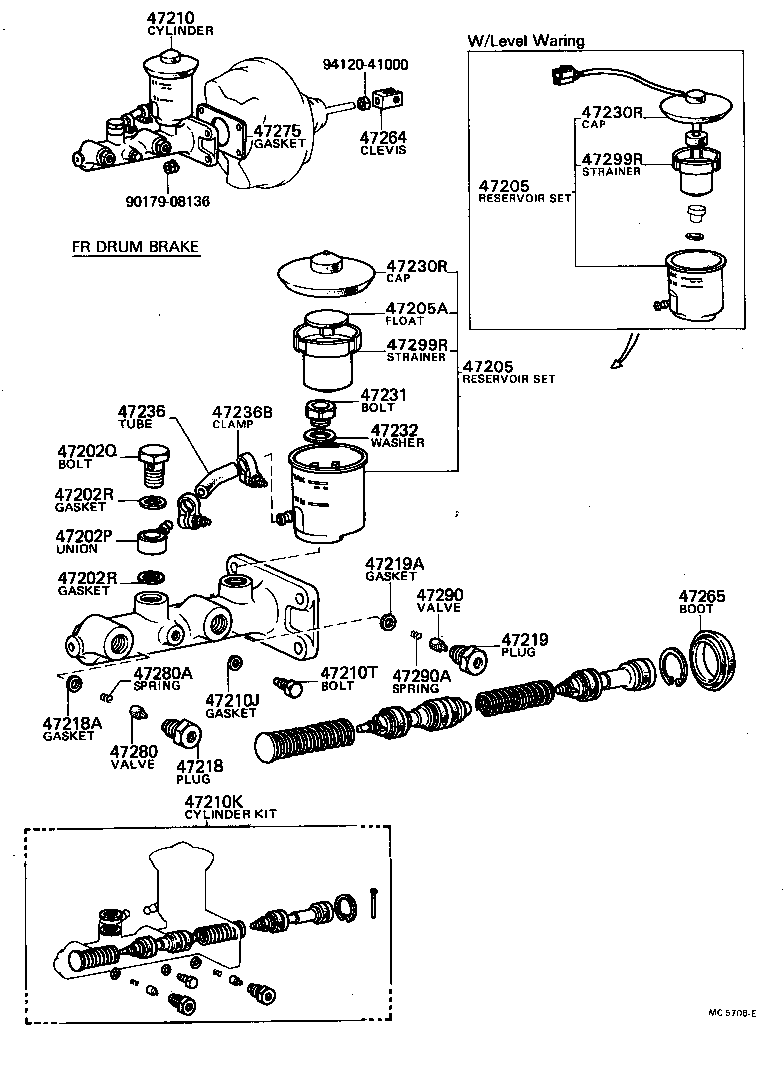

Brake Master Cylinder
26 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 47202P | Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202Q | Bolt, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202R | Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47205 | Reservoir Set, Brake Master Cylinder(FOR REAR SIDE) |
| 47205A | Float, Brake Master Cylinder Reservoir(FOR REAR SIDE) |
| 47210 | Cylinder Assy, Master, W/O Booster |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210K | Cylinder Kit, Brake Master |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47219 | Plug, Master Cylinder Fluid Outlet(FOR REAR SIDE) |
| 47219A | Gasket(FOR FLUID OUTLET PLUG REAR SIDE) |
| 47230R | Cap Assy, Reservoir, NO.2(FOR REAR SIDE) |
| 47231 | Bolt, Brake Master Cylinder Reservoir Set |
| 47232 | Washer, Brake Reservoir Set Bolt |
| 47236 | Tube, Reservoir Brake |
| 47236B | Clamp(FOR RESERVOIR TUBE) |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47265 | Boot, Master Cylinder |
| 47275 | Gasket, Brake Master Cylinder |
| 47280 | Valve Assy, Brake Master Cylinder Outlet Check |
| 47280A | Spring, Compression |
| 47290 | Valve Assy, Master Cylinder Outlet(FOR REAR SIDE) |
| 47290A | Spring, Compression(FOR FLUID OUTLET REAR SIDE) |
| 47299R | Strainer, Master Cylinder Reservoir, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
