Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

29 part groups · 6 illustrations

Illustrations

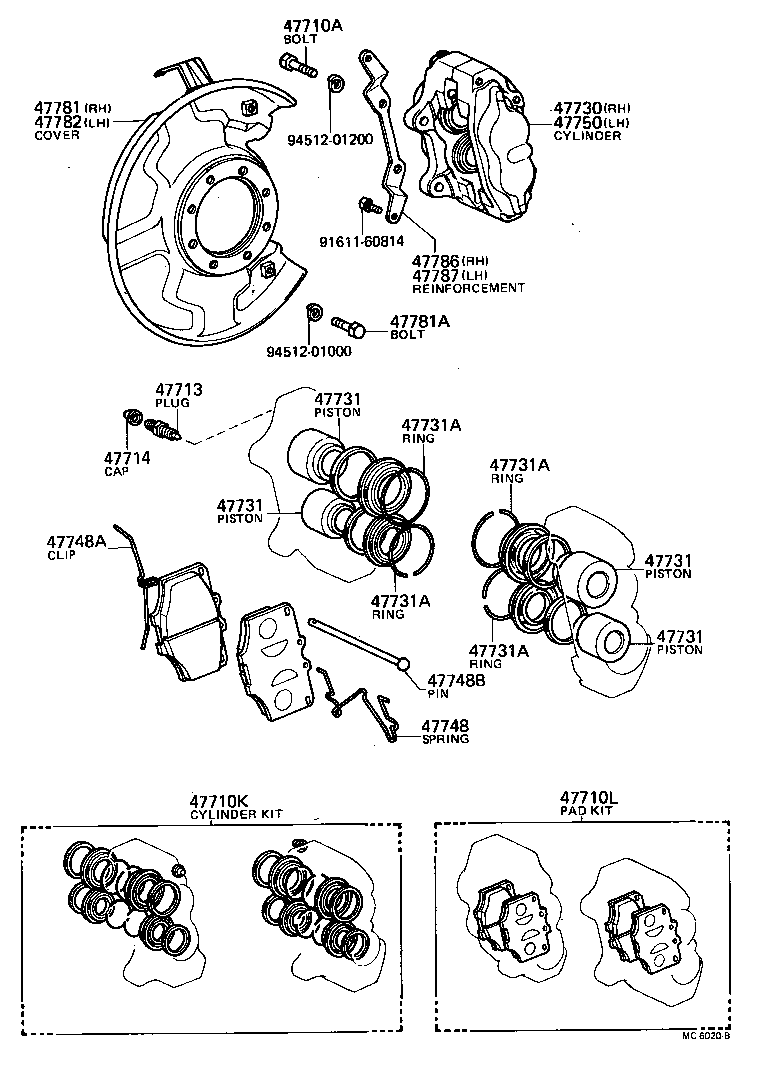

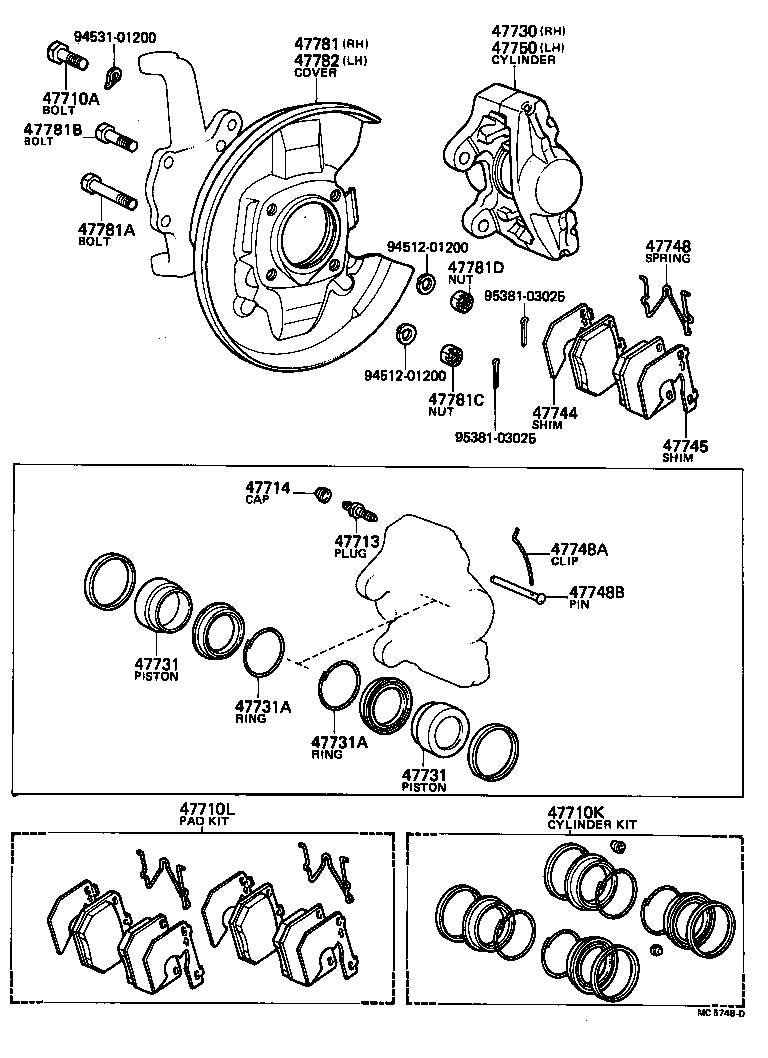

Figure MC5747E MC5747E 1978-08 → 1983-07 Figure MC5747E MC5747E 1978-08 → 1984-03 Figure MC5747E MC5747E 1979-01 → 1983-07 Figure MC5748D MC5748D 1978-08 → 1983-07 Figure MC6020B MC6020B 1979-01 → 1983-07 Figure MCT614 MCT614 1978-08 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47710K Cylinder Kit, Disc Brake, Front
47710L Pad Kit, Disc Brake, Front
47713 Plug, Bleeder(FOR FRONT DISC BRAKE)
47714 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47718 Spring, Front Disc Brake Cylinder Support
47721 Mounting, Front Disc Brake Cylinder, RH
47722 Mounting, Front Disc Brake Cylinder, LH
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47731A Ring, Set(FOR FRONT DISC BRAKE PISTON)
47743 Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
47744 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47745 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47748A Clip(FOR FRONT DISC BRAKE ANTI-RATTLE)
47748B Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
47750 Cylinder Assy, Disc Brake, LH
47781 Cover, Disc Brake Dust, Front RH
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781B Bolt(FOR DUST COVER SETTING)
47781C Nut(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781D Nut(FOR DUST COVER SETTING)
47782 Cover, Disc Brake Dust, Front LH
47786 Reinforcement, Dust Cover, RH
47787 Reinforcement, Dust Cover, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
