Toyota Hilux
1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe
Discontinued model
Data version 1984-05

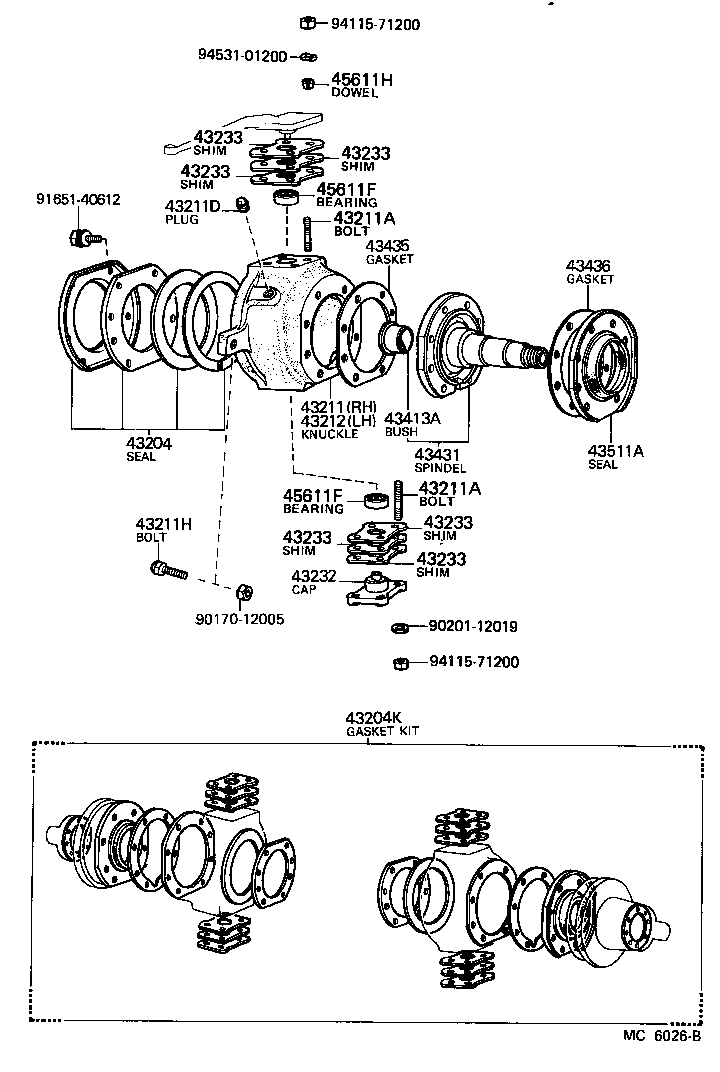

Front Axle Arm & Steering Knuckle
37 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 43204 | Seal Sub-assy, Steering Knuckle Oil |
| 43204K | Gasket Kit, Front Axle Overhaul |
| 43211 | Knuckle, Steering, RH |
| 43211A | Bolt, Stud (FOR STEERING SET) |
| 43211D | Plug (FOR STEERING KNUCKLE) |
| 43211H | Bolt, Round Hexagon |
| 43212 | Knuckle, Steering, LH |
| 43232 | Cap, Steering Knuckle Bearing |
| 43233 | Shim, Steering Knuckle Adjust, NO.1 |
| 43310 | Joint Assy, Upper Ball |
| 43310A | Plug (FOR BALL JOINT) |
| 43330 | Joint Assy, Lower Ball, Front |
| 43345 | Cover, Lower Ball Joint Dust |
| 43345B | Ring, Set (FOR LOWER BALL JOINT DUST COVER) |
| 43413A | Bush, Solid (FOR DRIVE SHAFT) |
| 43431 | Spindle, Steering Knuckle |
| 43435 | Gasket, Knuckle Spindle |
| 43436 | Gasket, Knuckle Spindle Oil Retainer |
| 43511A | Seal, Dust (FOR FRONT AXLE HUB) |
| 45611F | Bearing(FOR STEERING KNUCKLE ARM) |
| 45611H | Dowel, Split(FOR STEERING KNUCKLE ARM) |
| 48066 | Arm Sub-assy, Front Suspension, Upper RH |
| 48067 | Arm Sub-assy, Front Suspension, Upper LH |
| 48068 | Arm Sub-assy, Front Suspension, Lower NO.1 RH |
| 48068A | Bolt(FOR FRONT SUSPENSION LOWER ARM) |
| 48069 | Arm Sub-assy, Front Suspension, Lower NO.1 LH |
| 48167 | Arm, Torque |
| 48167A | Bolt(FOR TORQUE ARM SETTING) |
| 48195 | Shim, Camber Adjust |
| 48332 | Bumper, Front Spring, NO.2 |
| 48631B | Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM) |
| 48631E | Bolt(FOR UPPER SUSPENSION ARM) |
| 48631K | Shaft Kit, Upper Suspension Arm |
| 48632 | Bush, Upper Arm |
| 48633 | Seal, Upper Arm Pivot Dust |
| 48636 | Bolt, Upper Arm Set |
| 48654 | Bush, Lower Arm |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
