Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

6 part groups · 2 illustrations

Illustrations

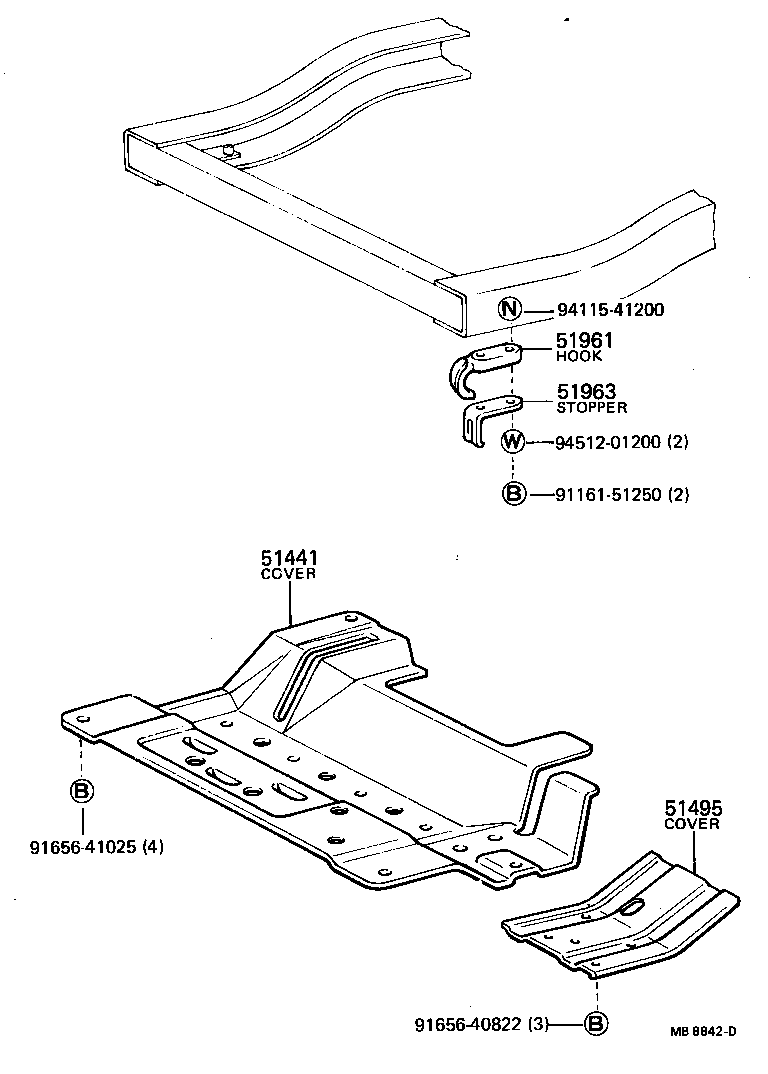

Figure MBC295A MBC295A 1978-08 → — Figure MB8842D MB8842D 1979-01 → 1983-07

Part groups

PNCDescription
51245 Plate, Frame Mudguard, RH
51246 Plate, Frame Mudguard, LH
51441 Cover, Engine Under, NO.1
51495 Cover, Transmission Under
51961 Hook, NO.1
51963 Stopper, Hook Wire
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
