Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

8 part groups · 3 illustrations

Illustrations

Figure MBB120D

MBB120D 1978-08 → 1981-08

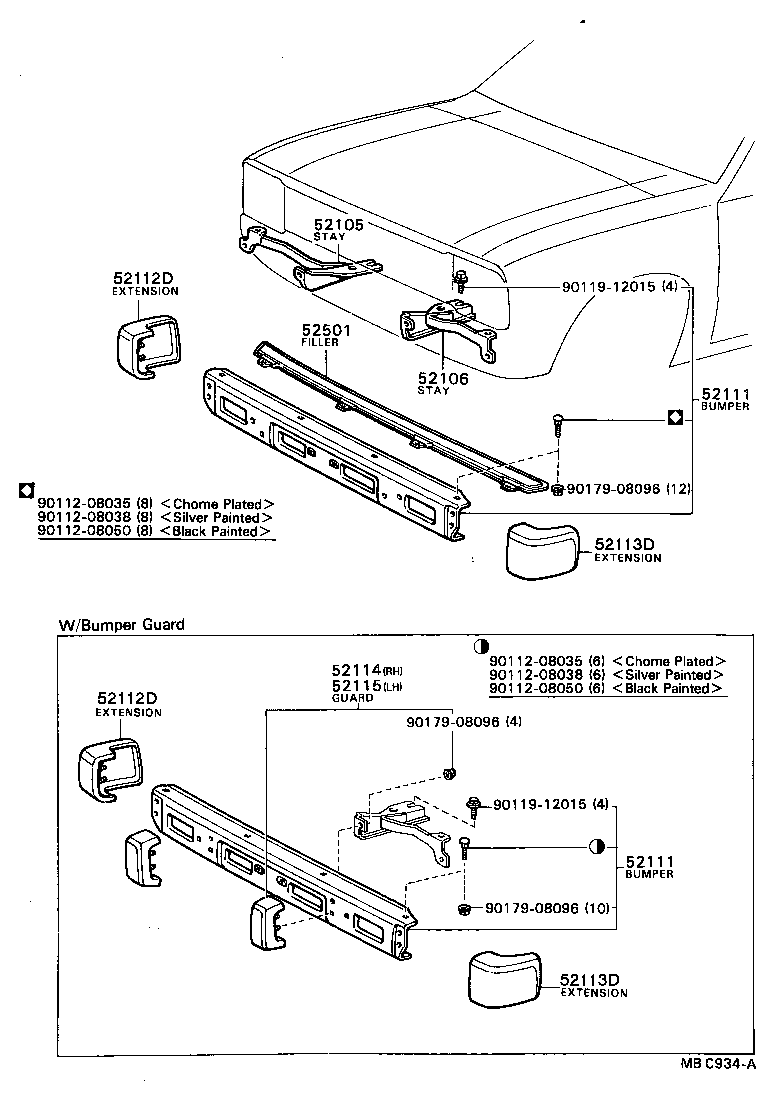

Figure MBC934A

MBC934A 1981-08 → —

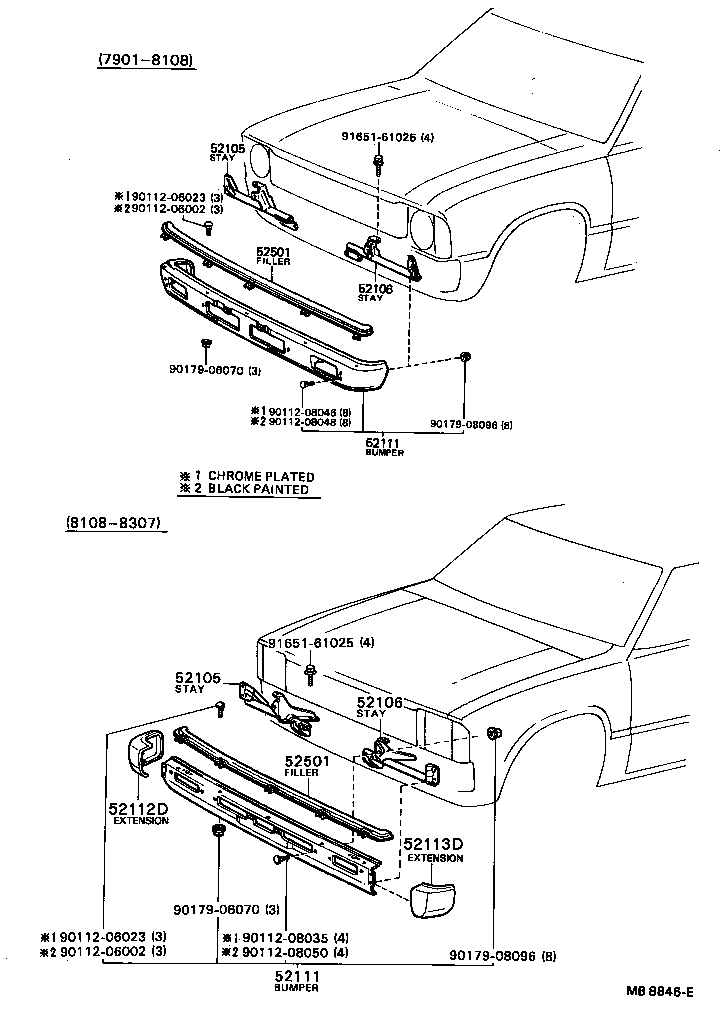

Figure MB8846E

MB8846E 1979-01 → 1983-07

Part groups

PNC	Description
52105	Stay Sub-assy, Front Bumper, RH
52106	Stay Sub-assy, Front Bumper, LH
52111	Bumper Assy, Front
52112D	Extension, Front Bumper, RH
52113D	Extension, Front Bumper, LH
52114	Guard, Bumper, Front RH
52115	Guard, Bumper, Front LH
52501	Filler Sub-assy, Front Bumper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
