Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 5 illustrations

Illustrations

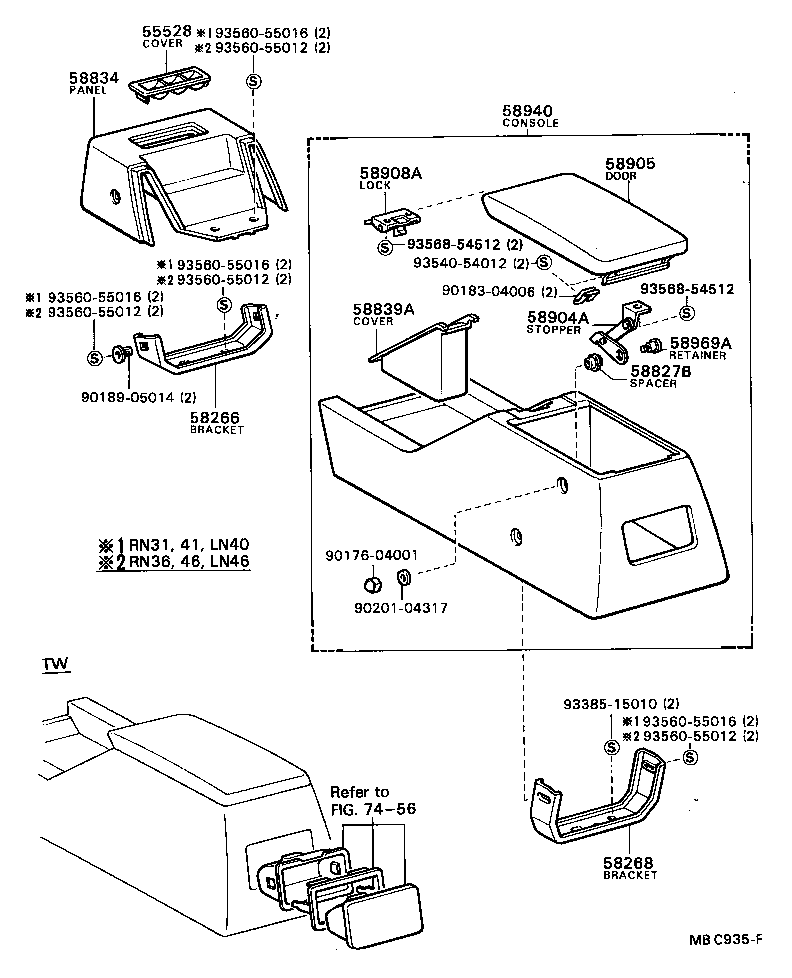

Figure MB8849H MB8849H 1978-08 → 1983-07 Figure MBD101B MBD101B 1979-01 → 1983-07 Figure MBC935F MBC935F 1981-08 → 1983-07 Figure MBC935F MBC935F 1981-08 → — Figure MBC935F MBC935F 1982-08 → 1983-07

Part groups

PNCDescription
55528 Cover, Auto Drive Opening
58266 Bracket, Console Box Support, Front
58267 Bracket, Console Box Support, Center
58268 Bracket, Console Box Support, Rear
58478 Plug, Console Box Hole
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58827B Spacer, Console Compartment Door Stopper
58828A Bracket, Console Box, Lower
58834 Panel, Console End
58835 Panel, Console, Upper
58835B Protector, Wiring Harness
58839A Cover, Console Box Hole
58851 Bracket, Console Support, Upper RH
58852 Bracket, Console Support, Upper LH
58904A Stopper Sub-assy, Console Compartment Door
58905 Door Sub-assy, Console Compartment
58908A Lock Sub-assy, Console Compartment Door
58940 Console Assy, Rear
58969A Retainer, Console Compartment Door Stopper
58985 Retainer, Console Box
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
