Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

22 part groups · 2 illustrations

Illustrations

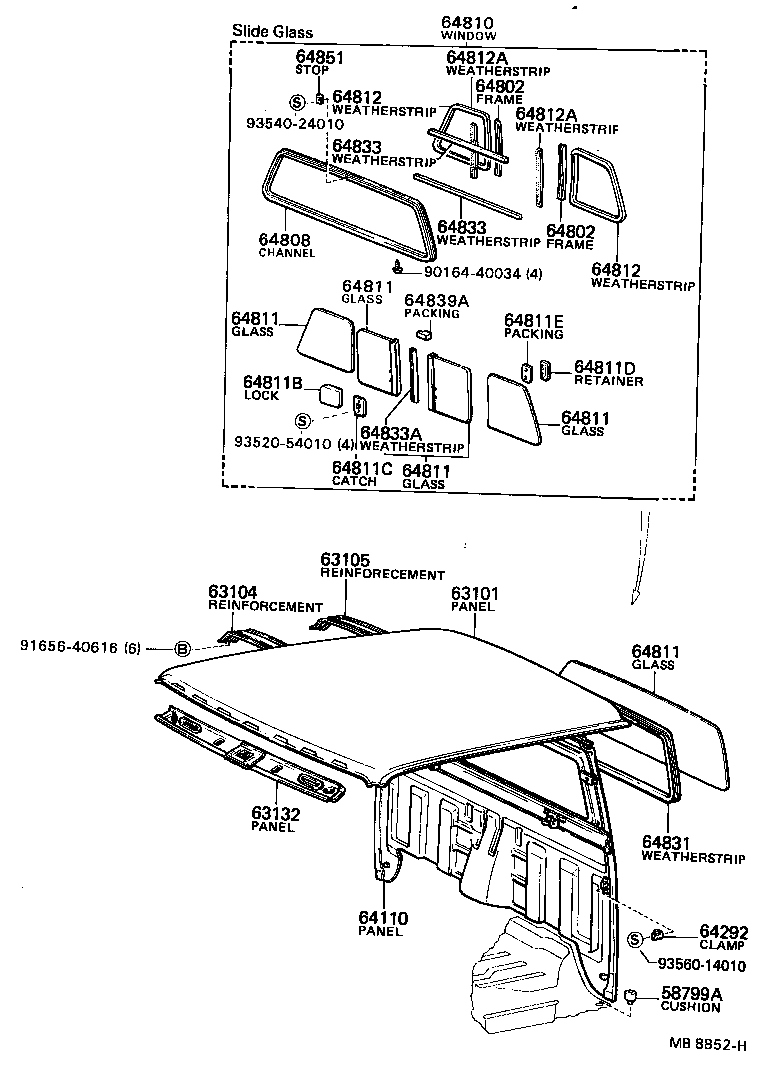

Figure MB8867N MB8867N 1978-08 → — Figure MB8852H MB8852H 1979-01 → 1983-07

Part groups

PNCDescription
58799A Cushion, Jack Handle
63101 Panel Sub-assy, Roof
63104 Reinforcement Sub-assy, Roof Panel, Center
63105 Reinforcement Sub-assy, Roof Panel, Rear
63132 Panel, Windshield Header, Inner
64110 Panel Assy, Front Body Back
64292 Clamp, Jack Handle
64802 Frame Sub-assy, Back Window Fix
64808 Channel Sub-assy, Back Window Slide Glass
64810 Window Assy, Back
64811 Glass, Back Window
64811B Lock Assy, Back Window
64811C Catch, Back Window Lock
64811D Retainer, Back Window
64811E Packing, Back Window Lock
64812 Weatherstrip, Back Window Glass, NO.1
64812A Weatherstrip, Back Window Glass, NO.2
64831 Weatherstrip, Back Window Glass
64833 Weatherstrip, Back Window Channel
64833A Weatherstrip, Back Window Center Channel
64839A Packing, Back Window
64851 Stop, Back Window Slide Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
