Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

11 part groups · 2 illustrations

Illustrations

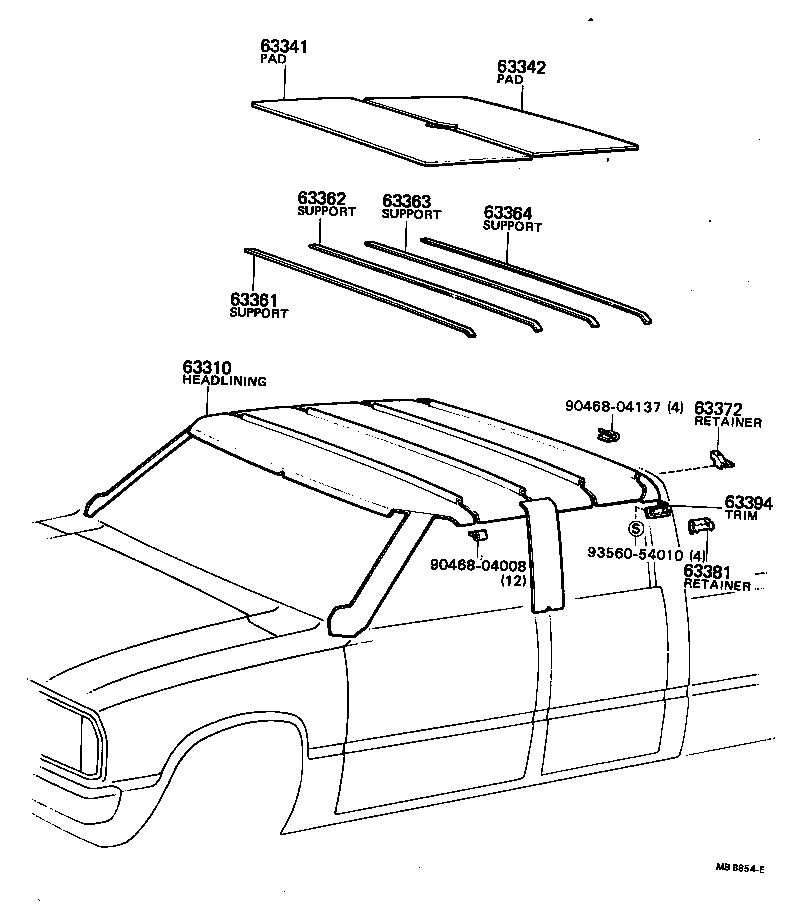

Figure MBC509C MBC509C 1978-08 → — Figure MB8854E MB8854E 1979-01 → 1983-07

Part groups

PNCDescription
63310 Headlining Assy, Roof
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63351 Silencer, Roof Side
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63372 Retainer, Headlining Support
63381 Retainer, Headlining, Front
63394 Trim, Roof Headlining
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
