Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Side Panel

23 part groups · 2 illustrations

Illustrations

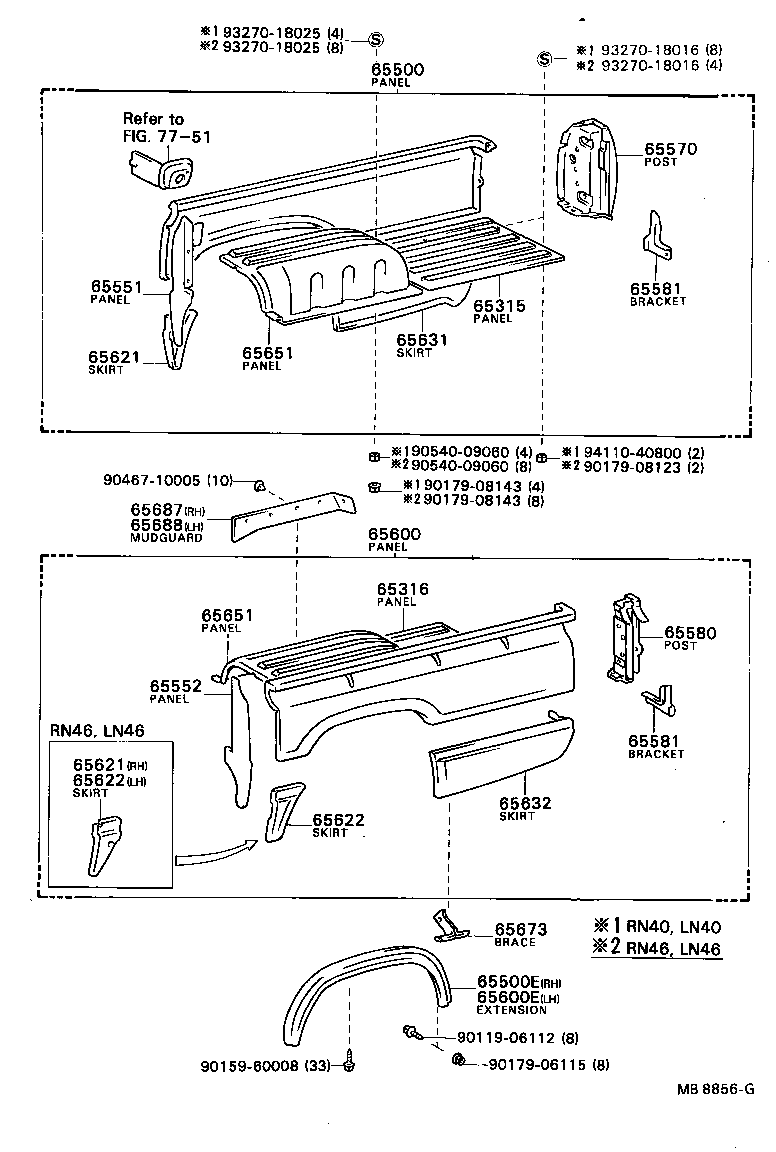

Figure MB8157H MB8157H 1978-08 → — Figure MB8856G MB8856G 1979-01 → 1983-07

Part groups

PNCDescription
65313 Panel, Floor Front Corner, RH
65314 Panel, Floor Front Corner, LH
65315 Panel, Floor Rear Corner, RH
65316 Panel, Floor Rear Corner, LH
65500 Panel Assy, Rear Body Side, RH
65500E Extension, Rear Wheel Opening, RH
65551 Panel, Front End Post Inner, RH
65552 Panel, Front End Post Inner, LH
65570 Post Assy, Side Panel Rear End, RH
65580 Post Assy, Side Panel Rear End, LH
65600 Panel Assy, Rear Body Side, LH
65600E Extension, Rear Wheel Opening, LH
65616 Reinforcement, Side Panel
65621 Skirt, Side Panel, Front RH
65622 Skirt, Side Panel, Front LH
65631 Skirt, Side Panel, Rear RH
65632 Skirt, Side Panel, Rear, LH
65635 Plate, Rear Wheel House
65651 Panel, Wheel House
65671 Brace, Side Panel Skirt, Front
65673 Brace, Side Panel Skirt, Rear
65687 Mudguard, Wheel House, RH
65688 Mudguard, Wheel House, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
