Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

36 part groups · 5 illustrations

Illustrations

MB8117M 1978-08 → —

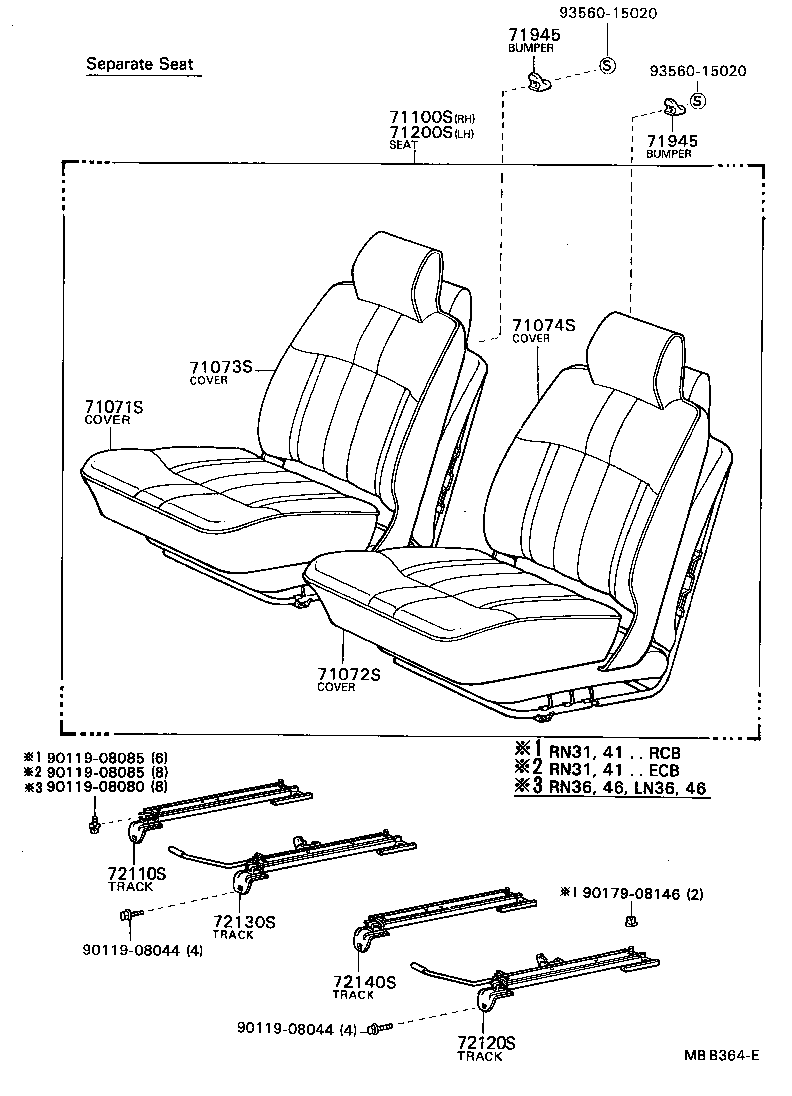

MBB364E 1978-08 → 1981-08

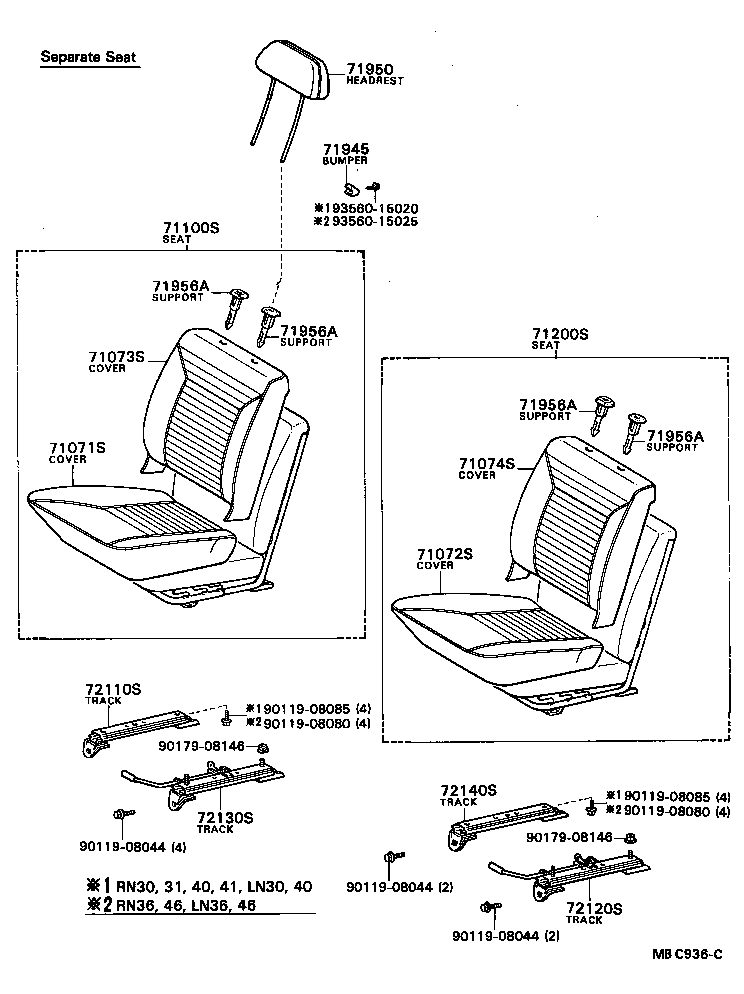

MBC936C 1981-08 → 1982-08

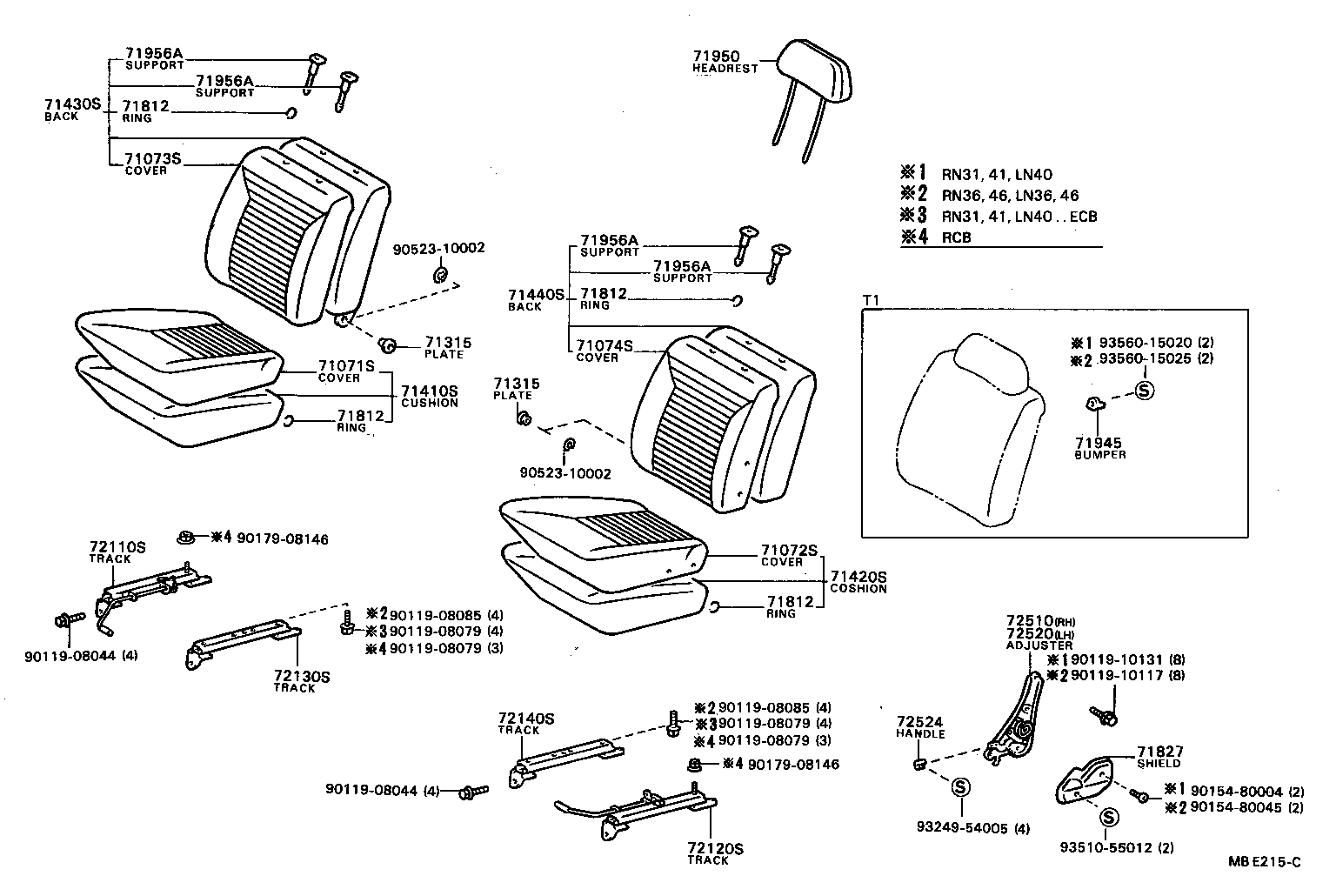

MBE215C 1982-08 → —

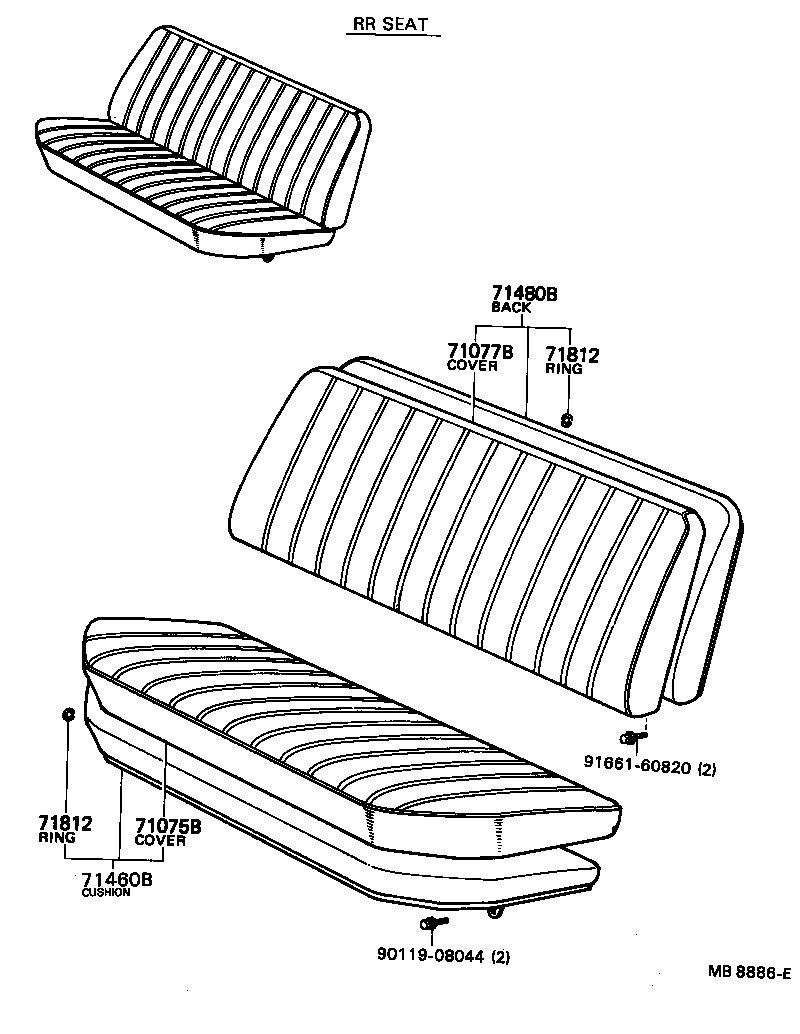

MB8886E 1979-01 → 1983-07

Part groups

PNC	Description
71071B	Cover, Front Seat Cushion(FOR BENCH TYPE)
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B	Cover, Front Seatback(FOR BENCH TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71100S	Seat Assy, Front RH
71125	Gusset, Front Seat Cushion Frame
71200S	Seat Assy, Front LH
71315	Plate, Front Seat Hinge
71410B	Cushion Assy, Front Seat(FOR BENCH TYPE)
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B	Back Assy, Front Seat(FOR BENCH TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71704	Band Sub-assy, Rear Side Seat
71812	Clip (FOR FRONT SEAT CUSHION COVER)
71827	Shield, Front Seat Cushion
71945	Bumper, Seatback
71950	Headrest Assy, Front Seat
71956A	Support, Front Seat Headrest
72110B	Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120B	Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S	Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130S	Track Assy, RH Seat, Inner (FOR SEPARATE SEAT)
72140S	Track Assy, LH Seat, Inner (FOR SEPARATE SEAT)
72301	Wire Sub-assy, Seat Track Equalizing
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72524	Handle, Reclining Adjuster Release

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
