Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

17 part groups · 2 illustrations

Illustrations

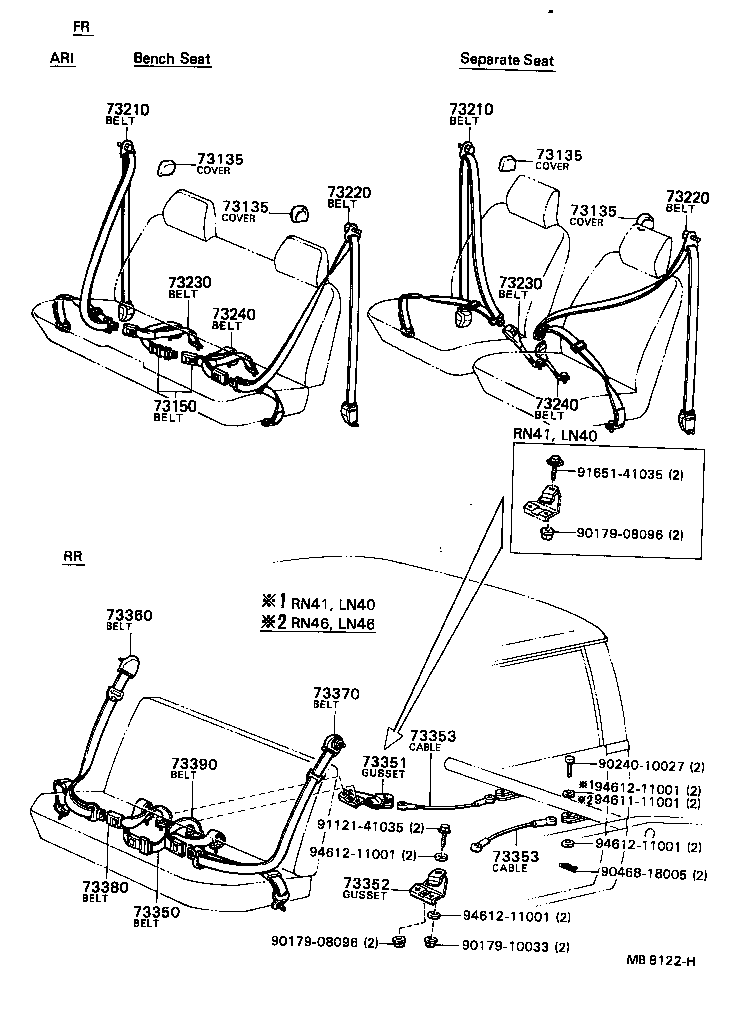

Figure MBB810E MBB810E 1978-08 → 1983-07 Figure MB8122H MB8122H 1978-08 → 1983-07

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73150 Belt Assy, Front Seat Lap Type, Center
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73351 Gusset Sub-assy, Rear Seat Belt Anchor, RH
73352 Gusset Sub-assy, Rear Seat Belt Anchor, LH
73353 Cable, Cab TO Chassis
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
