Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

12 part groups · 2 illustrations

Illustrations

Figure MB8125G

MB8125G 1978-08 → —

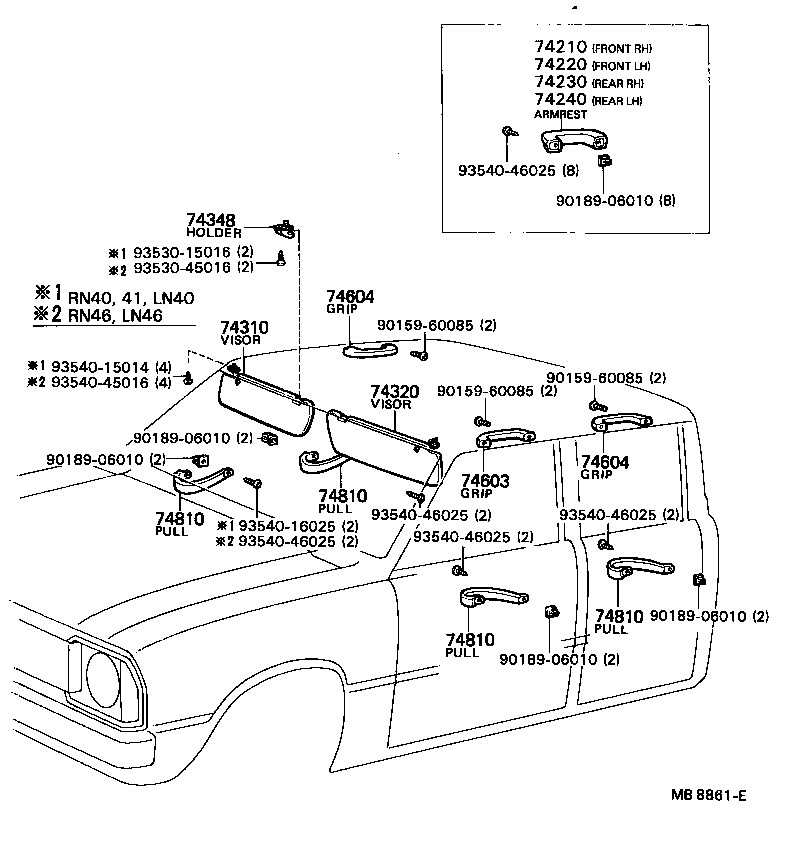

Figure MB8861E

MB8861E 1979-01 → 1983-07

Part groups

PNC	Description
74210	Armrest Assy, Front, RH
74210D	Cap, Door Armrest
74220	Armrest Assy, Front, LH
74230	Armrest Assy, Rear, RH
74240	Armrest Assy, Rear, LH
74310	Visor Assy, RH
74320	Visor Assy, LH
74348	Holder, Visor
74603	Grip Sub-assy, Assist, Front
74604	Grip Sub-assy, Assist, Rear
74613	Plug, Assist Grip
74810	Pull Assy, Door, Inside

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
