Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

12 part groups · 7 illustrations

Illustrations

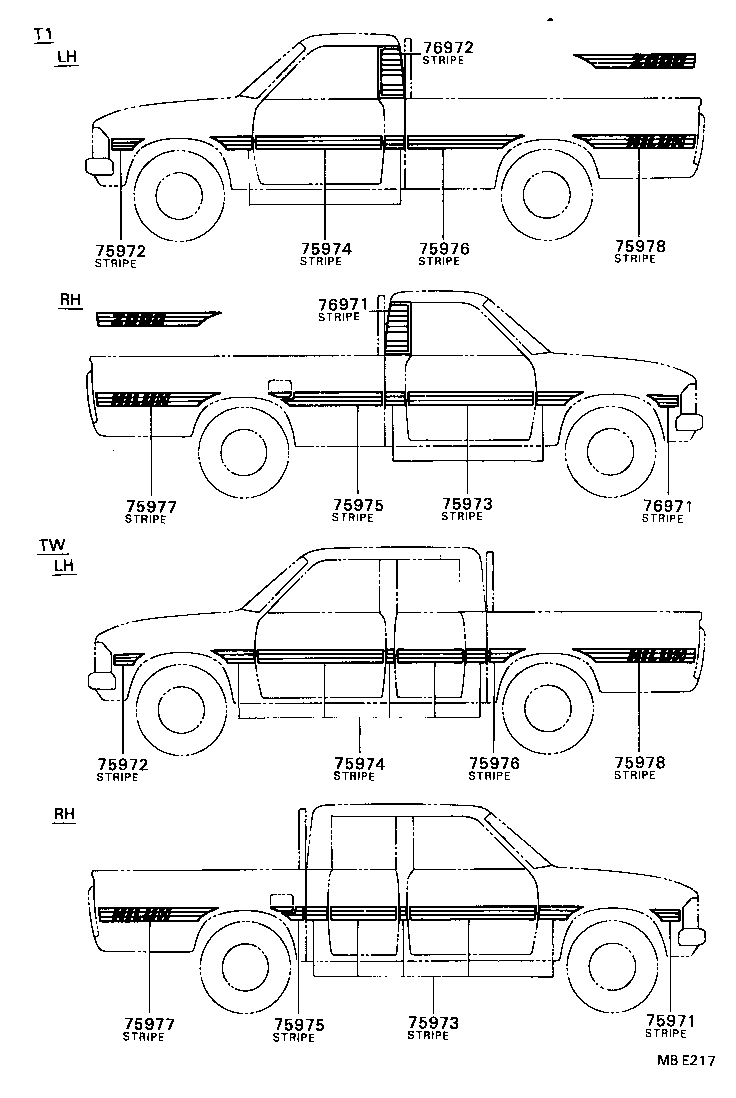

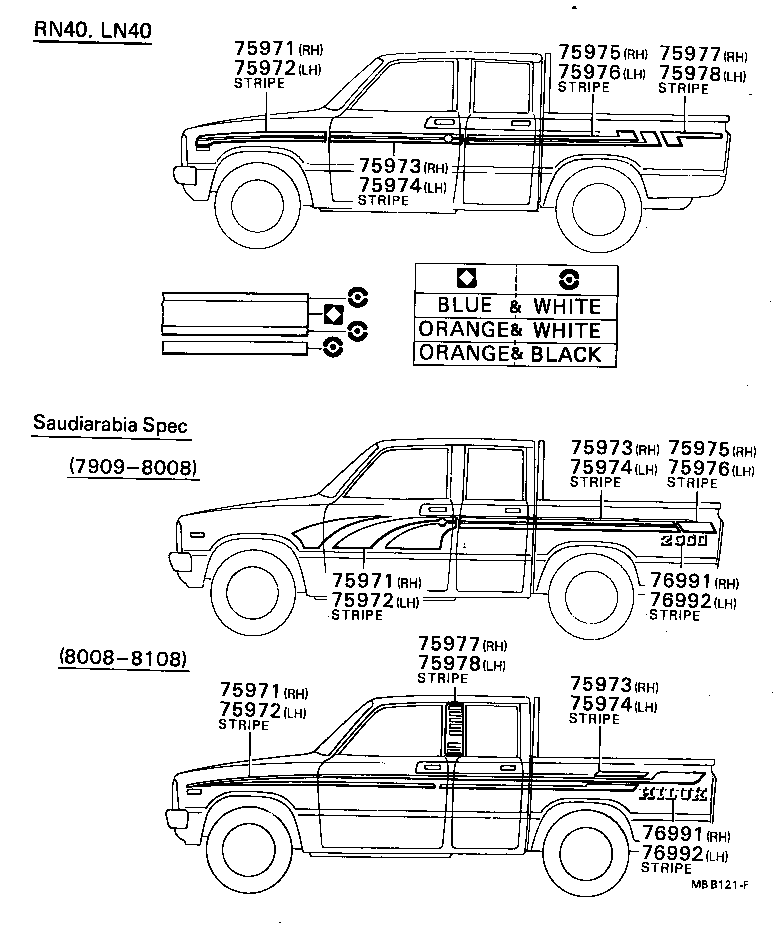

Figure MB8138K MB8138K 1978-08 → 1981-08 Figure MBB121F MBB121F 1979-01 → 1981-08 Figure MBC773B MBC773B 1981-08 → 1982-08 Figure MBC773B MBC773B 1982-08 → 1983-07 Figure MBE217 MBE217 1982-08 → 1983-07 Figure MBB751B MBB751B 1979-01 → 1981-08 Figure MBC938B MBC938B 1981-08 → 1983-07

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75972 Stripe, Side, LH NO.1
75973 Stripe, Side, RH NO.2
75974 Stripe, Center Pillar, LH NO.2
75975 Stripe, Side, RH Upr NO.3
75976 Stripe, Side, LH Upr
75977 Stripe, Side, RH NO.4
75978 Stripe, Side, LH NO.4
76971 Stripe, Side, RH NO.5
76972 Stripe, Quarter, Rear LH
76991 Stripe, Side Mark, RH NO.1
76992 Stripe, Side Mark, LH NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
