Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

28 part groups · 10 illustrations

Illustrations

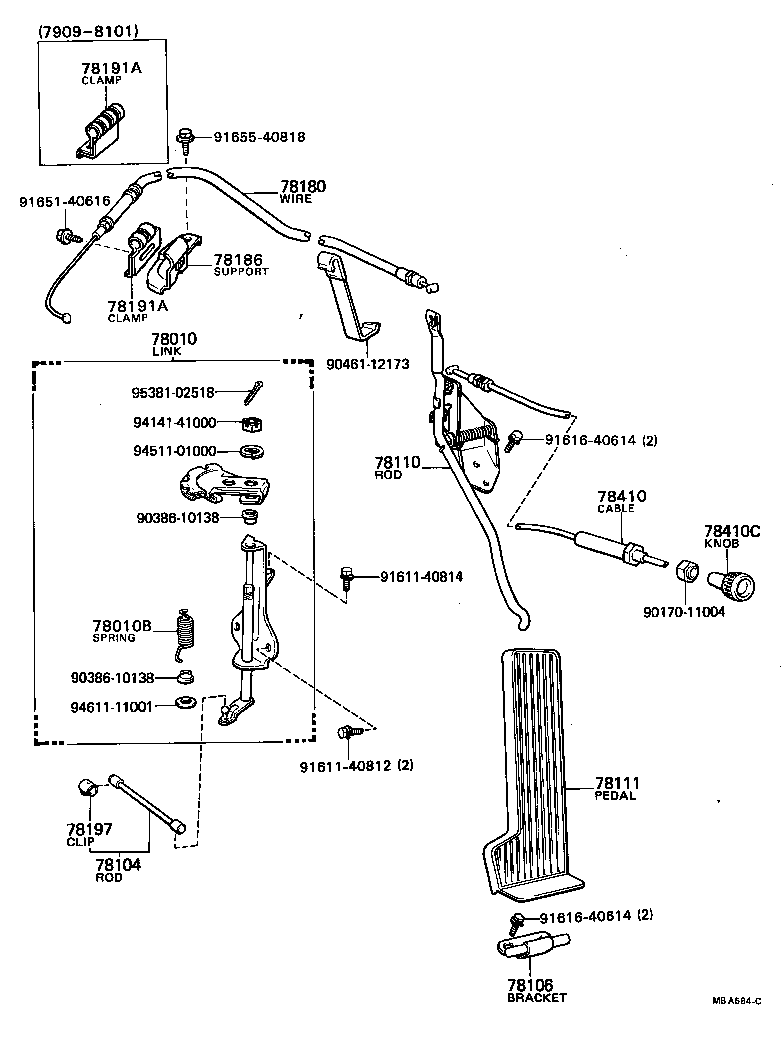

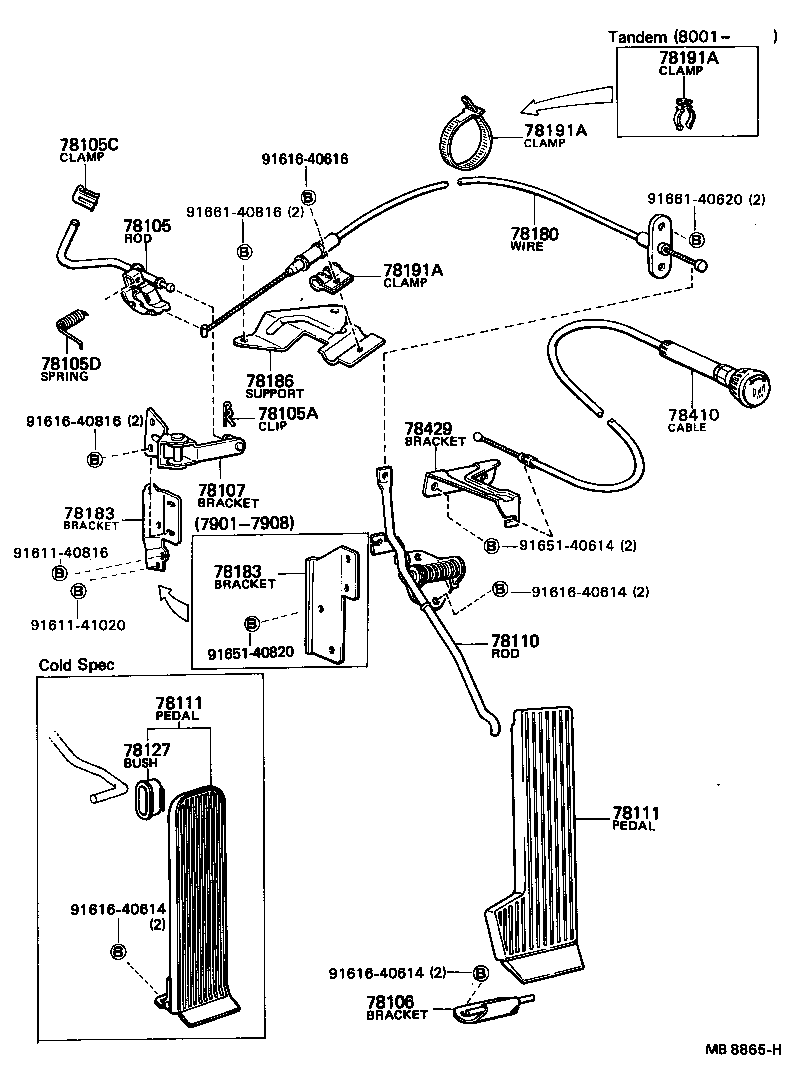

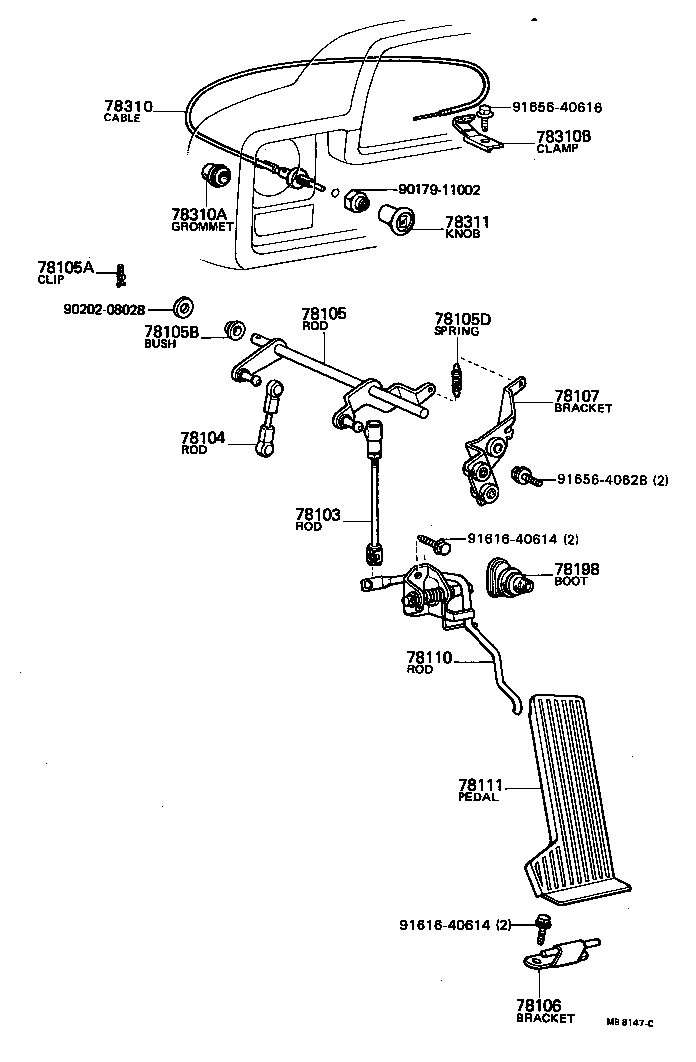

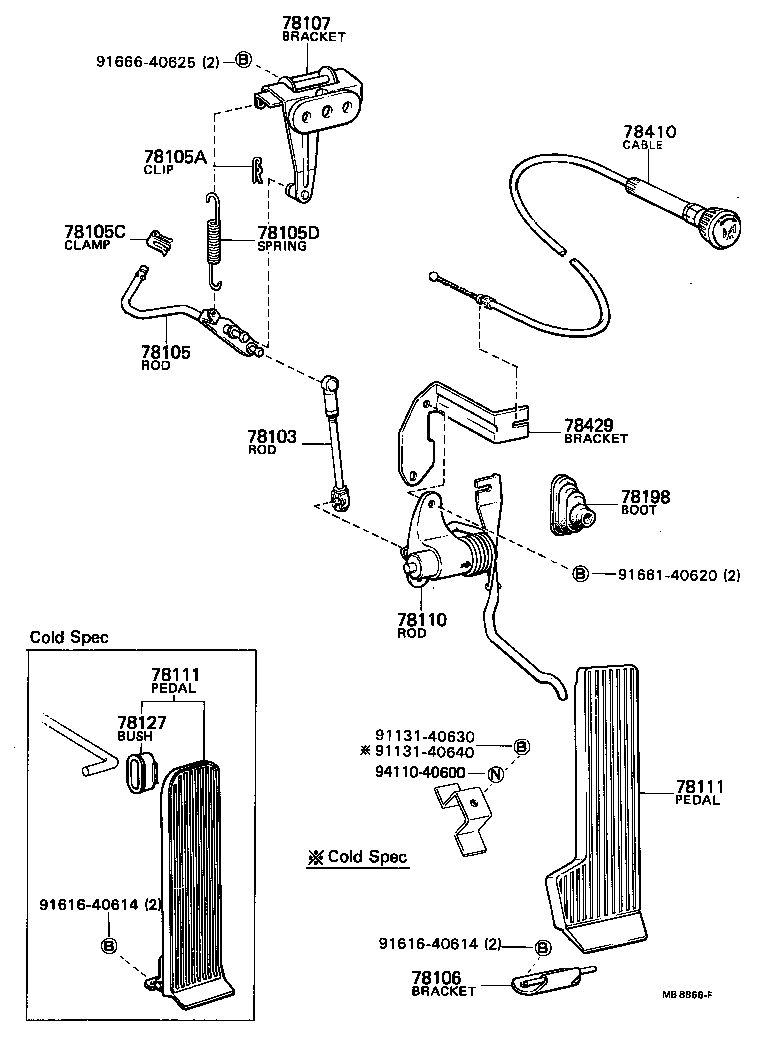

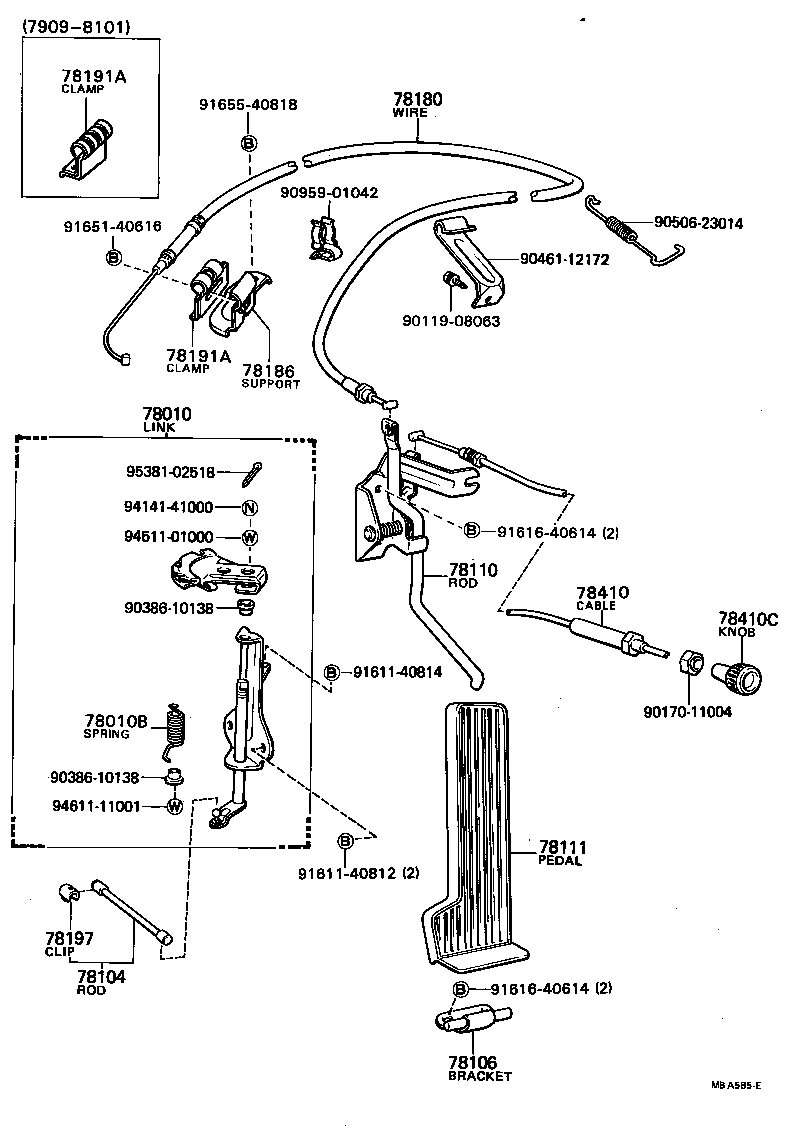

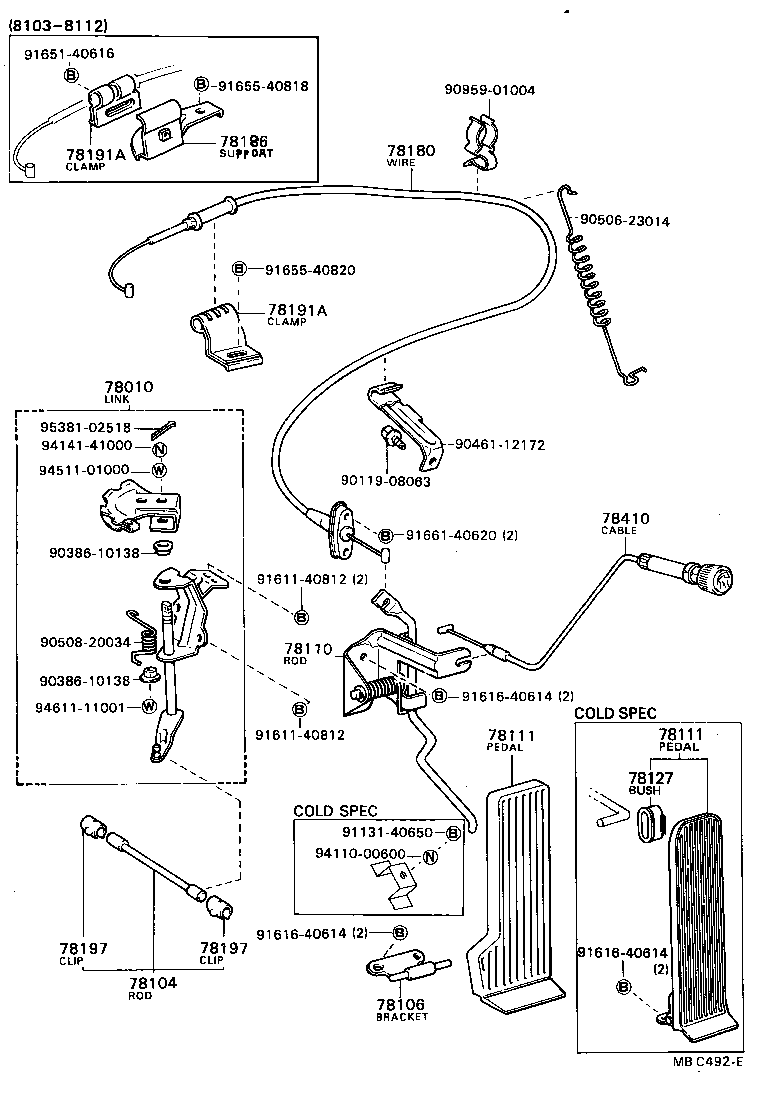

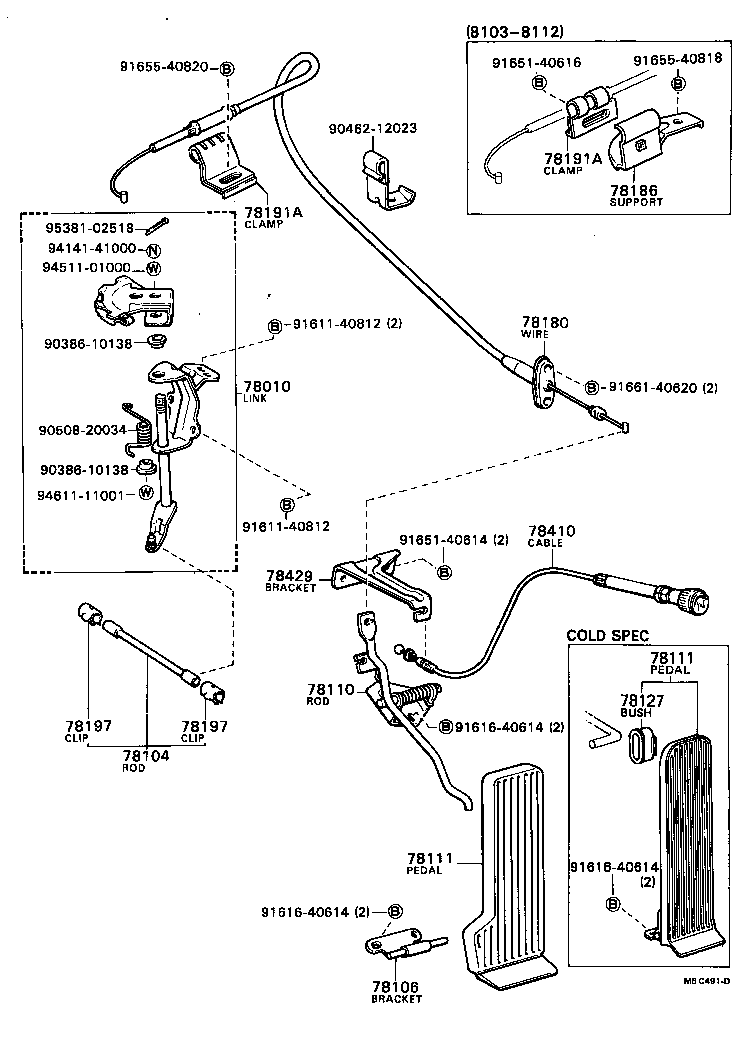

Figure MB8146C MB8146C 1978-08 → — Figure MB8147C MB8147C 1978-08 → 1983-07 Figure MB8148D MB8148D 1978-08 → — Figure MB8149B MB8149B 1978-08 → 1983-07 Figure MB8865H MB8865H 1979-01 → 1983-07 Figure MB8866F MB8866F 1979-01 → 1983-07 Figure MBA584C MBA584C 1979-09 → — Figure MBA585E MBA585E 1979-09 → 1983-07 Figure MBC491D MBC491D 1981-03 → 1983-07 Figure MBC492E MBC492E 1981-03 → 1983-07

Part groups

PNCDescription
78010 Link, Accelerator
78010B Spring, Torsion (FOR ACCELERATOR LINK)
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78105A Clip (FOR ACCELERATOR TORQUE ROD)
78105B Bush (FOR ACCELERATOR TORQUE ROD)
78105C Clamp (FOR ACCELERATOR TORQUE ROD)
78105D Spring (FOR ACCELERATOR TORQUE ROD)
78106 Bracket Sub-assy, Accelerator Pedal Support
78107 Bracket Sub-assy, Accelerator Torque Rod
78110 Rod Assy, Accelerator Pedal
78111 Pedal, Accelerator
78127 Bush, Accelerator Pedal, NO.2
78130 Bellcrank Assy, Accelerator
78180 Wire Assy, Accelerator
78183 Bracket, Accelerator Link Rod
78186 Support, Accelerator Control Cable, NO.1
78191A Clamp (FOR ACCELERATOR WIRE SET)
78197 Clip, Accelerator Joint Ball
78198 Boot, Accelerator Connecting Rod
78310 Cable Assy, Choke
78310A Grommet, Choke Cable
78310B Clamp, Choke Cable
78311 Knob, Choke Control Cable
78410 Cable Assy, Throttle Control
78410C Knob, Throttle Cable
78429 Bracket, Throttle Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
