Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Turn Signal Lamp & Outer Mirror Lamp

7 part groups · 2 illustrations

Illustrations

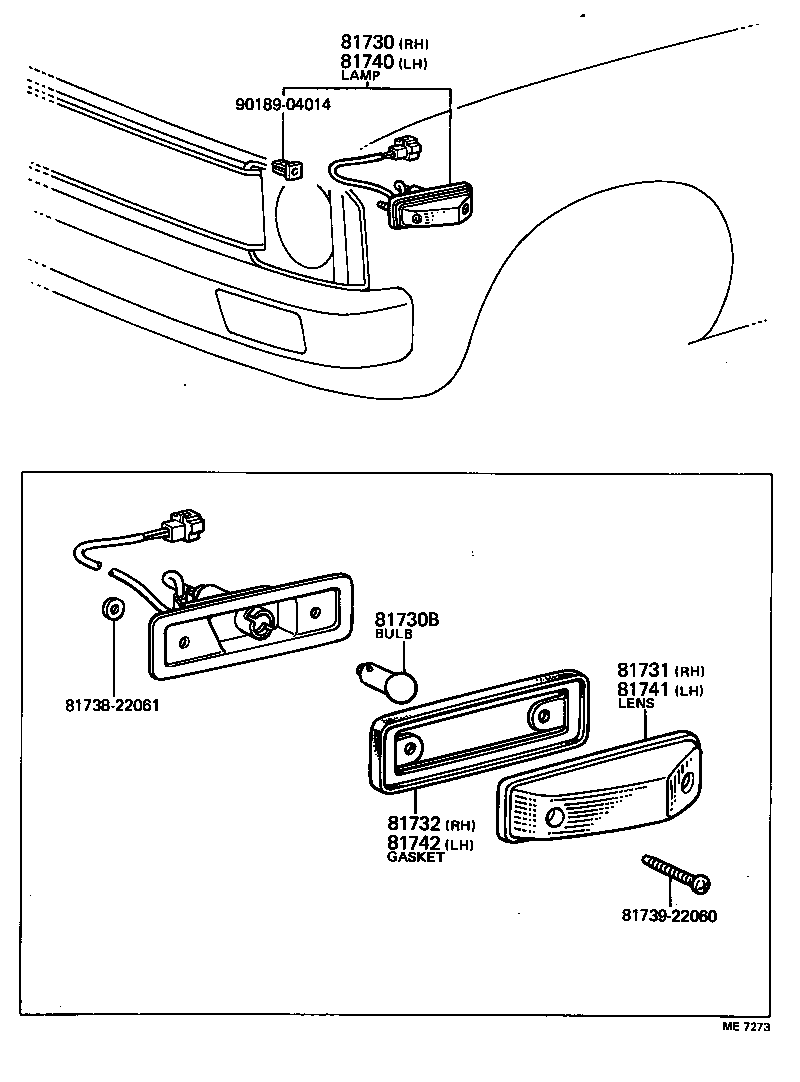

Figure ME7249A ME7249A 1978-08 → — Figure ME7273 ME7273 1978-08 → 1983-07

Part groups

PNCDescription
81730 Lamp Assy, Side Turn Signal, RH
81730B Bulb (FOR SIDE TURN SIGNAL LAMP)
81731 Lens, Side Turn Signal Lamp, RH
81732 Gasket, Side Turn Signal Lamp Lens, RH
81740 Lamp Assy, Side Turn Signal, LH
81741 Lens, Side Turn Signal Lamp, LH
81742 Gasket, Side Turn Signal Lamp Lens, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
