Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 2 illustrations

Illustrations

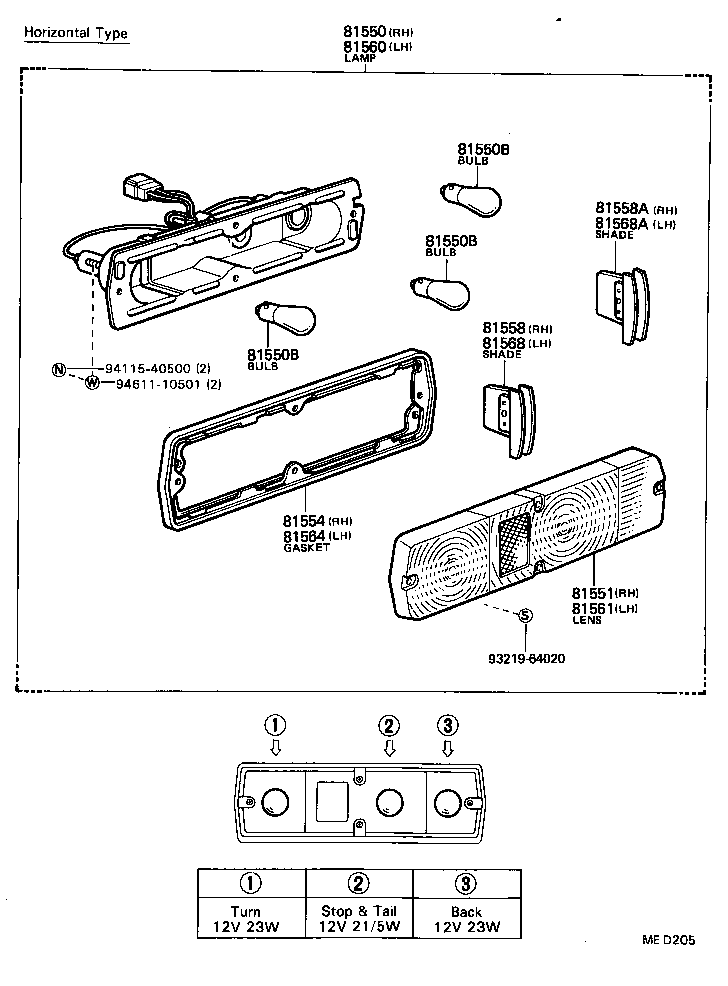

Figure ME7274E ME7274E 1978-08 → — Figure MED205 MED205 1982-01 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554 Gasket, Rear Combination Lamp Body, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81558A Shade, Rear Combination Lamp, NO.2 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564 Gasket, Rear Combination Lamp Body, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
81568A Shade, Rear Combination Lamp, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
