Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

13 part groups · 3 illustrations

Illustrations

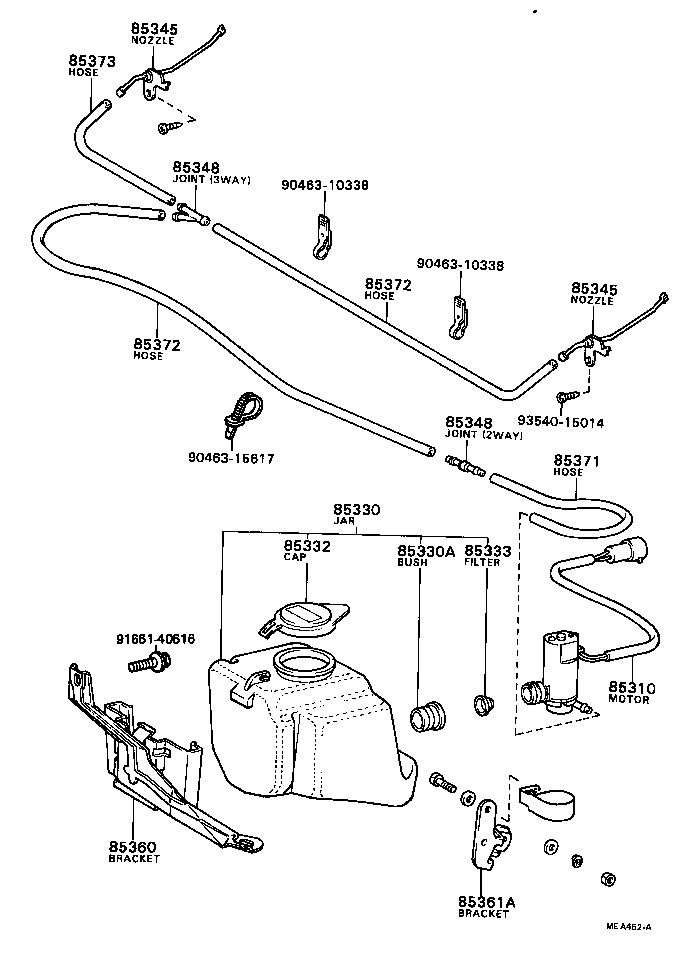

Figure MEA451A MEA451A 1978-08 → — Figure MEA451A MEA451A 1981-03 → 1983-07 Figure MEA452A MEA452A 1981-03 → 1983-07

Part groups

PNCDescription
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85360 Bracket Assy, Windshield Washer
85361A Bracket, Windshield Washer, NO.1
85361B Bracket, Windshield Washer, NO.2
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
