Toyota Hilux
1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe
Discontinued model
Data version 1984-05
Headlamp Cleaner

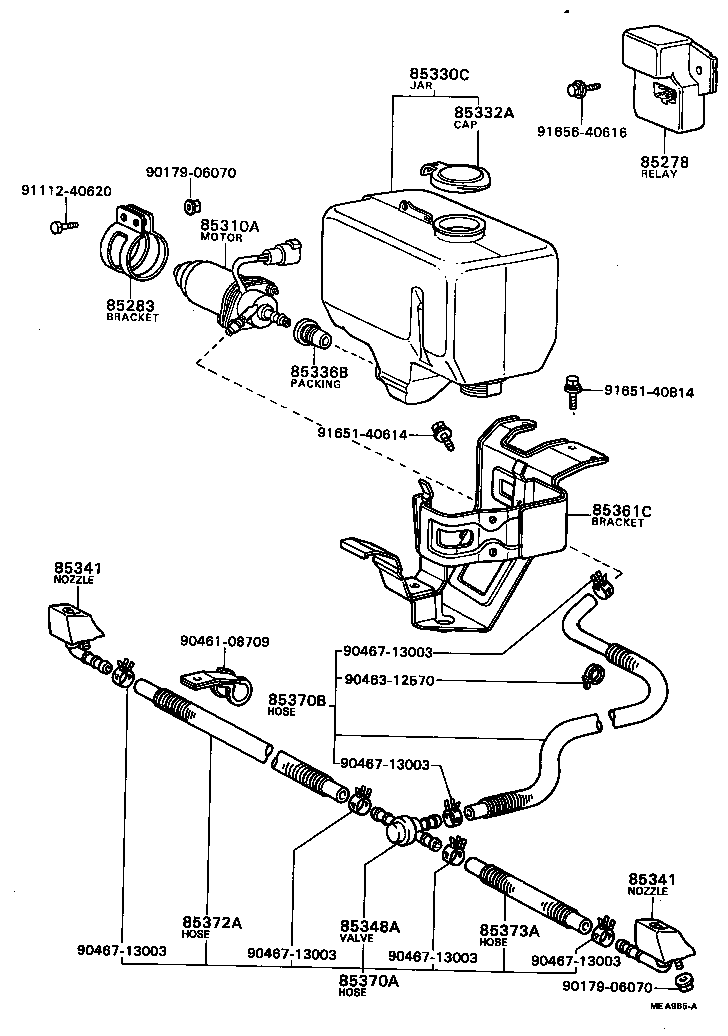

13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85278 | Relay Assy, Headlamp Cleaner Control |
| 85283 | Bracket, Headlamp Cleaner Washer |
| 85310A | Motor And Pump Assy, Headlamp Cleaner Washer |
| 85330C | Jar Assy, Headlamp Cleaner Washer |
| 85332A | Cap, Headlamp Cleaner Washer Jar |
| 85336B | Packing, Headlamp Cleaner Washer |
| 85341 | Nozzle, Headlamp Cleaner Washer |
| 85348A | Joint, Headlamp Cleaner Hose, NO.1 |
| 85361C | Bracket, Washer |
| 85370A | Hose Assy, Headlamp Cleaner Washer, NO.1 |
| 85370B | Hose Assy, Headlamp Cleaner Washer, NO.2 |
| 85372A | Hose, Headlamp Cleaner (FROM JOINT TO JOINT OR NOZZLE) |
| 85373A | Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
