Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 2 illustrations

Illustrations

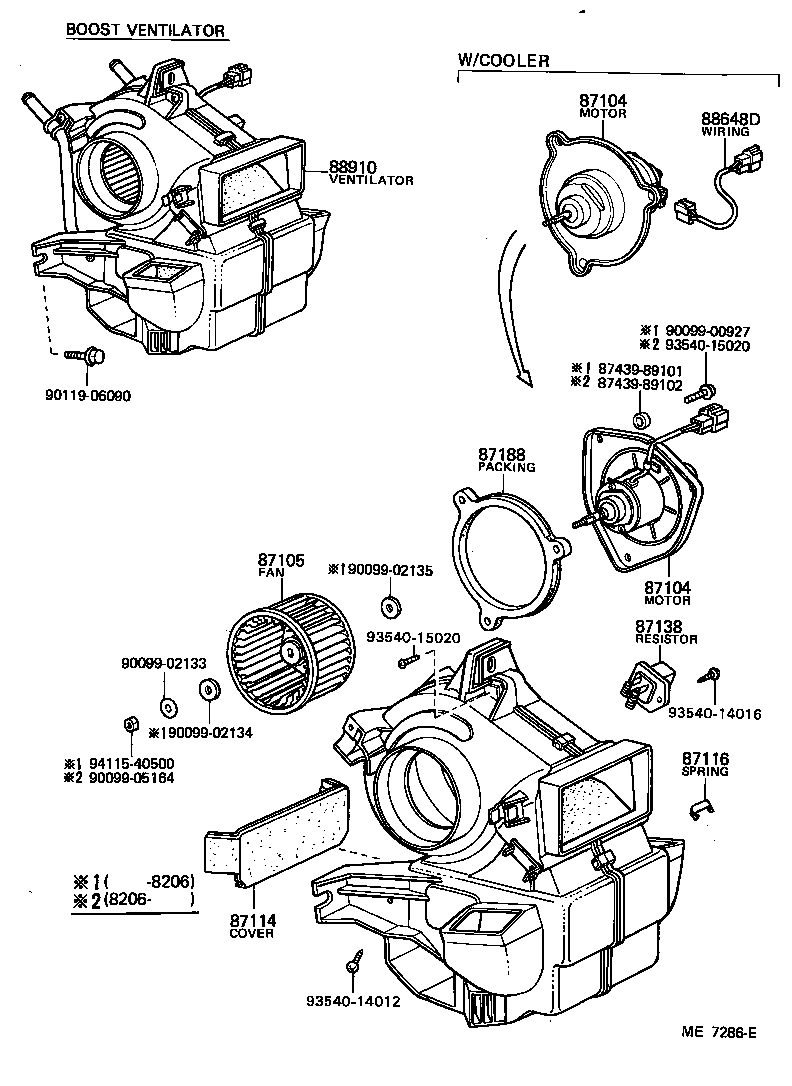

Figure ME7268H ME7268H 1978-08 → — Figure ME7286E ME7286E 1978-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87114 Cover, Heater
87116 Spring, Heater Case Fastening
87138 Resistor, Heater Blower
87188 Packing, Heater Blower Motor
87245F Hose, Heater Water, Inlet F
87246F Hose, Heater Water, Outlet F
87248E Pipe, Heater Water Inlet, E
87249E Pipe, Heater Water Outlet, E (FOR HEATER UNIT)
88648D Wiring, Blower Moter
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
