Toyota Hilux

1978-08 → 1984-03 · chassis RN3#,4#,LN3#,4# · catalogue 671230 · Europe

Discontinued model Data version 1984-05

Heating & Air Conditioning - Compressor

43 part groups · 5 illustrations

PNC	Description
88301	Rotor Sub-assy, Magnet Clutch
88302	Stator Sub-assy, Magnet Clutch

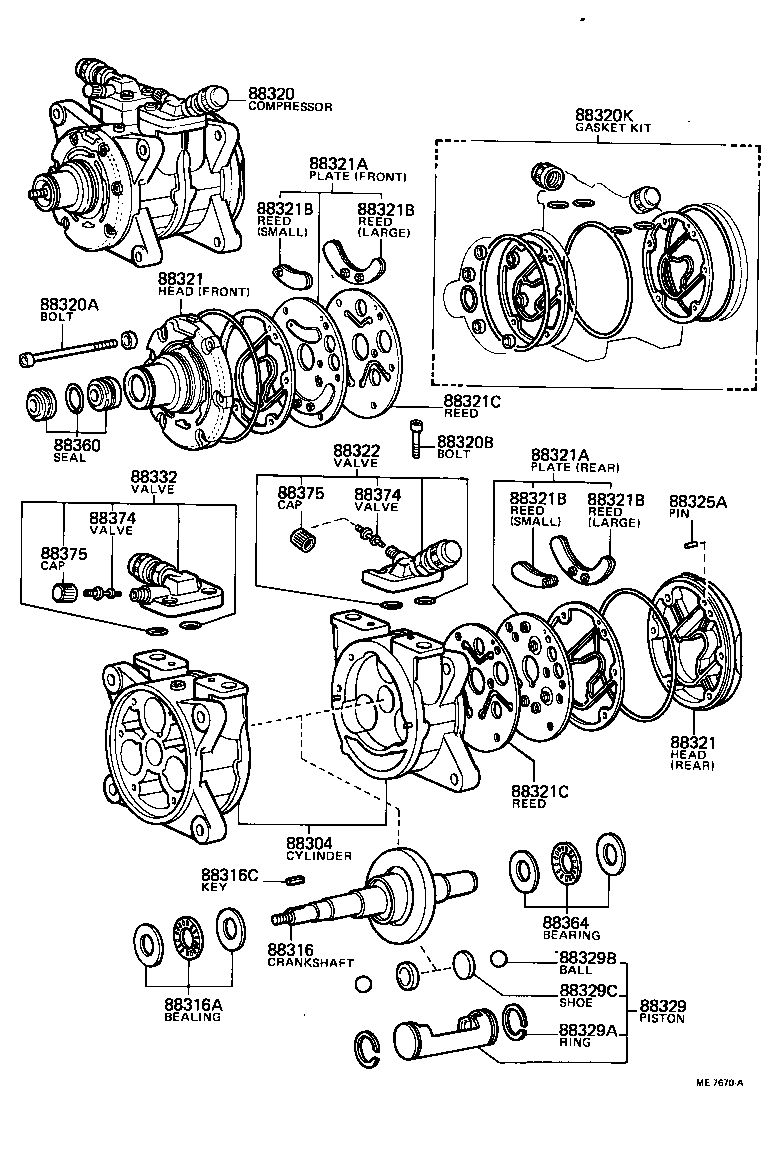

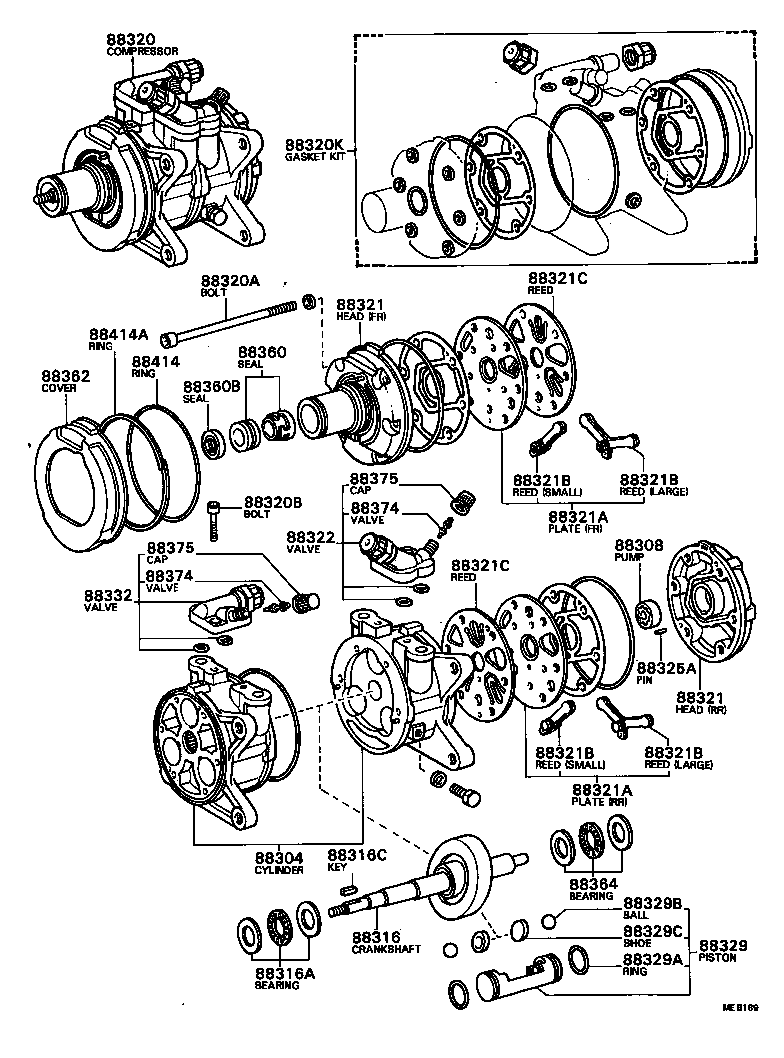

88304	Cylinder Sub-assy, Cooler Compressor
88308	Pump Assy, Cooler Compressor
88316	Crankshaft, Cooler Compressor
88316A	Bearing, Compressor Crankshaft, Front
88316C	Key, Compressor Crankshaft
88320	Compressor Assy, Cooler
88320A	Bolt, Through
88320B	Bolt, Service Valve
88320K	Gasket Kit, Cooler Compressor Overhaul
88321	Head, Cooler Compressor Cylinder
88321A	Plate Sub-assy, Valve
88321B	Reed Sub-assy, Valve
88321C	Reed, Suction Valve
88322	Valve, Cooler Compressor Suction Service
88325A	Pin, Cylinder Block
88329	Piston Sub-assy, Cooler Compressor
88329A	Ring, Compressor Piston Snap
88329B	Ball, Piston
88329C	Shoe, Piston
88330	Clutch Assy, Magnet
88330B	Bearing, Magnet Clutch
88330C	Ring, Snap (FOR MAGNET CLUTCH)
88332	Valve, Cooler Compressor Discharge Service
88360	Seal Assy, Cooler Compressor Shaft
88360B	Seal, Shaft
88362	Plate, Cooler Compressor Seal
88364	Bearing, Compressor Crankshaft, Rear
88374	Valve, Cooler Compressor Service
88375	Cap, Cooler Compressor Service Valve
88403	Hub Sub-assy, Magnet Clutch
88414	Ring, Shield
88414A	Ring, Shield Snap

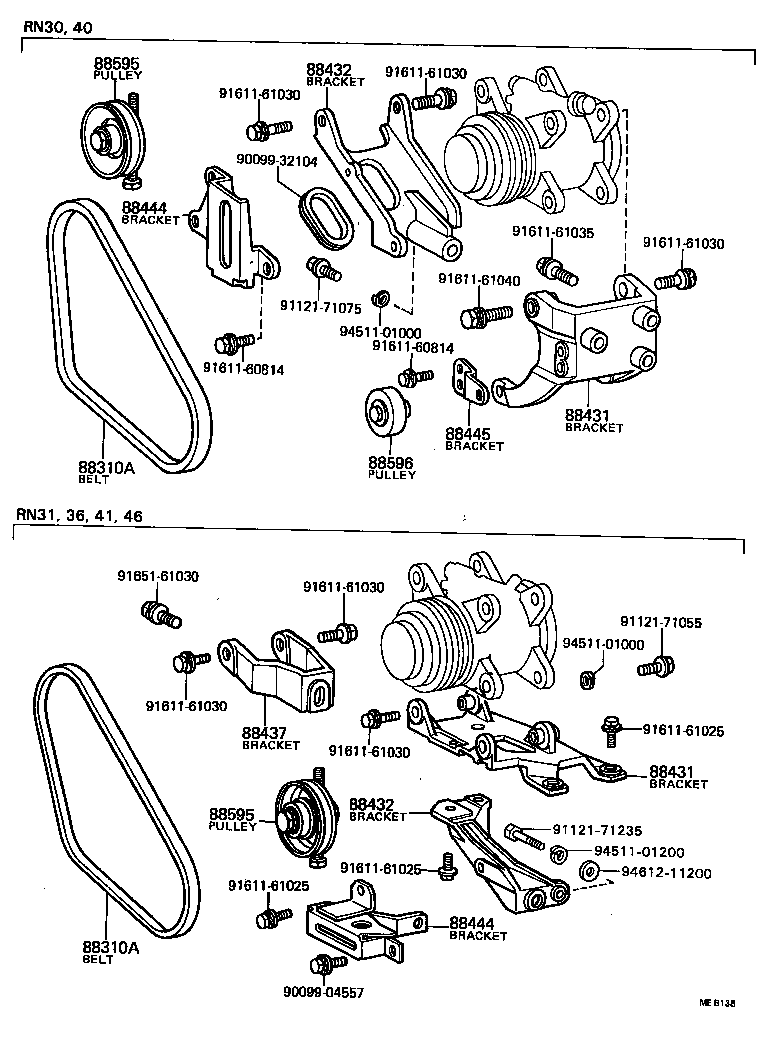

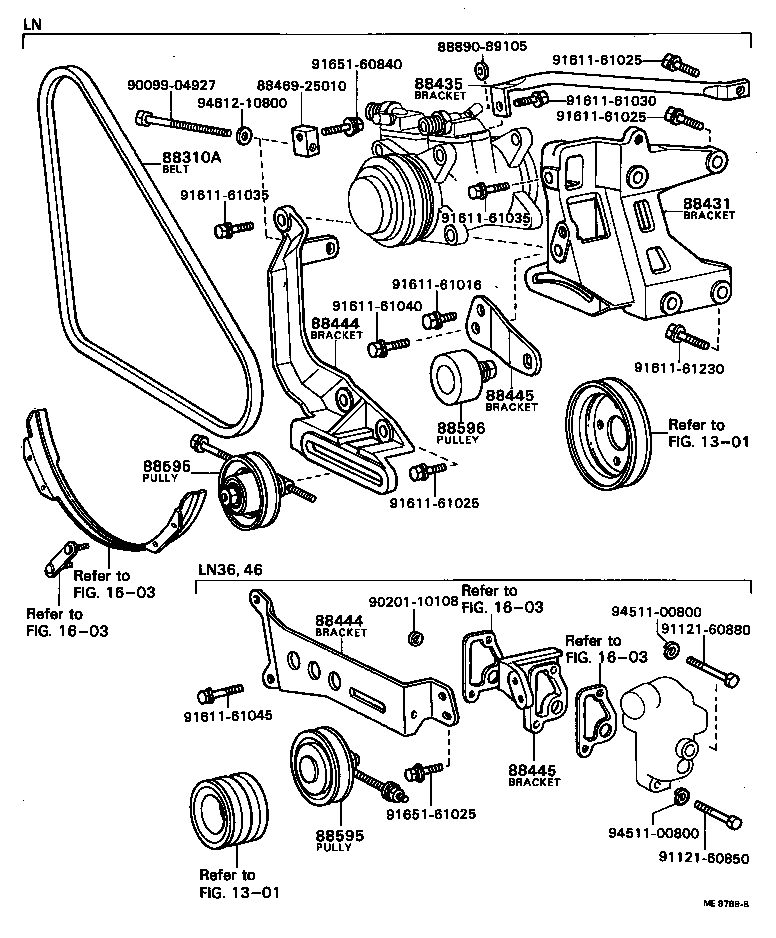

88431	Bracket, Compressor Mounting, NO.1
88432	Bracket, Compressor Mounting, NO.2
88435	Bracket, Compressor Mounting, NO.5
88437	Bracket, Compressor Mounting, NO.7
88444	Bracket, Idle Pulley
88445	Bracket, Idle Pulley
88595	Pulley, Cooler Compressor Idle
88596	Pulley Assy, Idle, NO.2
88648F	Wire, Magnet Clutch

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
