Toyota Hilux
1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe
Discontinued model
Data version 1999-01

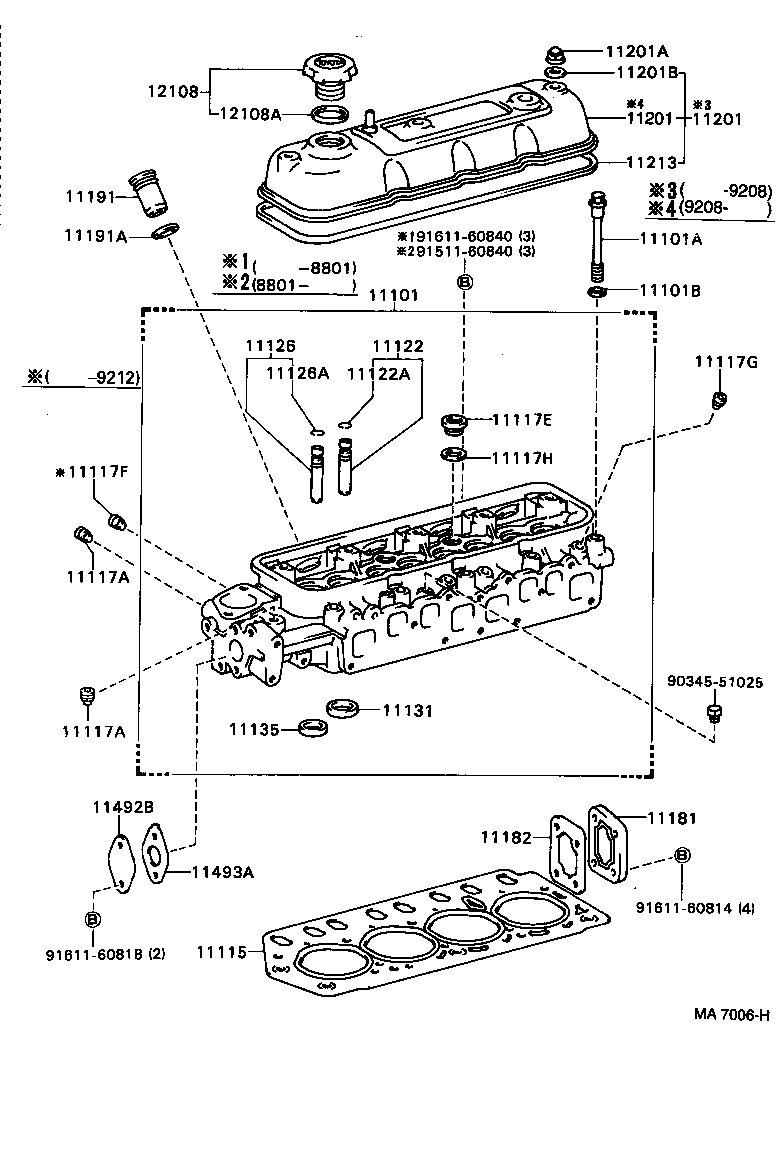

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-35060 |
Head Sub-assy, Cylinder
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11101-35060 |
Head Sub-assy, Cylinder
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11101-54040 |
Head Sub-assy, Cylinder
1983-08 → 1984-08
ended
|
L LN50,55 | — | |
| 11101-54050 |
Head Sub-assy, Cylinder
1983-08 → 1995-08
ended
|
2L LN51,56,6# | — | |
| 11101-54111 |
Head Sub-assy, Cylinder
1995-08 → 1998-07
ended
|
2L LN51,56 | — | |
| 11101-54131 |
Head Sub-assy, Cylinder
1995-08 → 1998-07
ended
|
3L LN57,67 | — | |
| 11101-71010 |
Head Sub-assy, Cylinder
1983-08 → 1985-08
ended
|
1YC YN55 | — | |
| 11101-71010 |
Head Sub-assy, Cylinder
1985-08 → 1992-12
ended
|
1Y#,2Y# YN50,51,55,56 | — | |
| 11101-71010 note |
Head Sub-assy, Cylinder
1983-08 → 1985-08
ended
|
3Y YN57,6# ARL | — | |
| 11101-71011 |
Head Sub-assy, Cylinder
1992-12 → 1998-07
ended
|
2Y YN51,56 | — | |
| 11101-71020 |
Head Sub-assy, Cylinder
1983-08 → 1985-08
ended
|
2Y,3Y YN56,65 EUR | — | |
| 11101-71030 |
Head Sub-assy, Cylinder
1983-08 → 1985-08
ended
|
1Y,3Y YN50,52,55,57,6# ARL,GEN,ME,SA | — | |
| 11101-73010 |
Head Sub-assy, Cylinder
1987-08 → 1989-03
ended
|
4Y,4YC YN58,6# ARL | — | |
| 11101-73010 note |
Head Sub-assy, Cylinder
1985-08 → 1987-08
ended
|
3Y,4Y YN57,63,67 ARL | — | |
| 11101-73010 |
Head Sub-assy, Cylinder
1986-08 → 1988-08
ended
|
4Y YN67 EUR | — | |
| 11101-73020 |
Head Sub-assy, Cylinder
1986-08 → 1992-12
ended
|
3Y,4Y,4YE YN52,57,58,6# ARL,GEN,ME,SA | — | |
| 11101-73020 |
Head Sub-assy, Cylinder
1985-08 → 1986-08
ended
|
3Y,4Y YN52,57,6# MTM | — | |
| 11101-73021 |
Head Sub-assy, Cylinder
1992-12 → 1998-07
ended
|
4Y YN58,67 | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90105-12056 |
Bolt(FOR CYLINDER HEAD SET)
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 90105-12092 |
Bolt(FOR CYLINDER HEAD SET)
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 90105-12092 |
Bolt(FOR CYLINDER HEAD SET)
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 90910-02060 note |
Bolt(FOR CYLINDER HEAD SET)
1983-08 → 1988-07
ended
|
L,2L LN5#,6# | — | |
| 90910-02080 note |
Bolt(FOR CYLINDER HEAD SET)
1995-08 → 1998-07
ended
|
2L,3L LN5#,67 | — | |
| 90910-02081 note |
Bolt(FOR CYLINDER HEAD SET)
1995-08 → 1998-07
ended
|
2L,3L LN5#,67 | — | |
| 90910-02090 note |
Bolt(FOR CYLINDER HEAD SET)
1988-07 → 1995-08
ended
|
2L LN5#,6# | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-13021 |
Washer, Plate(FOR CYLINDER HEAD SET)
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-35020 |
Gasket, Cylinder Head
1986-01 → 1988-08
ended
|
22R RN5# | — | |
| 11115-35022 |
Gasket, Cylinder Head
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11115-35040 |
Gasket, Cylinder Head
1987-12 → 1988-08
ended
|
22REC RN61 | — | |
| 11115-35060 |
Gasket, Cylinder Head
1988-08 → 1989-03
ended
|
22REC RN61 | — | |
| 11115-54011 |
Gasket, Cylinder Head
1983-08 → 1984-08
ended
|
L LN50,55 | — | |
| 11115-54012 |
Gasket, Cylinder Head
1984-08 → 1984-08
ended
|
L LN50,55 | — | |
| 11115-54020 |
Gasket, Cylinder Head
1983-08 → 1989-12
ended
|
2L LN51,56,6# | — | |
| 11115-54021 |
Gasket, Cylinder Head
1989-12 → 1995-08
ended
|
2L LN5#,65 | — | |
| 11115-54072-B0 note |
Gasket, Cylinder Head
1995-08 → 1996-03
ended
|
3L LN57,67 | — | |
| 11115-54072-D0 note |
Gasket, Cylinder Head
1995-08 → 1996-03
ended
|
3L LN57,67 | — | |
| 11115-54072-F0 note |
Gasket, Cylinder Head
1995-08 → 1996-03
ended
|
3L LN57,67 | — | |
| 11115-54073-B0 note |
Gasket, Cylinder Head
1996-03 → 1998-07
ended
|
3L LN57,67 | — | |
| 11115-54073-D0 note |
Gasket, Cylinder Head
1996-03 → 1998-07
ended
|
3L LN57,67 | — | |
| 11115-54073-F0 note |
Gasket, Cylinder Head
1996-03 → 1998-07
ended
|
3L LN57,67 | — | |
| 11115-54084-B0 note |
Gasket, Cylinder Head
1995-08 → 1998-07
ended
|
2L LN51,56 | — | |
| 11115-54084-D0 note |
Gasket, Cylinder Head
1995-08 → 1998-07
ended
|
2L LN51,56 | — | |
| 11115-54084-F0 note |
Gasket, Cylinder Head
1995-08 → 1998-07
ended
|
2L LN51,56 | — | |
| 11115-71010 |
Gasket, Cylinder Head
1983-08 → 1985-08
ended
|
1Y#,2Y,3Y YN5#,6# | — | |
| 11115-71011 |
Gasket, Cylinder Head
1986-08 → 1991-08
ended
|
1Y#,2Y#,3Y YN50,51,52,55,56,57 | — | |
| 11115-71011 |
Gasket, Cylinder Head
1985-08 → 1986-08
ended
|
1Y#,2Y,3Y YN5#,60,65 | — | |
| 11115-73010 |
Gasket, Cylinder Head
1985-08 → 1998-07
ended
|
4Y YN67;4Y YN58 4F;4Y +4 | — | |
| 11115-73040 |
Gasket, Cylinder Head
1991-08 → 1993-08
ended
|
2Y,3Y YN51,56,57 | — | |
| 11115-73041 |
Gasket, Cylinder Head
1993-08 → 1995-11
ended
|
2Y YN51,56 | — | |
| 11115-73050 |
Gasket, Cylinder Head
1995-11 → 1998-07
ended
|
2Y YN51,56 | — | |
| 11117A — Plug, W/Head Taper Screw, NO.1 | ||||
| 90341-32070 |
Plug, W/Head Taper Screw, NO.1
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 90341-32070 |
Plug, W/Head Taper Screw, NO.1
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 90344-53002 |
Plug, W/Head Taper Screw, NO.1
1983-08 → 1984-07
ended
|
2Y,3Y YN56,65 EUR | — | |
| 90344-53011 |
Plug, W/Head Taper Screw, NO.1
1984-07 → 1985-08
ended
|
2Y,3Y YN56,65 EUR | — | |
| 90344-53011 |
Plug, W/Head Taper Screw, NO.1
1985-08 → 1986-08
ended
|
1Y#,2Y,3Y,4Y YN5#,6# | — | |
| 90344-53011 |
Plug, W/Head Taper Screw, NO.1
1986-08 → 1987-08
ended
|
1YC,3Y,4Y# YN55,57,6# ARL | — | |
| 90344-53011 |
Plug, W/Head Taper Screw, NO.1
1987-08 → 1989-03
ended
|
4YE YN63 | — | |
| 90344-53011 |
Plug, W/Head Taper Screw, NO.1
1986-08 → 1998-07
ended
|
1Y,2Y,3Y YN50,51,55,56,57 (4F,4FC,4H,5F) (GEN,SA) | — | |
| 11117E — Plug, W/Head Straight Screw, NO.1 | ||||
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
1983-08 → 1993-03
ended
|
1Y#,2Y#,3Y,4Y# YN5#,6# | — | |
| 90341-20002 |
Plug, W/Head Straight Screw, NO.1
1993-03 → 1998-07
ended
|
2Y,4Y YN5#,67 | — | |
| 11117F — Plug, W/Head Straight Screw, NO.2 | ||||
| 90340-16002 |
Plug, W/Head Straight Screw, NO.2
1985-08 → 1992-12
ended
|
1Y#,2Y#,3Y,4Y,4YC YN5#,6# | — | |
| 90340-16002 note |
Plug, W/Head Straight Screw, NO.2
1983-08 → 1985-08
ended
|
3Y YN57,6# ARL | — | |
| 90340-16002 |
Plug, W/Head Straight Screw, NO.2
1983-08 → 1985-08
ended
|
1YC YN55 | — | |
| 90340-16002 |
Plug, W/Head Straight Screw, NO.2
1983-08 → 1985-08
ended
|
2Y,3Y YN56,65 EUR | — | |
| 11117G — Plug, W/Head Straight Screw, NO.3 | ||||
| 90340-18003 |
Plug, W/Head Straight Screw, NO.3
1983-08 → 1986-08
ended
|
1YC YN55 | — | |
| 90340-18003 note |
Plug, W/Head Straight Screw, NO.3
1983-08 → 1986-08
ended
|
3Y YN57,60,65 ARL | — | |
| 90340-18003 |
Plug, W/Head Straight Screw, NO.3
1986-08 → 1988-08
ended
|
4Y YN67 EUR | — | |
| 90340-18003 |
Plug, W/Head Straight Screw, NO.3
1985-08 → 1988-12
ended
|
1Y,2Y YN50,51,55,56 | — | |
| 90340-18005 |
Plug, W/Head Straight Screw, NO.3
1988-12 → 1998-07
ended
|
1Y,2Y YN50,51,55,56 4F,4H,5F | — | |
| 11117H — Gasket(FOR WATER HOLE) | ||||
| 90430-20004 |
Gasket(FOR WATER HOLE)
1993-03 → 1998-07
ended
|
2Y,4Y YN5#,67 | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
1983-08 → 1993-03
ended
|
1Y#,2Y#,3Y,4Y# YN5#,6# | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-35020 note |
Bush, Intake Valve Guide
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11122-35020 note |
Bush, Intake Valve Guide
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11122-54011 note |
Bush, Intake Valve Guide
1983-08 → 1995-08
ended
|
L,2L LN5#,6# | — | |
| 11122-54020 note |
Bush, Intake Valve Guide
1995-08 → 1998-07
ended
|
2L,3L LN5#,67 | — | |
| 11122-71020 note |
Bush, Intake Valve Guide
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11123-35020 note |
Bush, Intake Valve Guide
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11123-35020 note |
Bush, Intake Valve Guide
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11123-54011 note |
Bush, Intake Valve Guide
1983-08 → 1995-08
ended
|
L,2L LN5#,6# | — | |
| 11123-54020 note |
Bush, Intake Valve Guide
1995-08 → 1998-07
ended
|
2L,3L LN5#,67 | — | |
| 11123-71020 note |
Bush, Intake Valve Guide
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11122A — Ring, Shaft Snap (FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
1983-08 → 1998-07
ended
|
1Y#,2Y#,3Y,4Y# YN5#,6# | — | |
| 90520-12049 |
Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
1983-08 → 1998-07
ended
|
22R RN58 SR5;22R# RN50,55,6# | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-38021 note |
Bush, Exhaust Valve Guide
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11122-38021 note |
Bush, Exhaust Valve Guide
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11122-54011 note |
Bush, Exhaust Valve Guide
1983-08 → 1995-08
ended
|
L,2L LN5#,6# | — | |
| 11122-54020 note |
Bush, Exhaust Valve Guide
1995-08 → 1998-07
ended
|
2L,3L LN5#,67 | — | |
| 11123-38021 note |
Bush, Exhaust Valve Guide
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11123-38021 note |
Bush, Exhaust Valve Guide
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11123-54011 note |
Bush, Exhaust Valve Guide
1983-08 → 1995-08
ended
|
L,2L LN5#,6# | — | |
| 11123-54020 note |
Bush, Exhaust Valve Guide
1995-08 → 1998-07
ended
|
2L,3L LN5#,67 | — | |
| 11126-71020 note |
Bush, Exhaust Valve Guide
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11127-71020 note |
Bush, Exhaust Valve Guide
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11126A — Ring, Shaft Snap(FOR VALVE GUIDE BUSH) | ||||
| 90520-12049 |
Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
1983-08 → 1998-07
ended
|
1Y#,2Y#,3Y,4Y# YN5#,6# | — | |
| 90520-12049 |
Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
1983-08 → 1998-07
ended
|
22R RN58 SR5;22R# RN50,55,6# | — | |
| 11131 — Seat, Intake Valve | ||||
| 11131-35010 note |
Seat, Intake Valve
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11131-35011 note |
Seat, Intake Valve
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11131-63010 note |
Seat, Intake Valve
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11132-35010 note |
Seat, Intake Valve
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11132-35011 note |
Seat, Intake Valve
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11132-63010 note |
Seat, Intake Valve
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11135 — Seat, Exhaust Valve | ||||
| 11135-35010 note |
Seat, Exhaust Valve
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11135-35010 note |
Seat, Exhaust Valve
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11135-71010 note |
Seat, Exhaust Valve
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11136-35010 note |
Seat, Exhaust Valve
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11136-35010 note |
Seat, Exhaust Valve
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11136-71010 note |
Seat, Exhaust Valve
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11181 — Plate, Cylinder Head, Rear | ||||
| 11181-35050 |
Plate, Cylinder Head, Rear
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11181-35050 |
Plate, Cylinder Head, Rear
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11181-71010 note |
Plate, Cylinder Head, Rear
1983-08 → 1985-08
ended
|
1Y YN50 4H;1Y,3Y YN50,57,65 +3 | — | |
| 11181-71010 note |
Plate, Cylinder Head, Rear
1986-08 → 1998-07
ended
|
1Y YN50,55 | — | |
| 11181-71010 note |
Plate, Cylinder Head, Rear
1986-08 → 1989-03
ended
|
3Y,4Y YN52,57,6# ME | — | |
| 11181-71010 note |
Plate, Cylinder Head, Rear
1985-08 → 1986-08
ended
|
1Y YN50 4H;1Y,3Y YN52,55;1Y,3Y +2 | — | |
| 11181-71010 note |
Plate, Cylinder Head, Rear
1986-08 → 1998-07
ended
|
2Y YN51,56 4H | — | |
| 11182 — Gasket, Cylinder Head Rear Plate | ||||
| 11182-35031 |
Gasket, Cylinder Head Rear Plate
1986-12 → 1988-08
ended
|
22R# RN5#,61 | — | |
| 11182-35040 |
Gasket, Cylinder Head Rear Plate
1986-01 → 1986-12
ended
|
22R RN5# | — | |
| 11182-35050 |
Gasket, Cylinder Head Rear Plate
1988-08 → 1989-03
ended
|
22REC RN61 | — | |
| 11182-35050 |
Gasket, Cylinder Head Rear Plate
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11182-71010 note |
Gasket, Cylinder Head Rear Plate
1986-08 → 1989-03
ended
|
3Y,4Y YN52,57,6# ME | — | |
| 11182-71010 note |
Gasket, Cylinder Head Rear Plate
1985-08 → 1986-08
ended
|
1Y YN50 4H;1Y,3Y YN52,55;1Y,3Y +2 | — | |
| 11182-71010 note |
Gasket, Cylinder Head Rear Plate
1986-08 → 1998-07
ended
|
2Y YN51,56 4H | — | |
| 11182-71010 note |
Gasket, Cylinder Head Rear Plate
1986-08 → 1998-07
ended
|
1Y YN50,55 | — | |
| 11182-71010 note |
Gasket, Cylinder Head Rear Plate
1983-08 → 1985-08
ended
|
1Y YN50 4H;1Y,3Y YN50,57,65 +3 | — | |
| 11191 — Tube, Spark Plug | ||||
| 11191-22010 |
Tube, Spark Plug
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11191A — Gasket(FOR SPARK PLUG TUBE) | ||||
| 90430-31003 |
Gasket(FOR SPARK PLUG TUBE)
1995-11 → 1998-07
ended
|
2Y,4Y YN5# | — | |
| 90430-31141 |
Gasket(FOR SPARK PLUG TUBE)
1983-08 → 1995-11
ended
|
1Y#,2Y#,3Y,4Y# YN5#,6# | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-35030 |
Cover Sub-assy, Cylinder Head
1986-01 → 1988-04
ended
|
22R# RN5#,61 | — | |
| 11201-35031 |
Cover Sub-assy, Cylinder Head
1988-04 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11201-35032 |
Cover Sub-assy, Cylinder Head
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11201-54050 |
Cover Sub-assy, Cylinder Head
1983-08 → 1988-01
ended
|
L,2L LN5#,6# | — | |
| 11201-54080 |
Cover Sub-assy, Cylinder Head
1988-01 → 1995-08
ended
|
2L LN5#,6# | — | |
| 11201-71011 |
Cover Sub-assy, Cylinder Head
1992-08 → 1995-12
ended
|
2Y,4Y YN5#,67 | — | |
| 11201-71012 |
Cover Sub-assy, Cylinder Head
1995-12 → 1998-07
ended
|
2Y,4Y YN5# | — | |
| 11201-79035 |
Cover Sub-assy, Cylinder Head
1983-08 → 1992-08
ended
|
1Y#,2Y#,3Y,4Y# YN5#,6# | — | |
| 11210-54041 |
Cover Sub-assy, Cylinder Head
1995-08 → 1998-07
ended
|
2L,3L LN5#,67 | — | |
| 11201A — Nut, Cap(FOR CYLINDER HEAD COVER) | ||||
| 90176-08007 |
Nut, Cap(FOR CYLINDER HEAD COVER)
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 90176-08007 |
Nut, Cap(FOR CYLINDER HEAD COVER)
1986-01 → 1988-08
ended
|
22R# RN5#,61 | — | |
| 90176-08014 |
Nut, Cap(FOR CYLINDER HEAD COVER)
1983-08 → 1995-08
ended
|
L,2L LN5#,6# | — | |
| 90176-08041 |
Nut, Cap(FOR CYLINDER HEAD COVER)
1988-08 → 1989-03
ended
|
22REC RN61 | — | |
| 90176-08041 |
Nut, Cap(FOR CYLINDER HEAD COVER)
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 90179-06319 |
Nut, Cap(FOR CYLINDER HEAD COVER)
1995-08 → 1998-07
ended
|
2L,3L LN5#,67 | — | |
| 11201B — Washer, Seal(FOR CYLINDER HEAD COVER) | ||||
| 90210-08026 |
Washer, Seal(FOR CYLINDER HEAD COVER)
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 90210-08040 |
Washer, Seal(FOR CYLINDER HEAD COVER)
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 90210-09001 |
Washer, Seal(FOR CYLINDER HEAD COVER)
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 90210-13001 |
Washer, Seal(FOR CYLINDER HEAD COVER)
1983-08 → 1998-07
ended
|
L,2L LN50,51,55,56,60,61,65 | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-35010 |
Gasket, Cylinder Head Cover
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 11213-35010 |
Gasket, Cylinder Head Cover
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 11213-54030 |
Gasket, Cylinder Head Cover
1983-08 → 1995-08
ended
|
L,2L LN5#,6# | — | |
| 11213-54050 |
Gasket, Cylinder Head Cover
1995-08 → 1998-07
ended
|
2L,3L LN5#,67 | — | |
| 11213-71020 |
Gasket, Cylinder Head Cover
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11492B — Plate, Water Seal | ||||
| 11492-71010 |
Plate, Water Seal
1983-08 → 1998-07
ended
|
4Y C,4H,5F YN58 4F;4Y +5 | — | |
| 11493A — Gasket, Water Seal Plate | ||||
| 11493-71010 |
Gasket, Water Seal Plate
1983-08 → 1989-12
ended
|
1Y#,2Y#,3Y,4Y# YN5#,6# | — | |
| 11493-71011 |
Gasket, Water Seal Plate
1989-12 → 1998-07
ended
|
4Y YN58 4F;4Y YN58 +3 | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-13030 |
Cap Sub-assy, Oil Filler
1986-01 → 1989-03
ended
|
22R# RN5#,61 | — | |
| 12180-13030 |
Cap Sub-assy, Oil Filler
1985-10 → 1995-08
ended
|
2L LN5#,6# | — | |
| 12180-61010 |
Cap Sub-assy, Oil Filler
1987-05 → 1990-03
ended
|
1Y#,2Y#,3Y,4Y# YN5#,6# | — | |
| 12180-65011 |
Cap Sub-assy, Oil Filler
1994-07 → 1998-07
ended
|
22R RN67;22R RN58 SR5 | — | |
| 12180-70010 |
Cap Sub-assy, Oil Filler
1983-08 → 1985-10
ended
|
L,2L LN5#,6# | — | |
| 12180-70020 |
Cap Sub-assy, Oil Filler
1995-08 → 1998-07
ended
|
2L,3L LN5#,67 | — | |
| 12180-71010 |
Cap Sub-assy, Oil Filler
1983-08 → 1985-06
ended
|
1Y#,2Y,3Y YN5#,6# | — | |
| 12180-71011 |
Cap Sub-assy, Oil Filler
1985-06 → 1987-05
ended
|
1Y#,2Y,3Y,4Y# YN5#,6# | — | |
| 12180-73010 |
Cap Sub-assy, Oil Filler
1990-11 → 1998-07
ended
|
4Y YN58 4F;4Y YN58 +3 | — | |
| 12180-75010 |
Cap Sub-assy, Oil Filler
1990-03 → 1990-11
ended
|
1Y,2Y,3Y,4Y YN5#,67 | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 12195-70010 |
Gasket(FOR OIL FILLER CAP)
1990-03 → 1990-11
ended
|
1Y,2Y,3Y,4Y YN5#,67 | — | |
| 12195-70010 |
Gasket(FOR OIL FILLER CAP)
1995-08 → 1998-07
ended
|
2L,3L LN5#,67 | — | |
| 12195-71010 |
Gasket(FOR OIL FILLER CAP)
1983-08 → 1985-06
ended
|
1Y#,2Y,3Y YN5#,6# | — | |
| 12195-71020 |
Gasket(FOR OIL FILLER CAP)
1985-06 → 1990-03
ended
|
1Y#,2Y#,3Y,4Y# YN5#,6# | — | |
| 12195-73010 |
Gasket(FOR OIL FILLER CAP)
1990-11 → 1998-07
ended
|
4Y YN58 4F;4Y YN58 +3 | — | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1983-08 → 1995-08
ended
|
L,2L LN5#,6# | — | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1983-08 → 1995-08
ended
|
22R# RN5#,6# | — | |
| 90430-37140 |
Gasket(FOR OIL FILLER CAP)
1995-08 → 1998-07
ended
|
22R RN58,67 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
