Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

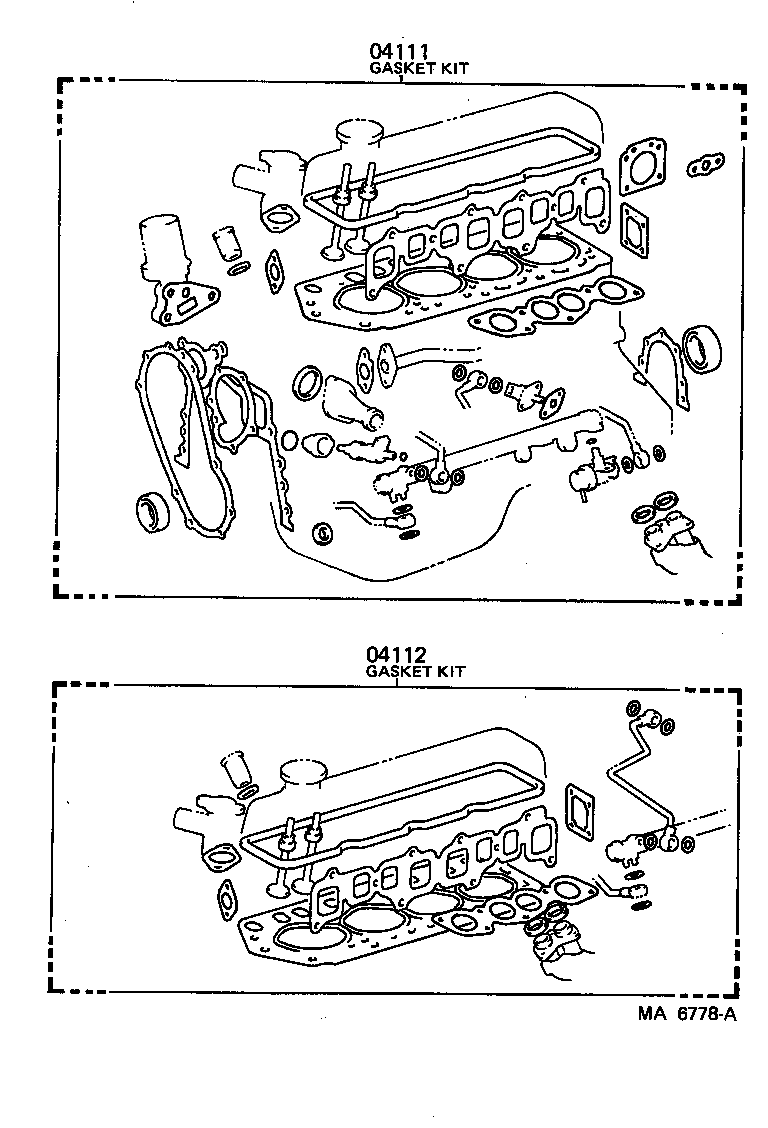

Figure 111932 111932 1983-08 → 1995-08 Figure MAB329B MAB329B 1995-08 → — Figure MA3387A MA3387A 1986-01 → 1988-08 Figure MA7289A MA7289A 1987-12 → 1989-03 Figure MA6338A MA6338A 1983-08 → — Figure MA6778A MA6778A 1986-08 → 1989-03

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
