Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

37 part groups · 7 illustrations

Illustrations

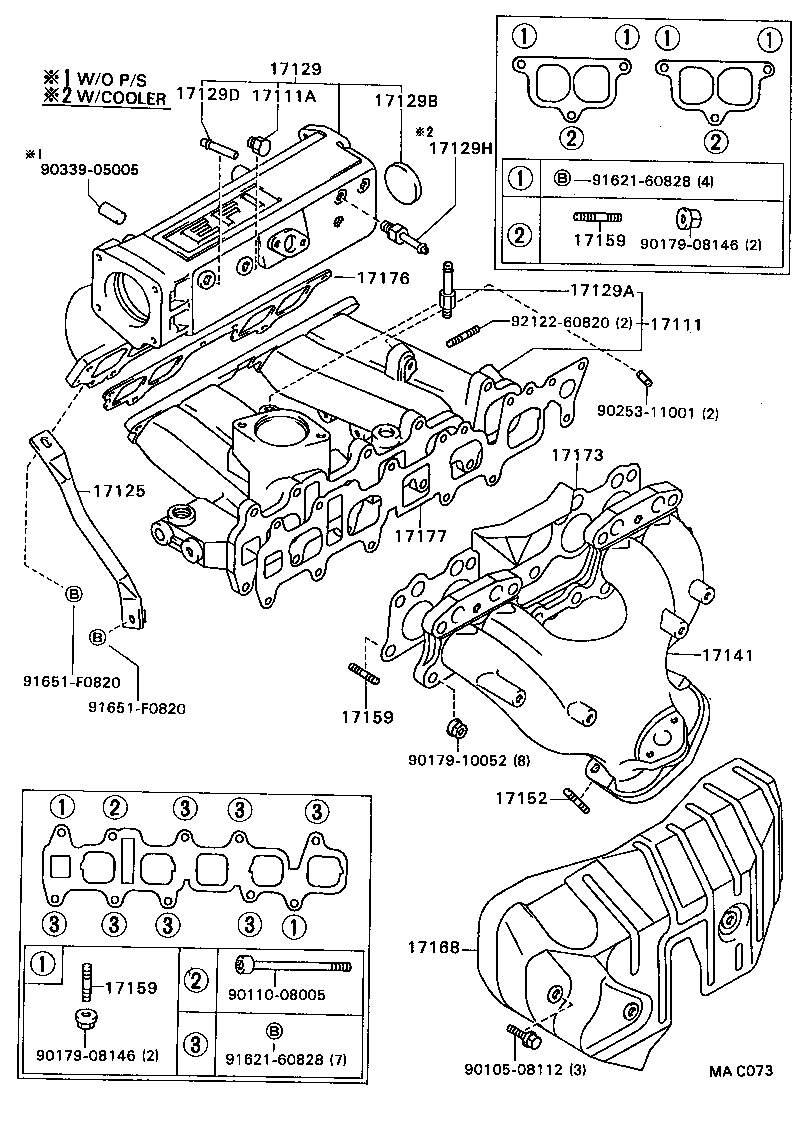

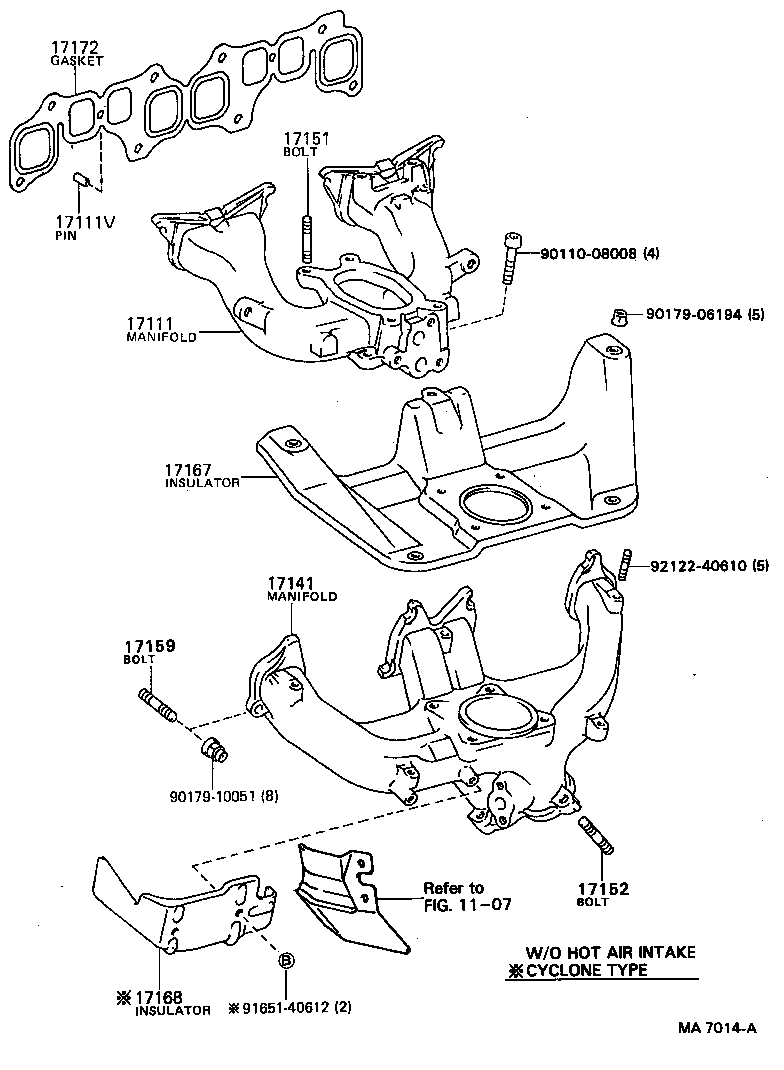

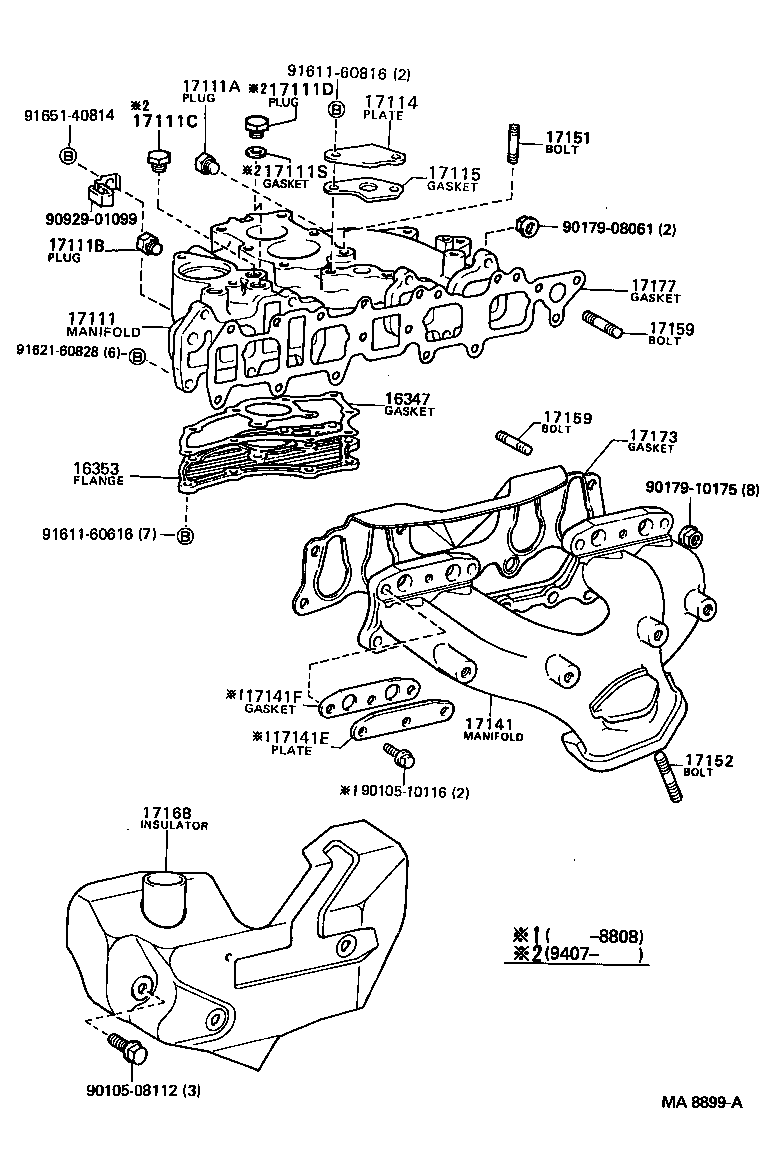

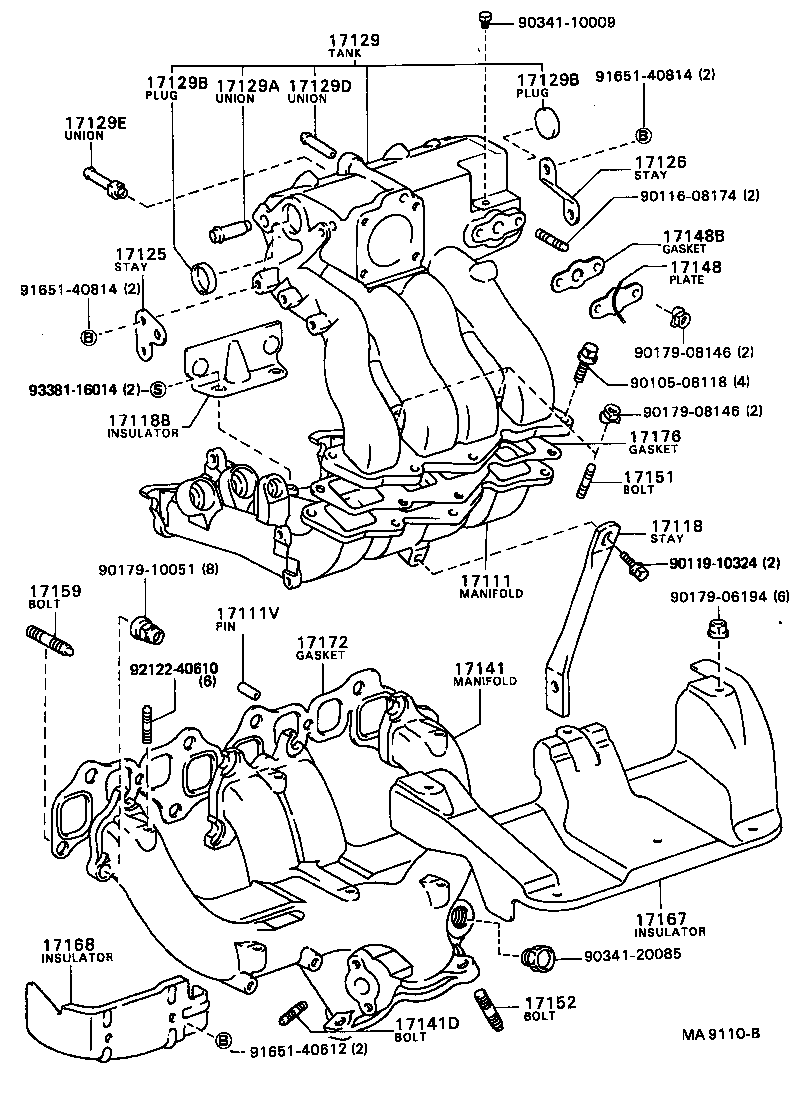

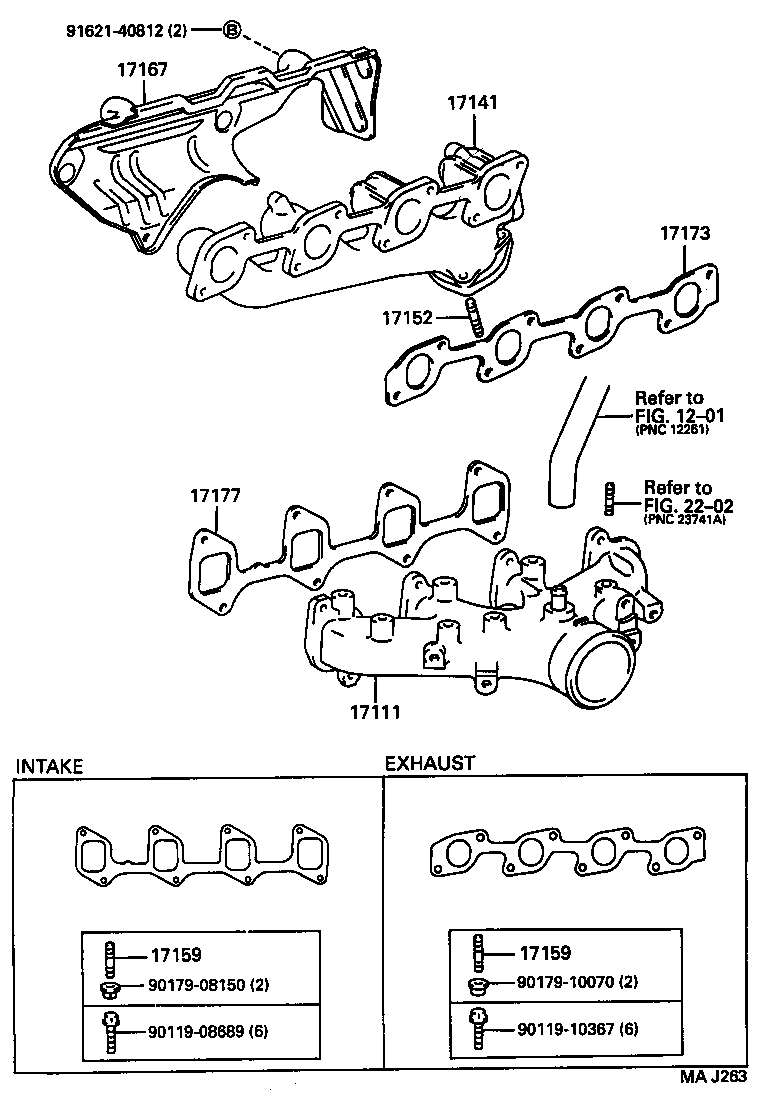

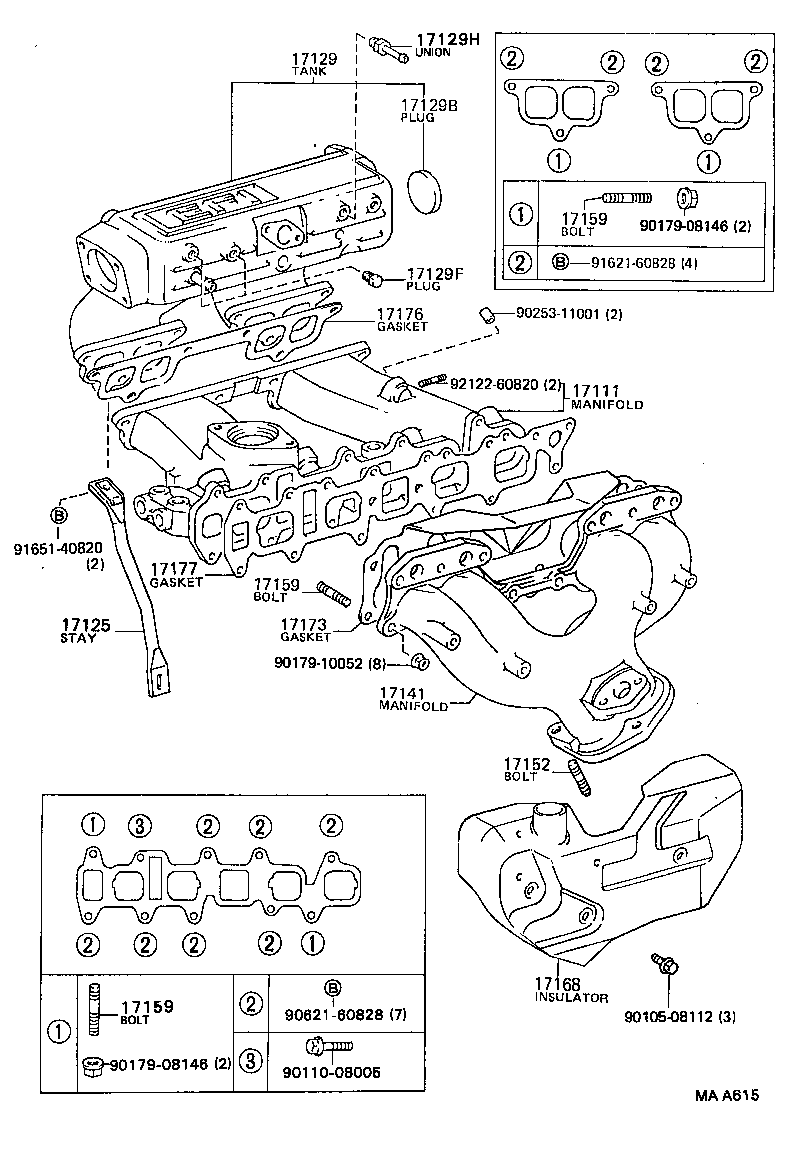

Figure MA5904C MA5904C 1983-08 → 1995-08 Figure MAJ263 MAJ263 1995-08 → — Figure MA8899A MA8899A 1986-01 → 1988-08 Figure MAA615 MAA615 1987-12 → 1988-08 Figure MAC073 MAC073 1988-08 → 1989-03 Figure MA7014A MA7014A 1983-08 → — Figure MA9110B MA9110B 1986-08 → 1989-03

Part groups

PNCDescription
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17111 Manifold, Intake
17111A Plug, NO.1
17111B Plug, NO.2
17111C Plug, NO.3
17111D Plug, NO.4
17111S Gasket(FOR MANIFOLD PLUG)
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17114 Plate, Intake Manifold Hole Cover
17115 Gasket, Intake Manifold Hole Cover
17118 Stay, Manifold
17118B Insulator, Intake Manifold
17125 Stay, Surge Tank, NO.1
17126 Stay, Surge Tank, NO.2
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129B Plug
17129D Union, NO.2
17129E Union, NO.3
17129F Plug, Intake Manifold Suction Hole
17129H Union, NO.4
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17141E Plate, Exhaust Manifold
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17148B Gasket, Egr Inlet
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17172 Gasket, Manifold TO Cylinder Head
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
