Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

20 part groups · 9 illustrations

Illustrations

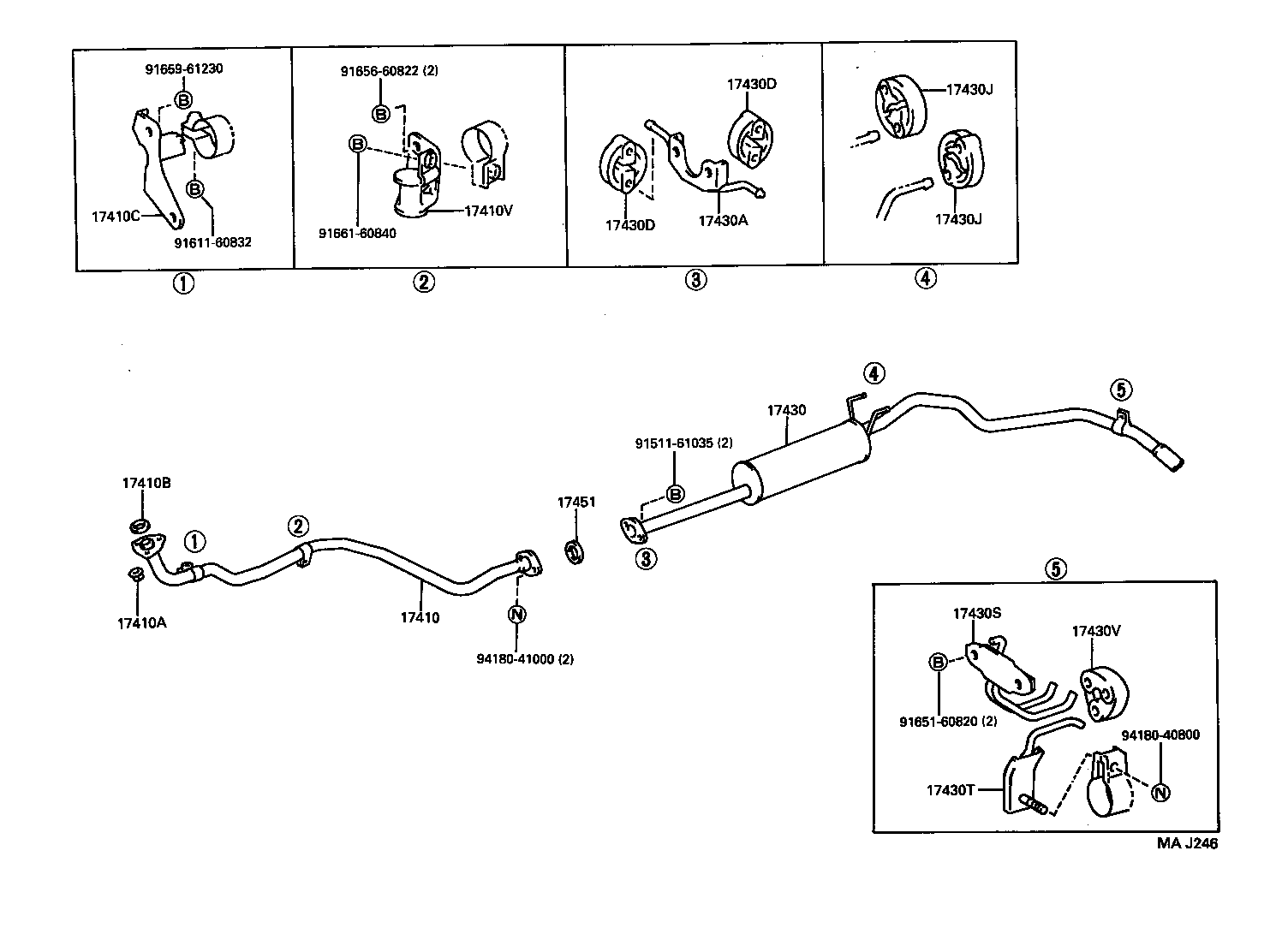

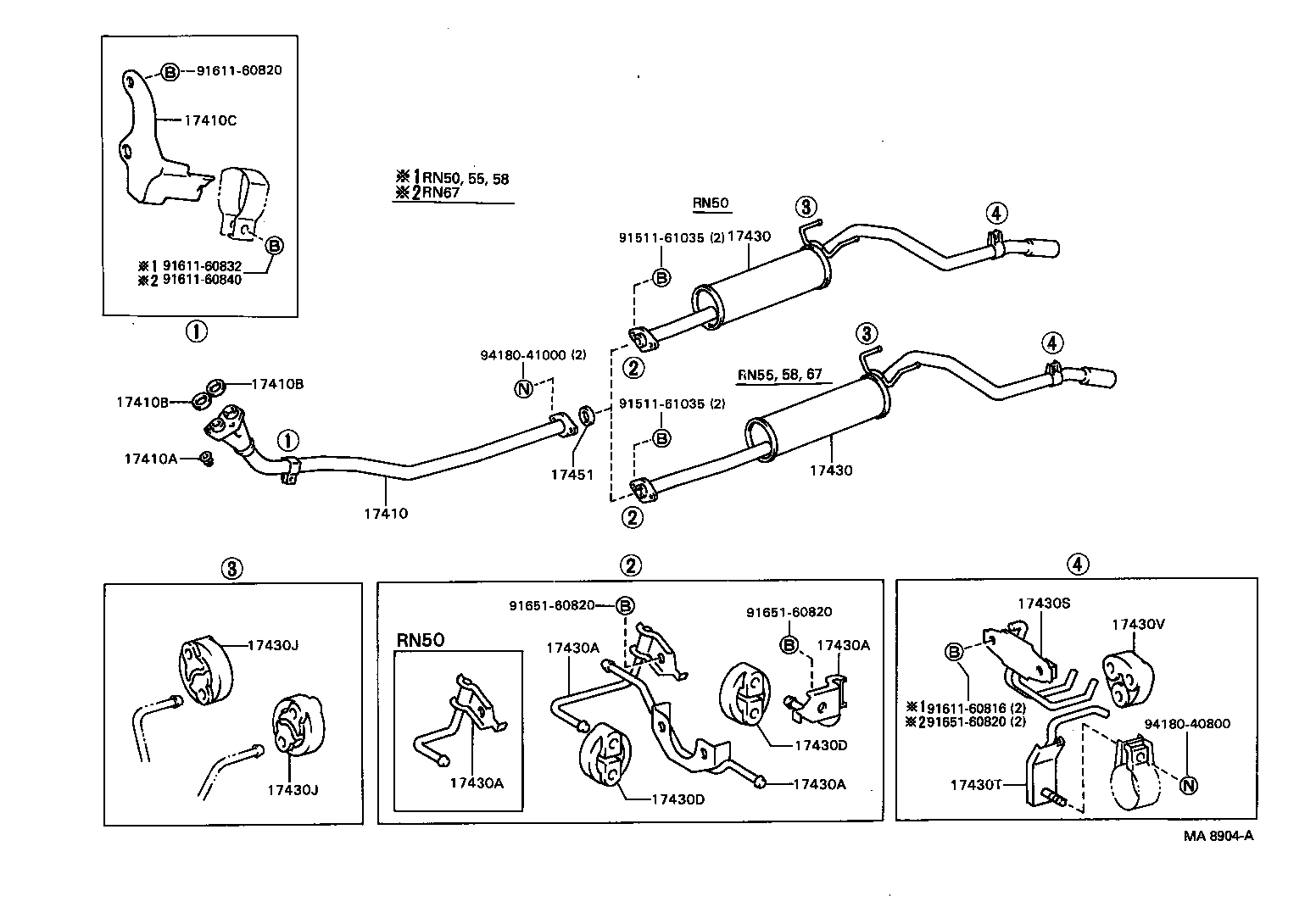

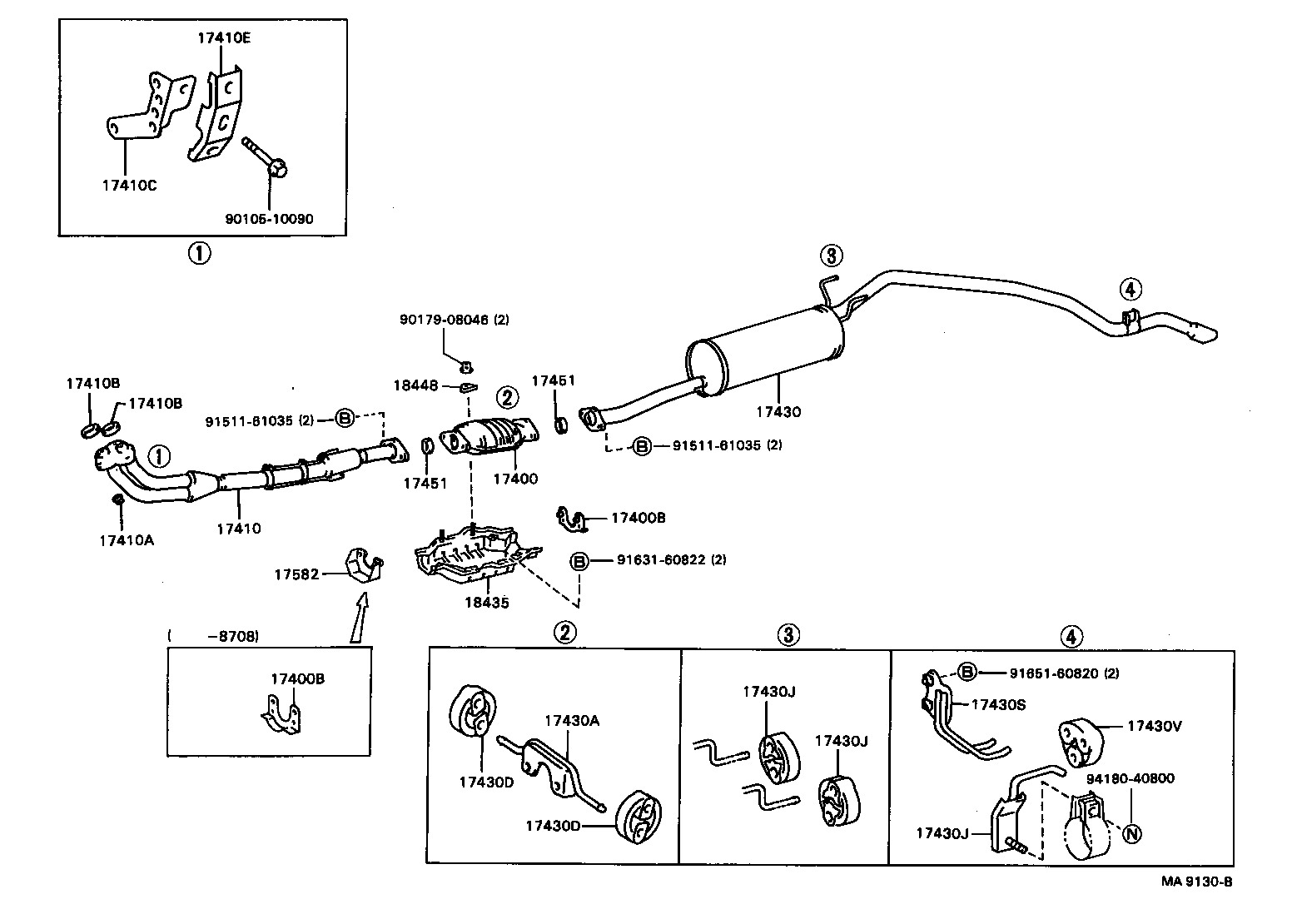

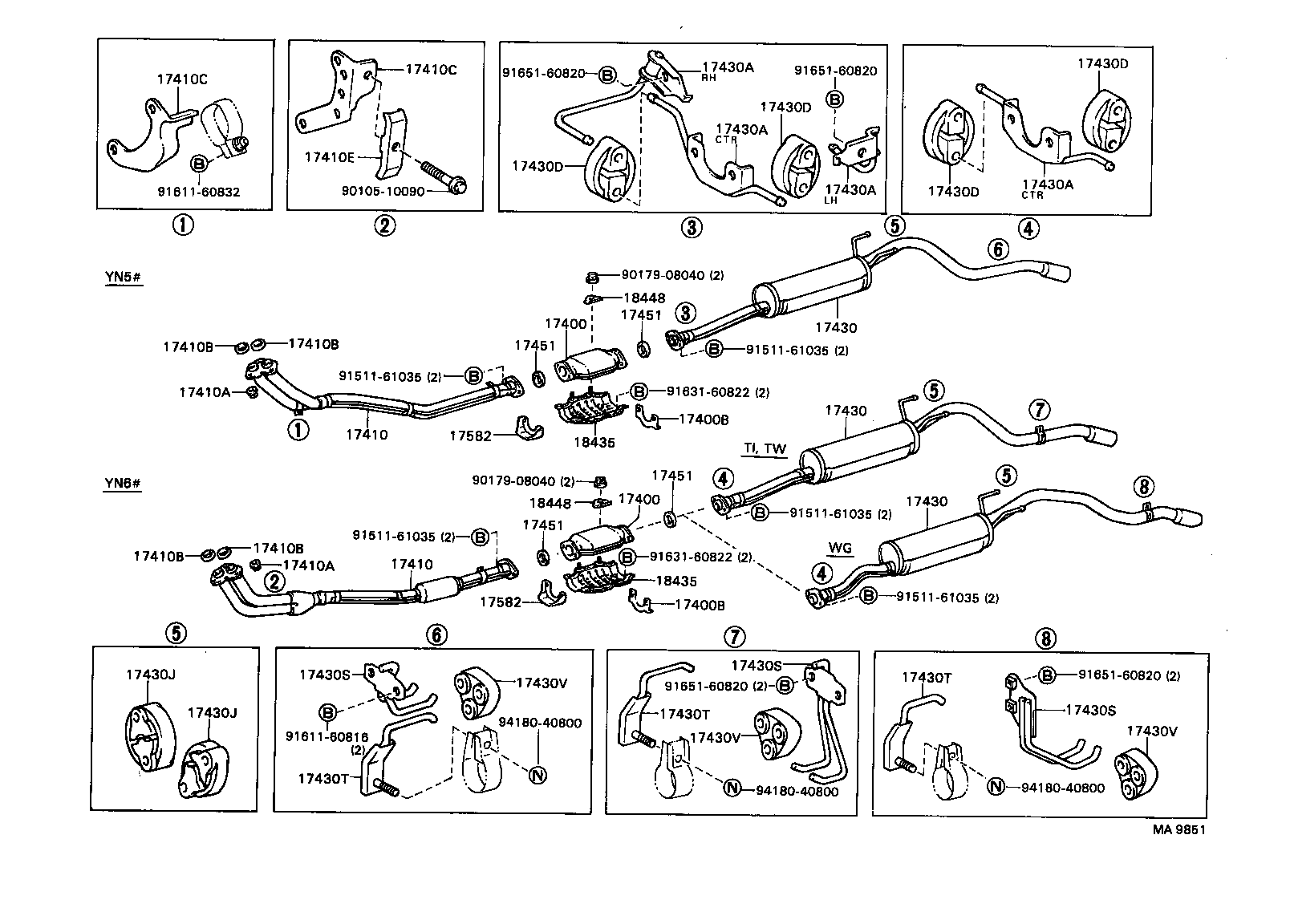

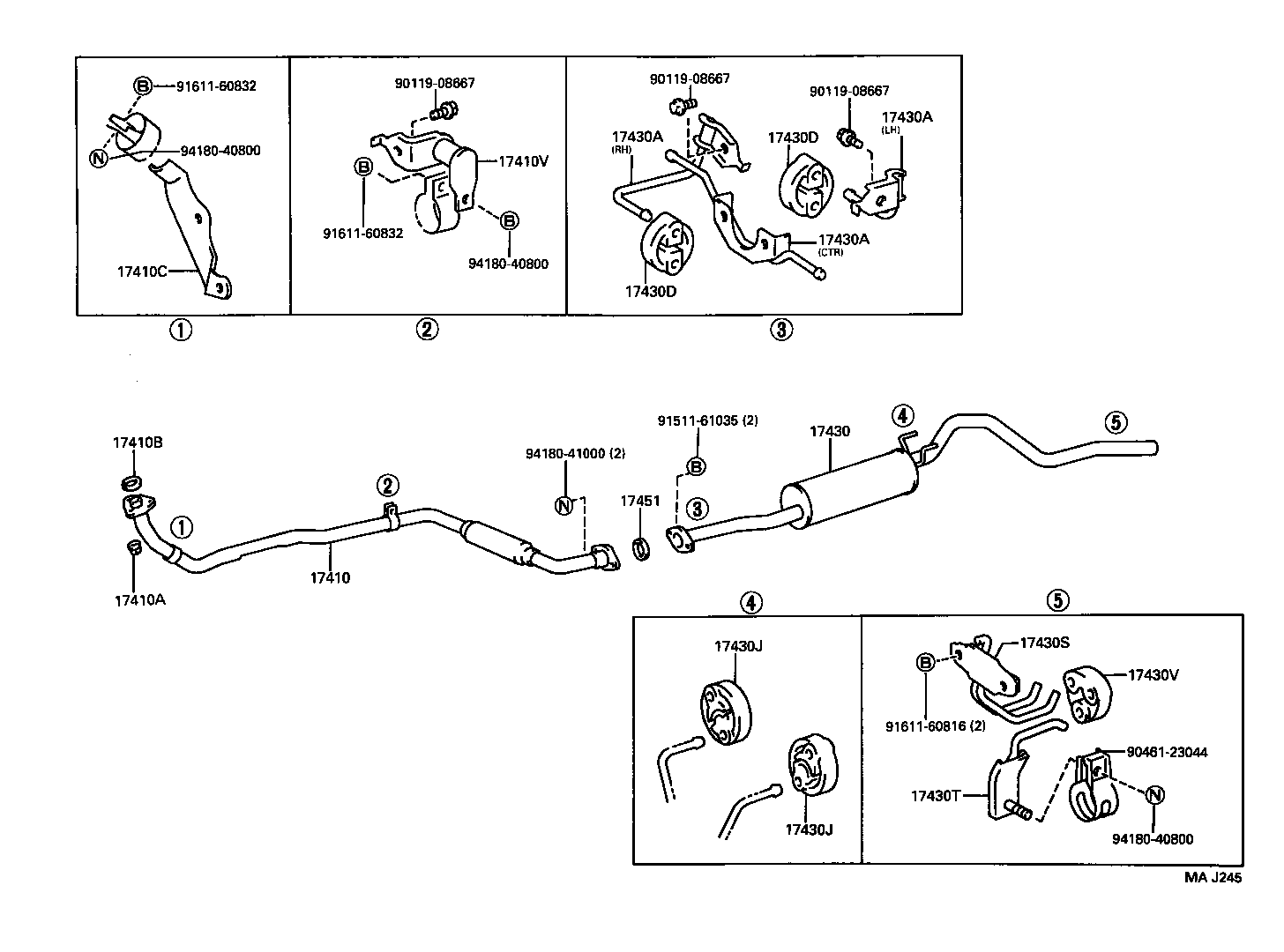

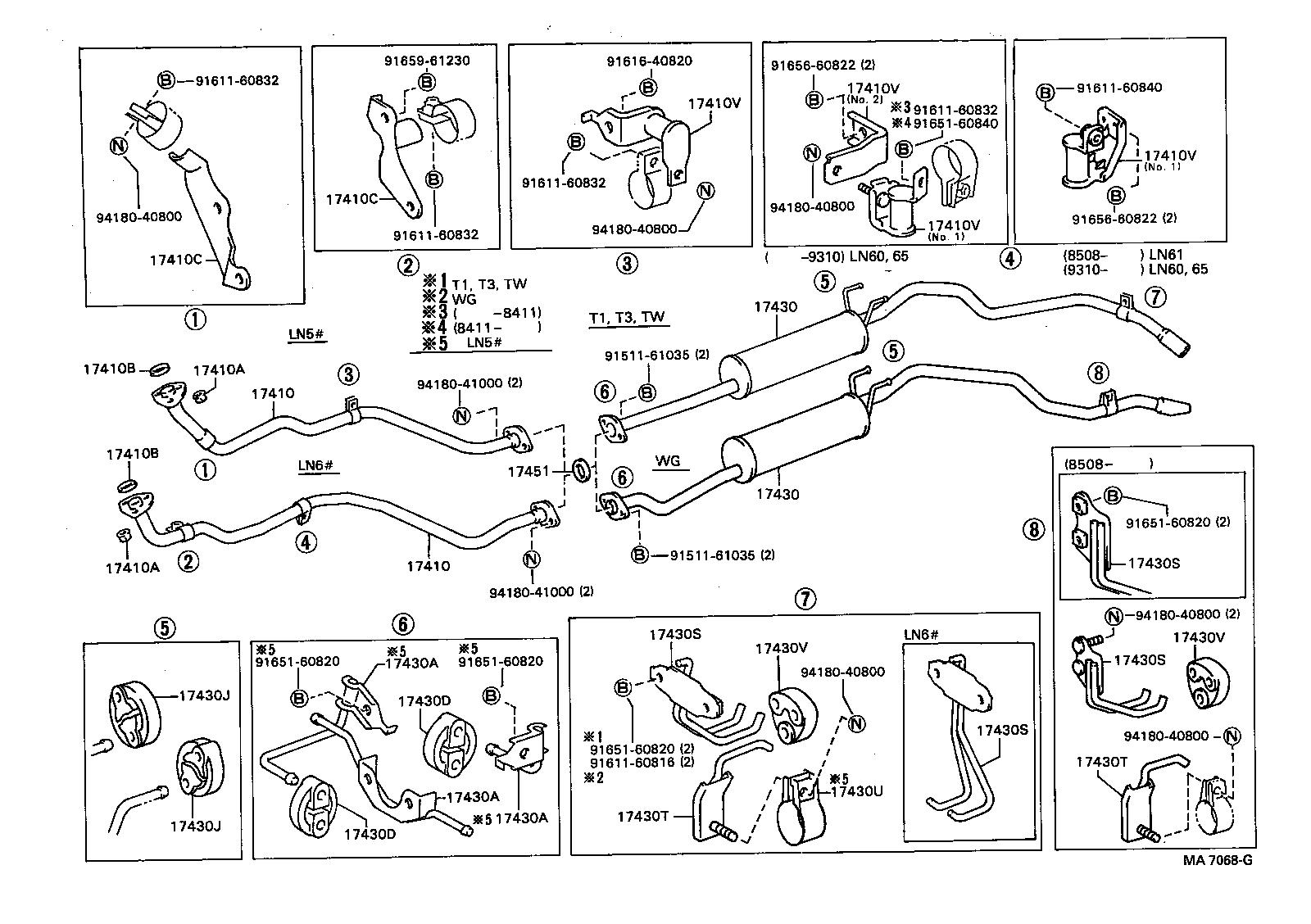

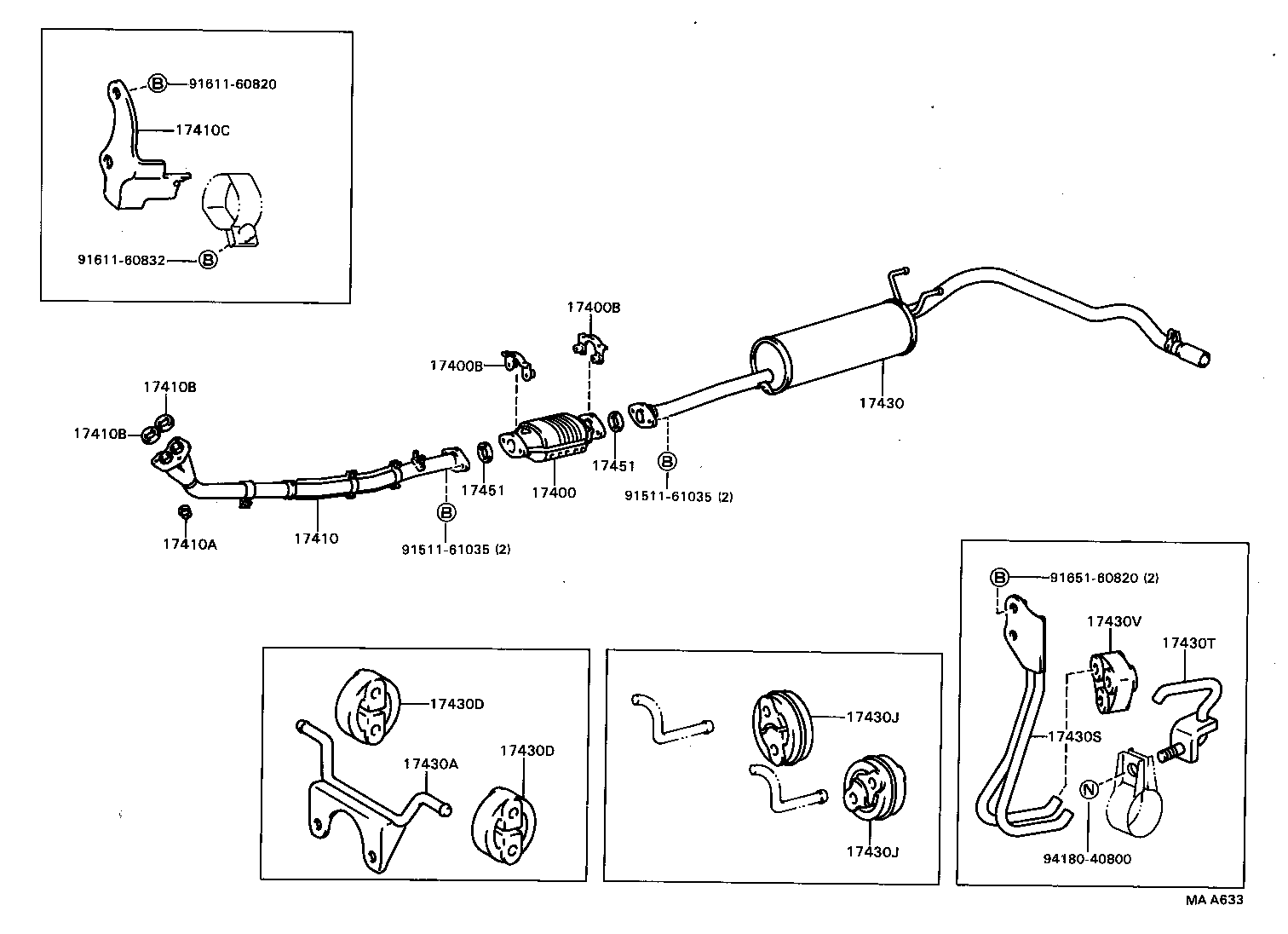

Figure MA7067D MA7067D 1983-08 → 1987-08 Figure MA7067D MA7067D 1987-08 → — Figure MA9851 MA9851 1987-08 → — Figure MA9130B MA9130B 1986-08 → — Figure MA8904A MA8904A 1986-01 → — Figure MAA633 MAA633 1987-12 → — Figure MA7068G MA7068G 1983-08 → 1995-08 Figure MAJ245 MAJ245 1995-08 → — Figure MAJ246 MAJ246 1995-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400B Retainer, Exhaust Pipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17582 Bracket, Catalytic Converter Support, Upper
18435 Protector, Catalytic Converter
18448 Bracket, Converter Protector, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
