Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

43 part groups · 12 illustrations

Illustrations

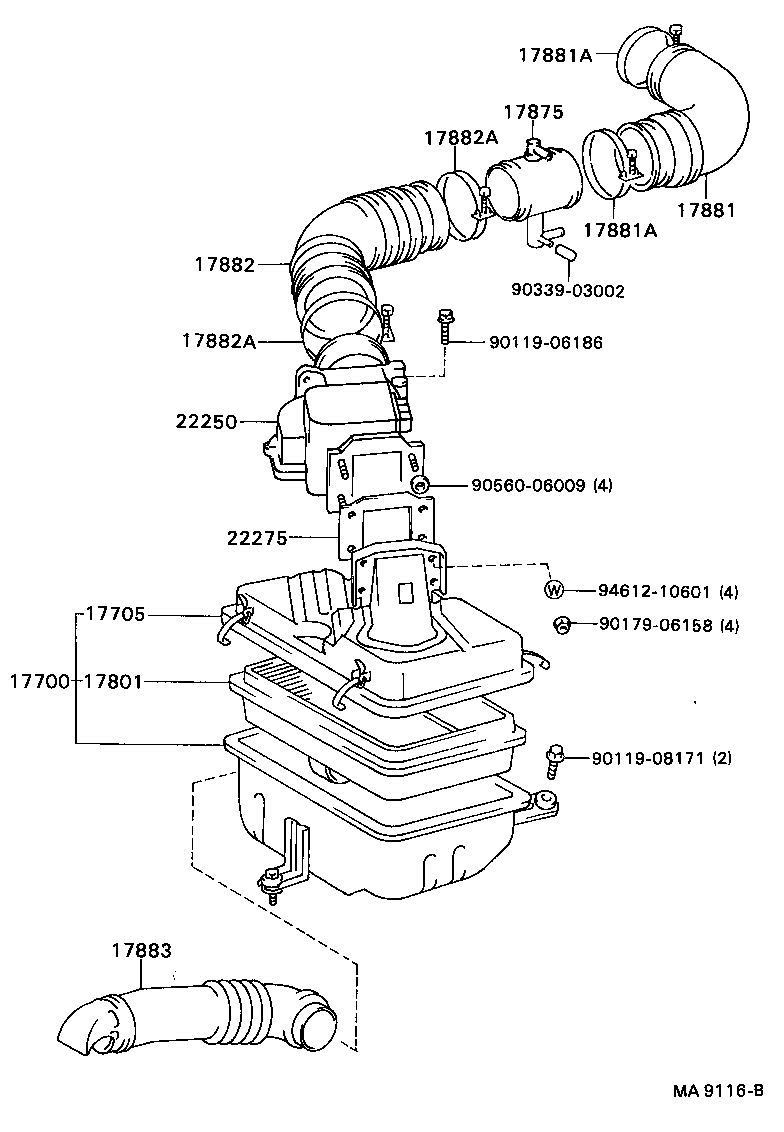

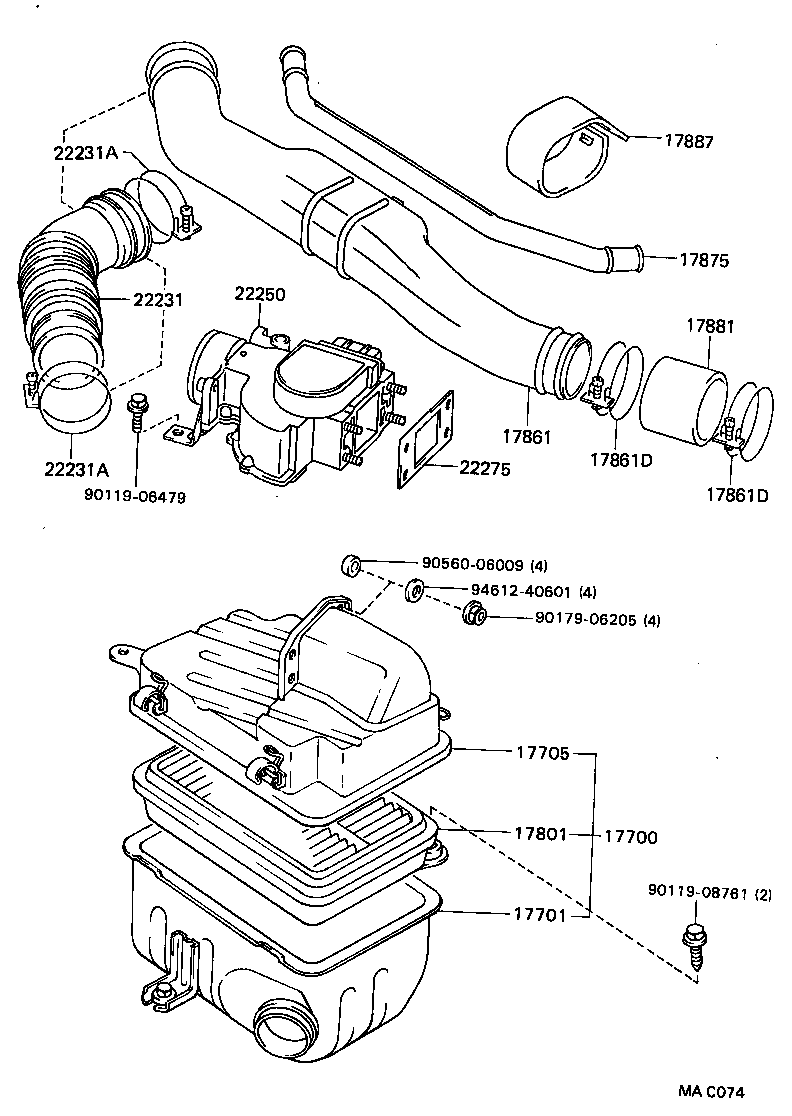

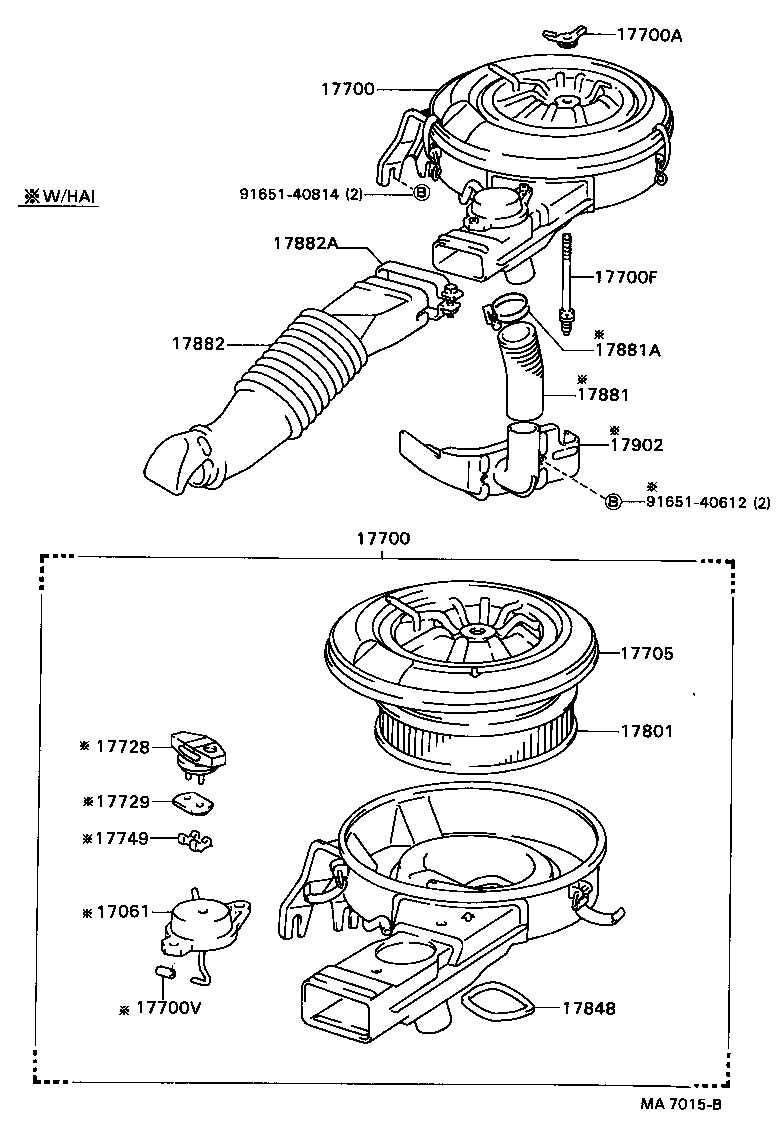

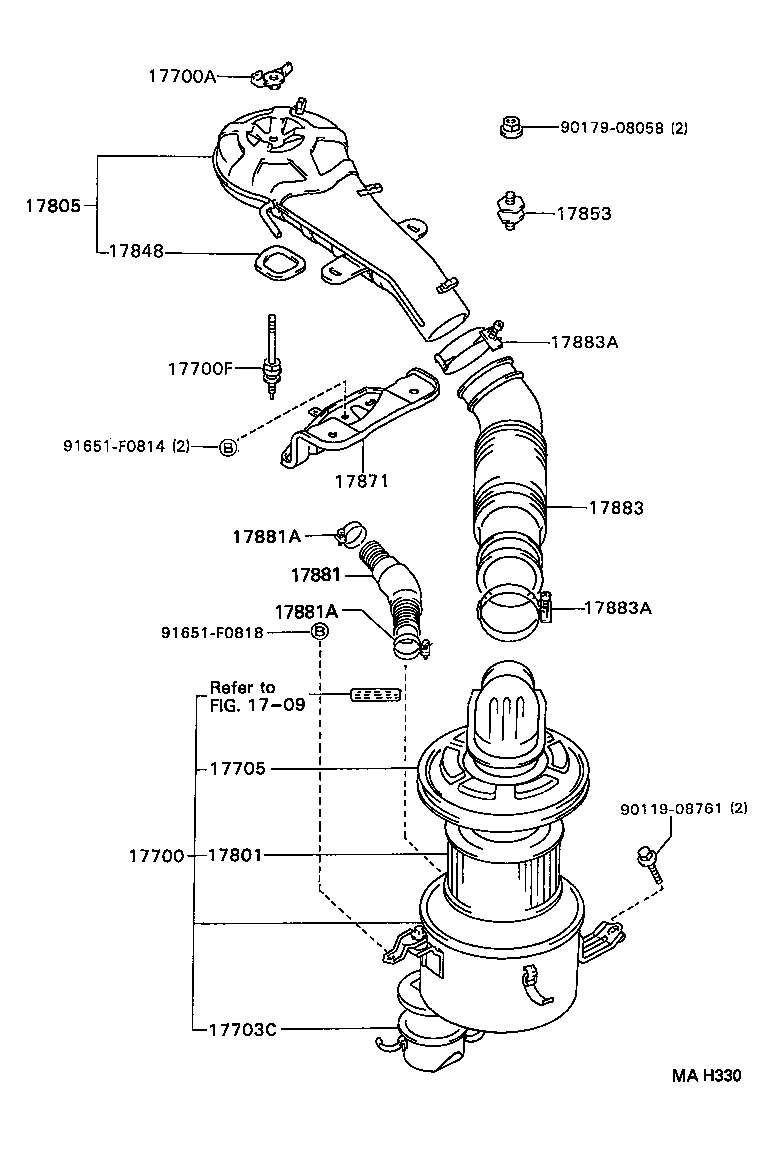

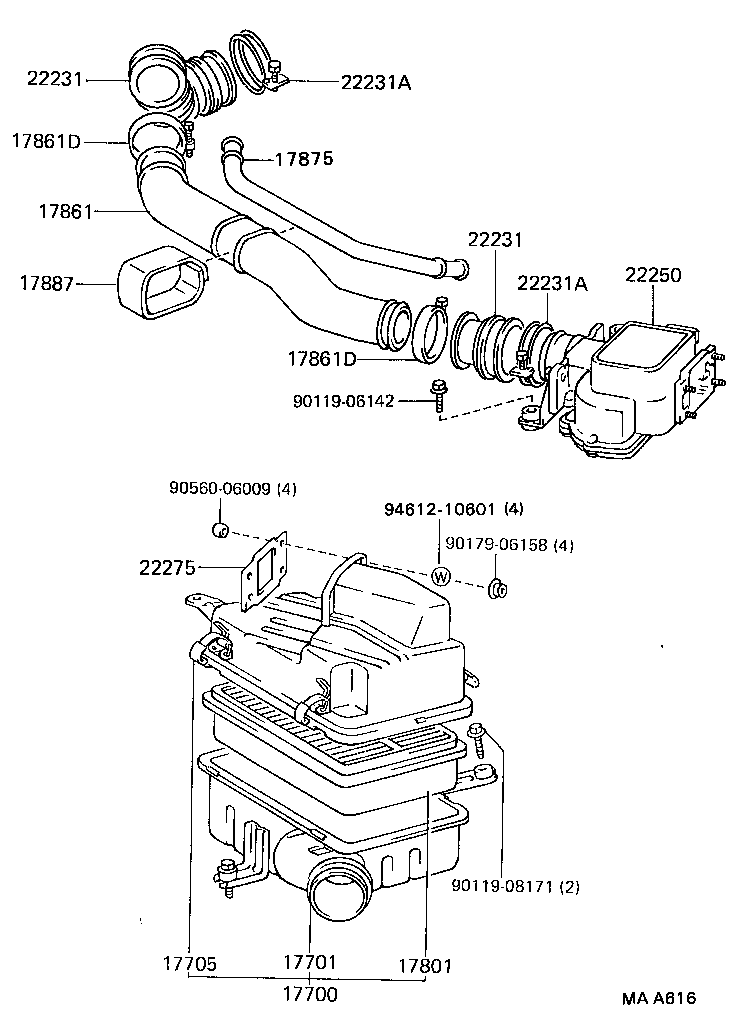

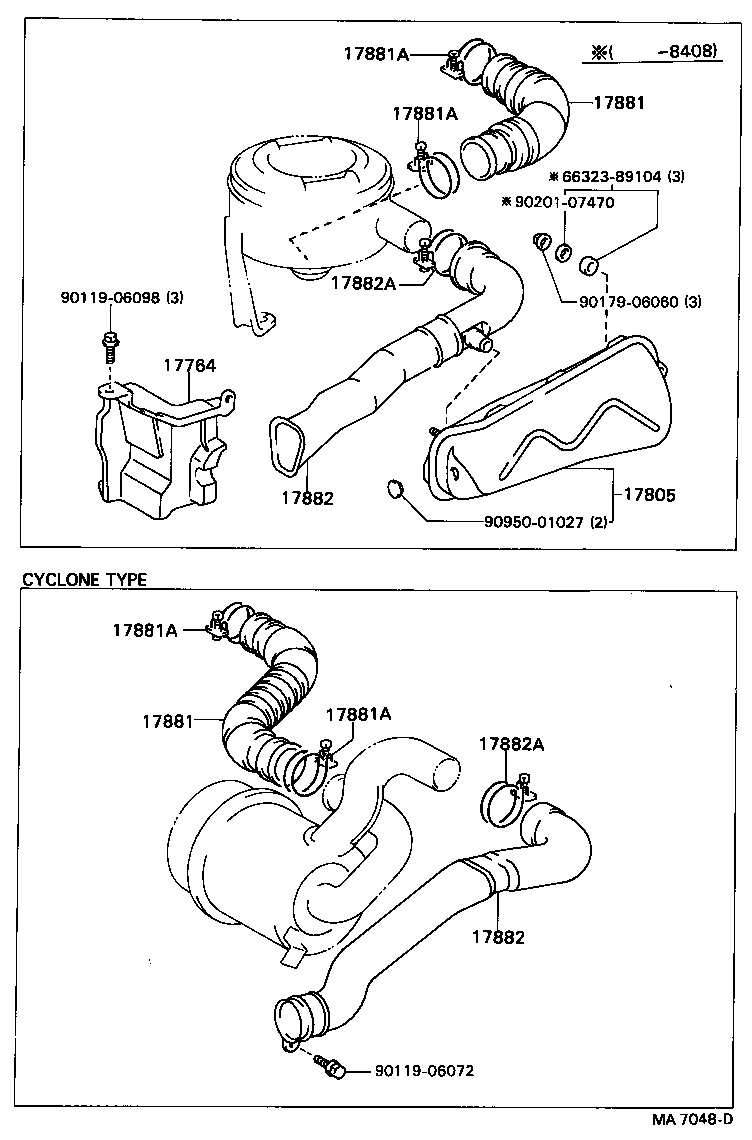

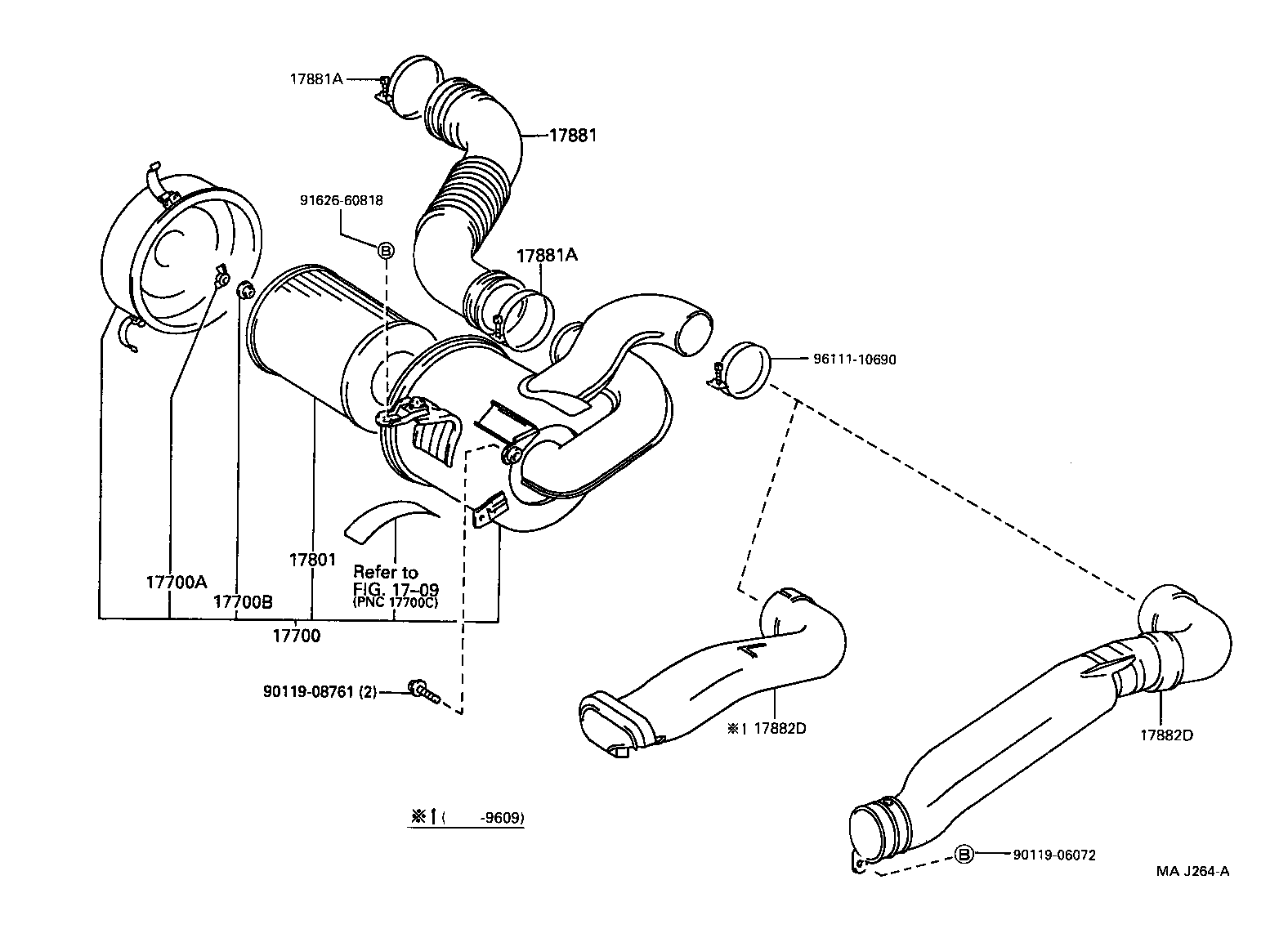

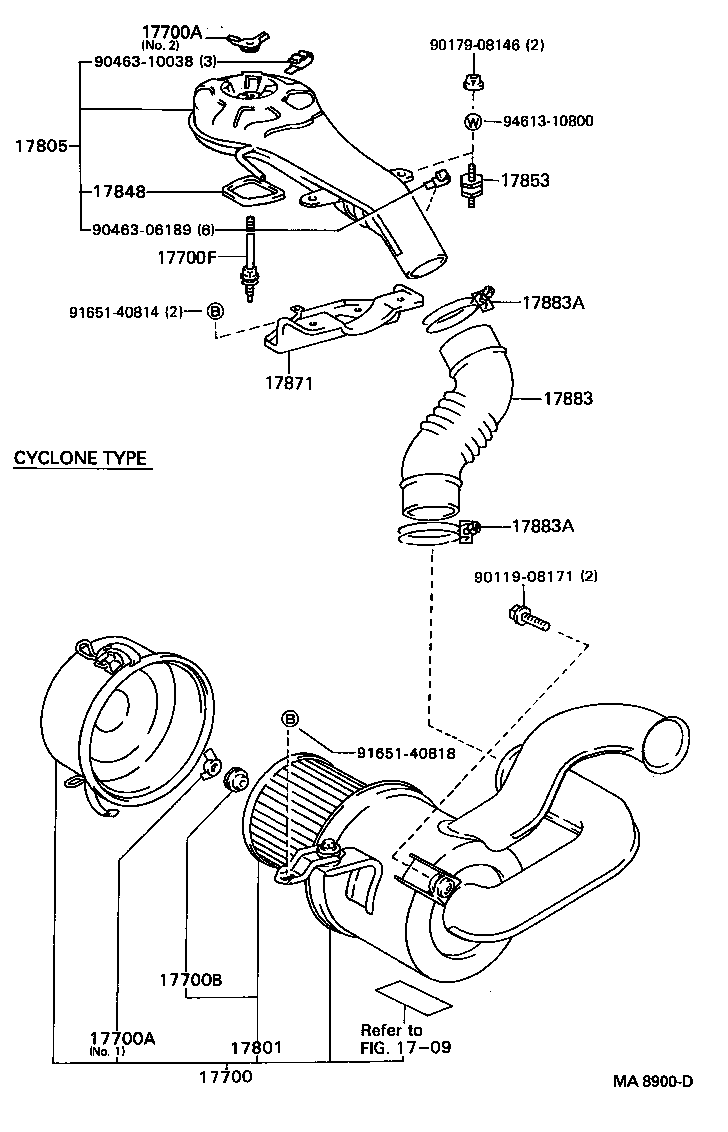

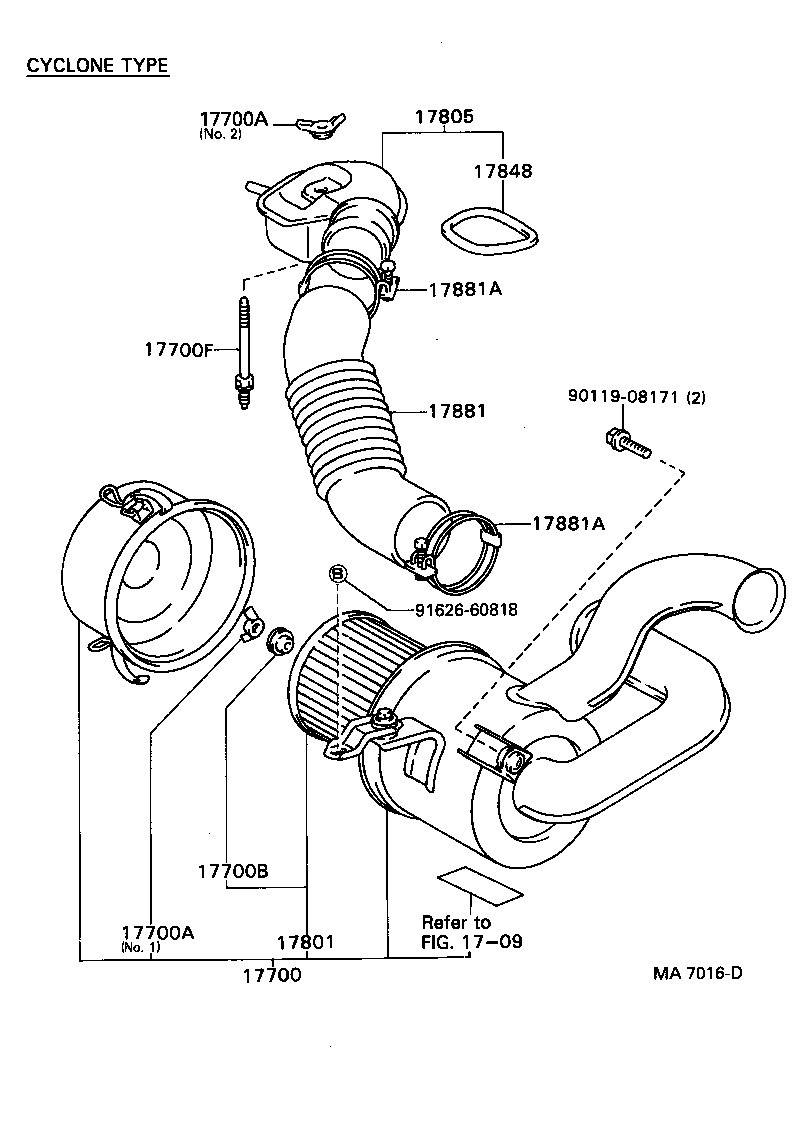

Figure MA7047D MA7047D 1983-08 → 1995-08 Figure MA7048D MA7048D 1983-08 → 1995-08 Figure MA8133B MA8133B 1984-10 → 1995-08 Figure MAJ264A MAJ264A 1995-08 → — Figure MA8900D MA8900D 1986-01 → 1988-08 Figure MAH330 MAH330 1994-07 → — Figure MAA616 MAA616 1987-12 → 1988-08 Figure MAC074 MAC074 1988-08 → 1989-03 Figure MA9858B MA9858B 1987-12 → 1989-03 Figure MA7015B MA7015B 1983-08 → — Figure MA7016D MA7016D 1983-08 → — Figure MA9116B MA9116B 1986-08 → 1989-03

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700V Bush(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17703C Cap Sub-assy, Dust
17705 Cap Sub-assy, Air Cleaner
17710 Duct Sub-assy, Air Cleaner Inlet, NO.1
17710C Clamp(FOR AIR CLEANER INLET DUCT)
17710D Pipe, Air Cleaner Inlet
17710E Cable Sub-assy
17710F Knob Sub-assy, Control
17710G Bracket(FOR CABLE)
17728 Valve, Thermostatic
17729 Gasket, Thermostat Valve
17749 Support, Thermostat Valve
17764 Duct, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17853 Insulator, Air Cleaner Bracket
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17871 Stay, Air Connector
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882D Hose, Cool Air Intake
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17887 Cover, Air Cleaner Hose
17902 Inlet Sub-assy, Hot Air Intake, NO.1
22231 Hose, Throttle Body
22231A Clamp OR Clip(FOR THROTTLE BODY HOSE)
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
