Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold Air Injection System

16 part groups · 8 illustrations

Illustrations

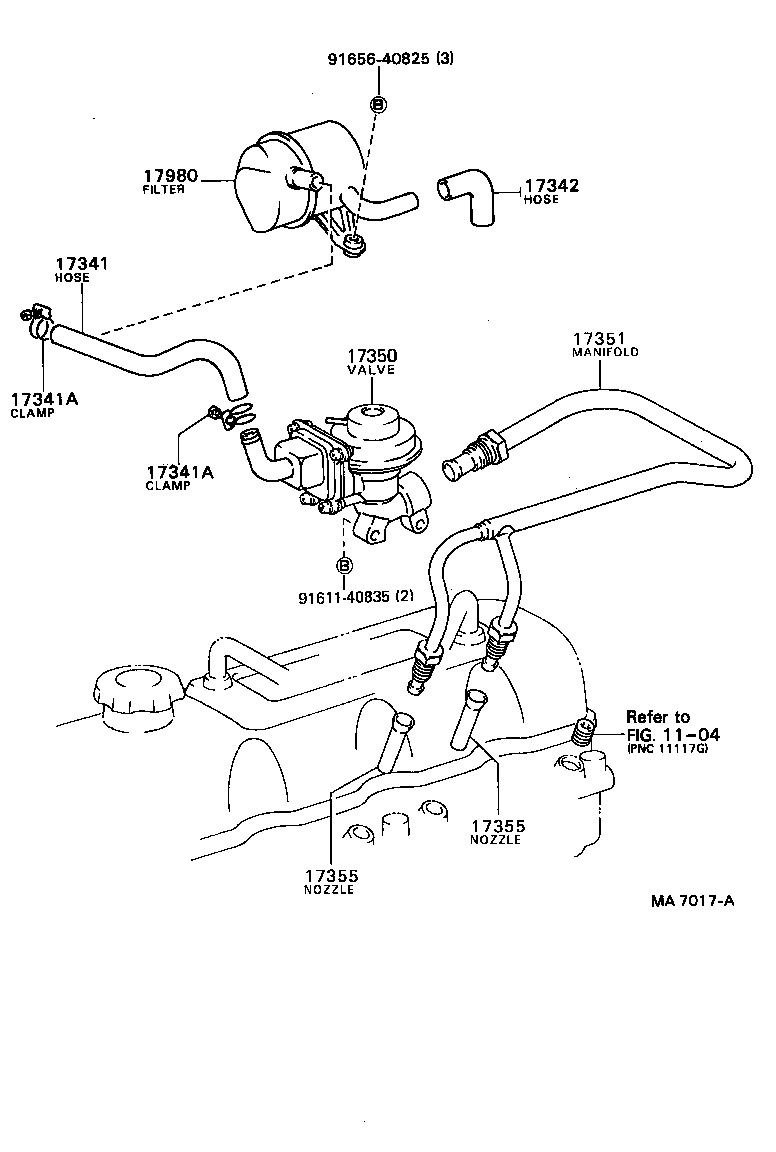

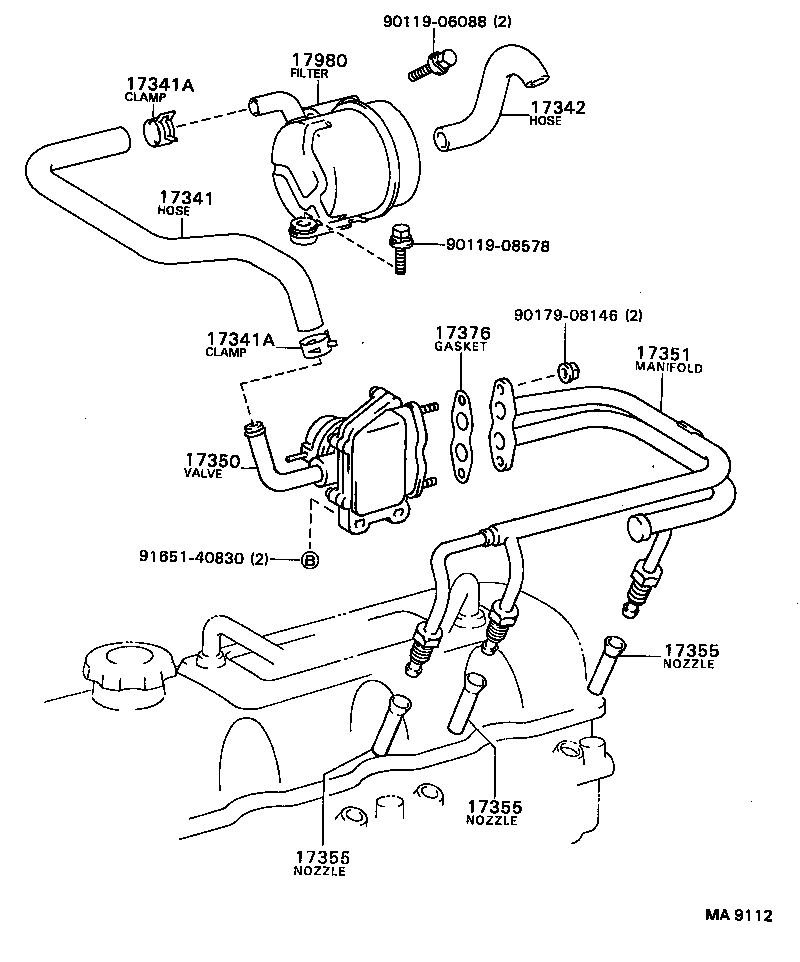

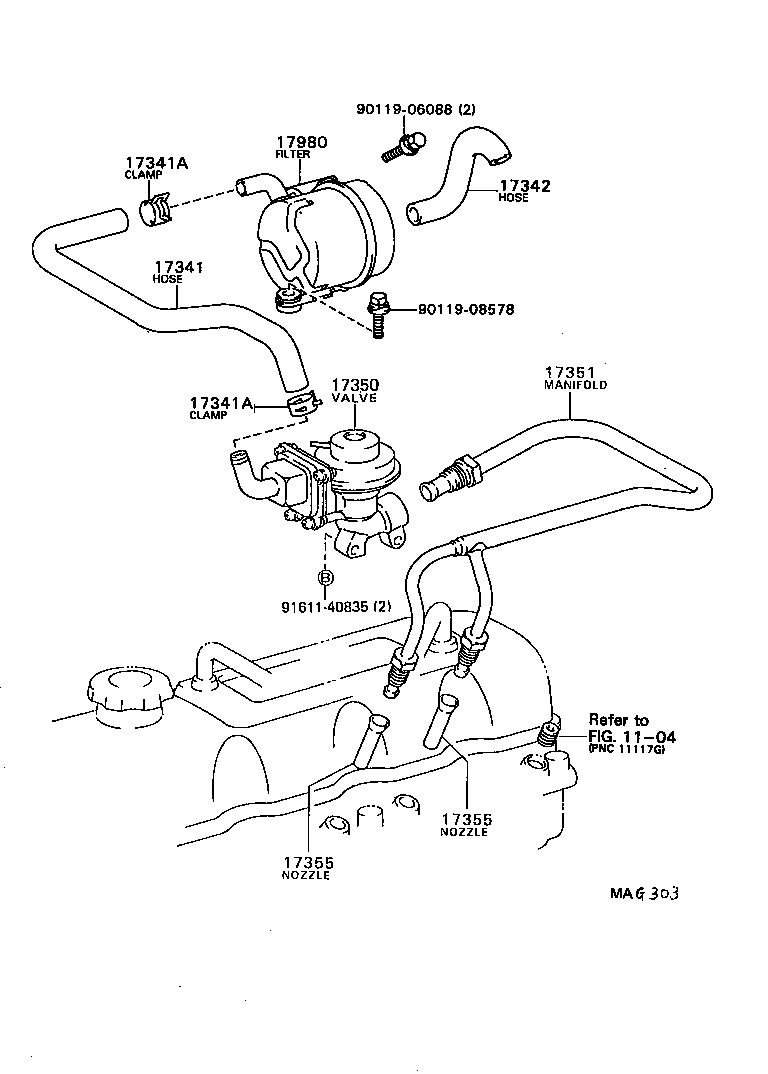

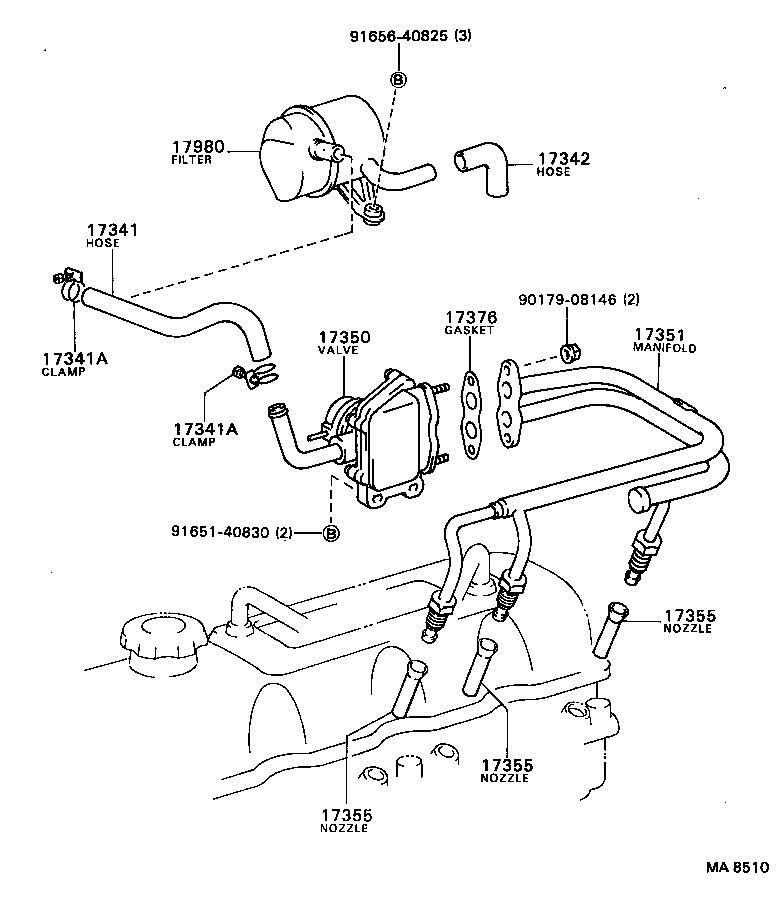

Figure MA9704B MA9704B 1987-12 → 1989-03 Figure MAH331 MAH331 1994-07 → — Figure MA7017A MA7017A 1983-08 → 1985-08 Figure MA8510 MA8510 1983-08 → 1985-08 Figure MA8510 MA8510 1985-08 → 1986-08 Figure MA9112 MA9112 1986-08 → 1989-03 Figure MA9112 MA9112 1986-08 → — Figure MAG303 MAG303 1986-08 → 1988-08

Part groups

PNCDescription
17301B Silencer Sub-assy, Air Suction
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17342 Hose, NO.2(FOR AIR INJECTION SYSTEM)
17342A Clamp OR Clip, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2)
17343 Hose, NO.3(FOR AIR INJECTION SYSTEM)
17343A Clamp OR Clip, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3)
17350 Valve Assy, Reed
17350A Valve Sub-assy, Reed
17351 Manifold, Air Injection
17352 Manifold, Air Injection, NO.2
17355 Nozzle, Air Injection
17376 Gasket, Air Tube, NO.1
17378 Gasket Air Tube, NO.3
17802 Bracket Sub-assy, Resonator
17980 Filter Assy, Air Suction
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
