Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

31 part groups · 28 illustrations

Illustrations

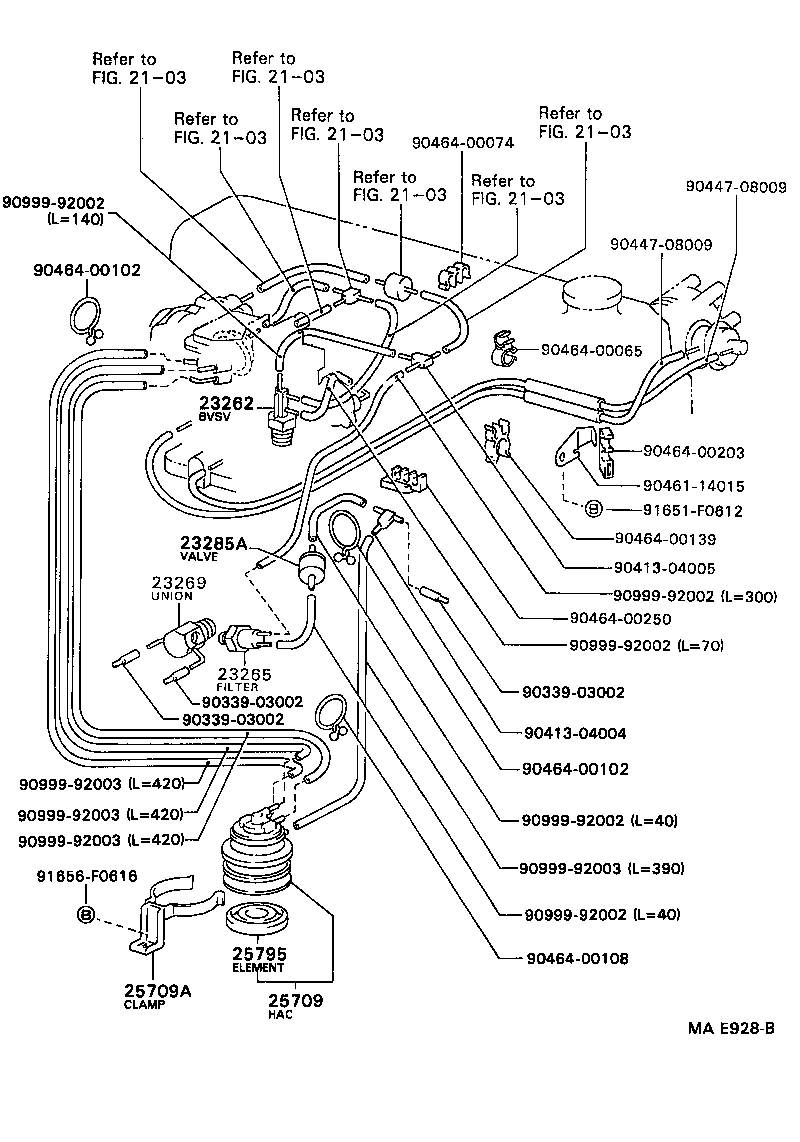

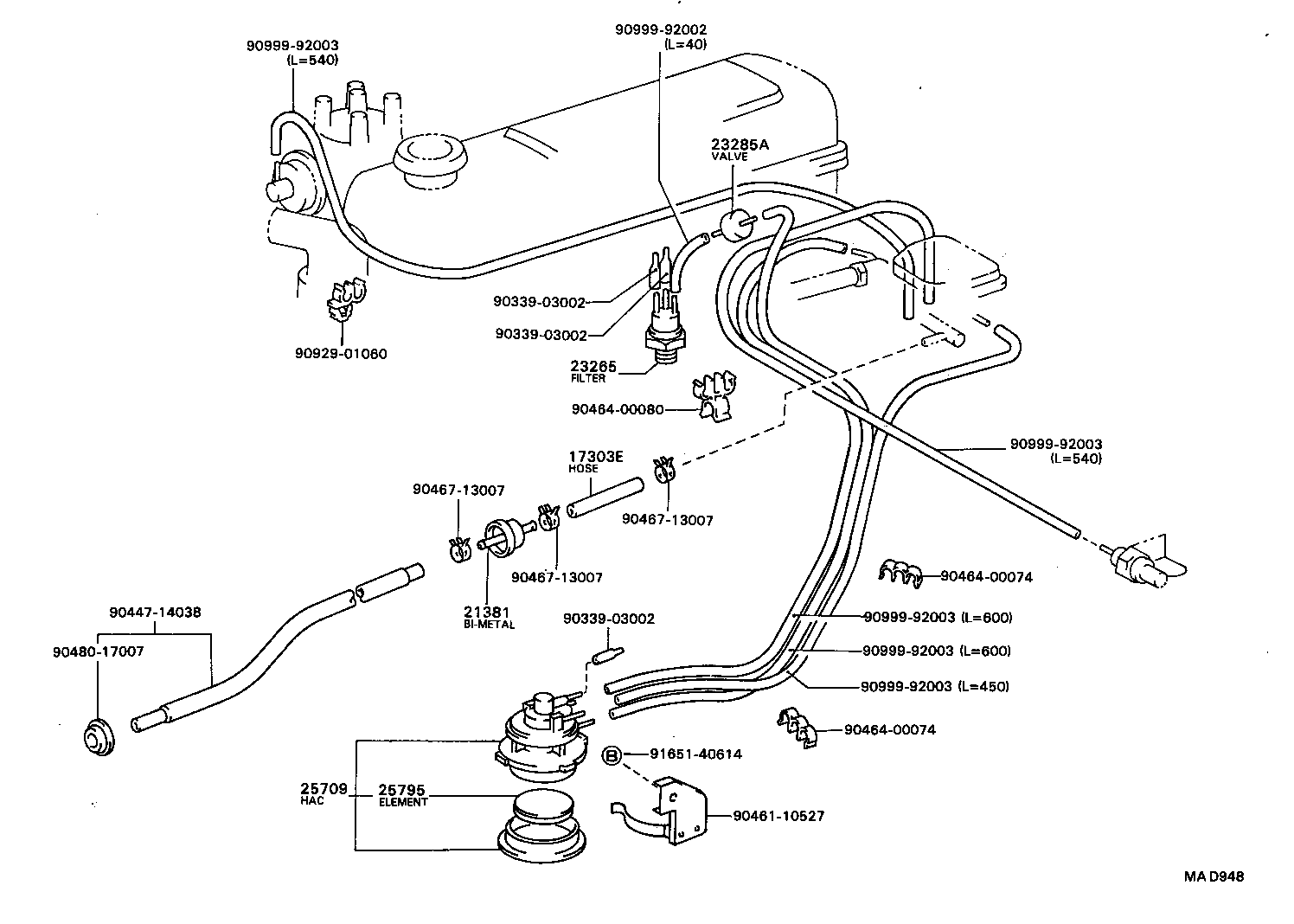

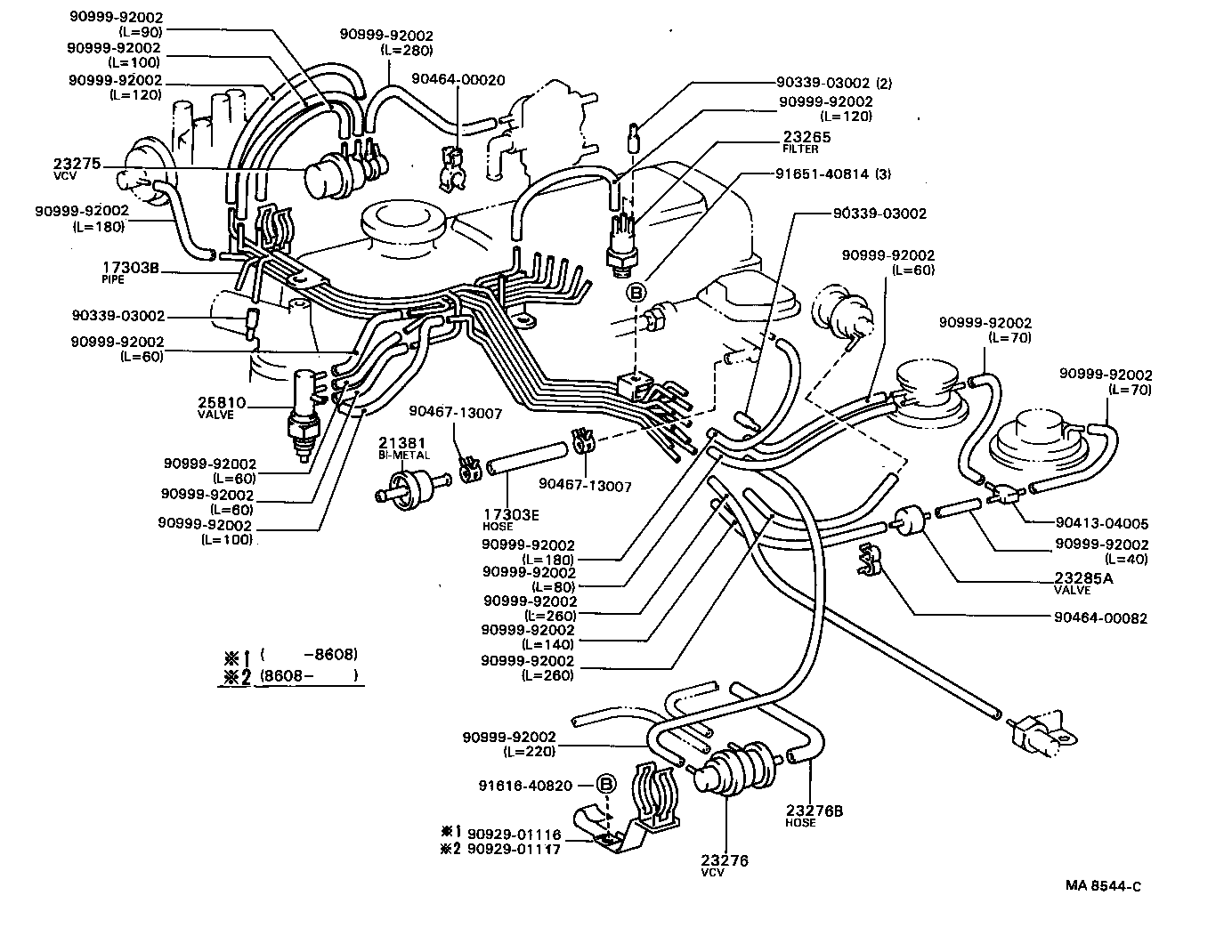

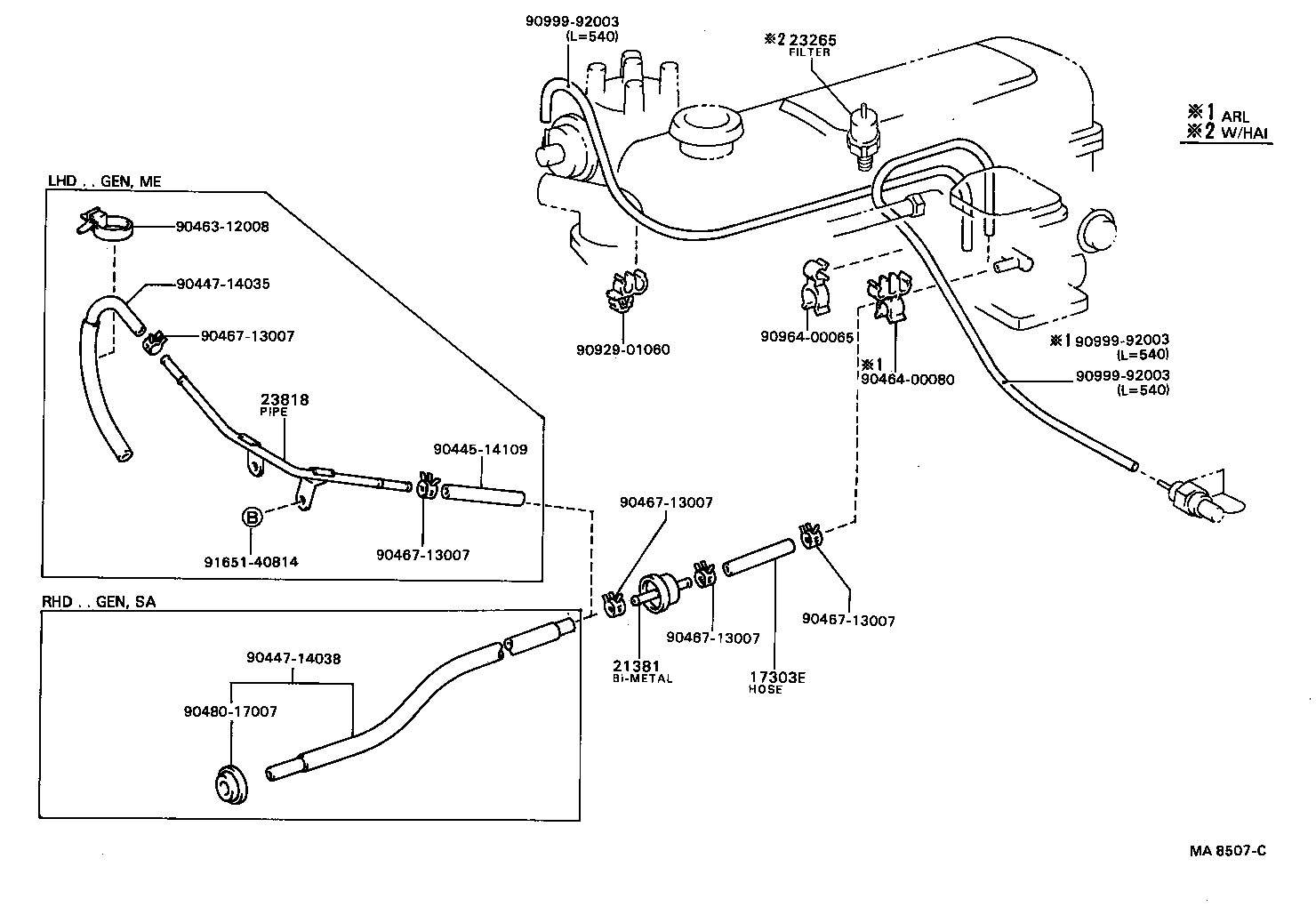

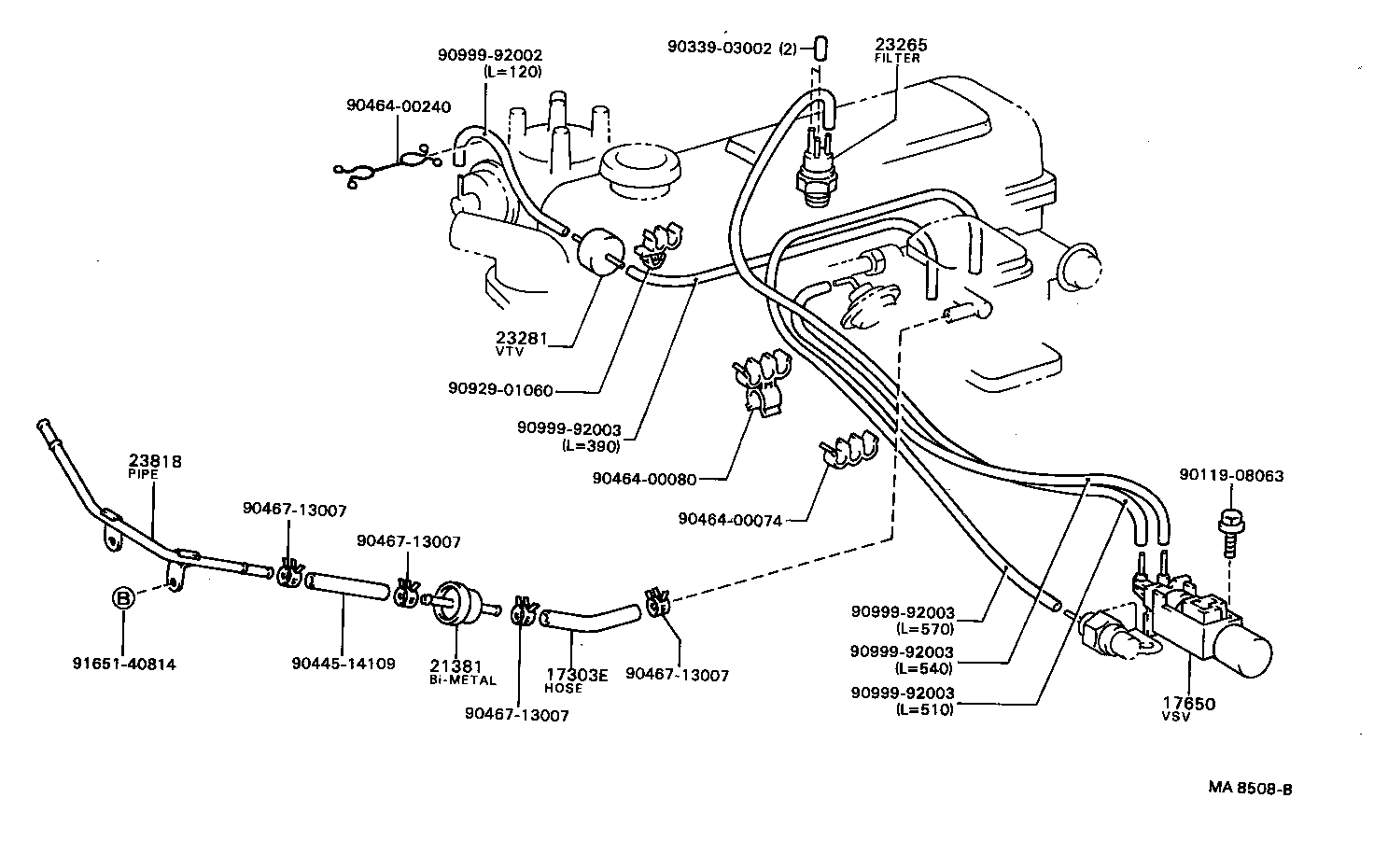

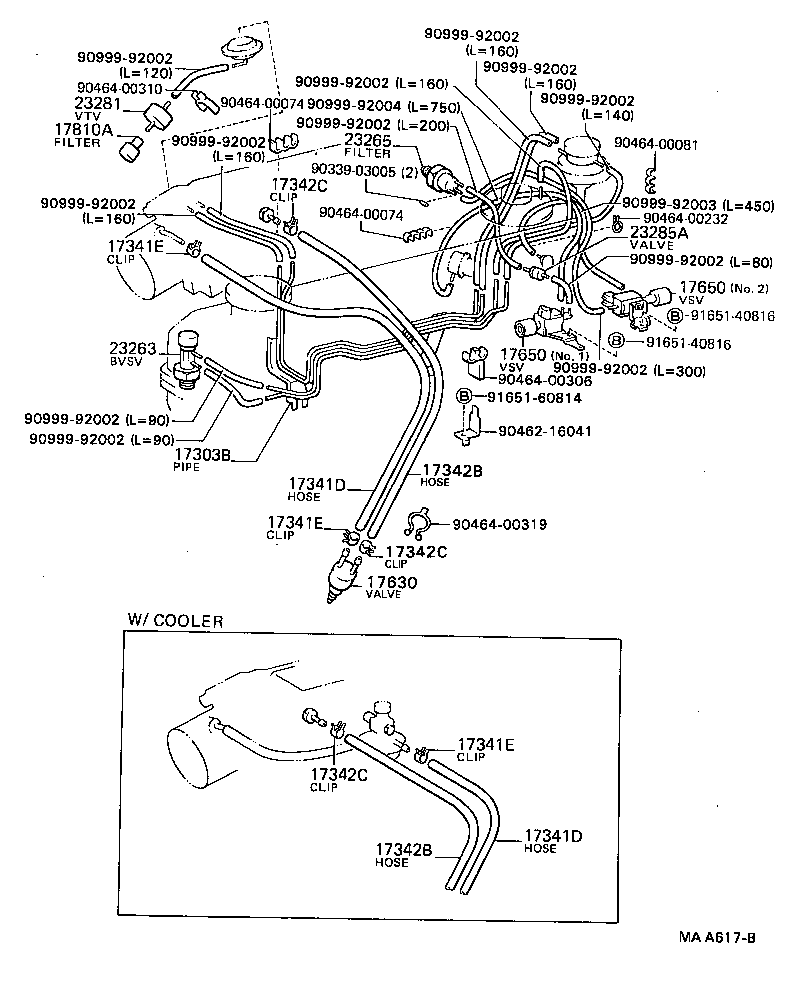

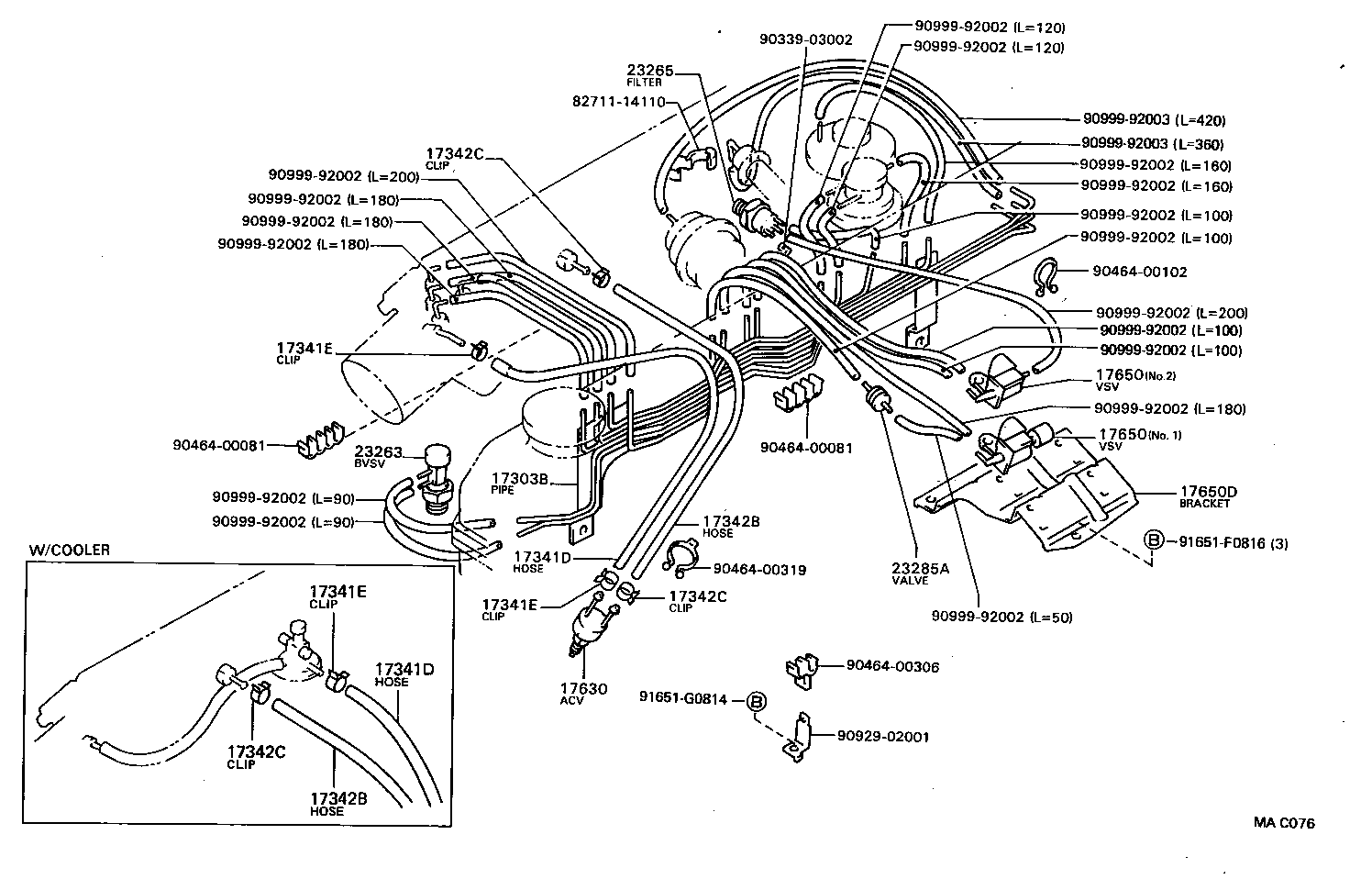

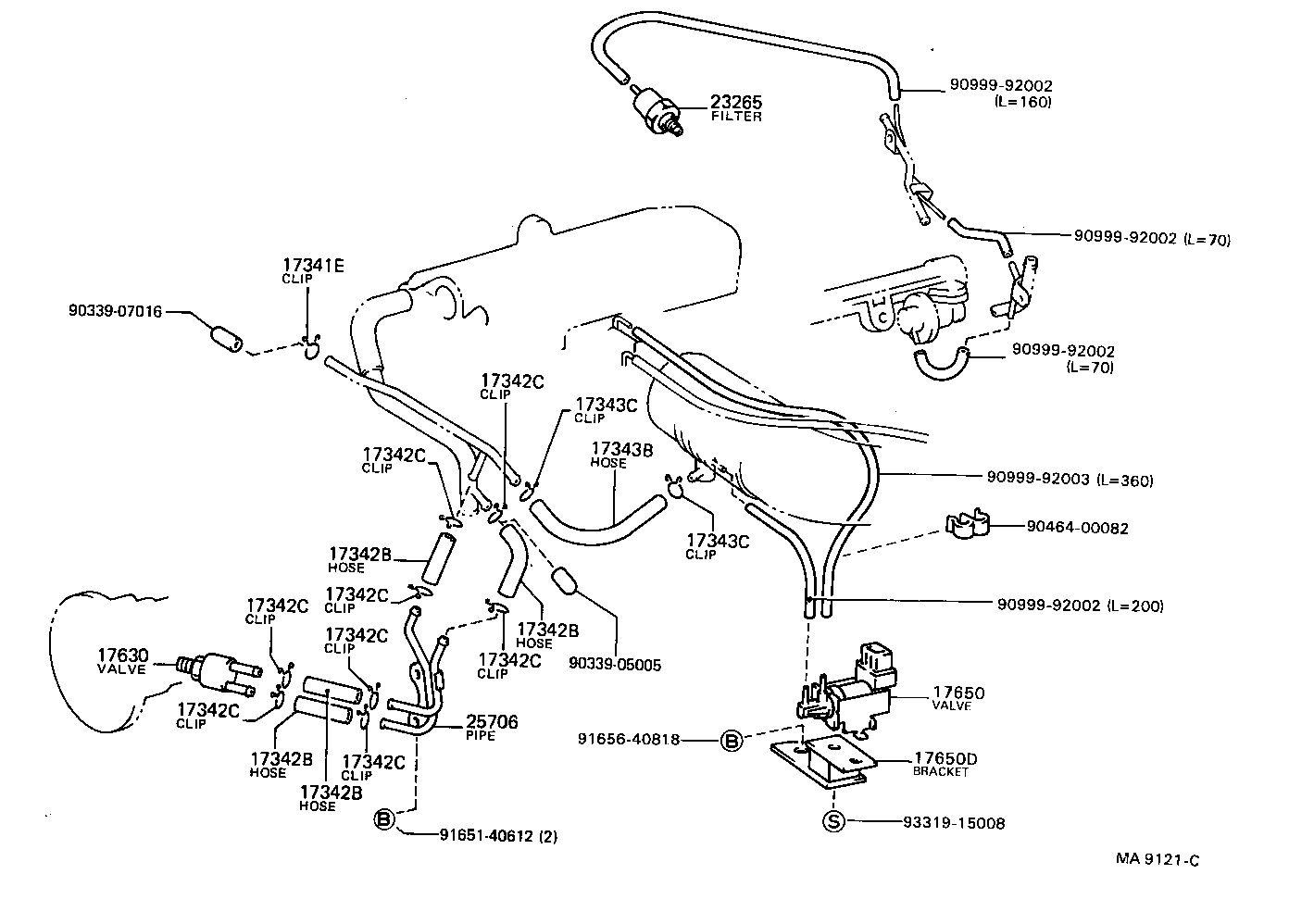

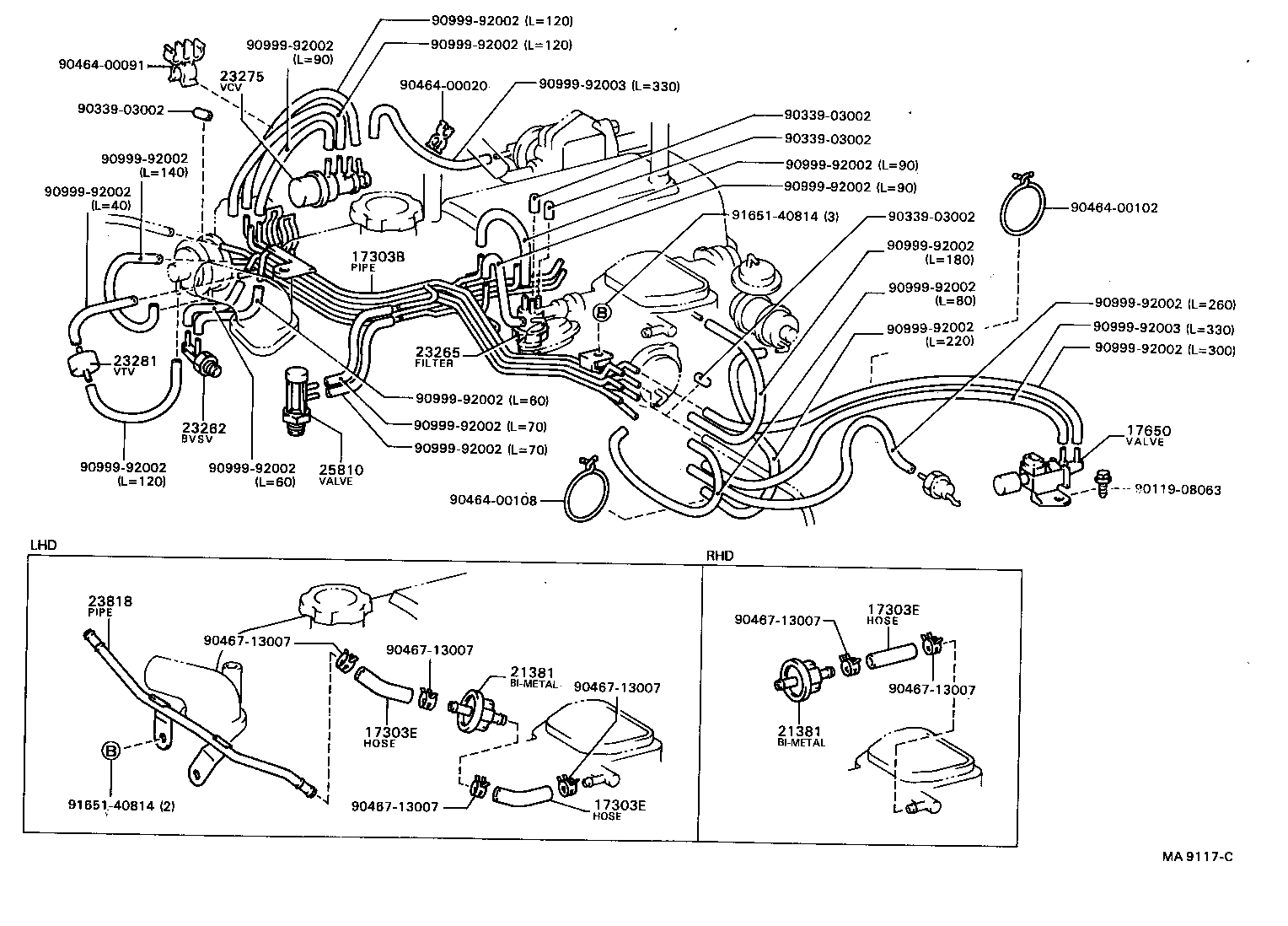

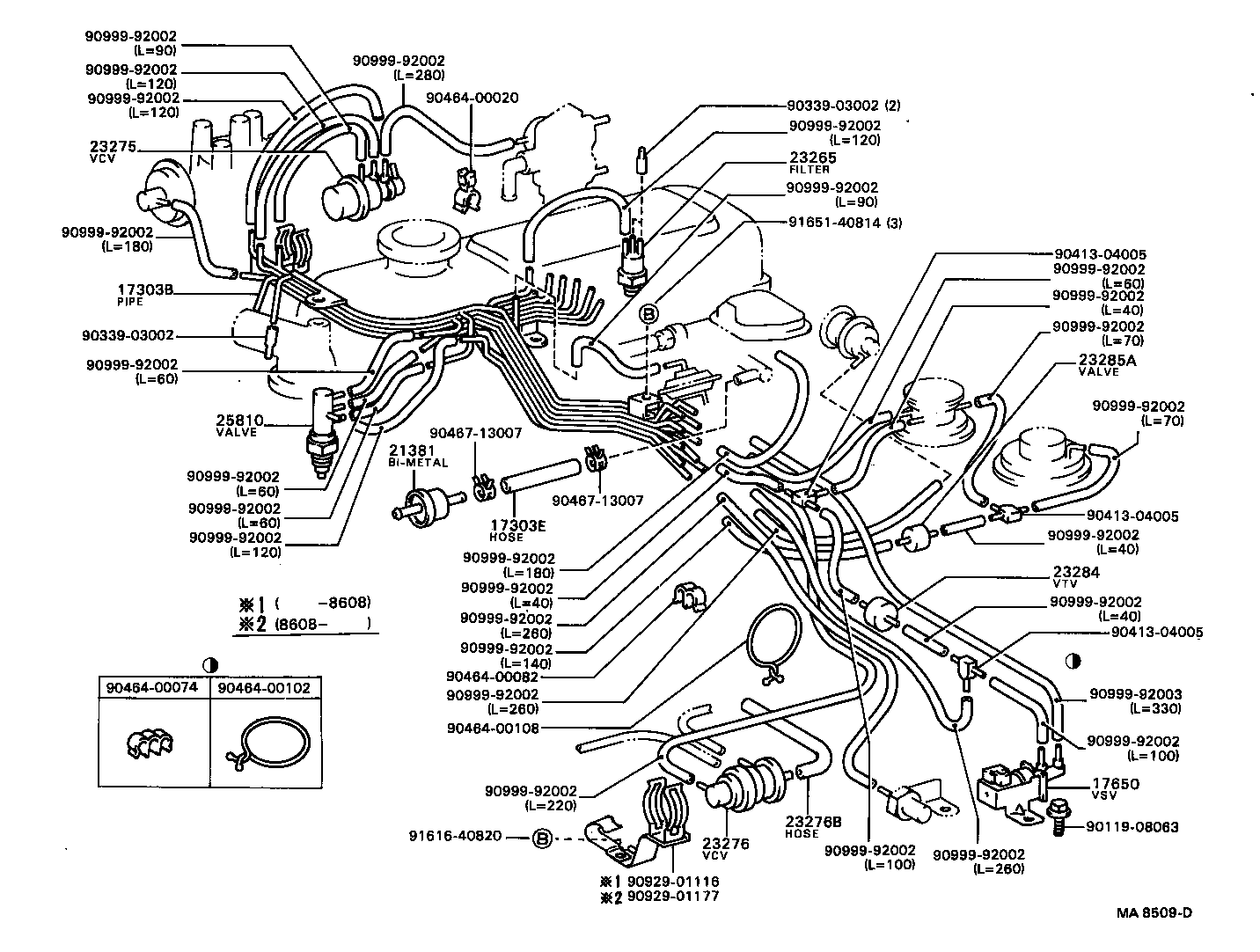

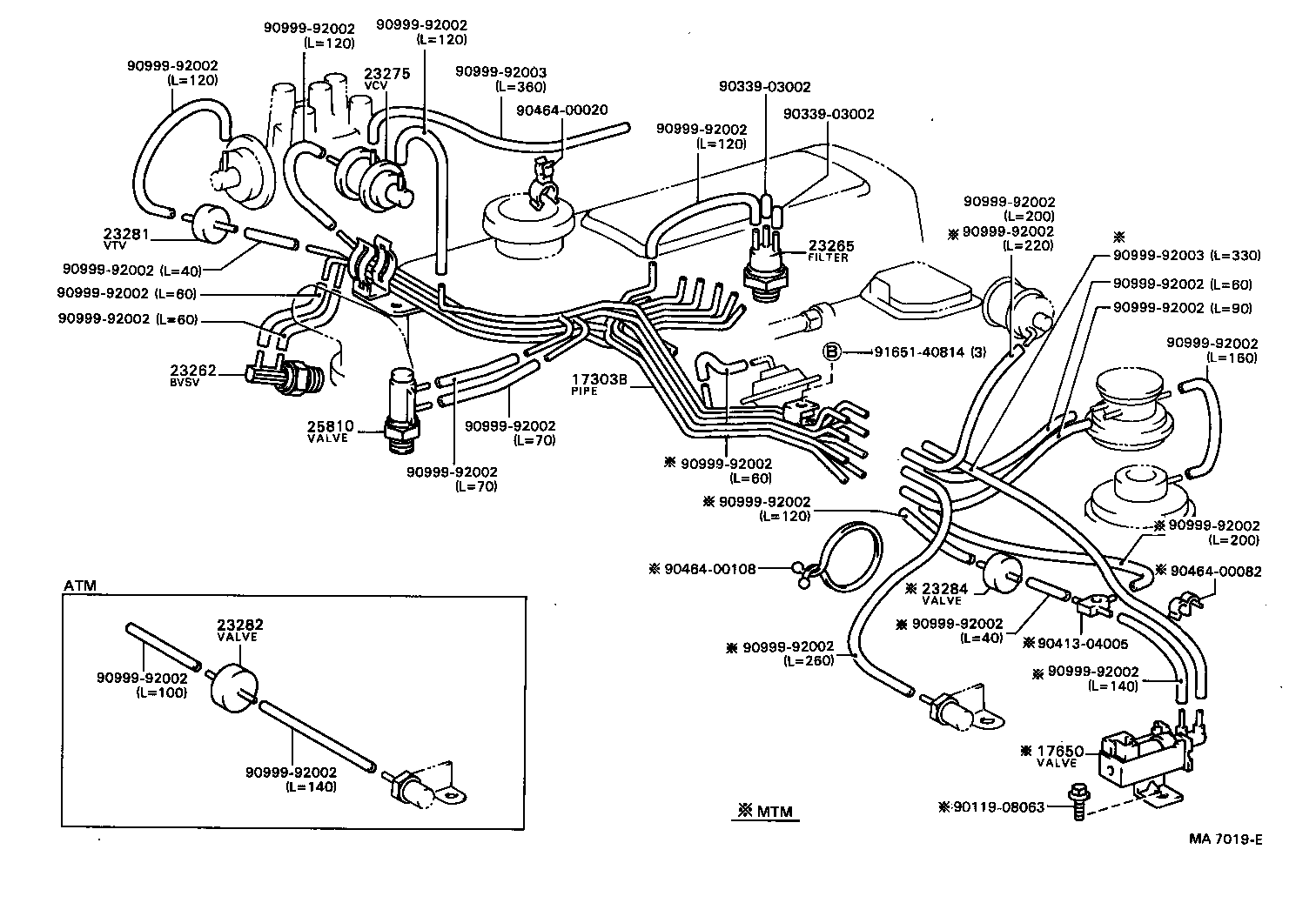

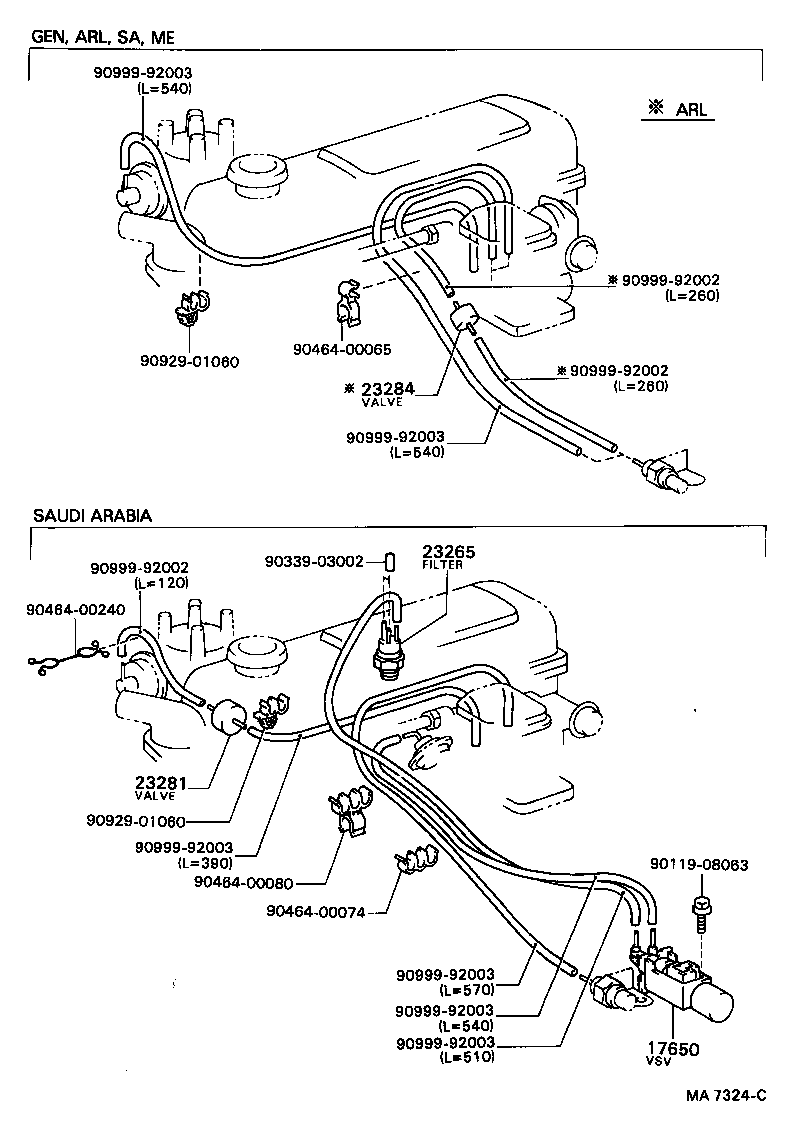

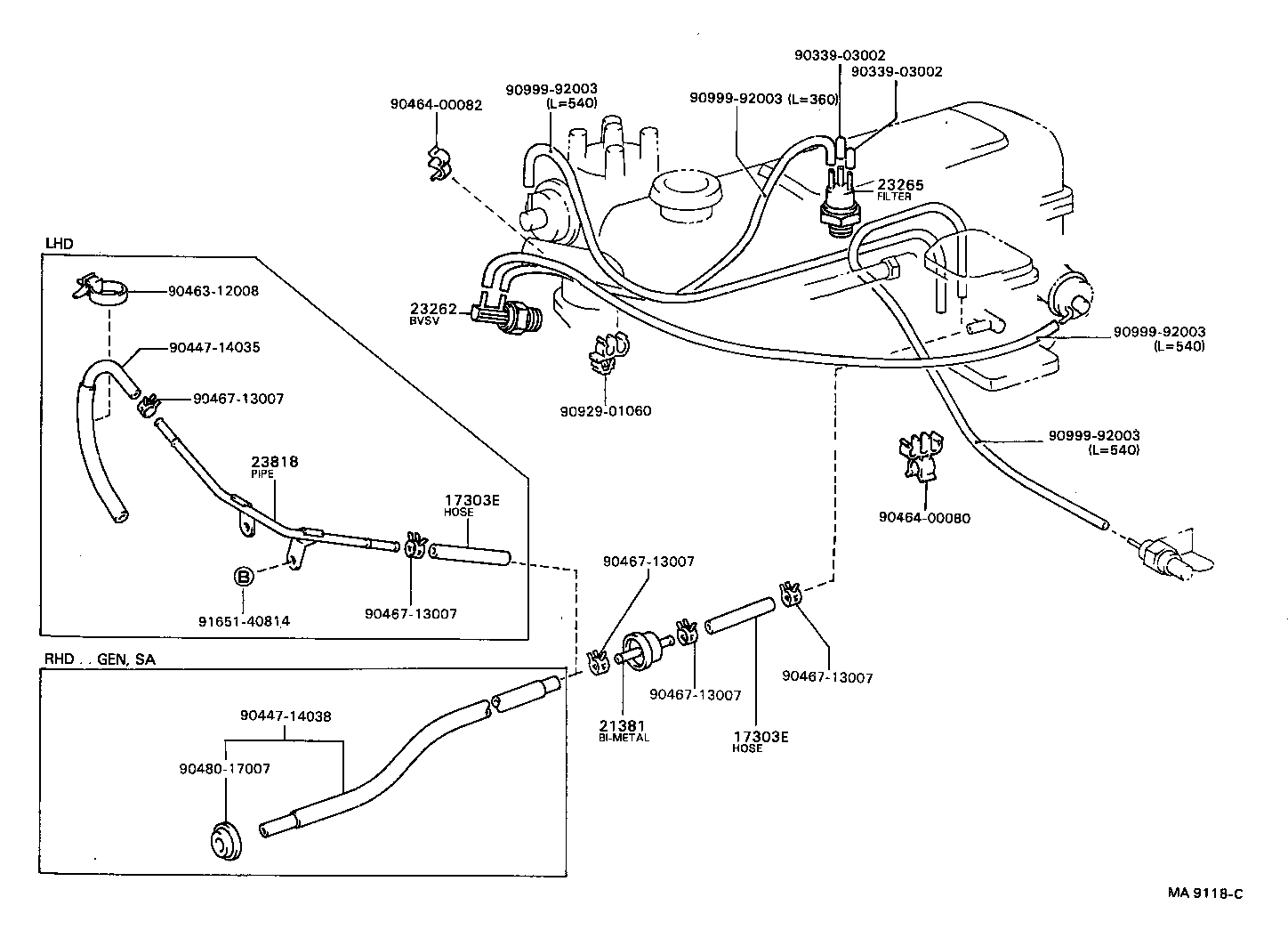

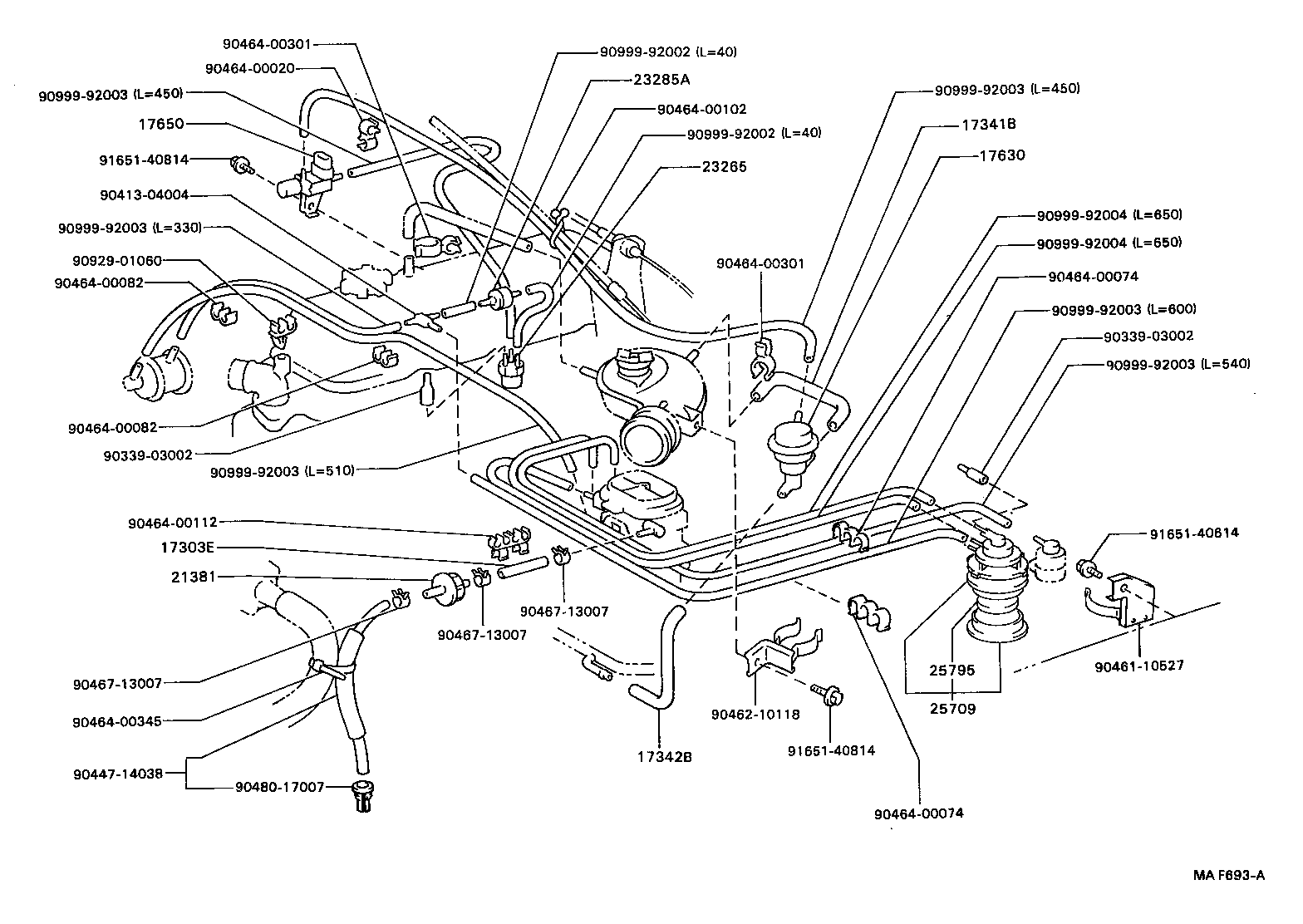

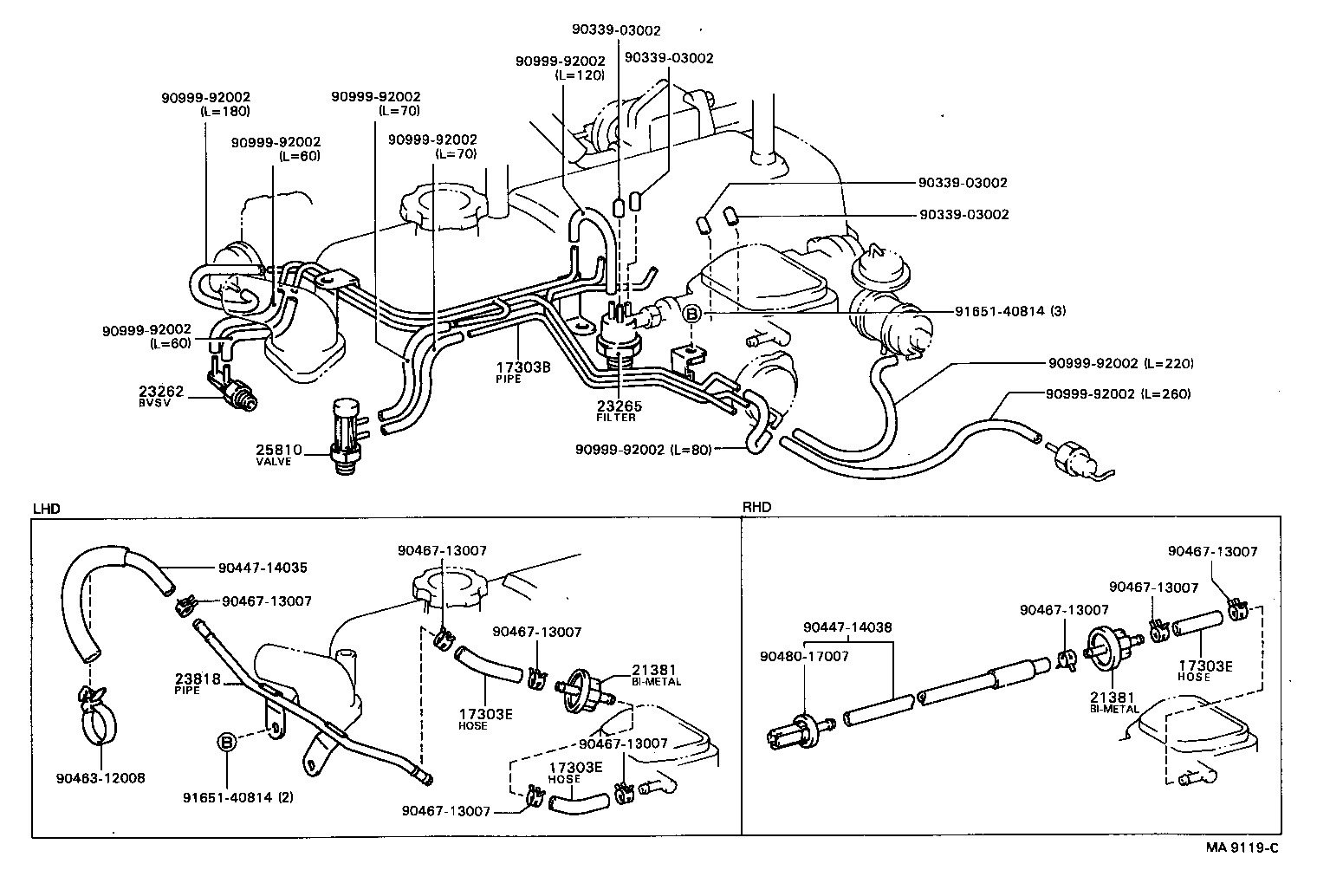

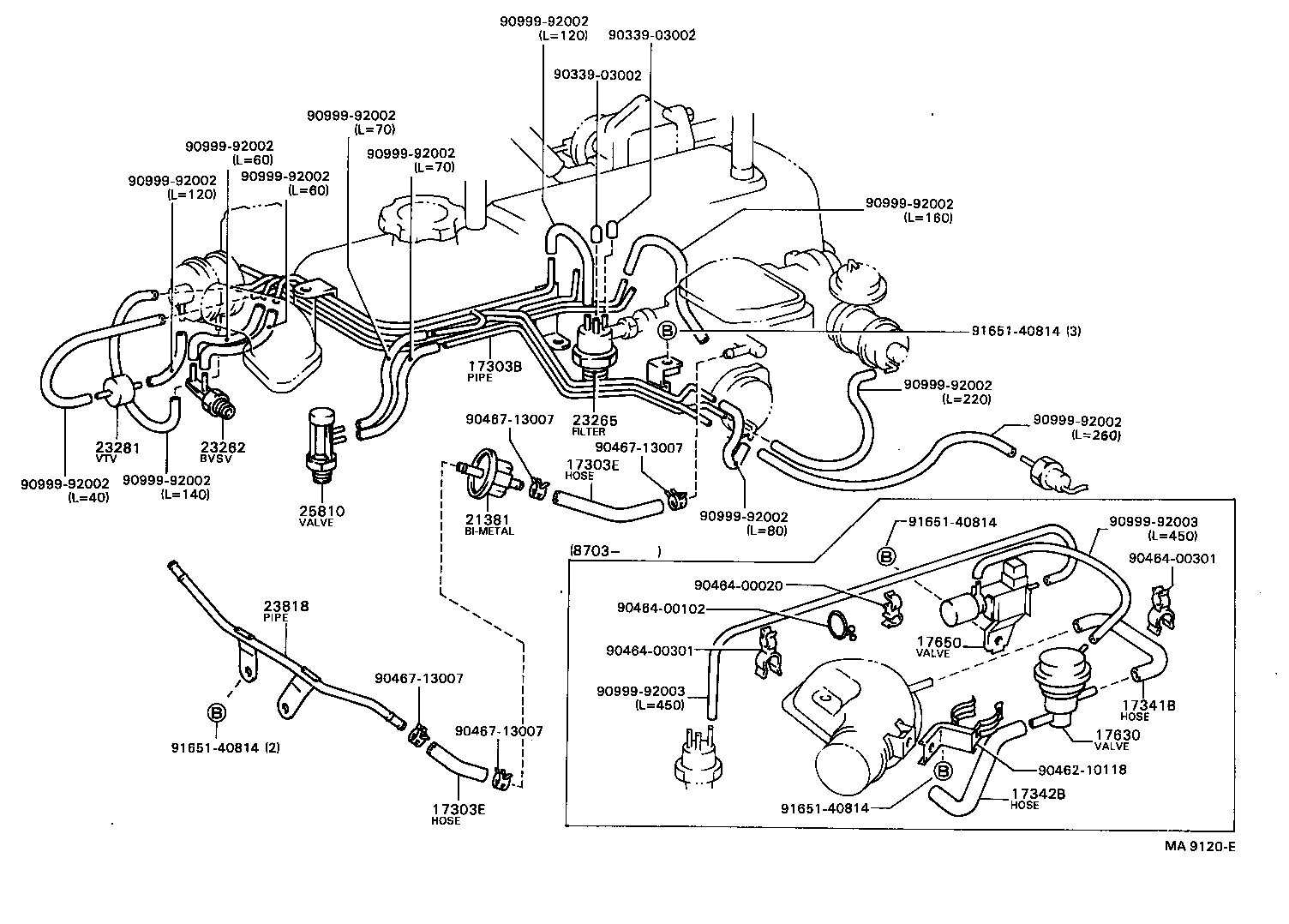

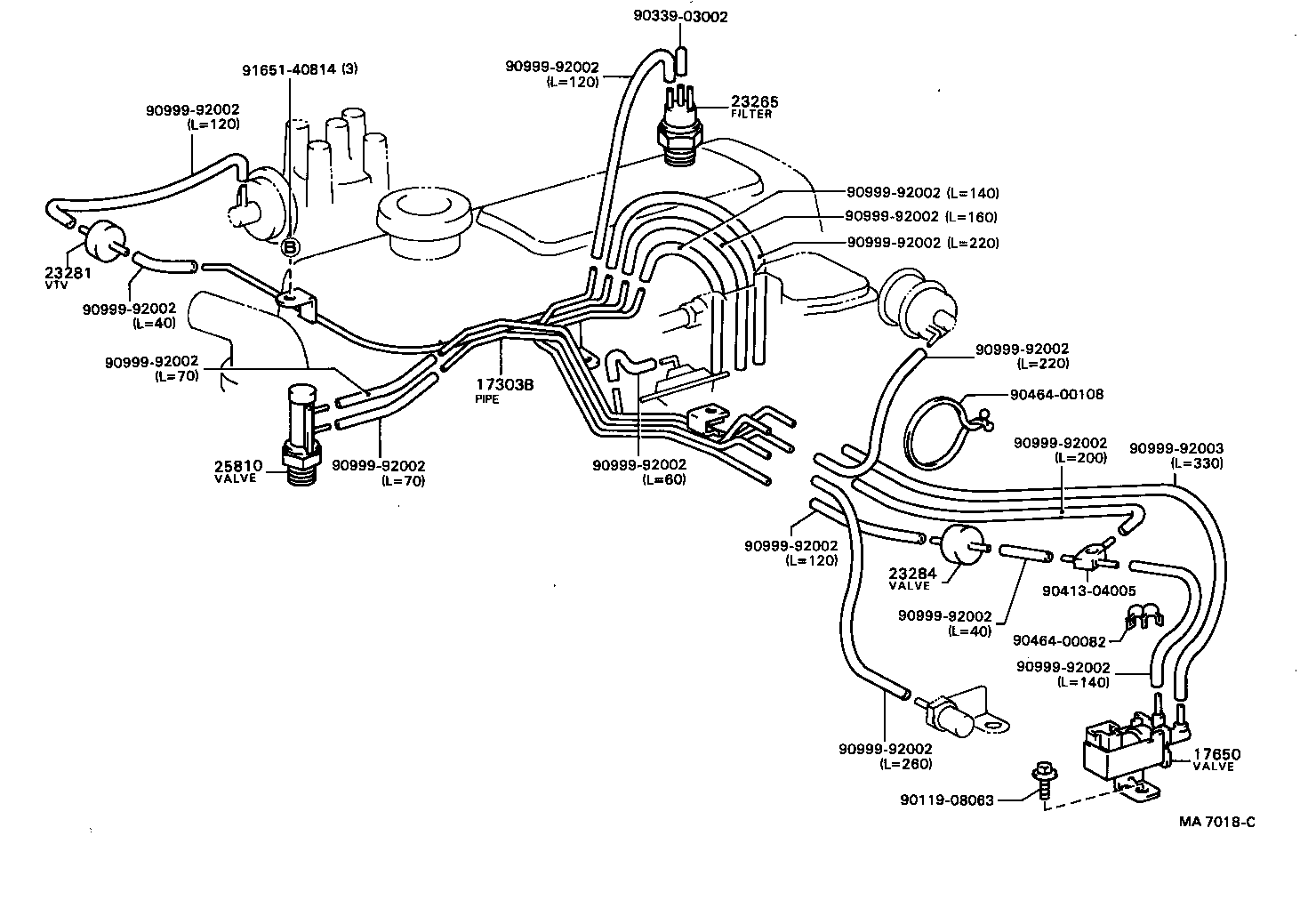

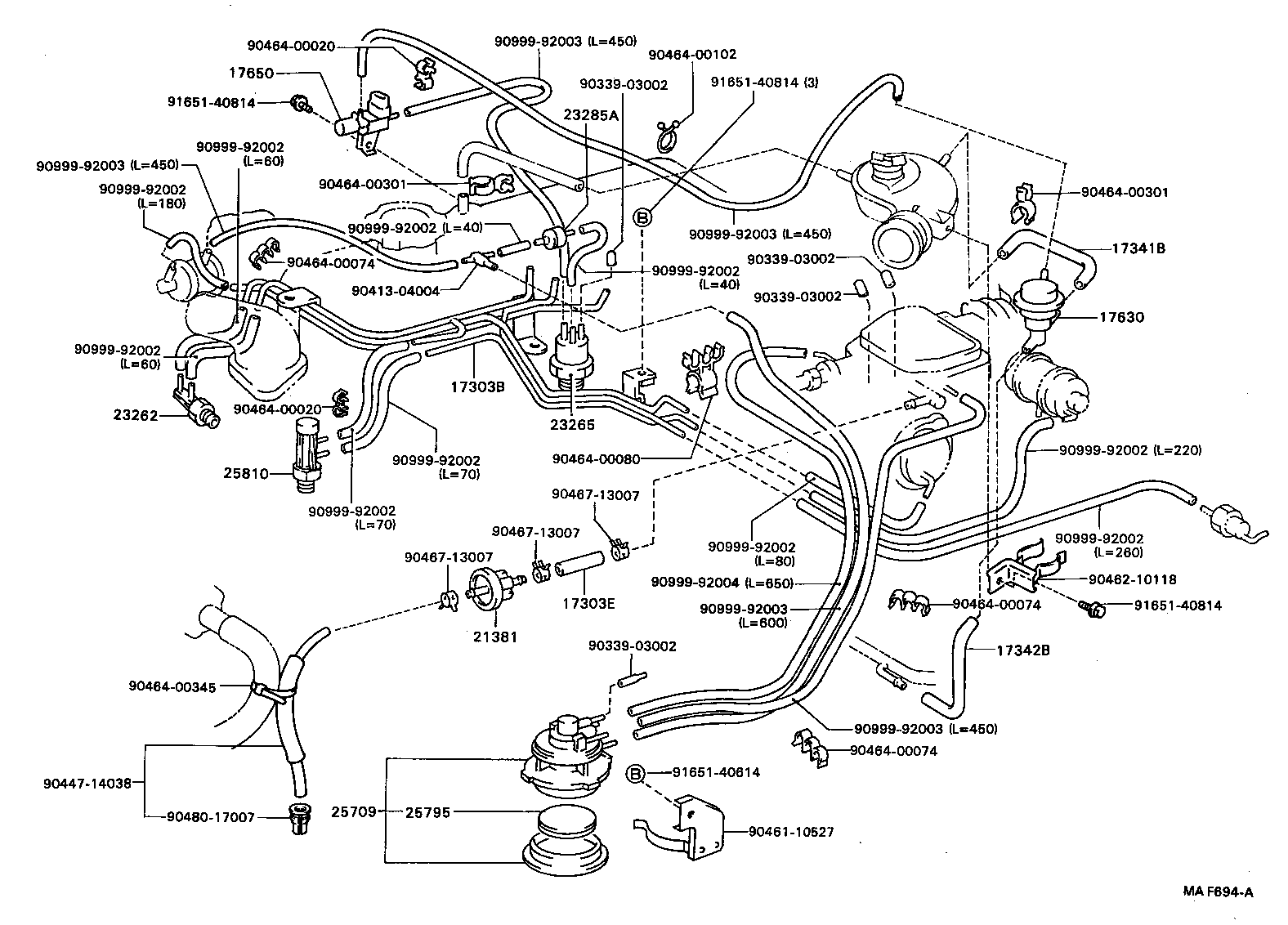

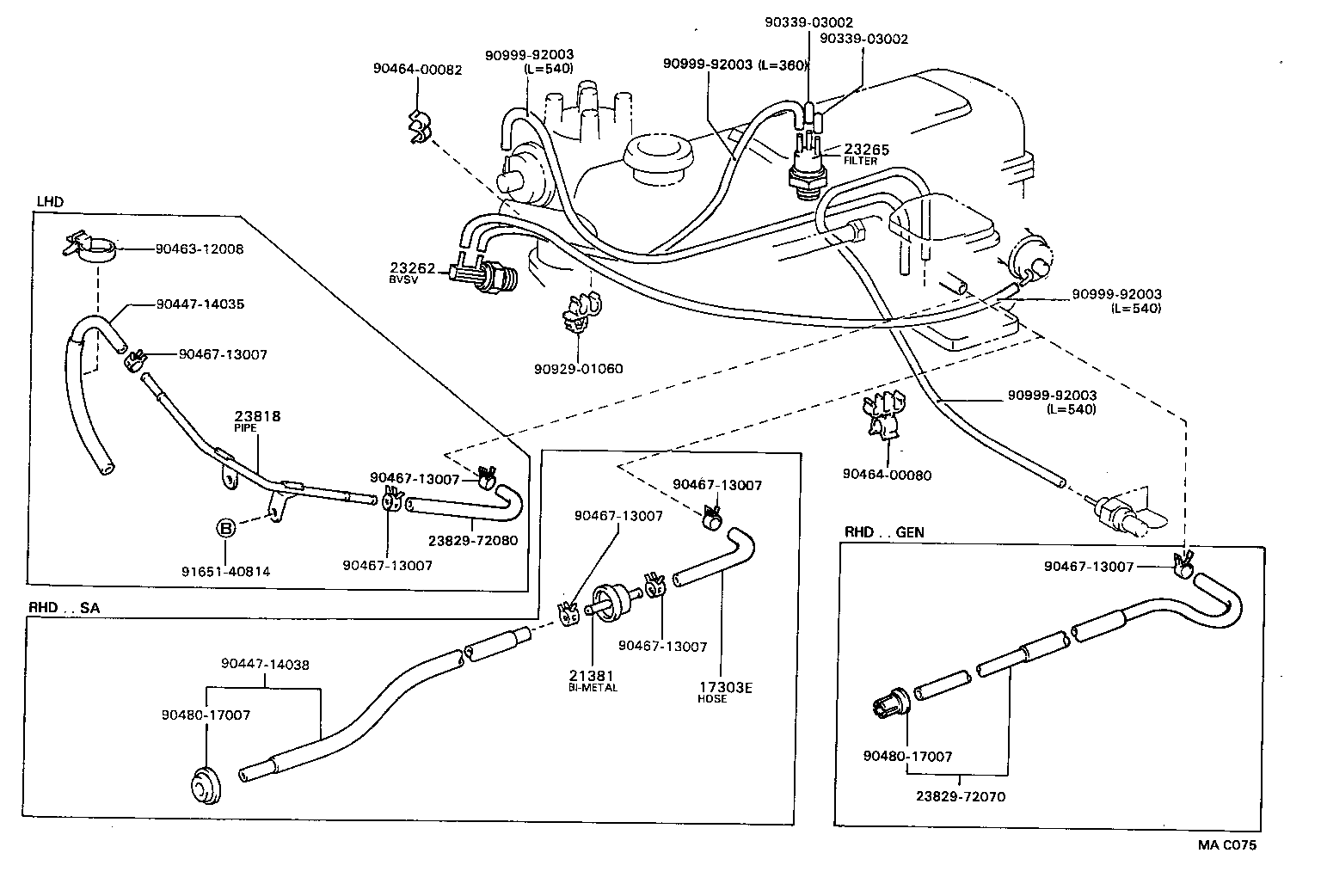

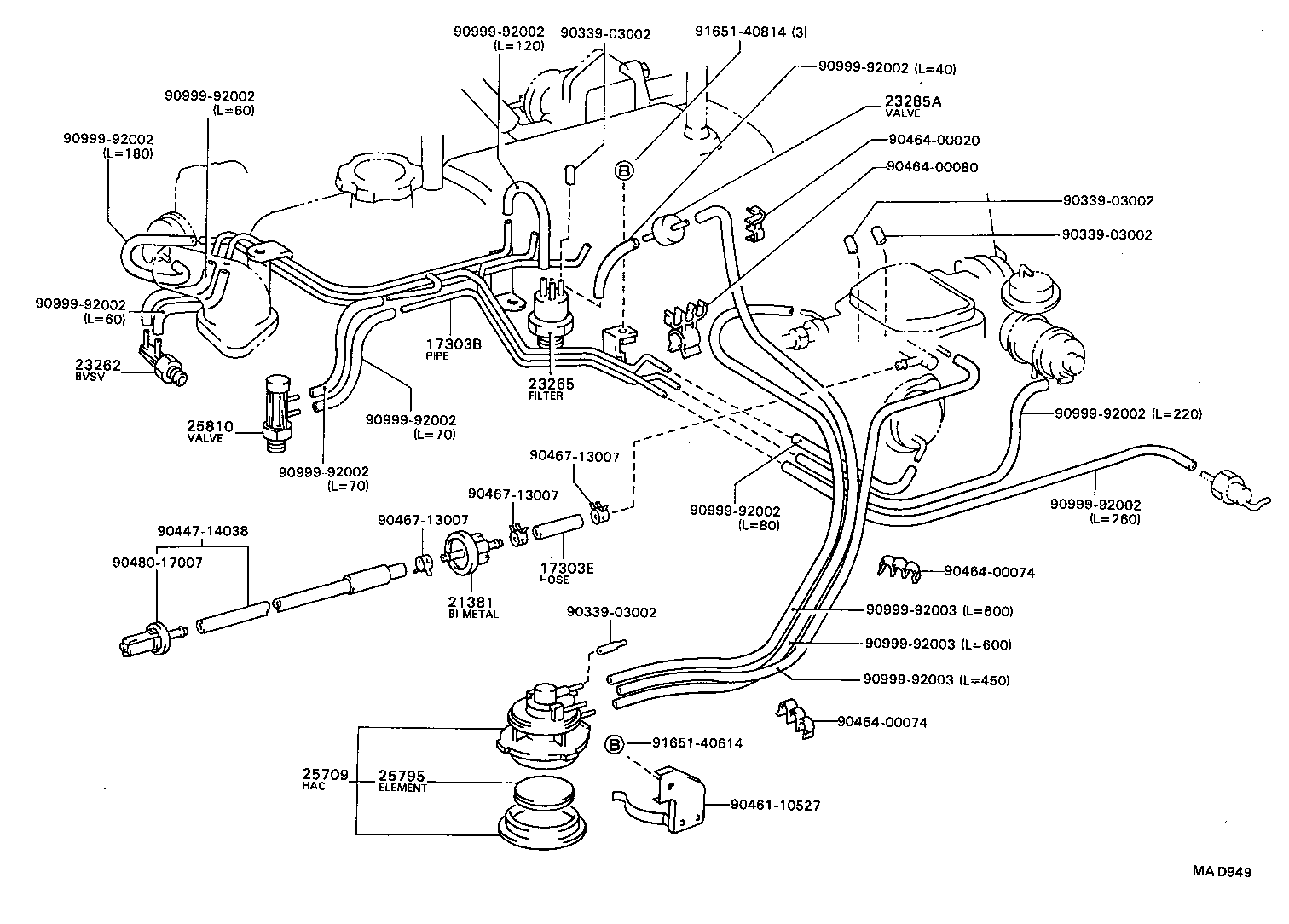

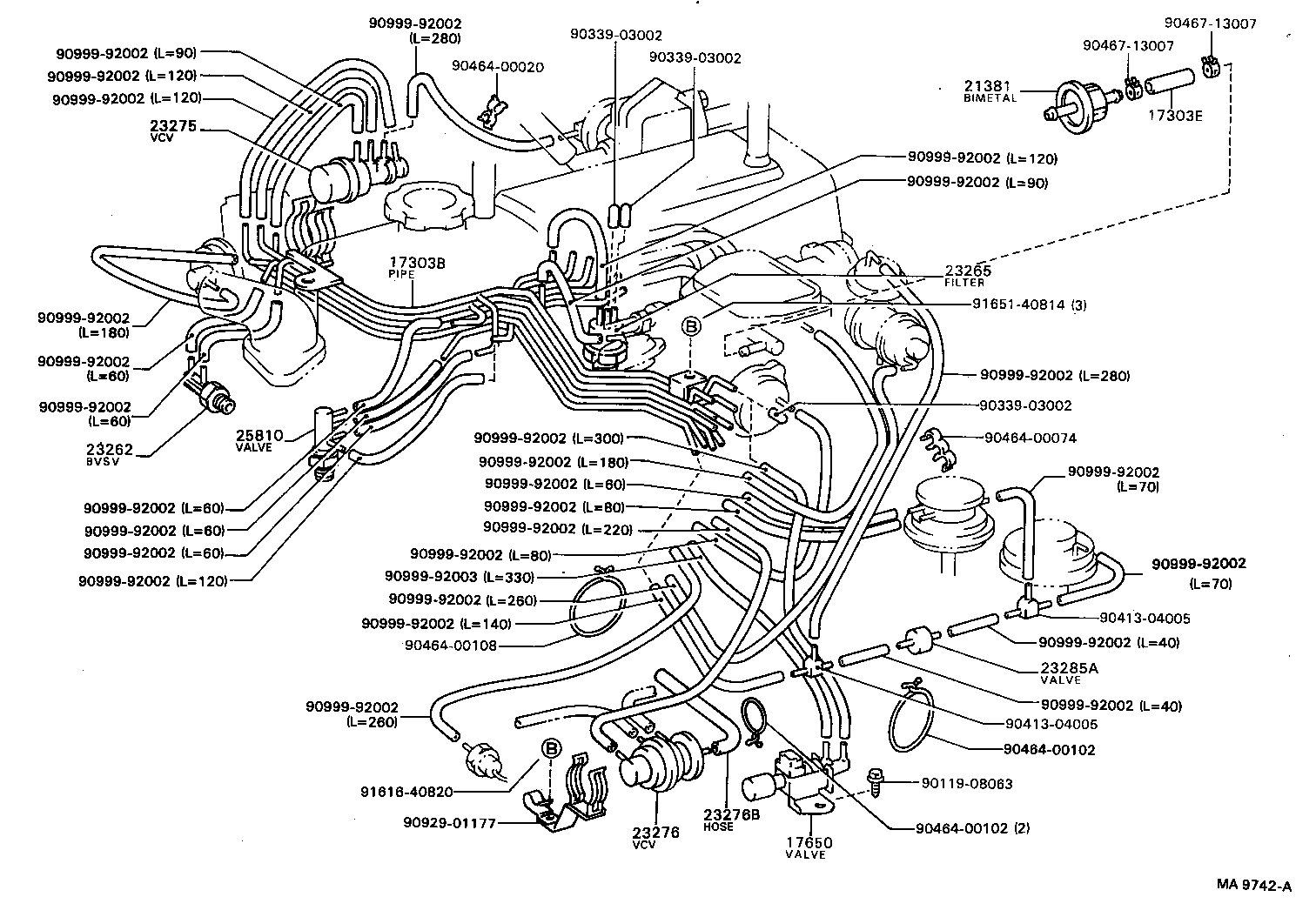

Figure MA8901D MA8901D 1986-01 → 1988-08 Figure MAE928B MAE928B 1994-07 → — Figure MAA617B MAA617B 1987-12 → 1988-08 Figure MAC076 MAC076 1988-08 → 1989-03 Figure MA9504B MA9504B 1983-08 → — Figure MA9742A MA9742A 1987-08 → 1989-03 Figure MA7018C MA7018C 1983-08 → 1986-08 Figure MA9117C MA9117C 1986-08 → 1988-08 Figure MA7324C MA7324C 1983-08 → 1985-08 Figure MA8507C MA8507C 1985-08 → 1986-08 Figure MA8508B MA8508B 1985-08 → 1986-08 Figure MA9118C MA9118C 1986-08 → 1987-08 Figure MA9118C MA9118C 1986-08 → 1988-08 Figure MAC075 MAC075 1988-08 → 1989-12 Figure MAC075 MAC075 1989-12 → — Figure MAD948 MAD948 1989-12 → 1991-08 Figure MAF693A MAF693A 1991-08 → — Figure MA9119C MA9119C 1986-08 → 1989-11 Figure MA9119C MA9119C 1989-11 → — Figure MAD949 MAD949 1989-11 → 1991-08 Figure MAF694A MAF694A 1991-08 → — Figure MA9120E MA9120E 1986-08 → 1989-03 Figure MA7019E MA7019E 1983-08 → 1985-08 Figure MA7019E MA7019E 1983-08 → — Figure MA8509D MA8509D 1985-08 → 1987-08 Figure MA8509D MA8509D 1985-08 → — Figure MA8544C MA8544C 1985-08 → 1987-08 Figure MA9121C MA9121C 1986-08 → 1989-03

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17810A Filter Assy, Air
21381 Bimetal, Thermostatic
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23269 Union(FOR GAS FILTER)
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23276B Hose(FOR VACUUM CONTROL VALVE)
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23284 Valve, Vacuum Transmitting, NO.4
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25709A Clamp(FOR HIGH ALTITUDE COMPENSATOR VALVE)
25795 Element, Altitude Compensator Filter
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
