Toyota Hilux

1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

22 part groups · 9 illustrations

Illustrations

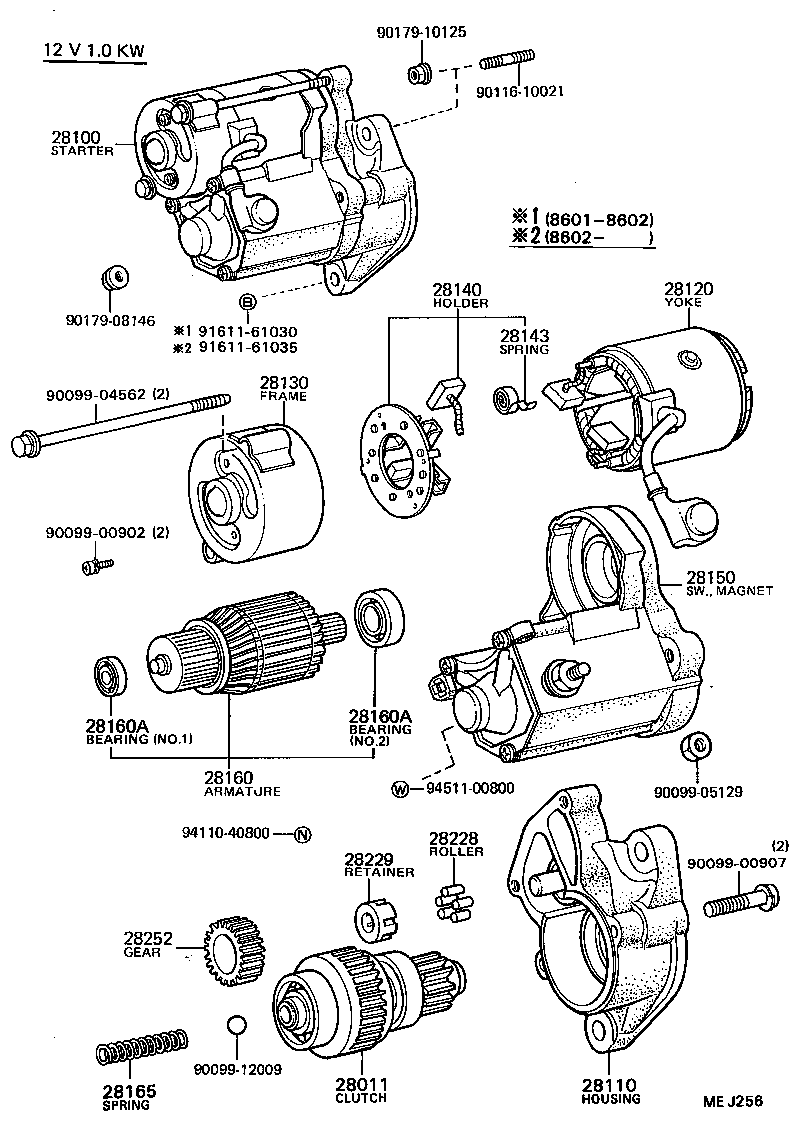

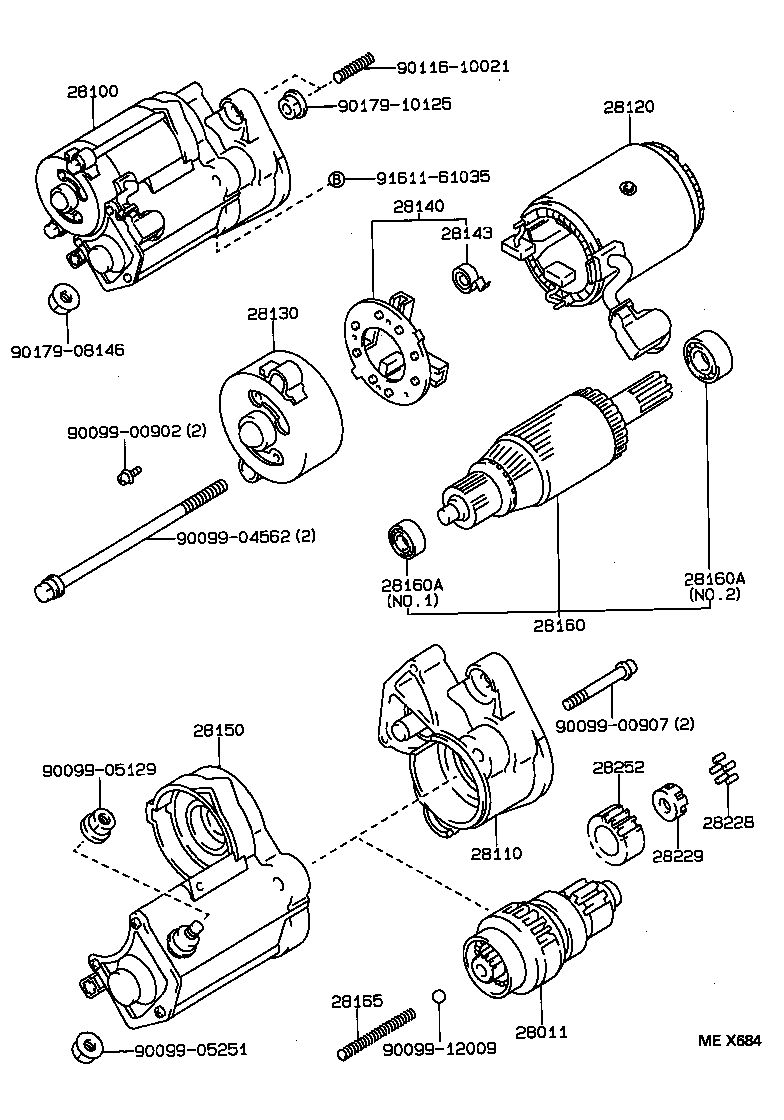

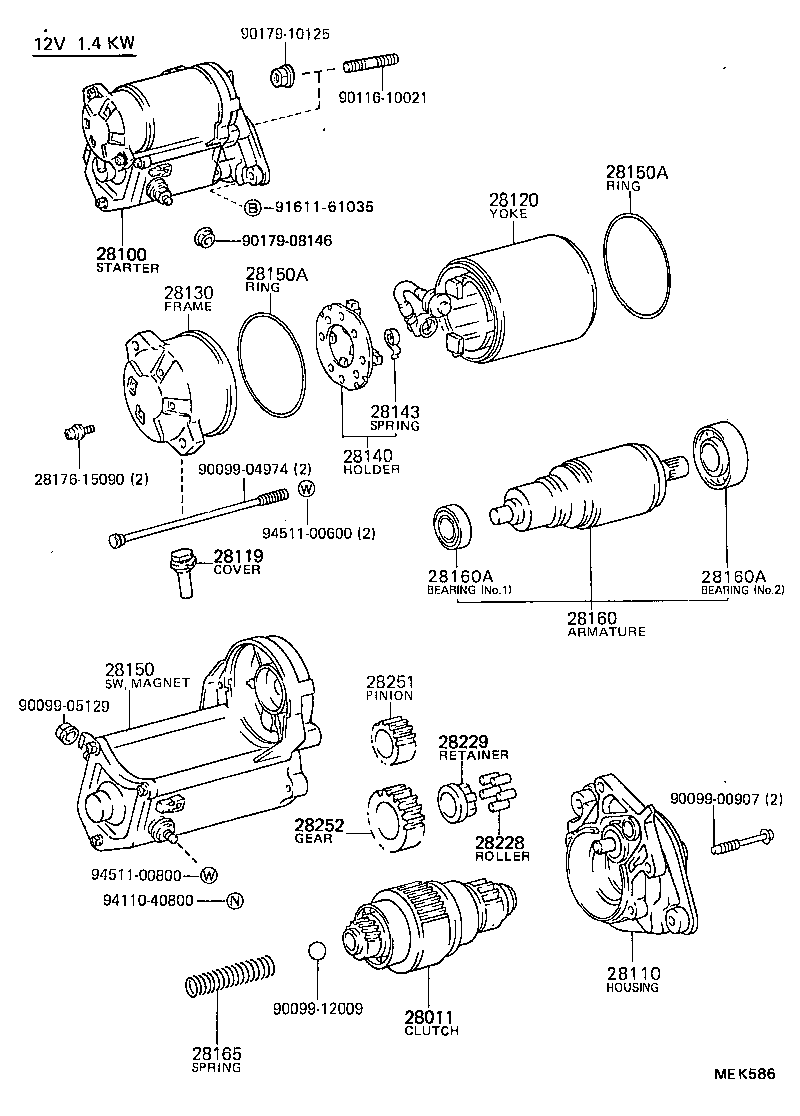

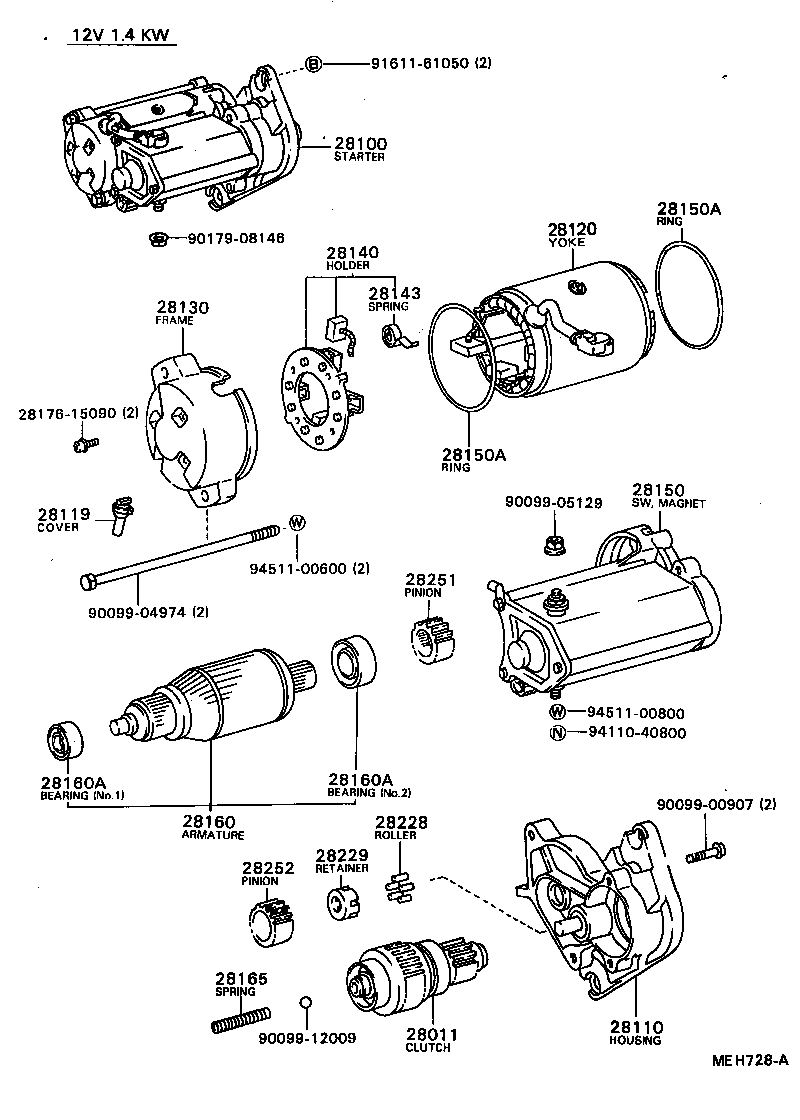

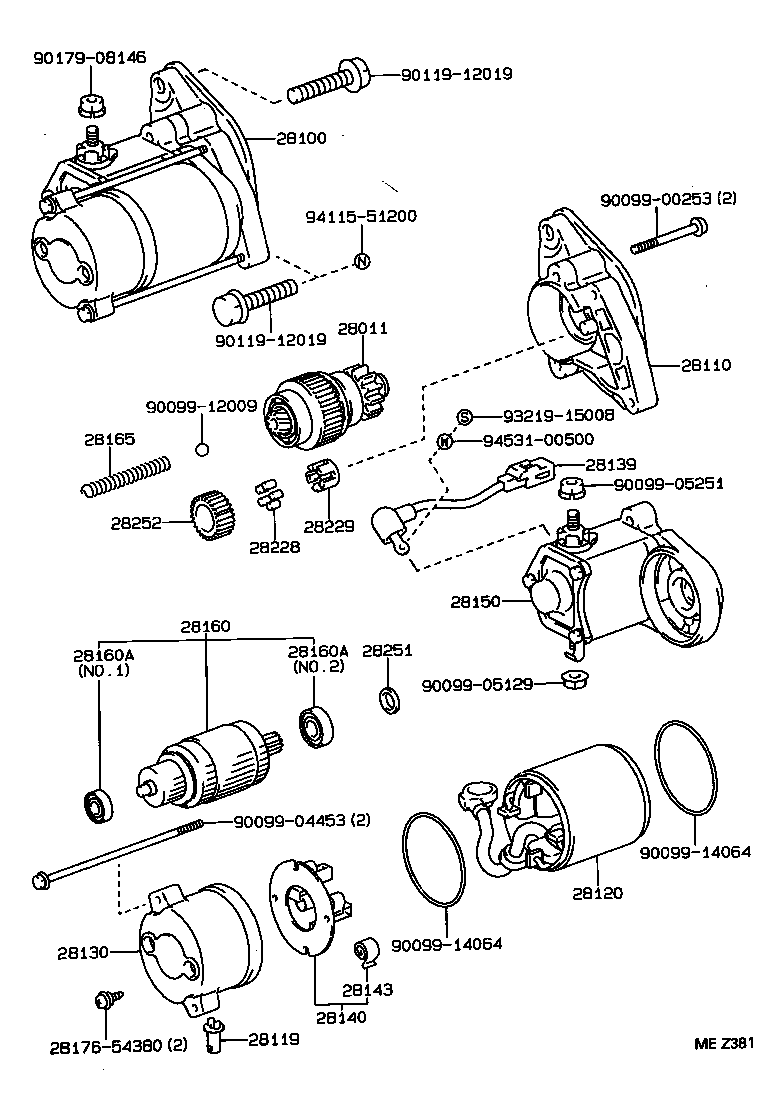

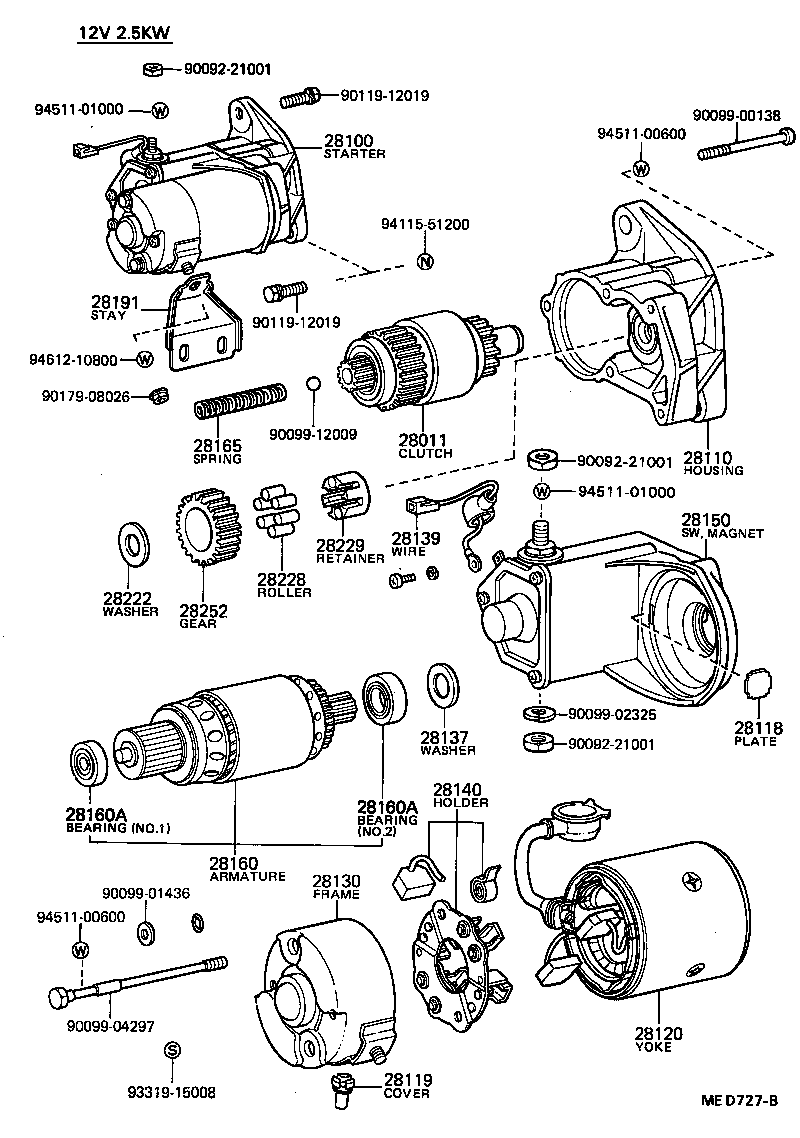

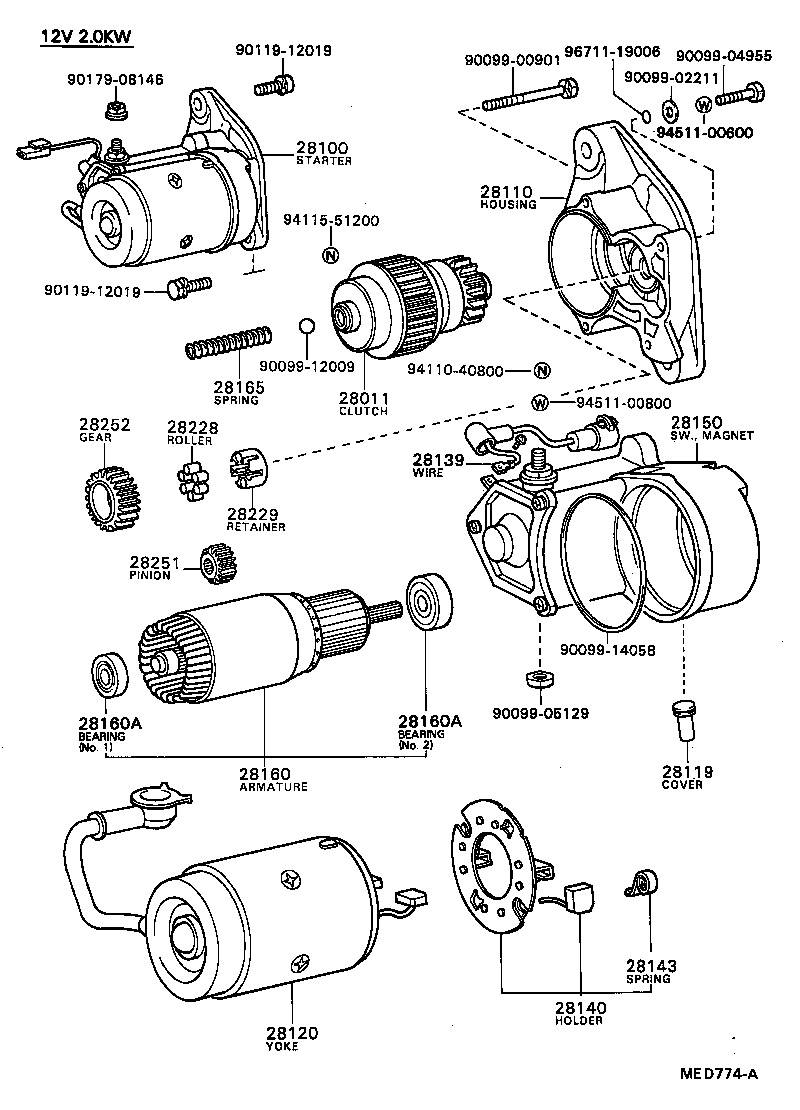

Figure MEH143A MEH143A 1983-08 → — Figure MEH728A MEH728A 1986-08 → 1989-03 Figure MEJ256 MEJ256 1986-01 → 1988-08 Figure MEK586 MEK586 1987-12 → 1989-03 Figure MEX684 MEX684 1994-07 → — Figure MED774A MED774A 1983-08 → 1995-08 Figure MEZ381 MEZ381 1995-08 → — Figure MED727B MED727B 1983-08 → 1988-08 Figure MED727B MED727B 1983-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28118 Plate(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28137 Washer, Felt, Starter
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28150A Packing(FOR STARTER MAGNET SWITCH)
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28165 Spring, Starter Magnet Switch Return
28191 Stay, Starter
28222 Washer, Starter Idle Gear Clutch
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28251 Pinion, Starter Drive
28252 Gear, Starter Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
