Toyota Hilux
1983-08 → 1998-07 · chassis LN5#,6#,YN5#,6#,RN5#,6# · catalogue 671240 · Europe
Discontinued model
Data version 1999-01

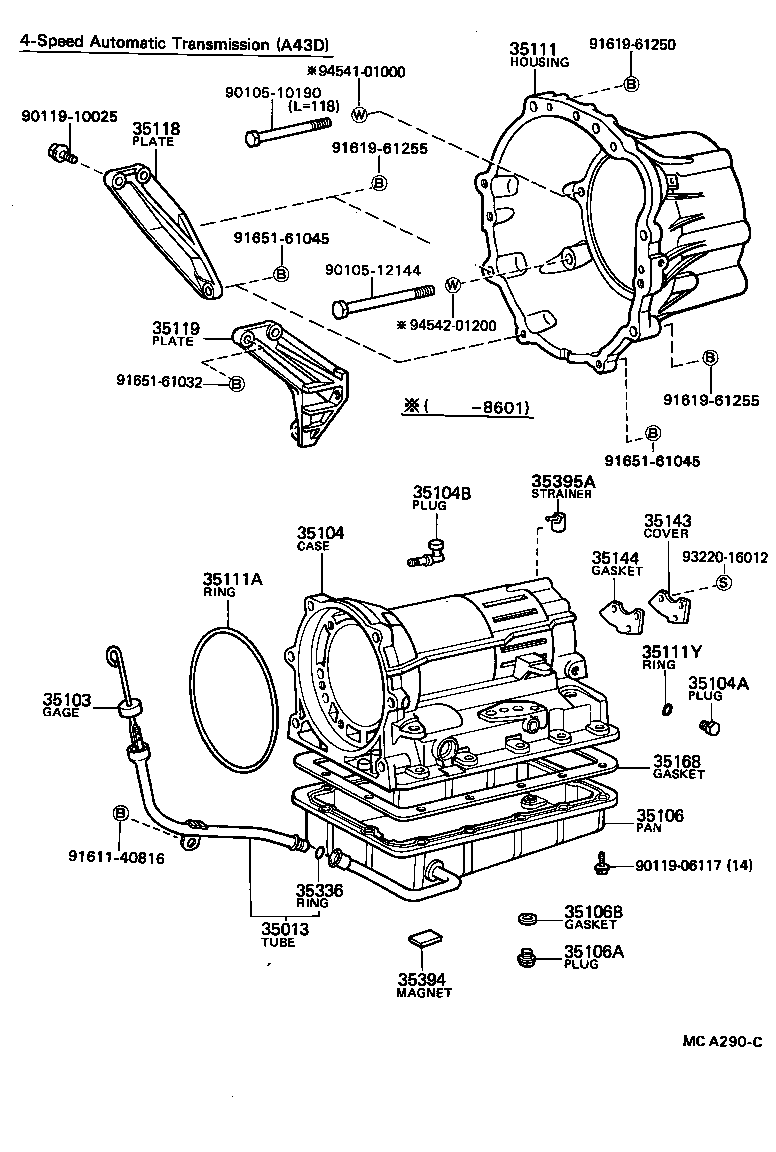

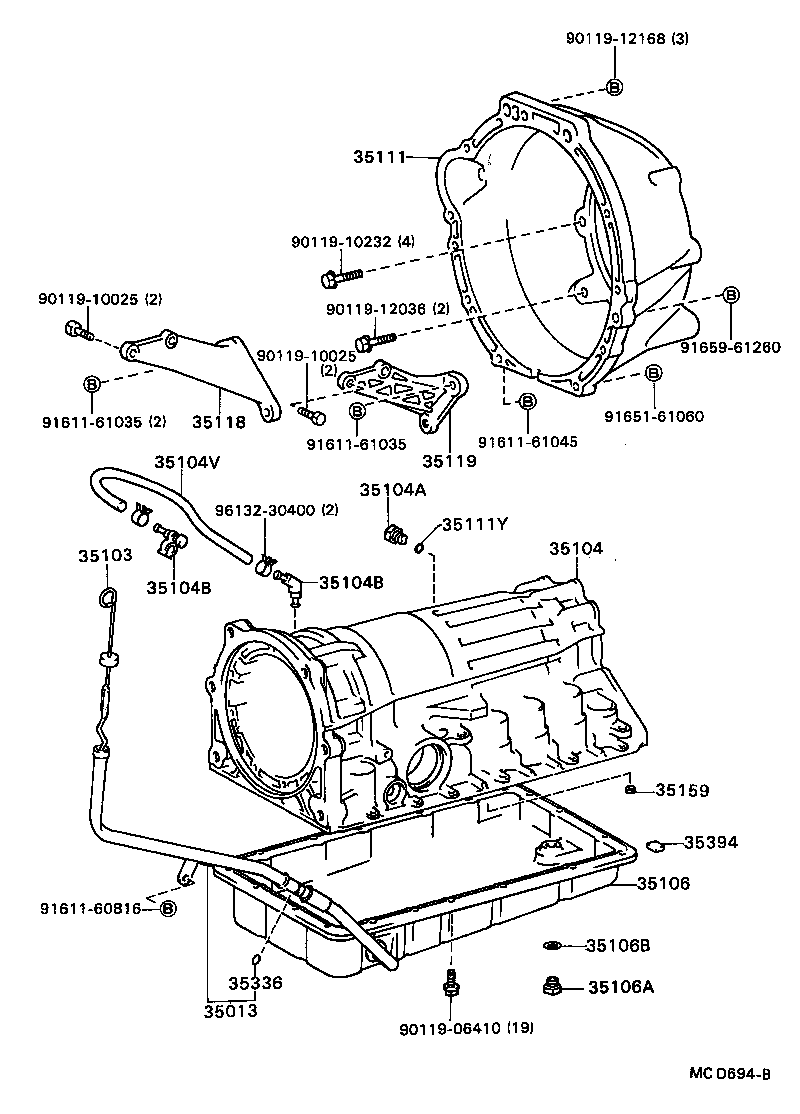

Transmission Case & Oil Pan (ATM)
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35013 | Tube Sub-assy, Transmission Oil Filler |
| 35103 | Gage Sub-assy, Transmission Oil Level |
| 35104 | Case Sub-assy, Automatic Transmission |
| 35104A | Plug, Automatic Transmission Case |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104V | Hose (FOR BREATHER PLUG) |
| 35106 | Pan Sub-assy, Automatic Transmission Oil |
| 35106A | Plug Sub-assy, Drain (ATM) |
| 35106B | Gasket, Drain Plug (ATM) |
| 35111 | Housing, Automatic Transmission |
| 35111A | Ring, O (FOR AUTOMATIC TRANSMISSION HOUSING) |
| 35111Y | Ring, O (FOR AUTOMATIC TRANSMISSION CASE) |
| 35118 | Plate, Stifener, RH (ATM) |
| 35119 | Plate, Stifener, LH (ATM) |
| 35143 | Cover, Transmission Case, Rear |
| 35144 | Gasket, Transmission Case Rear Cover |
| 35159 | Gasket, Brake Drum |
| 35168 | Gasket, Automatic Transmission Oil Pan |
| 35336 | Ring, O (FOR TRANSMISSION OIL FILLER TUBE) |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
| 35395A | Strainer, Governor Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
