Oil Cooler & Tube (ATM)

29 part groups · 3 illustrations

Illustrations

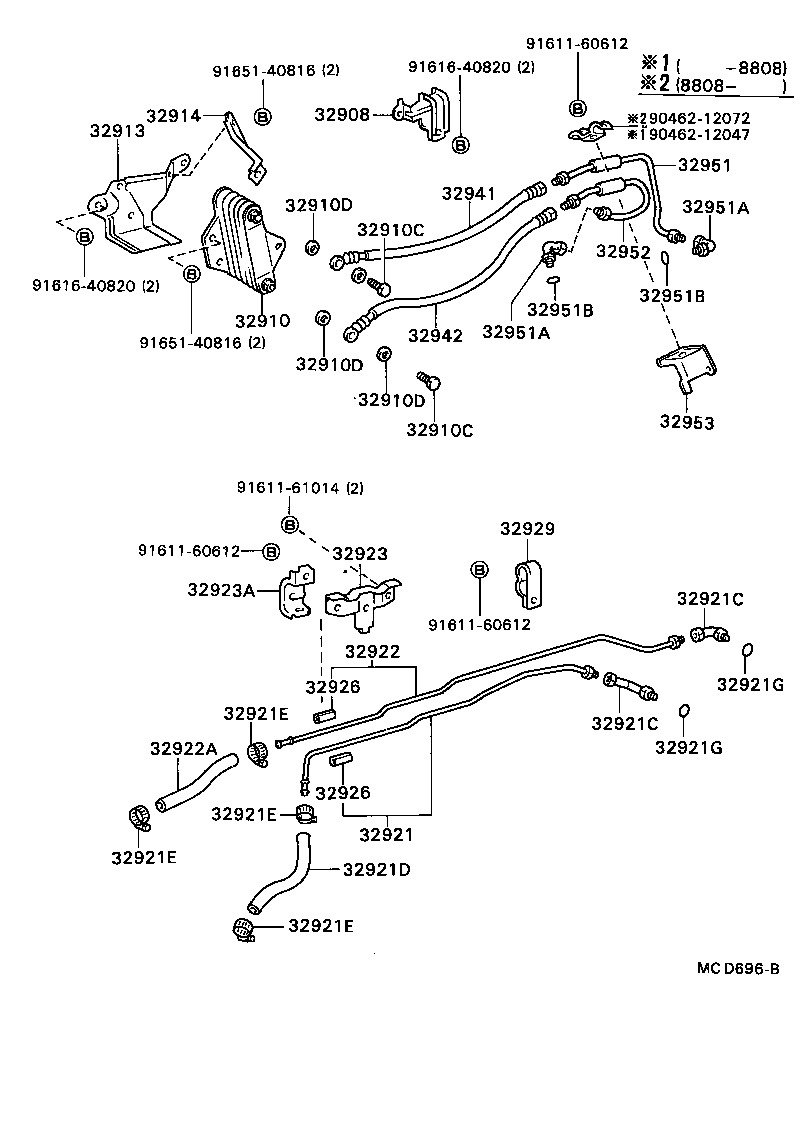

Figure MCA294B MCA294B 1983-08 → — Figure MCA295A MCA295A 1983-08 → — Figure MCD696B MCD696B 1986-08 → —

Part groups

PNCDescription
32908 Clamp Sub-assy, Oil Cooler Hose
32910 Cooler Assy, Oil
32910C Bolt, Union(FOR OIL COOLER)
32910D Gasket(FOR OIL COOLER)
32913 Bracket, Oil Cooler
32914 Stay, Oil Cooler
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921E Clamp, Hose(FOR OIL COOLER)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32923 Clamp, Automatic Transmission Oil Cooler Tube
32923A Clamp, Automatic Transmission Oil Cooler Tube
32924 Clamp, Oil Cooler Tube, NO.2
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32926 Cushion, Oil Cooler Tube(ATM)
32928 Clamp, Flexible Hose, NO.1
32928A Clamp(FOR FLEXIBLE HOSE CLAMP)
32929 Clamp, Flexible Hose, NO.2
32929A Clamp(FOR FLEXIBLE HOSE CLAMP)
32941 Hose, Oil Cooler Inlet, NO.1
32942 Hose, Oil Cooler Outlet, NO.1
32951 Tube, Transfer Oil Cooler Inlet
32951A Elbow(FOR TRANSFER OIL COOLER TUBE)
32951B Ring, O(FOR TRANSFER OIL COOLER TUBE)
32952 Tube, Transfer Oil Cooler Outlet
32953 Clamp, Transfer Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
